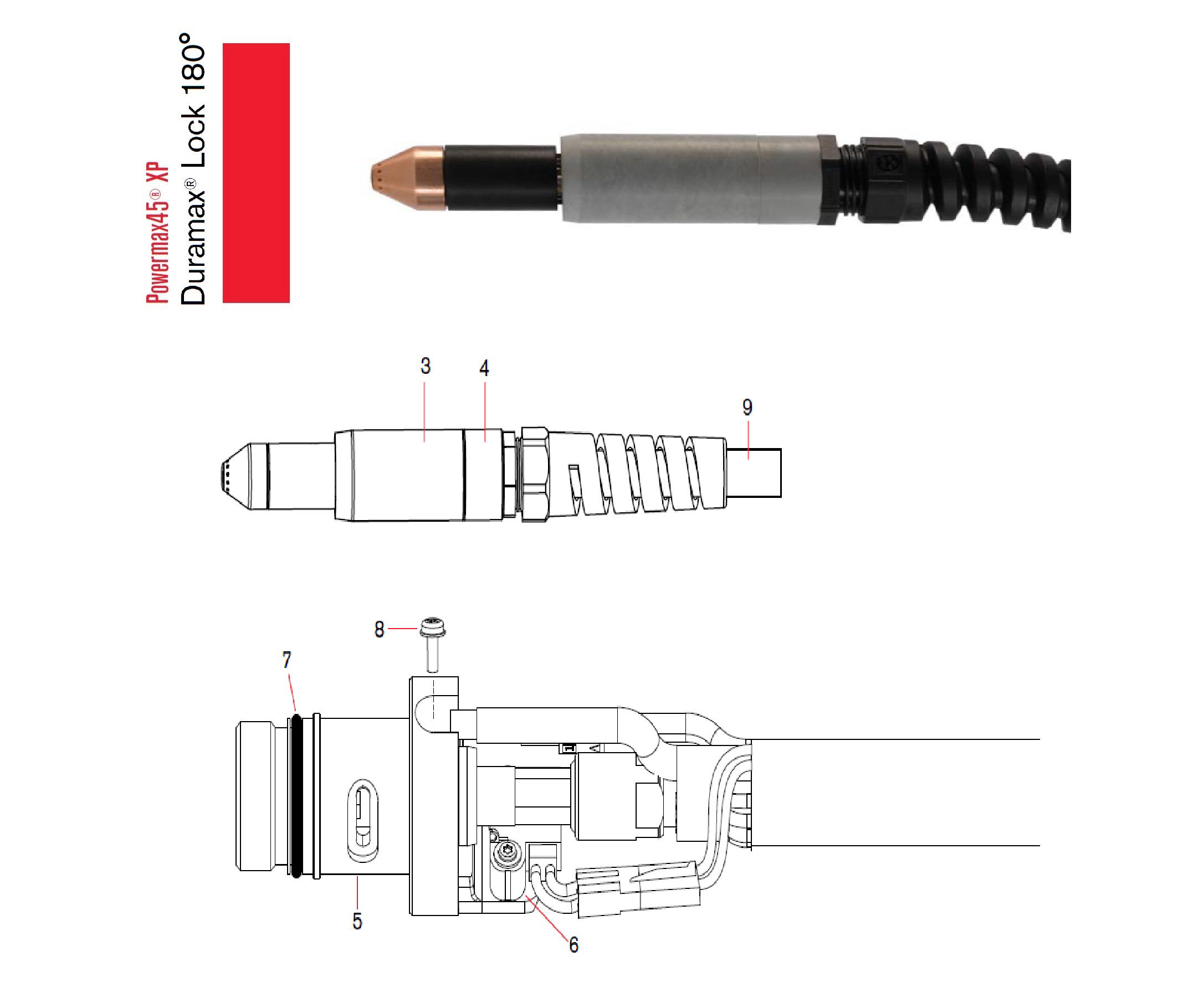

Mechanized consumable diagram for the Duramax Lock mini 180 degree machine torch. Use this diagram with the parts list below when identifying mini machine torch consumables.
Consumable diagram

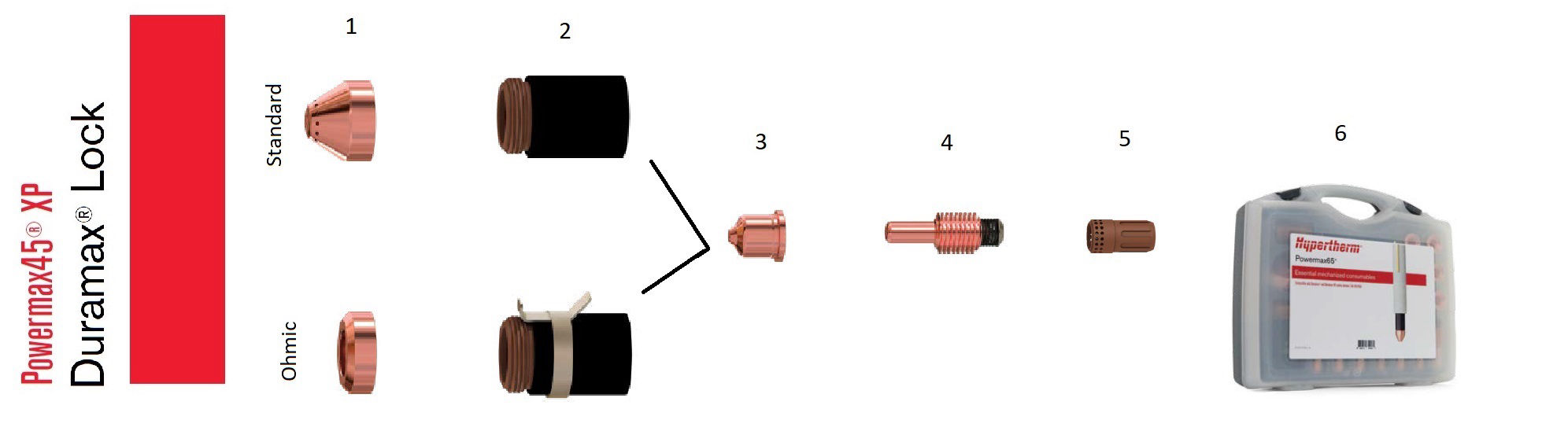

Machine torch consumable stack for Duramax Lock mini 180 degree setups.
As an Amazon Associate, I earn from qualifying purchases.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Torch | 059481 |
Duramax 180° mini machine torch assembly with 4.5 m (15') lead
|
View on Amazon | |
| Torch | 059482 |
Duramax 180° mini machine torch assembly with 7.6 m (25') lead
|
View on Amazon | |
| Torch | 059483 |
Duramax 180° mini machine torch assembly with 10.7 m (35') lead
|
View on Amazon | |
| Torch | 059484 |
Duramax 180° mini machine torch assembly with 15.2 m (50') lead
|
View on Amazon | |
| 3 | 220956 |
Kit: Duramax 180°/Duramax 180° mini torch front mounting sleeve
|
Buy link unavailable. | |
| 4 | 228736 |
Kit: Duramax 180°/Duramax 180° mini torch adapter ring (coupler)
|
View on Amazon | |
| 5 | 228716 |
Kit: Duramax 180°/Duramax 180° mini torch main body replacement
|
View on Amazon | |
| 6 | 228720 |
Kit: Cap-sensor switch replacement
|
View on Amazon | |
| 7 | 058519 |
O-ring
|
View on Amazon | |
| 8 | 075504 |
Pilot terminal screw
|
Buy link unavailable. | |
| 9 | 228730 |
Kit: Duramax 180°/Duramax 180° mini torch lead replacement, 4.5 m (15')
|
Buy link unavailable. | |
| 9 | 228731 |
Kit: Duramax 180°/Duramax 180° mini torch lead replacement, 7.6 m (25')
|
View on Amazon | |
| 9 | 228732 |
Kit: Duramax 180°/Duramax 180° mini torch lead replacement, 10.7 m (35')
|
Buy link unavailable. | |
| 9 | 228733 |
Kit: Duramax 180°/Duramax 180° mini torch lead replacement, 15.2 m (50')
|
Buy link unavailable. | |
| 9 | 228734 |
Kit: Duramax 180°/Duramax 180° mini torch lead replacement, 22.8 m (75')
|
Buy link unavailable. | |
| 1 Standard | 220817 |
Standard Mechanized Shield/deflector
|
View on Amazon | |
| 1 Ohmic | 220955 |
Ohmic Mechanized Shield/deflector
|
Buy link unavailable. | |
| 2 Standard | 220854 |
Standard Mechanized Retaining Cap
|
View on Amazon | |
| 2 Ohmic | 220953 |
Ohmic Mechanized Retaining Cap
|
View on Amazon | |
| 3 | 220941 |
15-45 Amp Nozzle (pk of 5)
|
pk of 5 | View on Amazon |
| 4 | 220842 |
15-45 Amp Electrode (pk of 5)
|
pk of 5 | View on Amazon |
| 4 | 220777 |
15-45 Amp Electrode (pk of 5) - Extended life for 1/2" and smaller Material
|
pk of 5 | View on Amazon |
| 5 | 220857 |
Swirl Ring
|
View on Amazon | |
| 6 | 851511 |
Standard Mechanized Consumable Kit - 2 Standard Shield 220817 1 Retaining Cap 220854 7 Standard Nozzle 220941 4 Standard Electrode 220842 3 Extended Life Electrode 220777 ( for 1/2" and below ) 1 Swirl Ring 220857
|
View on Amazon | |
| 6 | 851512 |
Ohmic Mechanized Consumable Kit - 1 Standard Shield 220955 1 Retaining Cap 220953 7 Standard Nozzle 220941 4 Standard Electrode 220842 3 Extended Life Electrode 220777 ( for 1/2" and below ) 1 Swirl Ring 220857
|
Buy link unavailable. |
Related consumables
Machine support path connected to the Duramax Lock torch family.
Open Powermax45 XP supportFull-size machine torch option in the same Duramax Lock platform.
Open 180 degree machine torchHand torch option for the same Powermax45 XP consumable ecosystem.
Open 75 degree hand torch
Match the part number, machine model, gun or torch family, package quantity, and generation before buying. Amazon links are convenience links only, not compatibility proof.
