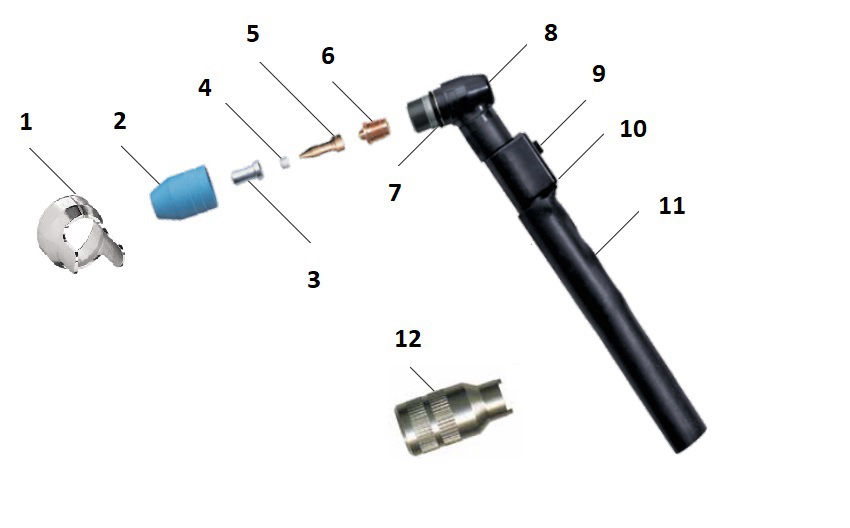

| Item # | Part # | Description |
|---|---|---|
| Torch | 21661 21662 35548 21620 21621 | 25 ft. (7.6 m) lead with ring terminal 50 ft. (15.2 m) lead with ring terminal 25 ft. (7.6 m) “CE” regions that require “CE” such as Europe, Russia, and Australia 25 ft. (7.6 m) lead with plug - for power source prior to 4-31-1995 50 ft. (15.2 m) lead with plug - for power source prior to 4-31-1995 |
| 1 | 21420 | Stand off guide |
| 2 | 21616 35443 | Heat Shield (Standard / Cutting Shield) Gouging Shield |
| 3 | 33368 33369 33418 35442 | Cutting Nozzle 30 A .0371
(0.9) Cutting Nozzle 50/70A .047 (1.2) Cutting Nozzle 80A .052 (1.3) Gouging nozzle .093 (2.4) |
| 4 | 33367 | Swirl Baffle (Swirl Ring) |
| 5 | 33366XL | Electrode |
| 6 | 0558003032 | Seat |
| 7 | 0558003694 | O-Ring |
| 8 | 21610 | 75° Torch Body |
| 9 | 18224 | Switch |
| 10 | 33400 | Switch Band |
| 11 | 21218 | Flex Support |
| 12 | 0558003027 | Seat Installation Tool |
| n/a | 21623 21624 | 50-70A Spare Parts Kit 80A Spare Parts Kit |
| n/a | 0558000739 | Plasma flow measuring kit |
| n/a | 0558003258 0558002675 | Torch Guide Kit
Deluxe: 1-3⁄4 in. (44.5 mm) 42 in. (106 cm) radius Torch Guide Kit Basic: 1-3⁄4 in. (44.5 mm) 28 in. (71 cm) radius |
| n/a | 0558003032 0558003027 | Seat & installation instructions Seat Installation Tool |
| n/a | 0558000443 | Lubricant .25 oz |
| n/a | 952137 | Fuse 15A, 600 VDC |
| PT-27 Torch | |
|---|---|
| Cuts, in. (mm) | 1 (25.4) |
| Severs, in. (mm) | up to 1-1⁄4 (31.75) |
| Current capacity | 80A @ 100% duty cycle |
| Air supply, cfh @ psig (L/min) | 320 @ 65 - 75 (150) |
| Length of service leads, ft. (m) | 25 (7.6) 50 (15.2) |
| Dimensions, in. (mm) | 7.3 (185)length, 3.06 (78) torch head |
