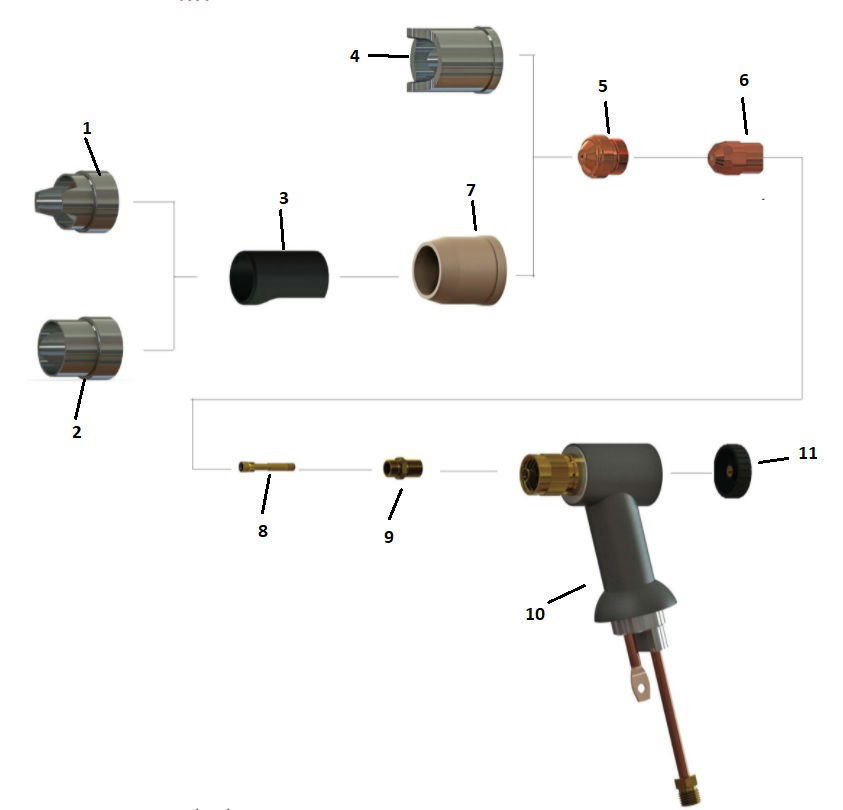

| Item # | Part # | Description |
|---|---|---|
| Torch | 19999 20000 20001 20002 | 25 ft. (7.6 m) PT-17A 75 Degree Head 50 ft. (15.2 m) PT-17A 75 Degree Head 25 ft. (7.6 m) PT-17AM Machine Torch 50 ft. (15.2 m) PT-17AM Machine Torch |
| 1 | 19989 | Stand off guide (Drag) |
| 2 | 19990 | Stand off guide (Standard) |
| 3 | 19502 | Shroud |
| 4 | 19122 | Heat Shield |
| 5 | 19915 19916 19917 20056 20426 20427 | 30A Cutting Nozzle .046" (1.2 mm) 60A Cutting Nozzle .052" (1.4 mm) 80A Cutting Nozzle .057" (1.45 mm) 100A Cutting Nozzle .067" (1.7 mm) 70A Gouging Nozzle .089" (2.3 mm) 1000A Gouging Nozzle .106" (2.7 mm) |
| 6 | 19918 | Electrode |
| 7 | 20747 | Heat Shield |
| 8 | 19114 | Baffle Tube |
| 9 | 20053 | Electrode Adaptor |
| 10 | 20010 20008 | PT-17AM Torch Body Mechanized PT-17A Torch Body 75 Degree (Hand Held) |
| 11 | 19498 | Shroud Cap |
| n/a | 18224 19127 19156 | Switch Switch Band Flex Cable Support |
| n/a | 20062 20063 20064 | 50A Spare Parts Kit 80A Spare Parts Kit 100A Spare Parts Kit |
| n/a | 0558000739 | Plasma flow measuring kit |
| n/a | 0558003258 0558002675 | Torch Guide Kit
Deluxe: 1-3⁄4 in. (44.5 mm) 42 in. (106 cm) radius Torch Guide Kit Basic: 1-3⁄4 in. (44.5 mm) 28 in. (71 cm) radius |
| n/a | 19129 19497 | Wrench Pilot Arc Adaptor |
| n/a | 20803 20812 | Plasmit Torch Head Protector 75 Degree Leather Cable cover, 10' (3m) |
| n/a | 19500 | Adaptor to use Torch on PCM-875 and PCM-1125 Power Source |
| PT-17A Torch | |
|---|---|
| Cuts, in. (mm) | 1-1/4" (31.75mm) |
| Severs, in. (mm) | 1-1/2" (38.1 mm) |
| Current capacity | 100A @ 100% duty cycle |
| Air supply, cfh @ psig (L/min) | 290 @ 75 PSI (150 LPM) |
| Length of service leads, ft. (m) | 25 (7.6) 50 (15.2) |
| Dimensions, in. (mm) PT-17A PT-17AM | 10" (254mm)length, 2.87" (730mm) torch head 17.25" (438mm)length |
