Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown

Duramax Lock 180 degree machine torch assemblies, replacement parts, leads, shell parts, and mechanized consumables for the Powermax45 XP platform.

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Torch 088167
Machine torch assembly with 7.6 m (25 foot) lead (Assembly does not include Consumables)
torch assembly Duramax Lock 180 Degree Machine Torch Replacement Parts

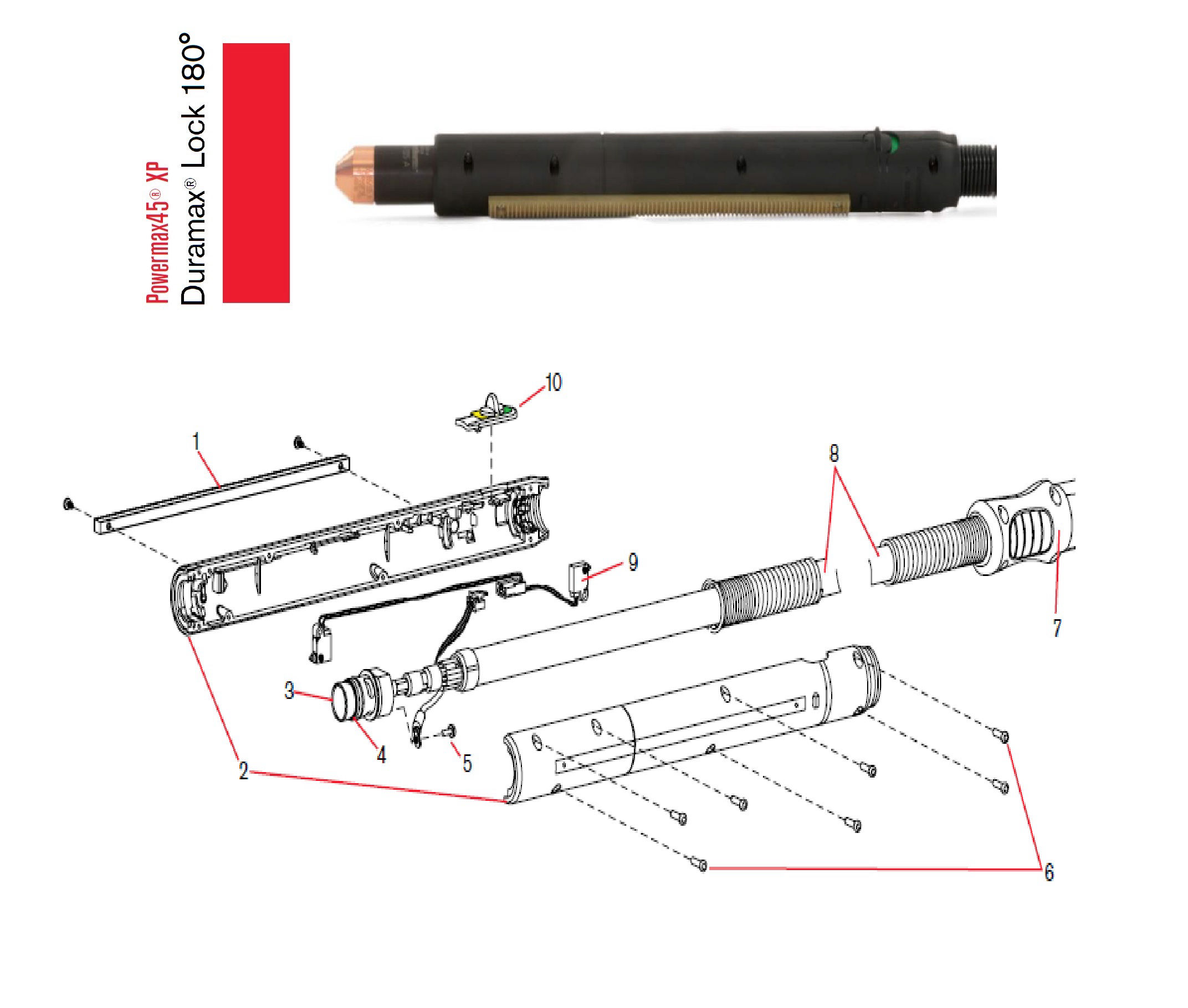

Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
Torch 088168
Machine torch assembly with 10.7 m (35 foot) lead (Assembly does not include Consumables)
torch assembly Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
Torch 088169
Machine torch assembly with 15 m (50 foot) lead (Assembly does not include Consumables)
torch assembly Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
1 428703
Removable 32-pitch gear rack (with screws)
torch hardware Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
2 428596
Machine torch shell (with screws)
torch hardware Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
3 428704
Torch main body replacement for machine torch
torch body Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
4 428180
Replacement O-rings for torch body
o-ring Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
5 075504
Pilot terminal screw
torch hardware Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
6 428148
Replacement screws for torch shell
torch hardware Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
7 428260
Torch quick-disconnect repair (shell with button – does not include torch lead)
lead Duramax Lock 180 Degree Machine Torch Replacement Parts Quick-disconnect repair row. Confirm lead and connector configuration before ordering.
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
8 428699
Machine torch lead replacement, 7.6 m (25 foot)
lead Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
8 428710
Machine torch lead replacement, 10.7 m (35 foot)
lead Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
8 428700
Machine torch lead replacement, 15 m (50 foot)
lead Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
9 428705
Cap-sensor switch/torch-disable switch assembly for machine torch (includes wires and connector)
retaining cap Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
10 428706
Torch-disable slider for machine torch (with yellow/green label)
replacement part Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A

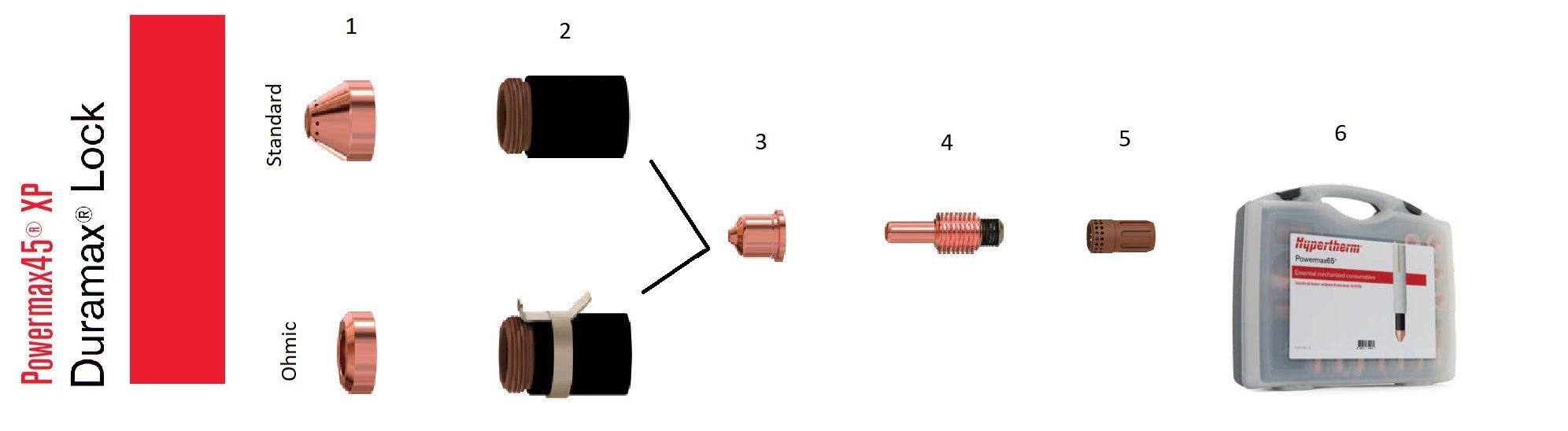

1 Standard 220817
Standard Mechanized Shield/deflector
shield Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
1 Ohmic 220955
Ohmic Mechanized Shield/deflector
shield Duramax Lock 180 Degree Machine Torch Replacement Parts Ohmic sensing row. Confirm the mechanized setup uses ohmic sensing before ordering.
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
2 Standard 220854
Standard Mechanized Retaining Cap
retaining cap Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
2 Ohmic 220953
Ohmic Mechanized Retaining Cap
retaining cap Duramax Lock 180 Degree Machine Torch Replacement Parts Ohmic sensing row. Confirm the mechanized setup uses ohmic sensing before ordering.
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
3 220941
15-45 Amp Nozzle (pk of 5)
nozzle Duramax Lock 180 Degree Machine Torch Replacement Parts Package quantity comes from the source row description.
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
pk of 5 N/A
4 220842
15-45 Amp Electrode (pk of 5)
electrode Duramax Lock 180 Degree Machine Torch Replacement Parts Package quantity comes from the source row description.
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
pk of 5 Buy on Amazon
4 220777
15-45 Amp Electrode (pk of 5) - Extended life for 1/2" and smaller Material
electrode Duramax Lock 180 Degree Machine Torch Replacement Parts Extended-life electrode row. Match material thickness and process setup before ordering. Package quantity comes from the source row description.
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
pk of 5 N/A
5 220857
Swirl Ring
swirl ring Duramax Lock 180 Degree Machine Torch Replacement Parts
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
6 851511
Standard Mechanized Consumable Kit - 2 Standard Shield 220817 1 Retaining Cap 220854 7 Standard Nozzle 220941 4 Standard Electrode 220842 3 Extended Life Electrode 220777 ( for 1/2" and below ) 1 Swirl Ring 220857
kit Duramax Lock 180 Degree Machine Torch Replacement Parts Extended-life electrode row. Match material thickness and process setup before ordering.
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
6 851512
Ohmic Mechanized Consumable Kit - 1 Standard Shield 220955 1 Retaining Cap 220953 7 Standard Nozzle 220941 4 Standard Electrode 220842 3 Extended Life Electrode 220777 ( for 1/2" and below ) 1 Swirl Ring 220857
kit Duramax Lock 180 Degree Machine Torch Replacement Parts Ohmic sensing row. Confirm the mechanized setup uses ohmic sensing before ordering. Extended-life electrode row. Match material thickness and process setup before ordering.
Hypertherm Duramax Lock 180 Degree Machine Torch Breakdown
N/A
