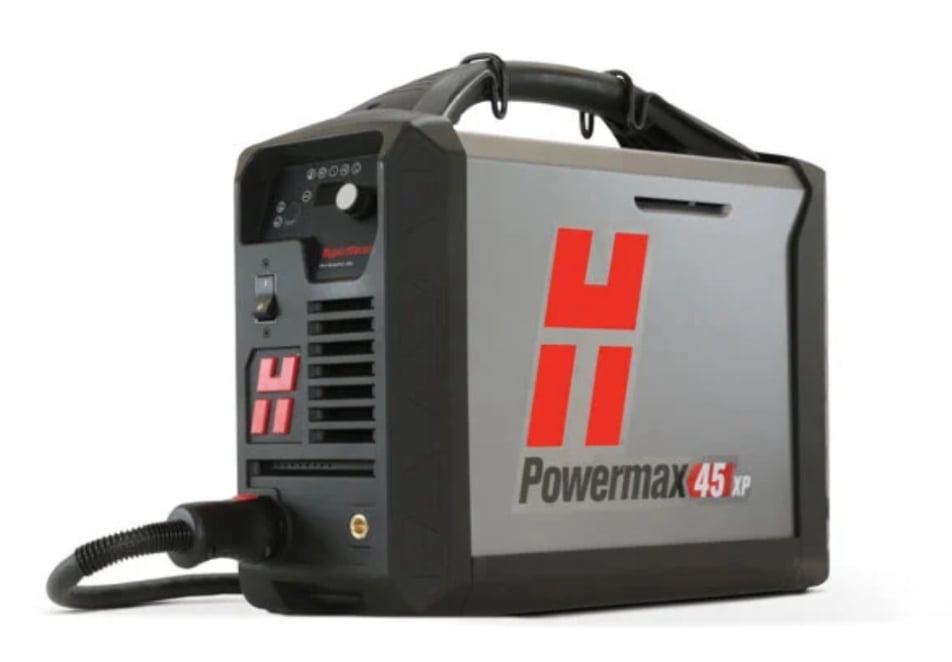

Powermax 45XP

Machine Options
Torch Options
Cable Options
Hand Torch Consumables
Machine Torch Consumables

Light and Medium Industrial Applications
Drag Cutting: For dragging the torch directly across the work piece
Extended Reach Cutting: For improved visibility and accessibility when cutting in confined spaces
Extended Reach Gouging: For improved visibility and accessibility when gouging in confined spaces
Fine Cut: For narrow kerf width with minimal dross and heat affected zone
Flush cutting: For cutting closer to base materials using a 45 degree
Max control gouging: For precise metal removal, shallower gouge profiles and light metal washing
Mechanized cutting: For portable automation and table cutting
Marking: For scoring, indicating part identification, hole or weld locations
Precision gouging: For spot and tack weld removal at very low output current (<25 A)

Process
Plasma Cutting Manual, Plasma Cutting Mechanized, Gouging, Flush Cut, Marking

Input Power
200–240 V, 1-PH, 39/32 A
OR
480 V, 3-PH, 9.4 A

Net Weight 15 kg (33 lbs.)

Power Cord: 10 ft. w/6-50 Plug (240V/50A)

Gas Supply:
Cutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean dry and oil-free) argon

188 I/min (400 scfh) @ 5,9 bar (90 psi)

Input Power	Rated Cut	Rated Output	Dimensions	Net Weight
230V, 1-PH	5/8" @ 20 IPM	50% @ 45 A, 200–240 V, 1-PH	17.4" x 6.8" x 14.1"	Item: 33 LB
480V - 3-PH	5/8" @ 20 IPM	50% @ 45 A, 480 V, 3-PH		Shipping Weight 55 LB

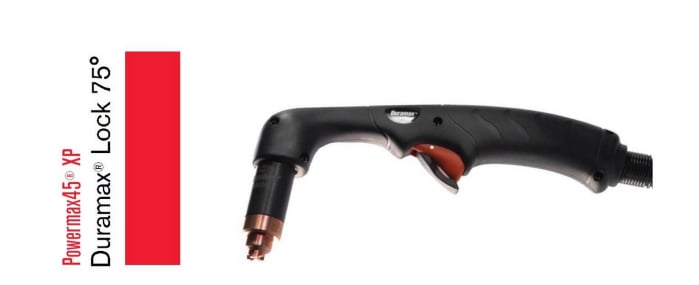

Powermax 45 XP Torch and Accessories:

Replacement Torch

Standard 20' Hand Torch and Consumables

088164

Face Shield

Clear face shield with flip-up shade
for cutting and grinding. Safety shield
included. ANSI Z87.1, CSA Z94.3, CE, Shade 8

127103

Air filtration kit

A ready-to-install kit with a
1-micron filter and an auto drain
moisture separator protects
against contaminated air.
Made in USA.

128647

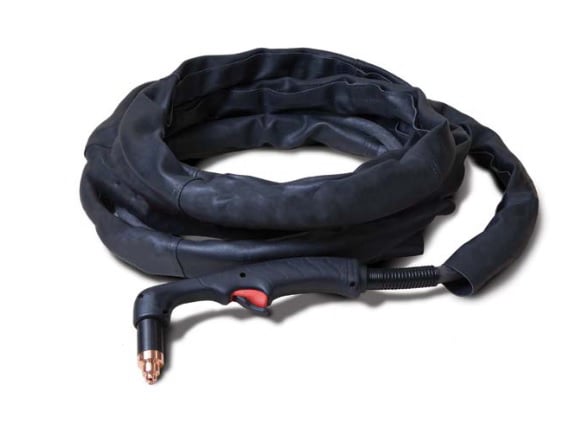

Leather torch sheathing

Available in .25' sections, this option
provides additional protection for
torch leads against burn-through
and abrasion.

024877 Black leather with
Hypertherm logos

Circle cutting guides

Quick and easy set up for accurate
circles up to 28" diameter. For optional
use as a stand-off guide for straight
and bevel cuts. Made in USA.

127102 Basic kit—15" arm, wheels
and pivot pin

027668 Deluxe kit—arm, wheels,
pivot pin, anchor base and plastic case

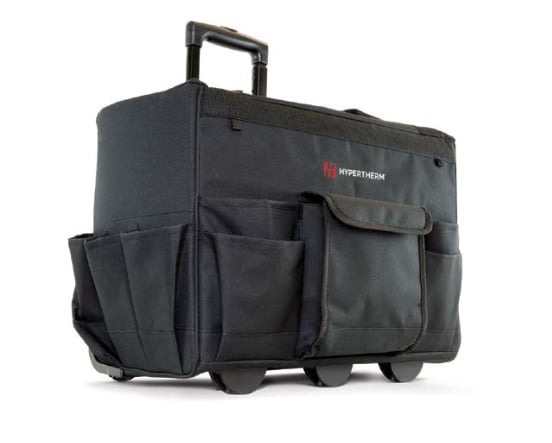

Rolling tool bag

This rugged bag transports the
Powermax45 XP with extra room for
torches, consumables, accessories,
and other gear. 19.5" x 17.5" x 12.5"

017060 Rolling tool bag

Pocket level and tape holder

Magnetic base and tape holder with
built-in level. Made in USA.

017044 Pocket level and tape holder

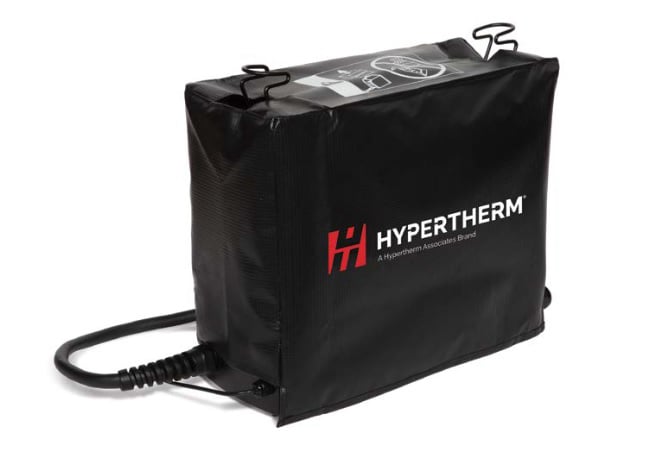

System dust cover

Made from a flame-retardant vinyl,
a dust cover will protect your
Powermax® system for years.

127219 Cover, Powermax45
and 45 XP

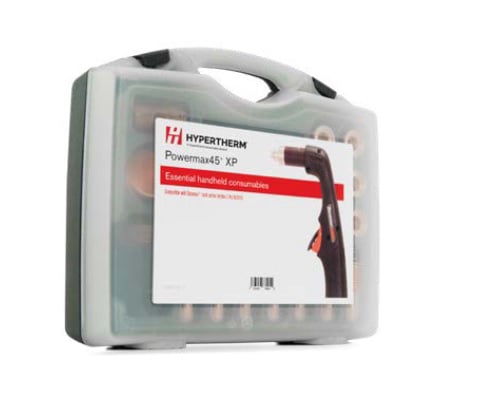

Essential consumable kit

Essential kits provide an assortment of
standard consumables in a convenient
case for organizing and reordering.

851510 Handheld kit
851511 Mechanized kit
851512 Mechanized ohmic kit

Powermax 45XP Machine Options

Power Supply	Part Number	Torch and Style	Accessories Included
Standard power supply 200–240 V	088112	75° hand torch, 20 ft.	n/a
Standard power supply 200–240 V	088114	75° hand torch, 50 ft	n/a
Power supply with CPC port and voltage divider, 200–240 V	088113	75° hand torch, 20 ft.	n/a
Power supply with CPC port and voltage divider, 200–240 V	088115	75° hand torch, 50 ft	n/a
Power supply with CPC port and voltage divider, 200–240 V	088124	75° and 15° hand torch, 20 ft.	No remote Pendant
Power supply with CPC port and voltage divider, 200–240 V	088116	180° full-length machine torch, 25 ft.	With Remote Pendant
Power supply with CPC port and voltage divider, 200–240 V	088121	180° full-length machine torch, 25 ft.	No remote Pendant
Power supply with CPC port and voltage divider, 200–240 V	088117	180° full-length machine torch, 35 ft.	With Remote Pendant
Power supply with CPC port and voltage divider, 200–240 V	088118	180° full-length machine torch, 50 ft.	With Remote Pendant
Power supply with CPC port and voltage divider, 200–240 V	088122	180° full-length machine torch, 50 ft.	No remote Pendant
Power supply with CPC port and voltage divider, 200–240 V	088123	180° full-length machine torch 25 ft,, and 75° hand torch 20 ft.	With Remote Pendant
Power supply with CPC port, voltage divider, and serial port, 200–240 V	088119	180° full-length machine torch 25 ft.	with I/O cables (no pendant)
Power supply with CPC port, voltage divider, and serial port, 200–240 V	088120	180° full-length machine torch 50 ft.	with I/O cables (no pendant)
Standard power supply, 480 V	088126	75° hand torch, 20 ft.	n/a
Standard power supply, 480 V	088128	75° hand torch, 50 ft	n/a
Power supply with CPC port and voltage divider, 480 V	088127	75° hand torch, 20 ft.	n/a
Power supply with CPC port and voltage divider, 480 V	088129	75° hand torch, 50 ft	n/a
Standard power supply, 200-240 V Power Supply Only	088092	n/a	n/a
Standard power supply, 480 V Power Supply Only	088095	n/a	n/a
Power supply with CPC port and voltage divider, 200-240 V Power Supply Only	088104	n/a	n/a
Power supply with CPC port and voltage divider, 480 V Power Supply Only	088110	n/a	n/a
Power supply with CPC port, voltage divider, and serial port 200-240 V, Power Supply Only	088105	n/a	n/a
Power supply with CPC port, voltage divider, and serial port 480 V, Power Supply Only	088111	n/a	n/a

Powermax 45XP Torch Options

Torch Style	Length	Degree	Part#
Hand Torch	20 ft.	75 Degree	088164
Hand Torch	50 ft.	75 Degree	088165
Hand Torch * without torch disable switch	75 ft.	75 Degree	059475
Hand Torch	20 ft.	15 Degree	088162
Hand Torch	50 ft.	15 Degree	088163
Hand Torch * without torch disable switch	75 ft.	15 Degree	059472
Machine torch * without torch disable switch	15 ft.	180 Degree	059476
Machine torch	25 ft.	180 Degree	088167
Machine torch	35 ft.	180 Degree	088168
Machine torch	50 ft.	180 Degree	088169
Machine torch * without torch disable switch	75 ft.	180 Degree	059480
Machine torch * without torch disable switch	15 ft.	180 Degree, Mini	059481
Machine torch * without torch disable switch	25 ft.	180 Degree, Mini	059482
Machine torch * without torch disable switch	35 ft.	180 Degree, Mini	059483
Machine torch * without torch disable switch	50 ft.	180 Degree, Mini	059484
Robotic torch * without torch disable switch	25 ft.	45 Degree	059464
Robotic torch * without torch disable switch	25 ft.	90 Degree	059465
Robotic torch * without torch disable switch	25 ft.	180 Degree	059466

Powermax 45Xp Cable Options

Cable Type	Style	Length	Part Number
Work cable (Ground)	Hand clamp	25 ft.	223595
Work cable (Ground)	Hand clamp	50 ft.	223596
Work cable (Ground)	Hand clamp	75 ft.	223127
Control cable	Remote pendant	25 ft.	128650
Control cable	Remote pendant	50 ft.	128651
Control cable	Remote pendant	75 ft.	128652
Control cable	CNC, spade connector, divided voltage	25 ft.	228350
Control cable	CNC, spade connector, divided voltage	50 ft.	228351
Control cable	CNC, spade connector, no divided voltage	25 ft.	023206
Control cable	CNC, spade connector, no divided voltage	50 ft.	023279
Control cable	RS-485 Serial comm, unterminated	25 ft.	223236
Control cable	RS-485 Serial comm, unterminated	50 ft.	223237
Control cable	RS-485 Serial comm, D-sub	25 ft.	223239
Control cable	RS-485 Serial comm, D-sub	50 ft.	223240
