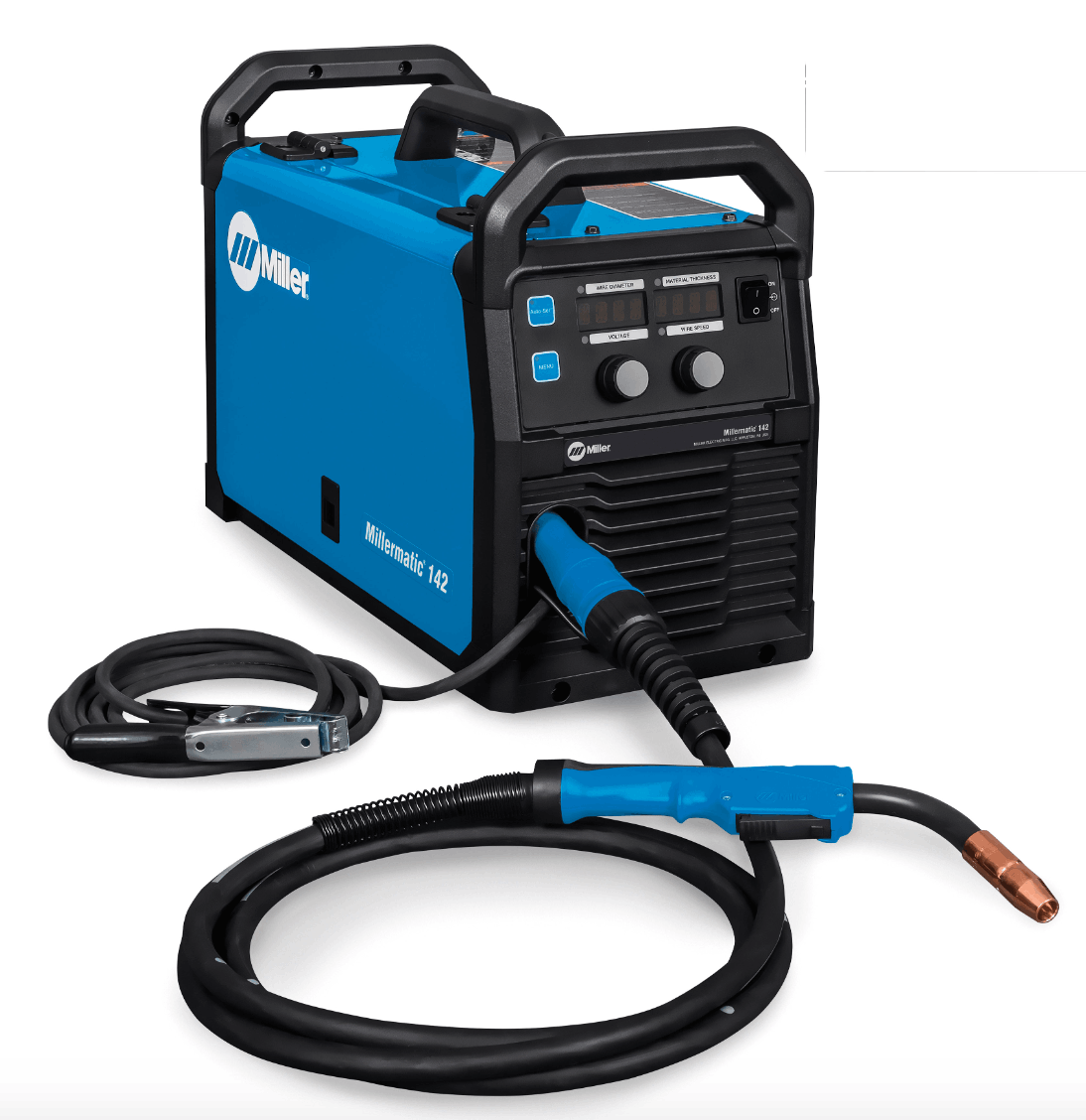

Millermatic 142

Millermatic 142 Mig Welder : 907838 Machine Only

Millermatic 142 Mig Welder : 951000072 Machine with Running Gear

Light Industrial Applications
General fabrication
Maintenance and repair
Auto body
Farm and ranch
Hobby

Process
Flux Cored (FCAW)
MIG (GMAW)

Input Power
110/115/120 V, 1-PH, 60 Hz

Weight 33 lbs.

Weld Output CV

Amperage 30 A - 140 A

Material Thickness Aluminum 18 ga. (1.2 mm) - 14 ga. (1.9 mm)
Mild Steel 24 ga. (0.8 mm) - 3/16 in. (4.8 mm)

Rated Output 100 A at 19 V, 60% duty cycle
80 A at 18 V, 100% duty cycle

Millermatic 142 Torch and Accessories:

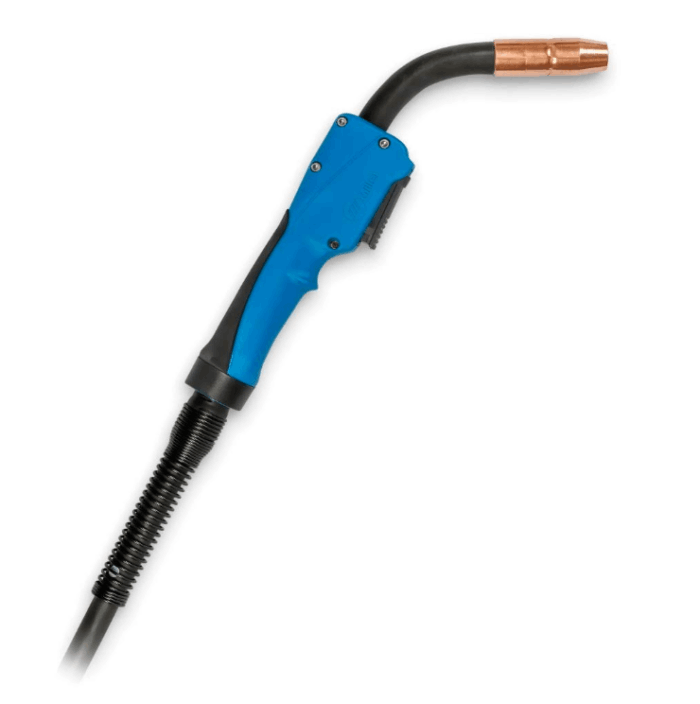

MDX-100 Torch

Consumables

1770028

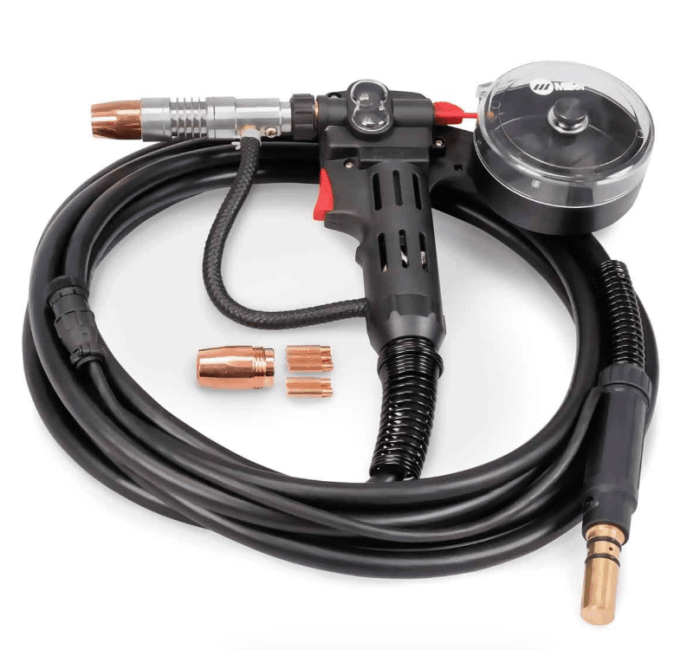

Spoolmate 150 Spool Gun

Direct-connect spool gun handles
.030–.035 inch (0.8–0.9 mm) 4000/5000 series
aluminum and .023–.035 inch (0.6–0.9 mm)
steel/stainless steel wires. Rated at 150 amps,
60 percent duty cycle. Includes 20-foot (6.1 m)
cable assembly.

301272

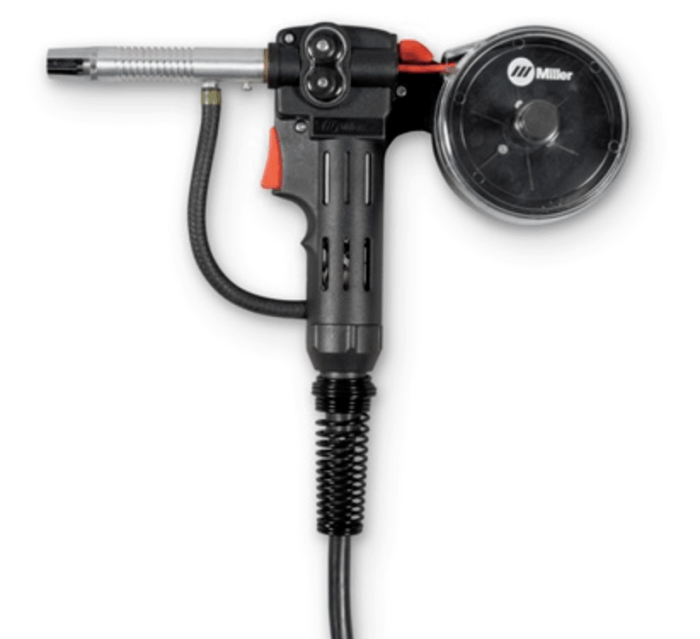

Spoolmate 100 Spool Gun

Direct-connect spool gun handles
.030–.035 inch (0.8–0.9 mm)
aluminum (4043 only) and .023–.035 inch
(0.6–0.9 mm) steel/stainless steel wires. Rated
at 135 amps, 30 percent duty cycle. Includes
12-foot (3.7 m) cable assembly and custom
carrying case.

300371

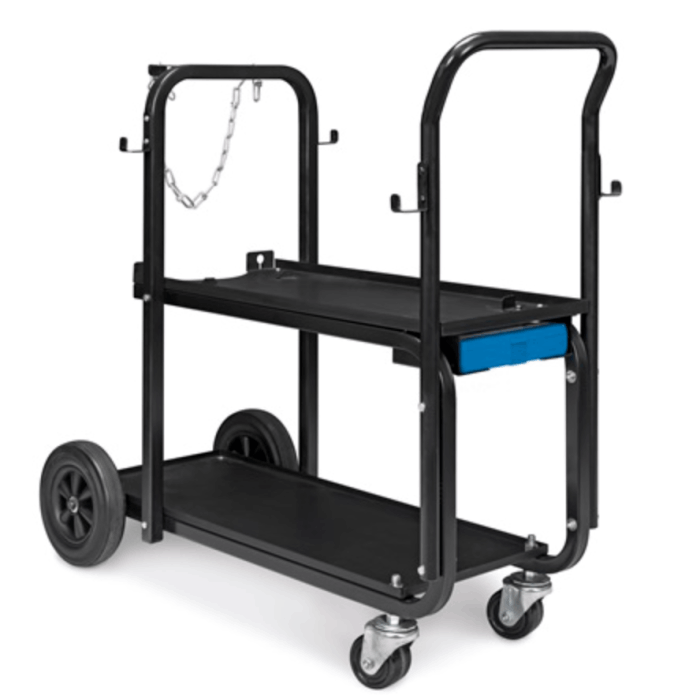

Miller Single Bottle
Machine Cart 301239

Durable construction with rubber rear wheels and Cylinder Rack. For use with Millermatic® 142, 190, 211, Multimatic™ 200, 215, 220 and Diversion™.

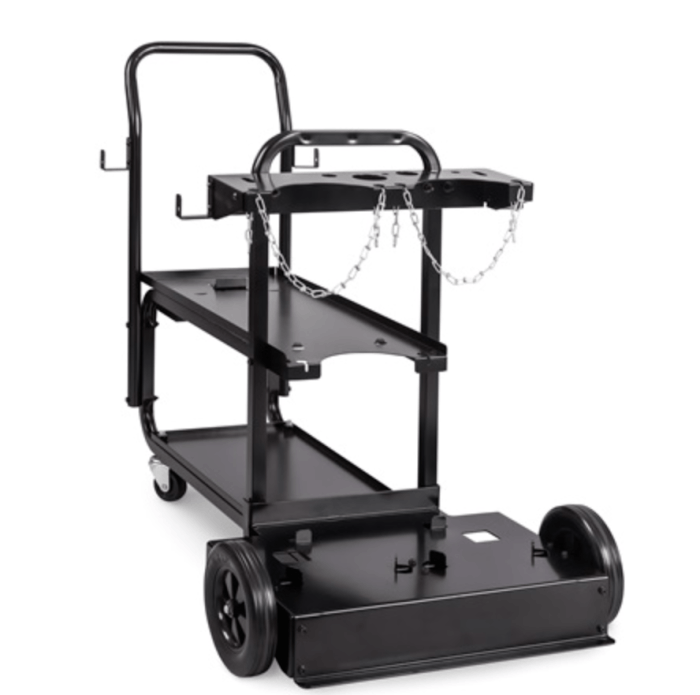

Miller Dual Bottle
Machine Cart 951770

Durable construction with rubber rear wheels and dual cylinder rack conversion kit with tool holder. For use with Millermatic 142, 211, Multimatic 200, 215, 220 AC/DC, and Diversion

Quick Select Drive Roll 261157

For .024-inch (0.6 mm) or .030/.035-inch
(0.8/0.9 mm) solid wire, and .030/.035-inch
(0.8/0.9 mm) flux-cored wire.

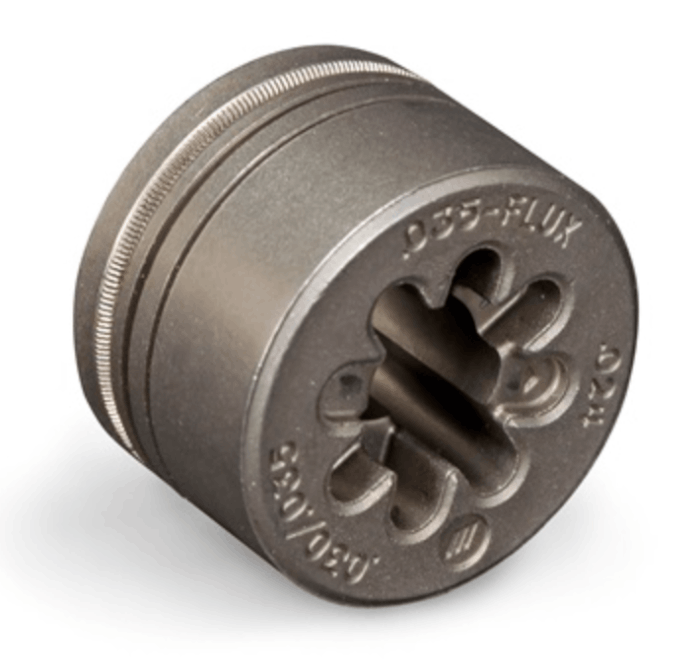

V-Knurled Dual-Groove Drive Roll 202926
For .030/.035-inch (0.8/0.9 mm) or .045-inch
(1.2 mm) flux-cored wire.

Millermatic 142

Millermatic 142 Mig Welder : 907838 Machine OnlyMillermatic 142 Mig Welder : 951000072 Machine with Running Gear
