Home > Mig Support Main > Miller > Spoolmate 150

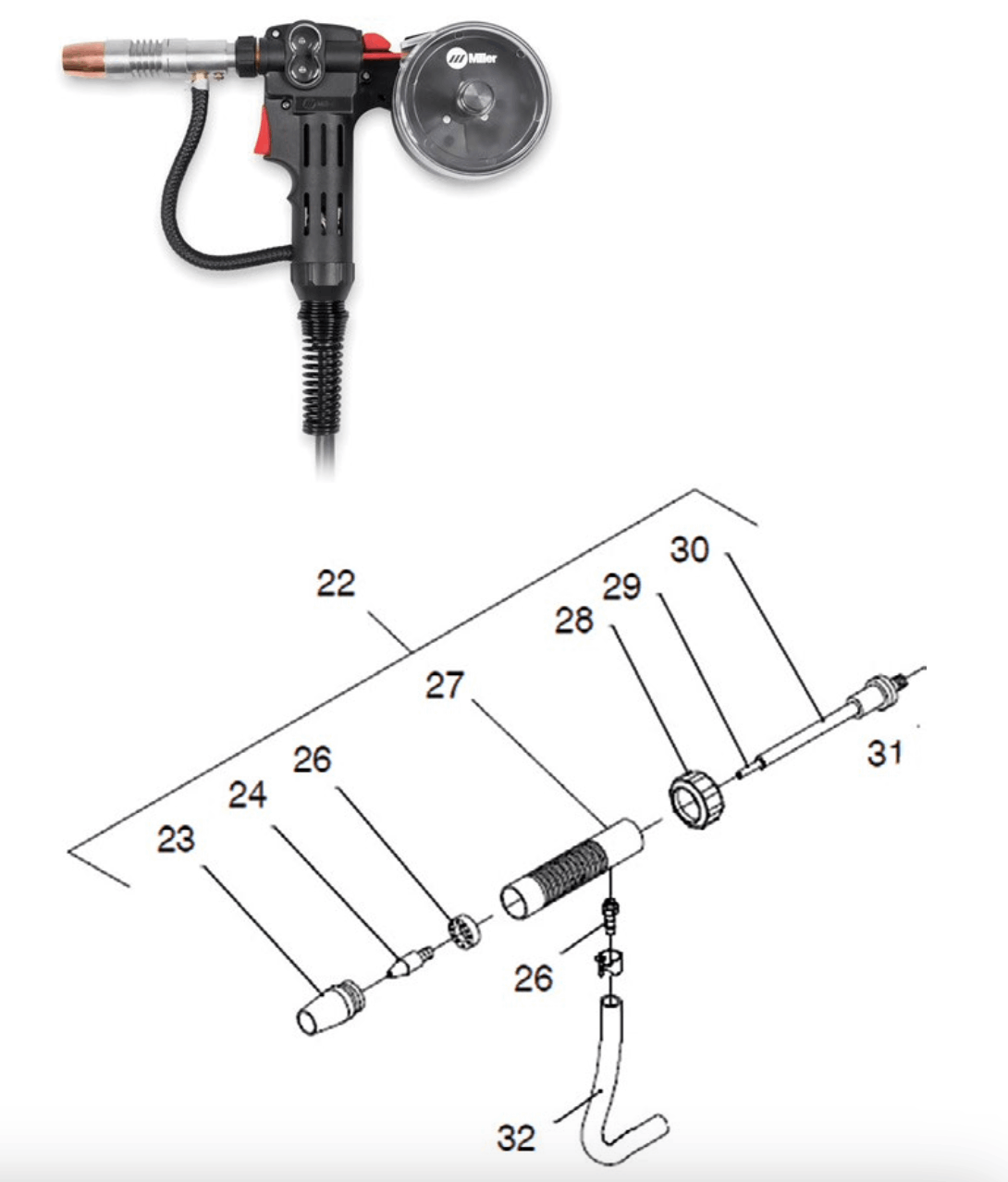

| Item # | Part # | Description |
|---|---|---|
| Gun | 301272 | Spoolmate 100 Spool Gun, 12 ft., 135A @ 30% Duty Cyle |
| 22 | 199385 | Gun Tube Assembly |
| 23 | 050622 | Nozzle |
| 24 | 199387 199388 199389 | Contact Tip .030, Pack of (5) Contact Tip .035, Pack of (5) Contact Tip .047, Pack of (5) |
| 25 | 199391 | Gas Nipple |
| 26 | 199390 | Gas Diffuser |
| 27 | 199393 199385 | Replacement Barrel (Discontinued) Replacement Barrel |
| 28 | 196847 | Lock Nut |
| 29 | 206363 | Replacement Liner Kit |
| 30 | 199394 199385 | Head Tube Assembly (Discontinued) Head Tube Assembly |
| 31 | 196398 | Buss Bar, Interconnecting |
| 111400 | Hose, SAE, .187 ID x .410 OD x 8" |

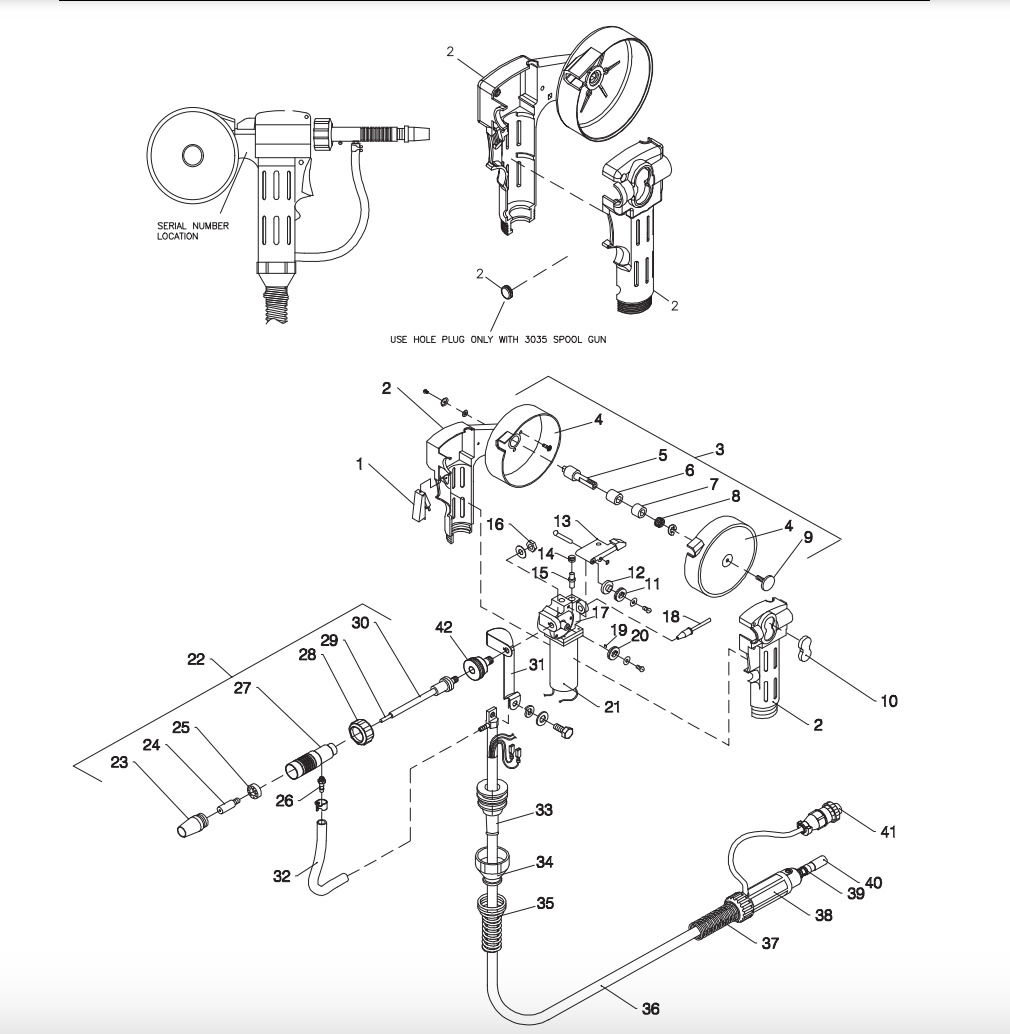

| Item # | Part # | Description |
|---|---|---|
| 1 | 186416 | Trigger Switch |
| 2 | 288570 | Plastic Handle |
| 3 | 196966 | Spool Cover Assy (Including) |
| 4 | 194622 | —Spool Defence Shell |
| 5 | 194623 | —Spool Shaft |
| 6 | 132529 | —Pad, Brake |
| 7 | 194625 | —Location Bushing |
| 8 | 194626 | —Adjusting Nut |
| 9 | 194627 | —Locking Screw |
| 10 | 187239 | Cover, Drive Roll |
| 11 | 186414 | Push Roll .030/.035 (0.8/0.9 Mm) |
| 12 | 187238 | Bearing |
| 13 | 186415 | Press Arm W/Shaft, C-Clip Washer |
| 14 | 193999 | Spring, Cprsn .310 Od X .040 Wire X 1.380 |
| 15 | Bolt | |
| 16 | 194631 | Nut, Brass |
| 17 | 273018 | Gearbox Assembly |
| 18 | 186410 | Inlet Guide |
| 19 | 186488 | Key, Drive Roll 2 Mm X 7 Mm |
| 20 | 186413 | Drive Roll .030/.035 (0.8/0.9 Mm) |
| 21 | 273017 | Motor |
| 22 | 199385 | Gun Tube Assembly (Including) |
| 23 | 050622 | —Nozzle, 5 /8 Bore x 1-5/8, Pack of (2) |
| 24 | 199387 ♦199388 | —Contact Tip .030 (.8MM) —Contact Tip .035 (.9MM) |
| 25 | 199390 | —Gas Diffuser |
| 26 | 199391 | —Gas Nipple |
| 27 | 199393 | —Barrel |
| 28 | 196847 | —Lock Nut |
| 29 | 206363 | —Liner Kit |
| 30 | 199394 | —Head Tube Assembly |
| 31 | 196398 288571 | Buss Bar, Interconnecting (Prior to Serial No, UP120001) Kit, Buss Bar Spoolgun (Effective With Serial No. UP120001) |
| 32 | 111400 | Hose, Sae .187 Id X .410 Od X 8.000 |
| 33 | 231107 | Strain Relief, Cable |
| 34 | 226615 | Nut, Handle Plastic |
| 35 | 231108 | Spring, Cable |
| 36 | 273019 | Cable Assembly, 20 Ft W/Connector Plug |
| 37 | 273020 | Spring, Cable Rear |
| 38 | 273021 | Handle, Rear |
| 39 | 079974 | O-Ring, .500 Id X .103 Cs Rbr, Pack of (5) |
| 40 | 234236 | Connector, Plug |
| 41 | 079878 | Connector W/Sockets |
| 42 | 196848 | Contact Adapter |
| n/a | 209177 | Hardware Kit, Spoolmate Case |
| ♦Optional |

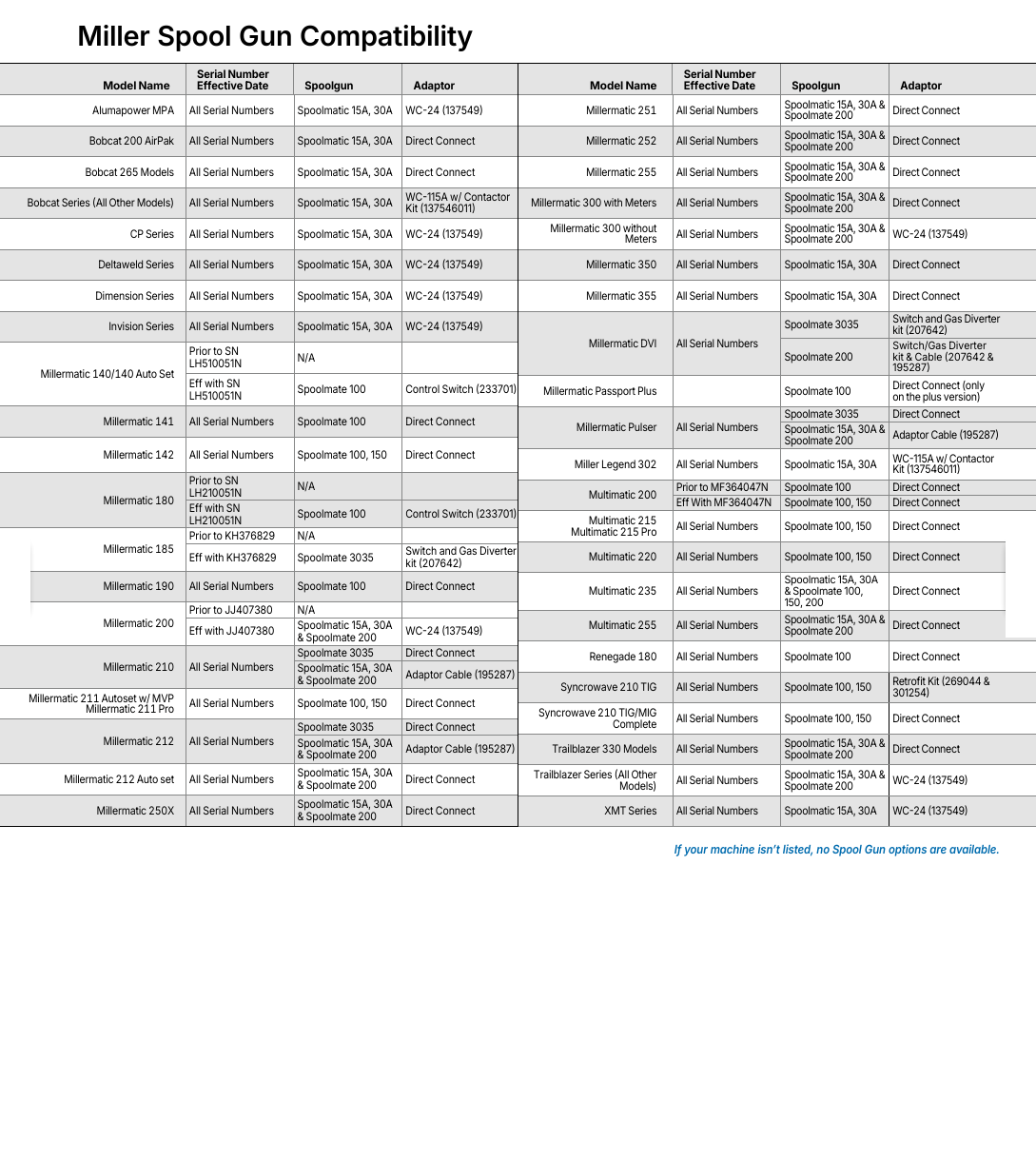

| Power Source | Effective Serial Number | Spoolmate 150 |
|---|---|---|
| Millermatic® 211 Auto-Set™ with MVP™ | All serial numbers | Direct connect |
| Millermatic® 211 | All serial numbers | Direct connect |
| Multimatic™ 200 | After #MF364047N | Direct connect |
| Multimatic™ 215 | All serial numbers | Direct connect |
| Syncrowave® 210 TIG | All serial numbers | Retrofit kit 269044 and accessory kit 301254 required |
| Syncrowave® 210 TIG/MIG Complete | All serial numbers | Direct connect |
| Multimatic® 235 | All serial numbers | Direct connect |
