XR-Aluma-Pro Lite
Lighter industrial XR gun.
Open support page
MIG spool gun support
XR-Aluma-Pro guns are professional gooseneck-style push-pull guns for heavier aluminum work, available in air-cooled and water-cooled configurations.
As an Amazon Associate, I earn from qualifying purchases.

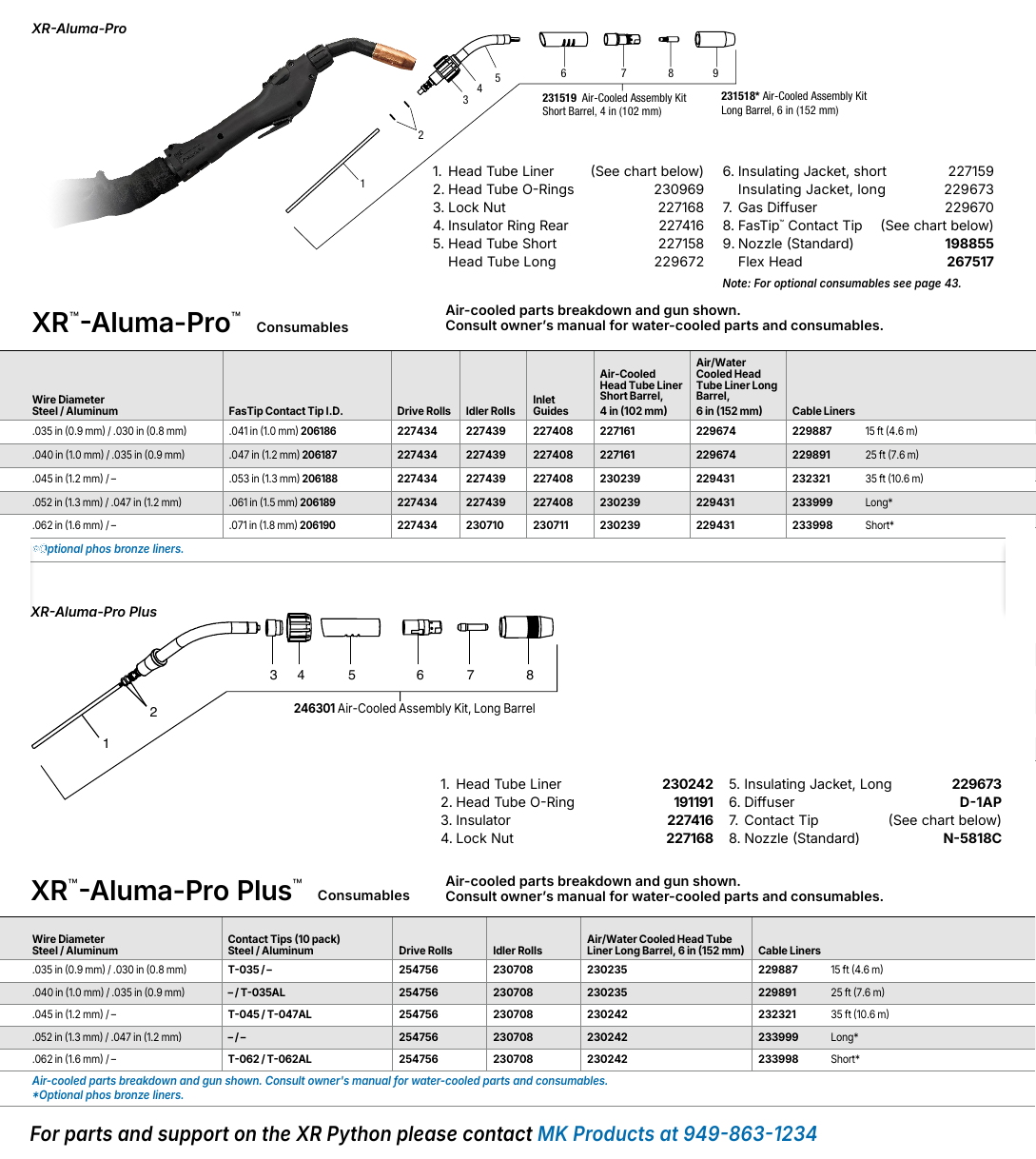

| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Gun | 301568 / 301569 / 301570 |
XR-Aluma-Pro air-cooled, 15, 25, or 35 ft., 300 A at 100% duty cycle
|
1 | N/A |
| Gun | 301571 / 301572 / 301573 |
XR-Aluma-Pro water-cooled, 15, 25, or 35 ft., 400 A at 100% duty cycle
|
1 | N/A |
| 2 | 230969 |
Head tube O-rings
|
1 | Check Price on Amazon |
| 3 | 227168 |
Lock Nut
|
1 | Check Price on Amazon |
| 4 | 227416 |
Insulator Ring Rear
|
1 | Check Price on Amazon |
| 5 | 227158 |
Head Tube Short
|
1 | Buy link unavailable. |
| 5 | 229672 |
Head Tube Long
|
1 | Buy link unavailable. |
| 6 | 227159 |
Insulating Jacket, short
|
1 | Check Price on Amazon |
| 6 | 229673 |
Insulating Jacket, long
|
1 | Buy link unavailable. |
| 7 | 229670 |
Gas Diffuser
|
1 | Check Price on Amazon |
| 8 | 206186 |
FasTip contact tip .041 ID
|
1 | Check Price on Amazon |
| 8 | 206187 |
FasTip contact tip .047 ID
|
1 | Check Price on Amazon |
| 8 | 206188 |
FasTip contact tip .053 ID
|
1 | Check Price on Amazon |
| 8 | 206189 |
FasTip contact tip .061 ID
|
1 | Check Price on Amazon |
| 8 | 206190 |
FasTip contact tip .071 ID
|
1 | Check Price on Amazon |
| 9 | 198855 |
Nozzle, standard
|
1 | Check Price on Amazon |
| Flex | 267517 |
Flex Head
|
1 | Check Price on Amazon |
| Drive | 227434 |
Drive Rolls
|
1 | Check Price on Amazon |
| Drive | 227439 |
Idler Rolls
|
1 | Check Price on Amazon |
| Drive | 230710 |
Idler Rolls
|
1 | Check Price on Amazon |
| Guide | 227408 |
Inlet Guides
|
1 | Check Price on Amazon |
| Guide | 230711 |
Inlet Guides
|
1 | Buy link unavailable. |
| Liner | 229887 |
Cable liner, 15 ft.
|
1 | Check Price on Amazon |
| Liner | 229891 |
Cable liner, 25 ft.
|
1 | Check Price on Amazon |
| Liner | 232321 |
Cable liner, 35 ft.
|
1 | Check Price on Amazon |
| Liner | 233999 |
Cable liner, long
|
1 | Check Price on Amazon |
| Liner | 233998 |
Cable liner, short
|
1 | Buy link unavailable. |
Related consumables
Lighter industrial XR gun.
Open support pagePlus-generation XR gun family.
Open support pageMachine path connected to this spool gun family.
Open machine pageMachine path connected to this spool gun family.
Open machine pageMachine path connected to this spool gun family.
Open machine page
XR push-pull lookup
Choose the model style first, then use the breakdown to match contact tips, nozzles, diffusers, liners, drive rolls, and idlers.
| Model | Stock Numbers | Output | Wire Range | Lookup |
|---|---|---|---|---|
| XR-Aluma-Pro air-cooled | 301568 / 301569 / 301570 | 300 A at 100% duty cycle | .030 - 1/16 in. aluminum wire | Open Air-Cooled Page |
| XR-Aluma-Pro water-cooled | 301571 / 301572 / 301573 | 400 A at 100% duty cycle | .030 - 1/16 in. aluminum wire | Open Water-Cooled Page |
