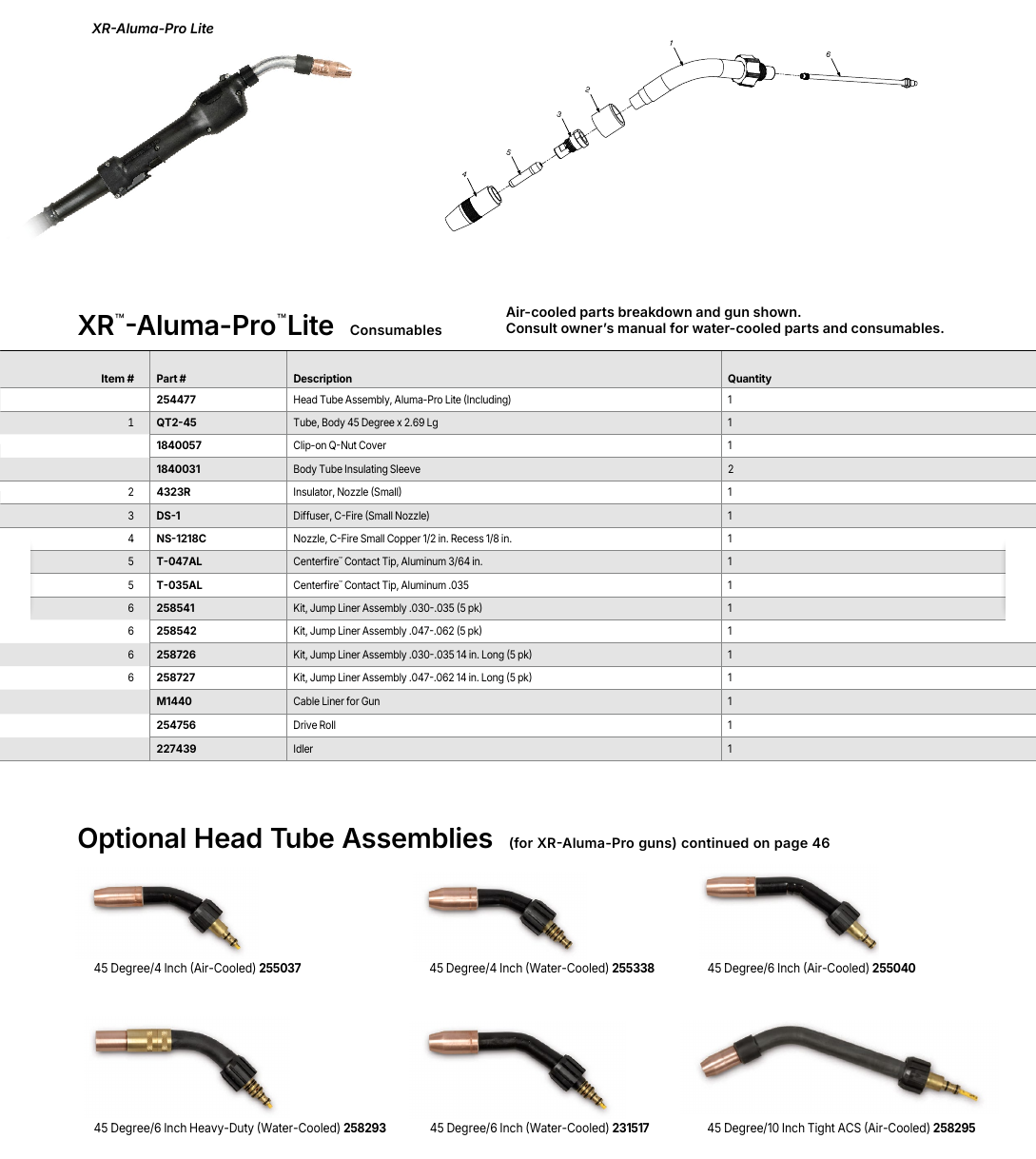

Miller XR-Aluma-Pro Lite Push-Pull Gun Parts Breakdown

XR-Aluma-Pro Lite is the lightest gooseneck-style XR push-pull gun in the current catalog, with a 25 ft. air-cooled configuration.

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Gun 300948
XR-Aluma-Pro Lite air-cooled, 25 ft. (7.6 m), 175 A at 60% duty cycle
gun assembly XR-Aluma-Pro Lite gun models Wire size: .030 - .047 in. (0.8 - 1.2 mm) aluminum wire
XR-Aluma-Pro Lite family
1 N/A
254477
Head Tube Assembly, Aluma-Pro Lite (including)
head tube assembly XR-Aluma-Pro Lite consumables and replacement parts
XR-Aluma-Pro Lite family
1 Amazon link: Needs verification.
1 QT2-45
Tube, Body 45 Degree x 2.69 Lg
head tube XR-Aluma-Pro Lite consumables and replacement parts
XR-Aluma-Pro Lite family
1 Amazon link: Needs verification.
1840057
Clip-on Q-Nut Cover
cover XR-Aluma-Pro Lite consumables and replacement parts
XR-Aluma-Pro Lite family
1 Amazon link: Needs verification.
1840031
Body Tube Insulating Sleeve
insulator XR-Aluma-Pro Lite consumables and replacement parts Common replacement
XR-Aluma-Pro Lite family
2 Amazon link: Needs verification.
2 4323R
Insulator, Nozzle (Small)
insulator XR-Aluma-Pro Lite consumables and replacement parts Common replacement
XR-Aluma-Pro Lite family
1 Amazon link: Needs verification.
3 DS-1
Diffuser, C-Fire (Small Nozzle)
diffuser XR-Aluma-Pro Lite consumables and replacement parts Common replacement
XR-Aluma-Pro Lite family
1 Amazon link: Needs verification.
4 NS-1218C
Nozzle, C-Fire Small Copper 1/2 in. Recess 1/8 in.
nozzle XR-Aluma-Pro Lite consumables and replacement parts Common replacement
XR-Aluma-Pro Lite family
1 Amazon link: Needs verification.
5 T-047AL
Centerfire Contact Tip, Aluminum 3/64 in.
contact tip XR-Aluma-Pro Lite consumables and replacement parts Wire size: 3/64 in. aluminum Common replacement
XR-Aluma-Pro Lite family
1 Amazon link: Needs verification.
5 T-035AL
Centerfire Contact Tip, Aluminum .035
contact tip XR-Aluma-Pro Lite consumables and replacement parts Wire size: .035 in. aluminum Common replacement
XR-Aluma-Pro Lite family
1 Amazon link: Needs verification.
6 258541
Kit, Jump Liner Assembly .030-.035 (5 pk)
liner kit XR-Aluma-Pro Lite consumables and replacement parts Wire size: .030-.035 in. Common replacement
XR-Aluma-Pro Lite family
1 View on Amazon
6 258542
Kit, Jump Liner Assembly .047-.062 (5 pk)
liner kit XR-Aluma-Pro Lite consumables and replacement parts Wire size: .047-.062 in. Common replacement
XR-Aluma-Pro Lite family
1 View on Amazon
6 258726
Kit, Jump Liner Assembly .030-.035 14 in. Long (5 pk)
liner kit XR-Aluma-Pro Lite consumables and replacement parts Wire size: .030-.035 in. Common replacement
XR-Aluma-Pro Lite family
1 Amazon link: Needs verification.
6 258727
Kit, Jump Liner Assembly .047-.062 14 in. Long (5 pk)
liner kit XR-Aluma-Pro Lite consumables and replacement parts Wire size: .047-.062 in. Common replacement
XR-Aluma-Pro Lite family
1 Amazon link: Needs verification.
M1440
Cable Liner for Gun
liner XR-Aluma-Pro Lite consumables and replacement parts Common replacement
XR-Aluma-Pro Lite family
1 View on Amazon
254756
Drive Roll
drive roll XR-Aluma-Pro Lite consumables and replacement parts Common replacement
XR-Aluma-Pro Lite family
1 Amazon link: Needs verification.
227439
Idler
idler roll XR-Aluma-Pro Lite consumables and replacement parts Common replacement
XR-Aluma-Pro Lite family
1 View on Amazon

Related consumables

XR push-pull lookup

Air-Cooled and Water-Cooled Models

Choose the model style first, then use the breakdown to match contact tips, nozzles, diffusers, liners, drive rolls, and idlers.

Model Stock Numbers Output Wire Range Lookup
XR-Aluma-Pro Lite air-cooled 300948 175 A at 60% duty cycle .030 - .047 in. (0.8 - 1.2 mm) aluminum wire Open Air-Cooled Page
