Home > Plasma Support Main > ESAB > PT-38
| Item # | Part # | Description |
|---|---|---|
| Torch | 0558006786 0558006787 | PT-38 Torch Assembly 25 ft. (7.6 m) lead PT-38 Torch Assembly 50 ft. (15.2 m) lead |
| Torch Cable | 0558006800 0558006801 | PT-38 Cable Assembly 25 ft. (7.6 m) lead
PT-38 Cable Assembly 50 ft. (15.2 m) lead |

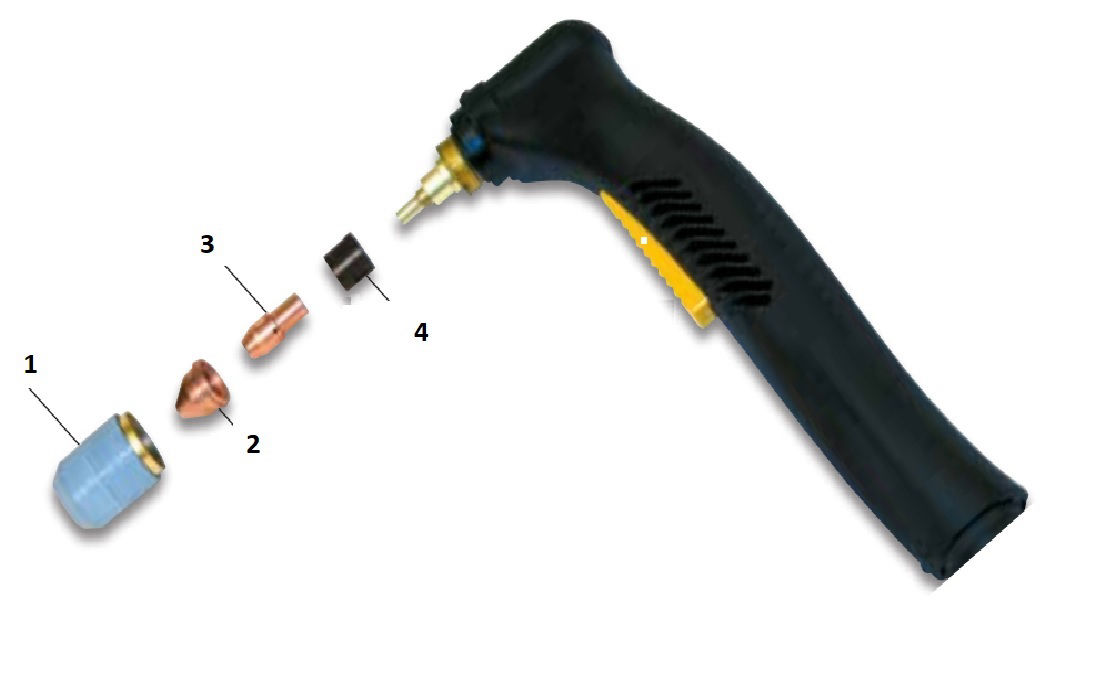

| 1 | 0558007549 | Standard Heat Shield |
| 2 | 0558008417 0558005219 0558007680 0558007682 | Cutting Nozzle 60A Cutting Nozzle 70A Cutting Nozzle 90A Cutting Nozzle 40A Drag |
| 3 | 0558005220 | Electrode |
| 4 | 0558005217 0558004870 | 30/70A Insulator 90/100A Insulator |
| n/a | 0558008418 0558007641 0558007639 | Spare Parts Kit 60A (PC 900) Spare Parts Kit 70A (PC 1300) Spare Parts Kit 90A (PC 1600) |
| n/a | 0558000739 | Plasma flow measuring kit |
| n/a | 0558003258 0558002675 | Torch Guide Kit, Deluxe: 1-3⁄4 in. (44.5 mm) 42 in. (106 cm) radius Torch Guide Kit, Basic: 1-3⁄4 in. (44.5 mm) 28 in. (71 cm) radius |
| n/a | 0558006614 | Stand-off guide |
| n/a | 0558008591 0558008186 0558008588 0558007681 | Gouging heat shield 60A Gouging heat shield 70-90A Gouging nozzle 60A Gouging nozzle 70-90A |
| n/a | 0558101101 | O-Ring .301ID .070W Nitrile |
| n/a | 0558001379 | Fuse SLO-BLO 2 A, 600 VDC |
| n/a | 0558000443 | Lubricant, 25 oz. (0.8 L) |
| PT-38 Torch | |
|---|---|
| Cuts, in. (mm) | 1-1⁄2" (38mm) |
| Current capacity | 90A @ 100% duty cycle |
| Air supply, cfh @ psig (L/min @ bar) | 400 @ 80 (165 @ 4.8 - 5.5) |
| Length of service leads, ft. (m) | 25 (7.6)
50 (15.2) |
| Dimensions, in. (mm) | 8.2 (208) length, 3 (76) torch head |
