ESAB PT-121/PT-121M Torch

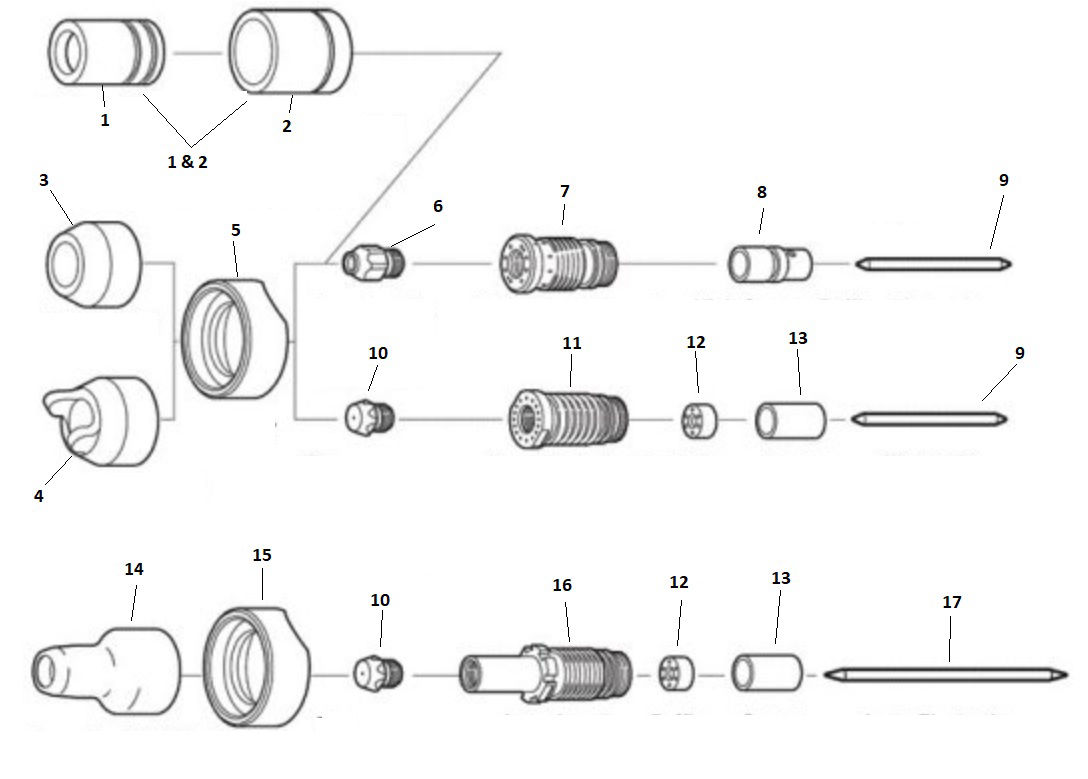

Item #	Part #	Description
Torch	999242 999243 999246 999247 999244 999245	25 ft. (7.6 m) PT-121, 75 Degree Hand Held Torch 50 ft. (15.2 m) PT-121, 75 Degree Hand Held Torch 25 ft. (7.6 m) PT-121, 90 Degree Hand Held Torch 50 ft. (15.2 m) PT-121, 90 Degree Hand Held Torch 25 ft. (7.6 m) PT-121M, Machine Torch 50 ft. (15.2 m) PT-121M, Machine Torch
1	20380	Gouging Heat Shield
2 1&2	20379 20378	Gouging Heat Shield Heat Shield Assembly
3	999261	Standard Heat Shield
4	999620 18419	50A Drag Shield 120A Drag Shield
5	21121	Insulator
6	20386 20387 19160	70A Gouging Nozzle 100A Gouging Nozzle 150A Gouging Nozzle
7	19690	High Current Insert
8	19691	High Current Baffle
9	2075328	Electrode
10	17184 17119 999263 999264	30A Cutting Nozzle .032" (.8 mm) 55A Cutting Nozzle .047" (1.2 mm) 110A Cutting Nozzle .055" (1.4 mm) 150A Cutting Nozzle .063" (1.6 mm)
11	999260	Front Body Insert
12	19540	Standard Baffle
13	999586	Spacer
14	18363 31411	Long Shield Cutting Long Shield Gouging
15	21121	Insulator
16	18364	Long Insert
17	18362	Long Electrode
n/a	19539	PT-121 Spare Parts Kit
n/a	0558000443	.25 oz Lubricant
n/a	994092	O-ring
n/a	96W97	O-ring
n/a	85W50	O-ring
n/a	999568	Wrench
n/a	999266	Electrode Center Tool
n/a	950272	Tool Box
n/a	0558000739	Plasma Flow Measure Kit
n/a	20742 20801 20802	75 Degree Plasmit Torch Protector 90 Degree Plasmit Torch Protector Mechanical Plasmit Torch Protector
n/a	20812	Leather Cable cover, 10' (3 m)

PT-121 Torch
Cuts, in. (mm)	2" (50.8mm)
Severs, in. (mm)	2-1/2"
Current capacity	150A @ 100% duty cycle
Gas requirement: Cutting: Gouging:	N2 @ 25 PSIG (25 CFH), H-35 @ 65 PSIG (75 CFH) H-35 @ 20 PSIG (130 CFH)
Cooling Gas Requirement: Cutting: Gouging:	N2, Air @ 50 PSIG (345 CFH), CO2 @ 50 PSIG (270 CFH) Ar, N2, Air @ 50 PSIG (260 CFH)
Length of service leads, ft. (m)	25 (7.6) 50 (15.2)
