Miller Engine-Drive Machine Support
Start with the Miller engine-driven machine, then move into the stick, TIG, wire-feeder, spool gun, air compressor, trailer, cover, and field accessory paths that the catalog lists for that machine.

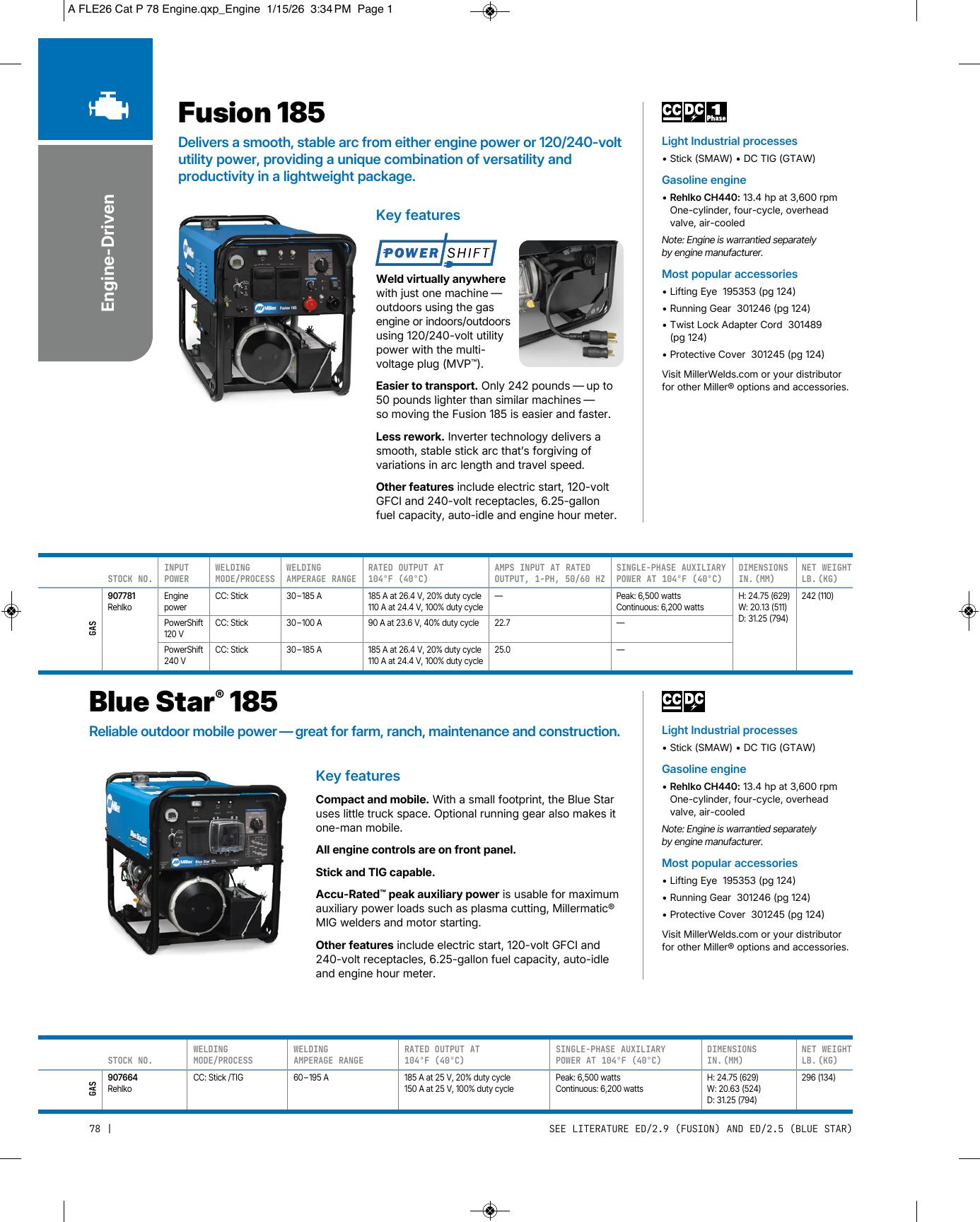

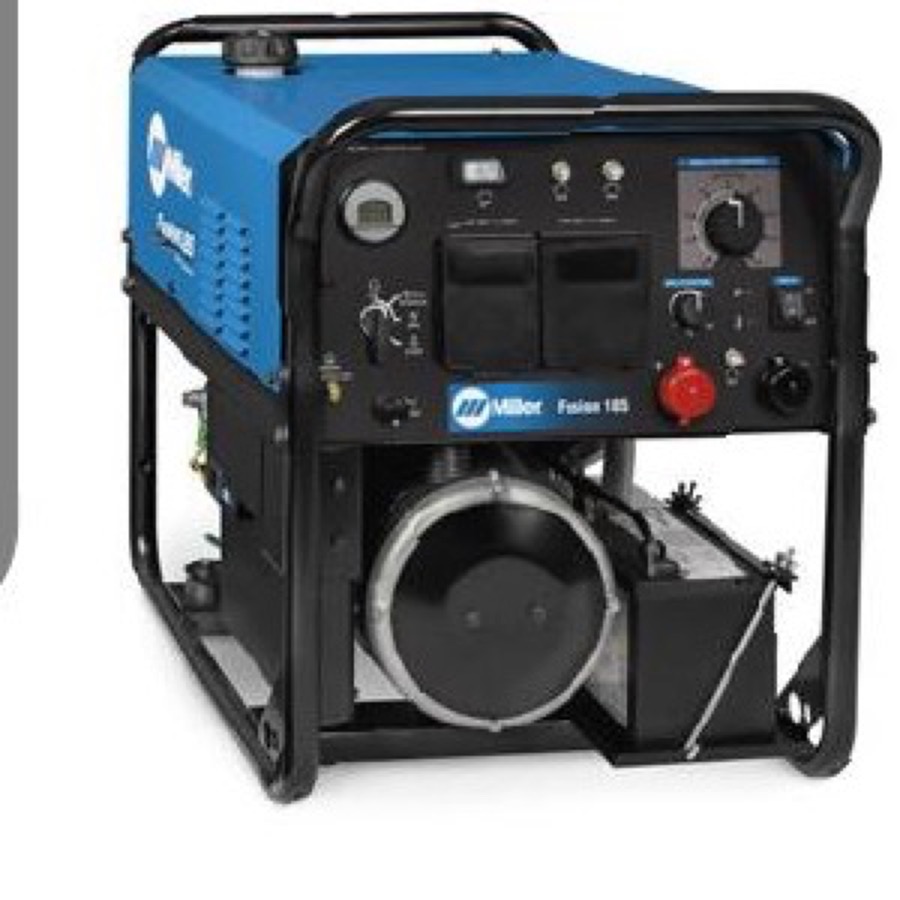

Fusion 185
Compact engine-driven stick/TIG welder with auxiliary power and PowerShift input support for shop or field use.
907781

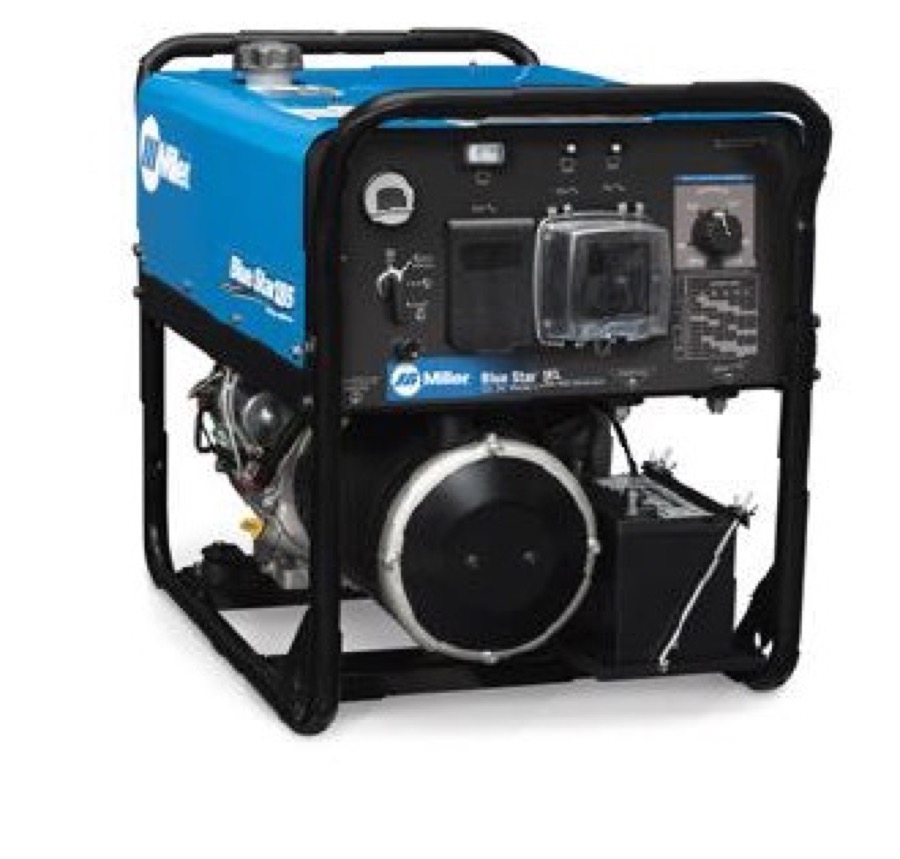

Blue Star 185
Compact engine-driven stick/TIG machine with 6,500-watt peak auxiliary power for maintenance, repair, farm, and field work.
907664

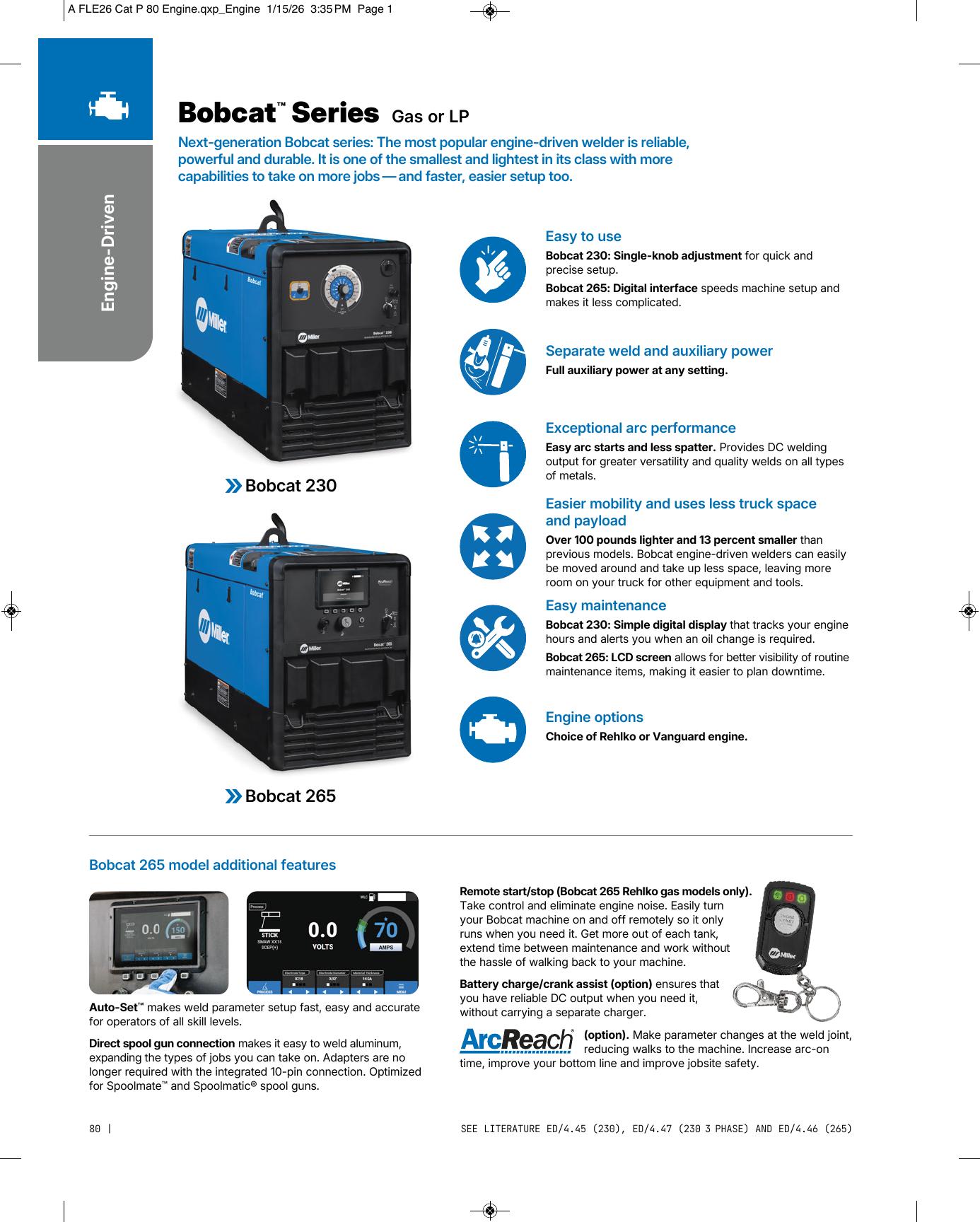

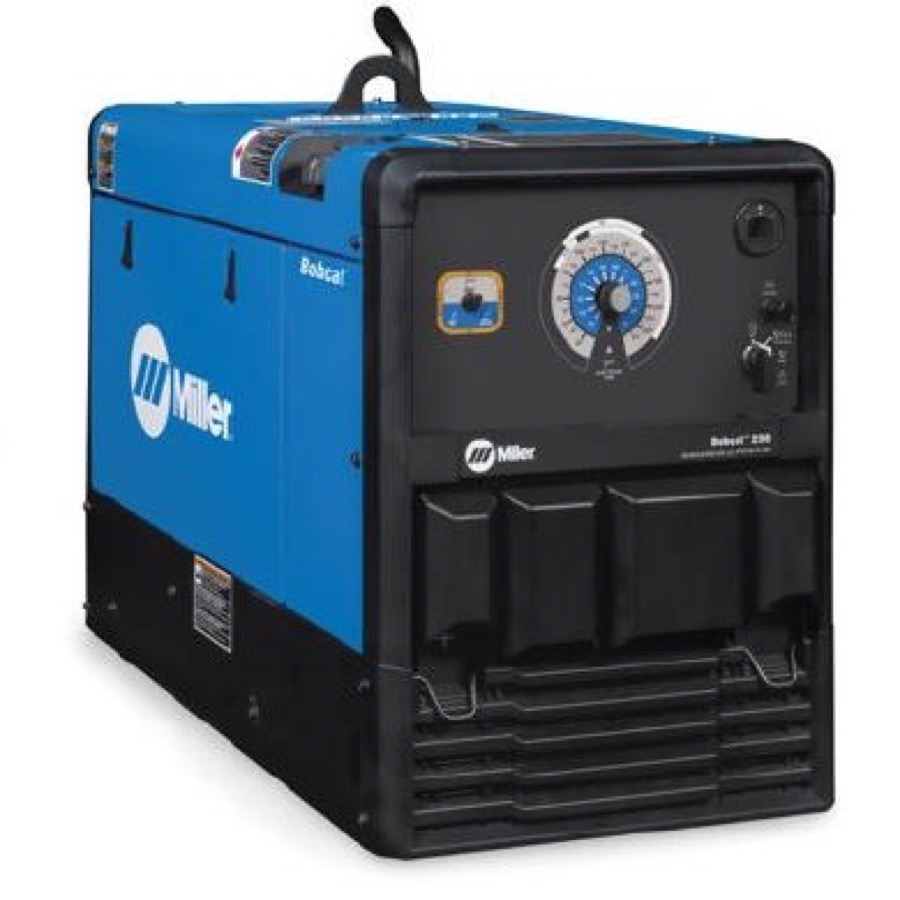

Bobcat 230
Reliable engine-driven welder for stick, flux-cored, and voltage-sensing MIG work with strong auxiliary power for farm, ranch, construction, and repair use.
907824 907847 907842

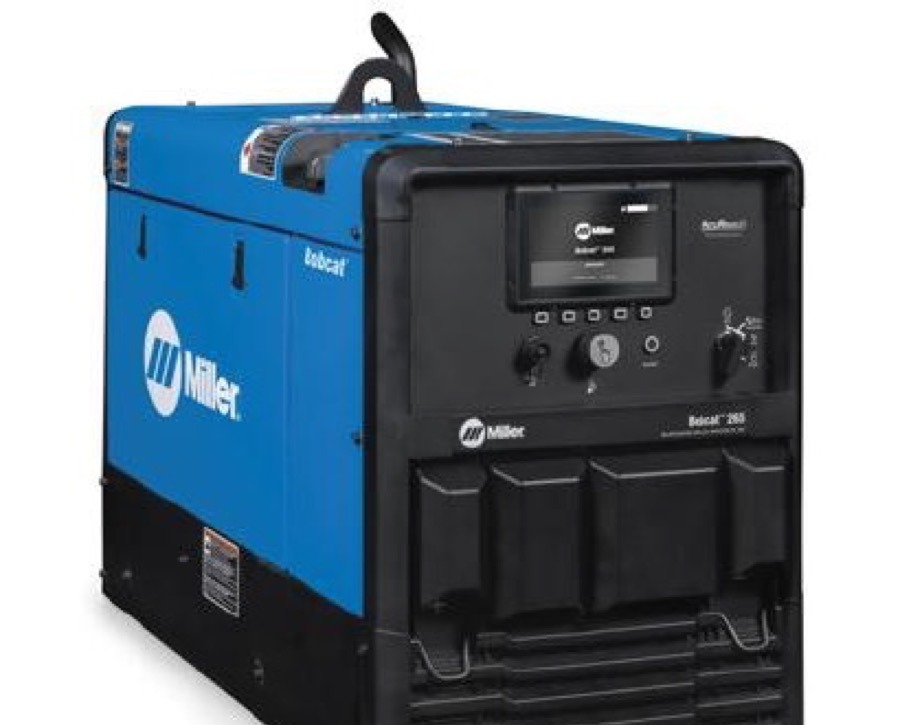

Bobcat 265
More capable Bobcat engine-drive platform with Auto-Set, direct spool gun connection, stick/TIG output, MIG/FCAW support, and optional ArcReach or battery support.
907826 907826001 907826002 907826003

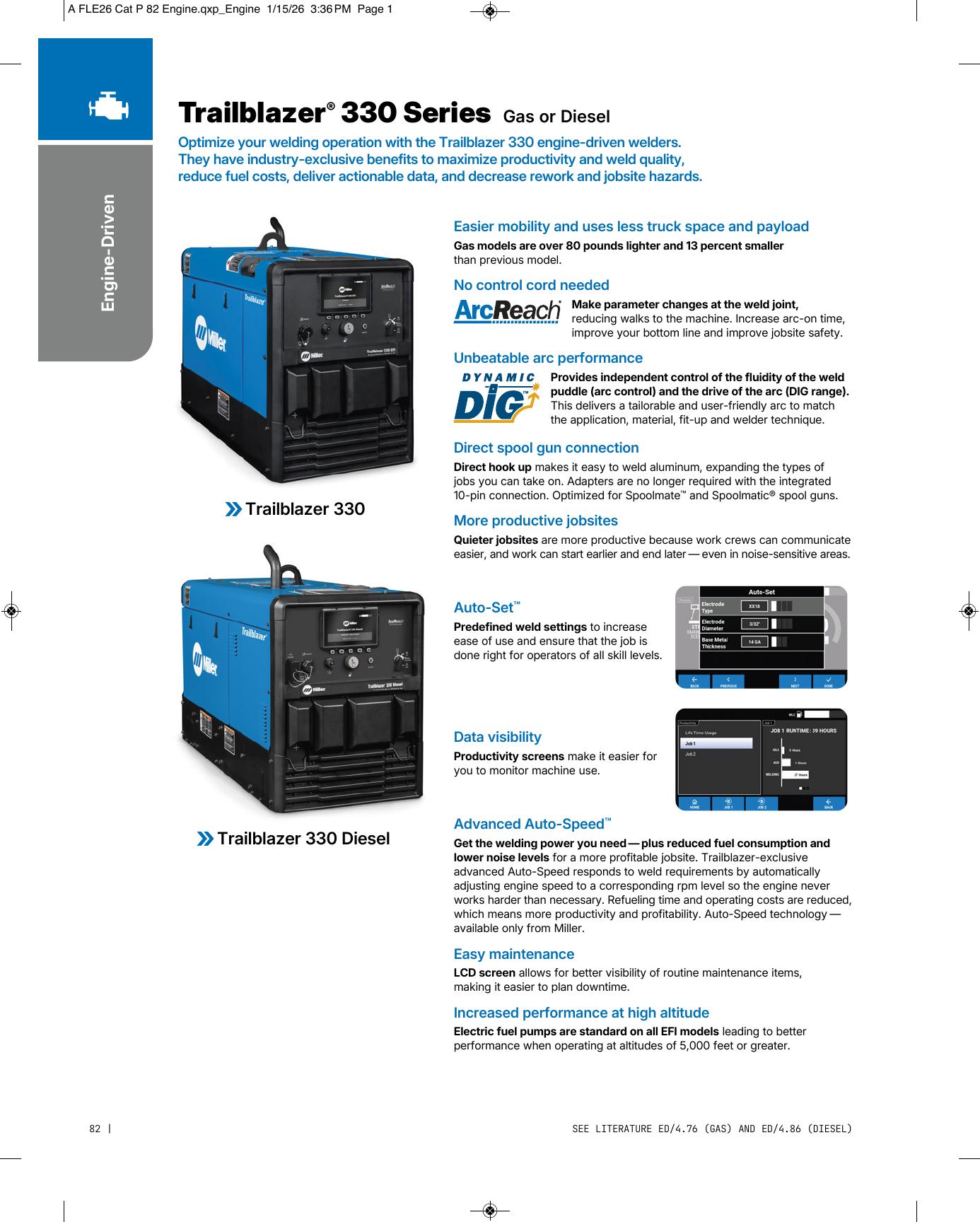

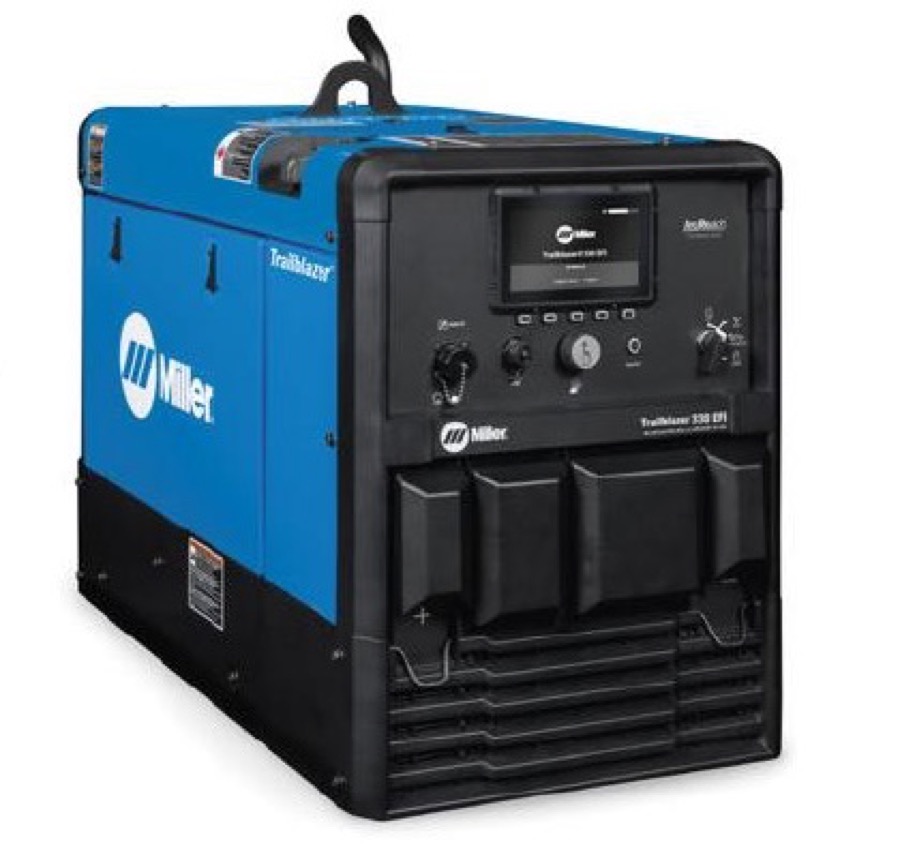

Trailblazer 330
Heavy-industrial engine-driven welder with ArcReach, direct spool gun connection, Auto-Set, advanced Auto-Speed, optional Excel power, and gas or diesel models.
907831 907831001 907832 907832001

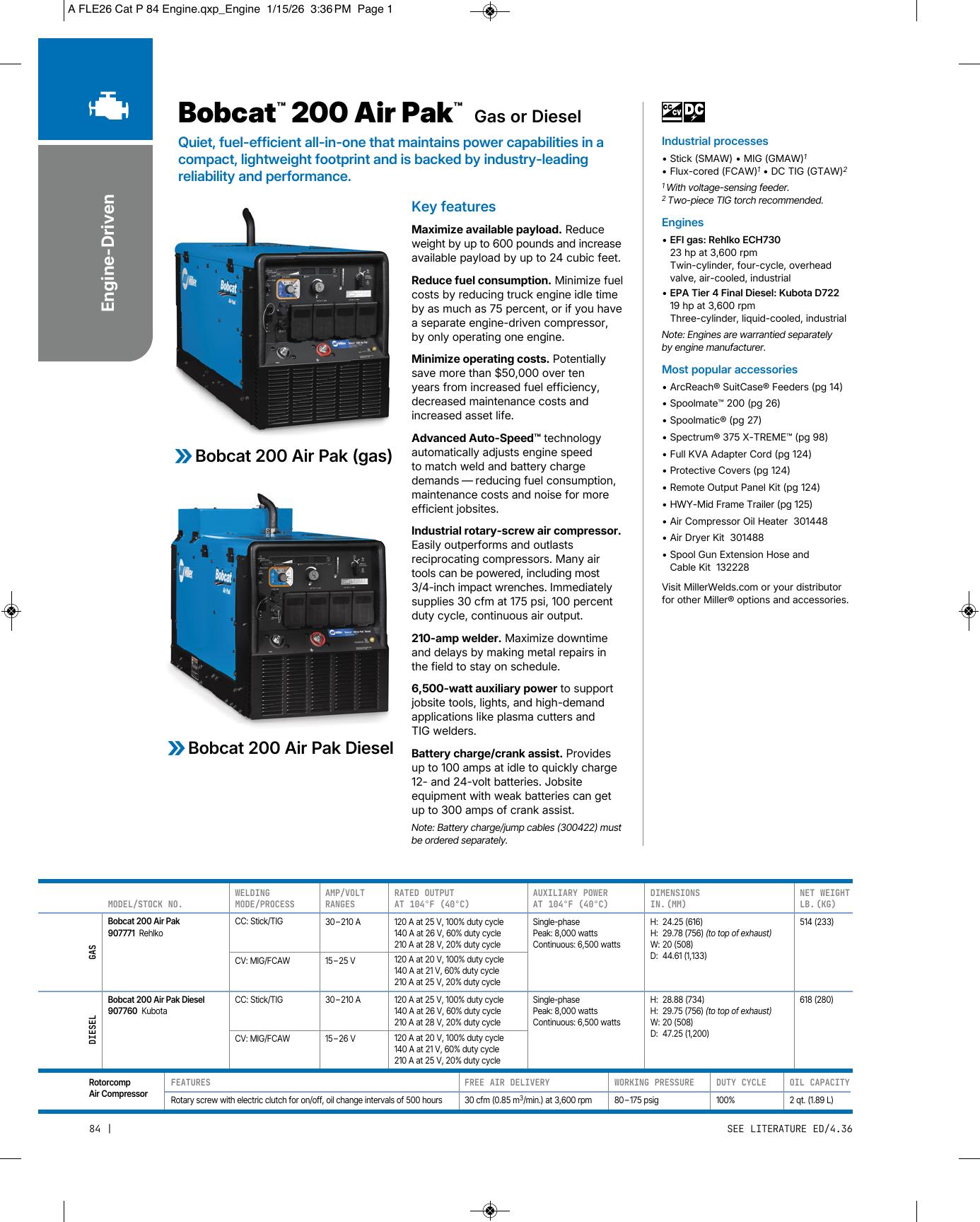

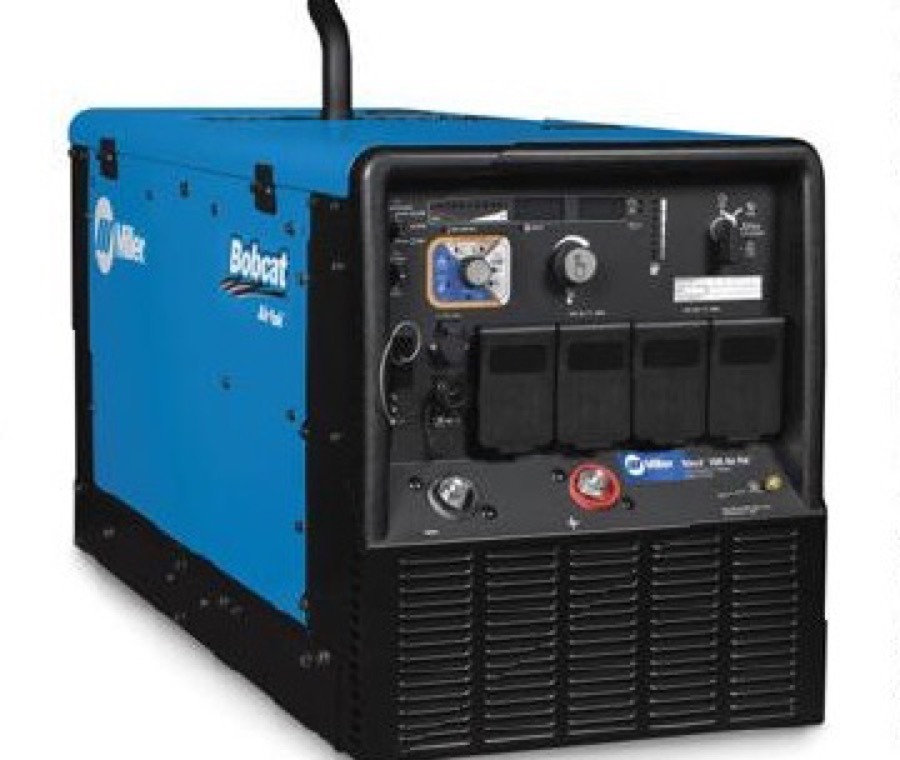

Bobcat 200 Air Pak
Compact all-in-one engine-driven welder, generator, air compressor, and battery charge/crank assist platform for service-truck work.
907771 907760

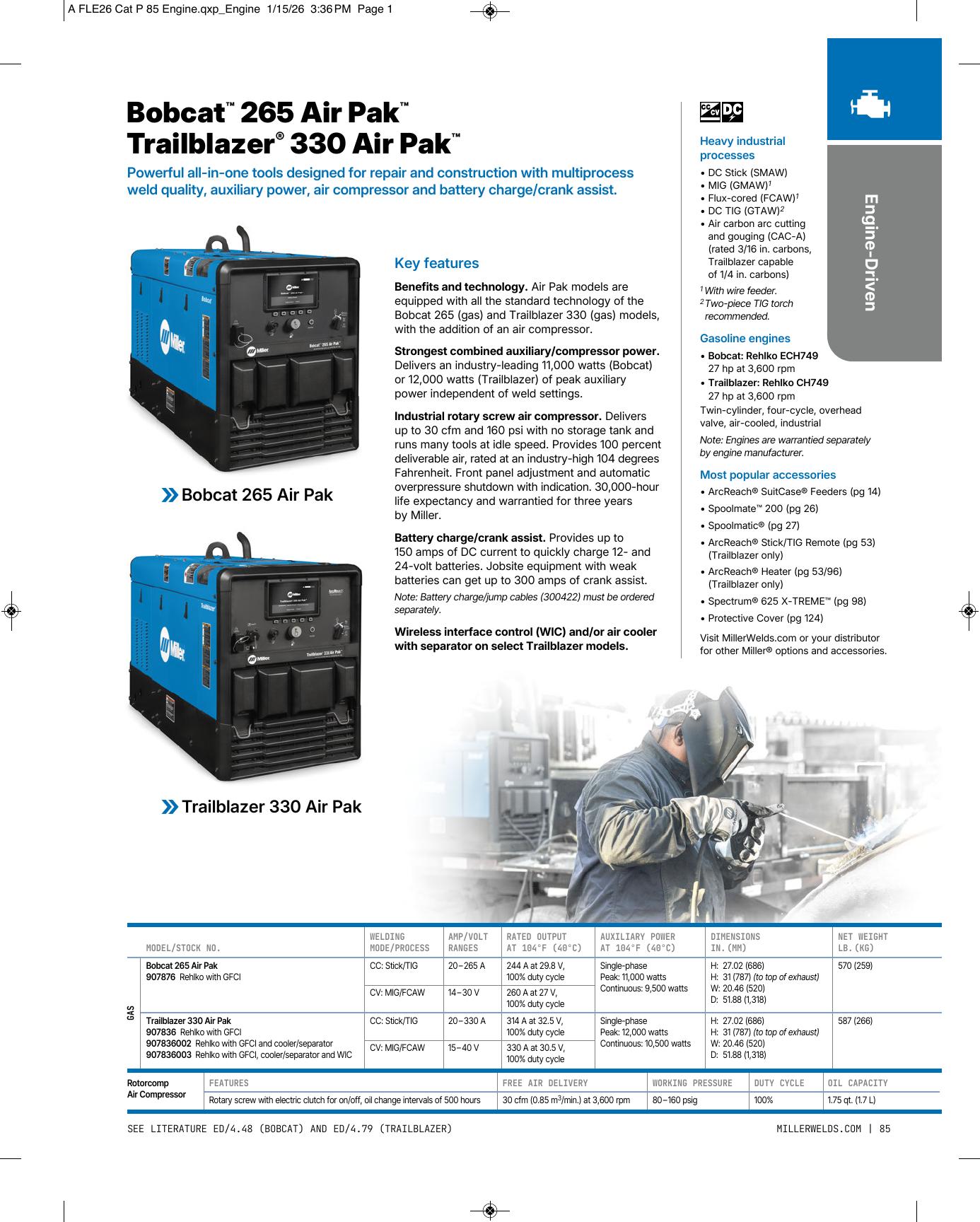

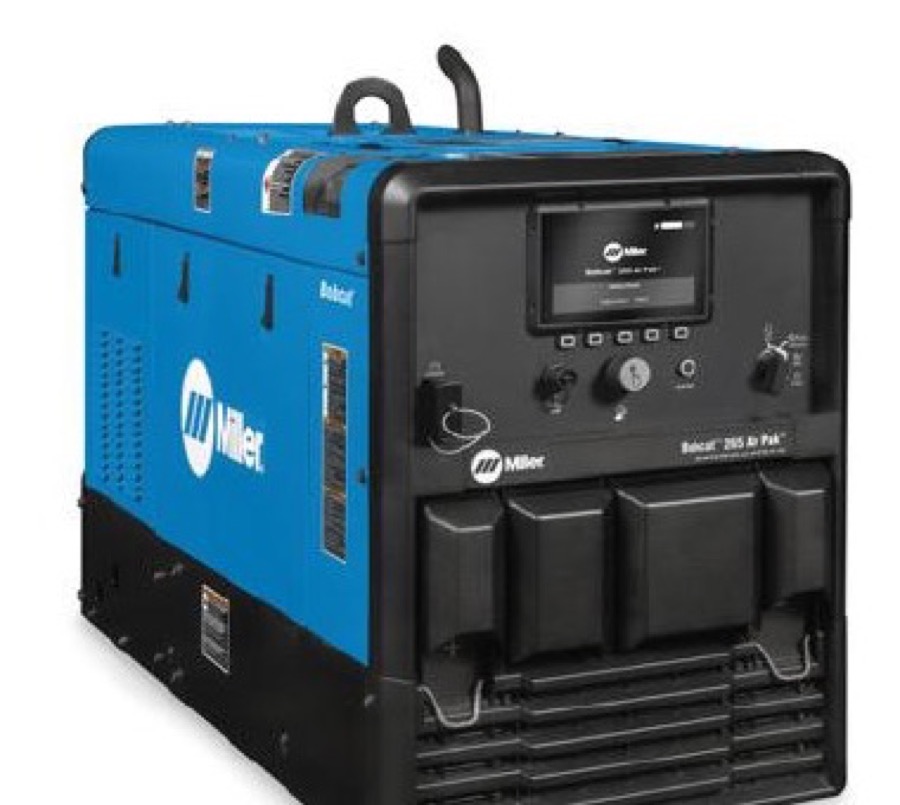

Bobcat 265 Air Pak
Bobcat 265 engine-drive platform with integrated Air Pak compressor, multiprocess weld output, auxiliary power, and battery charge/crank assist.
907876

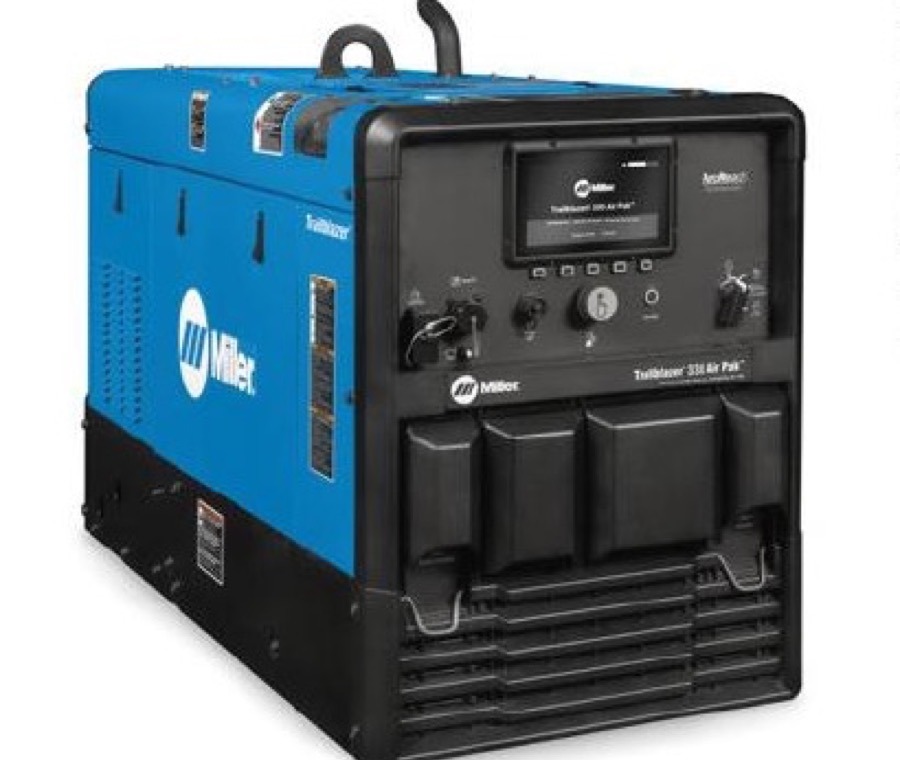

Trailblazer 330 Air Pak
Trailblazer 330 engine-drive platform with integrated Air Pak compressor, ArcReach support, auxiliary power, and battery charge/crank assist.
907836 907836002 907836003

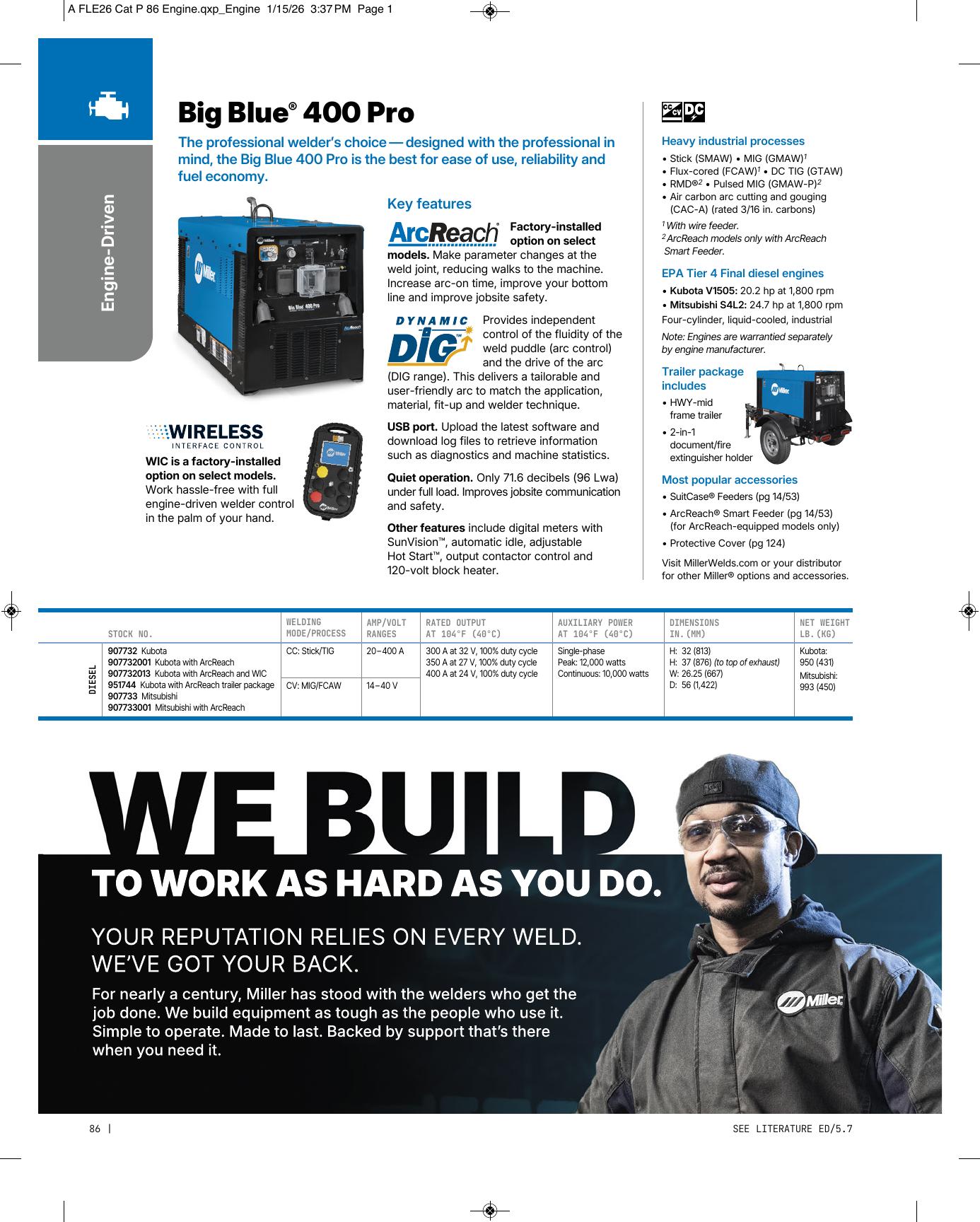

Big Blue 400 Pro
Heavy-industrial diesel engine-driven welder with 400-amp output, ArcReach options, RMD/Pulsed MIG capability on ArcReach models, and 10,000-watt continuous auxiliary power.
907732 907732001 907732013 951744

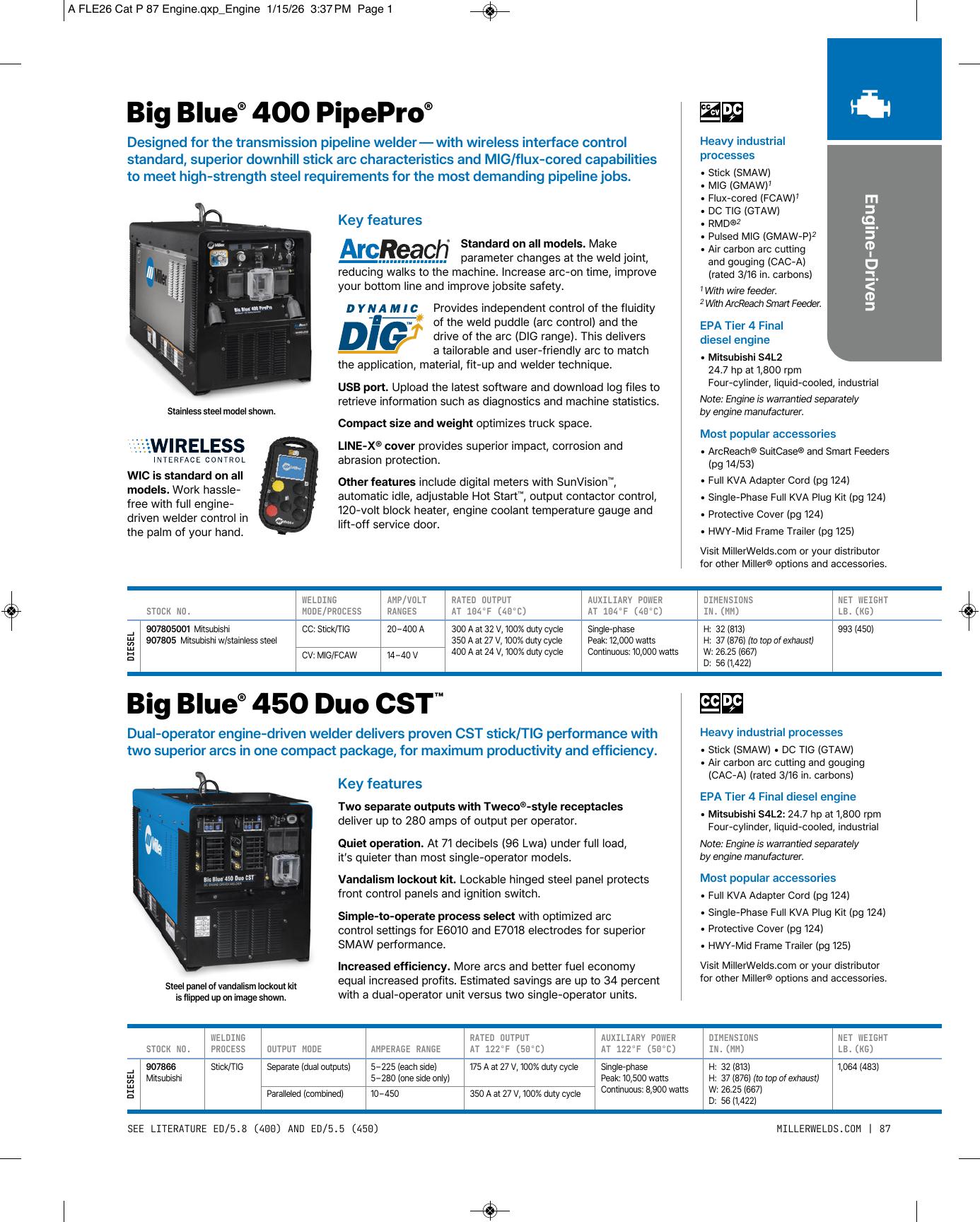

Big Blue 400 PipePro
Pipeline-focused diesel engine-drive with Wireless Interface Control standard, downhill stick performance, MIG/FCAW support, and 400-amp output.
907805001 907805
Big Blue 450 Duo CST
Dual-operator diesel engine-driven stick/TIG welder with two CST-style outputs for field productivity.
907866

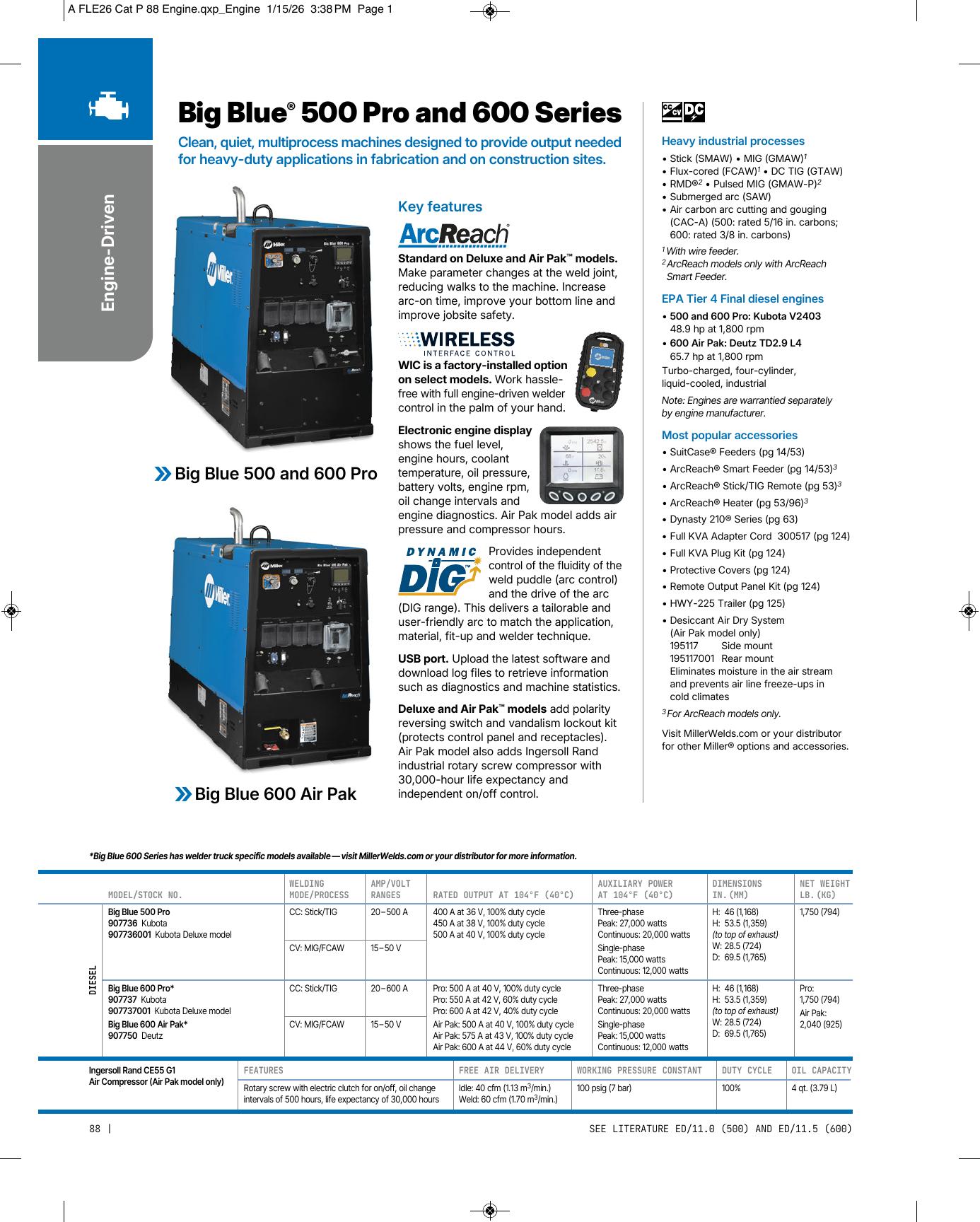

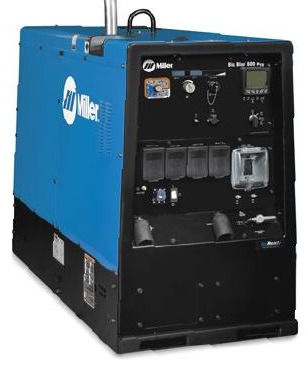

Big Blue 500 / 600 Series
High-output diesel Big Blue 500 and 600 platforms for heavy industrial welding, large auxiliary power demands, ArcReach support, and Air Pak compressor options.
907736 907736001 907737 907737001

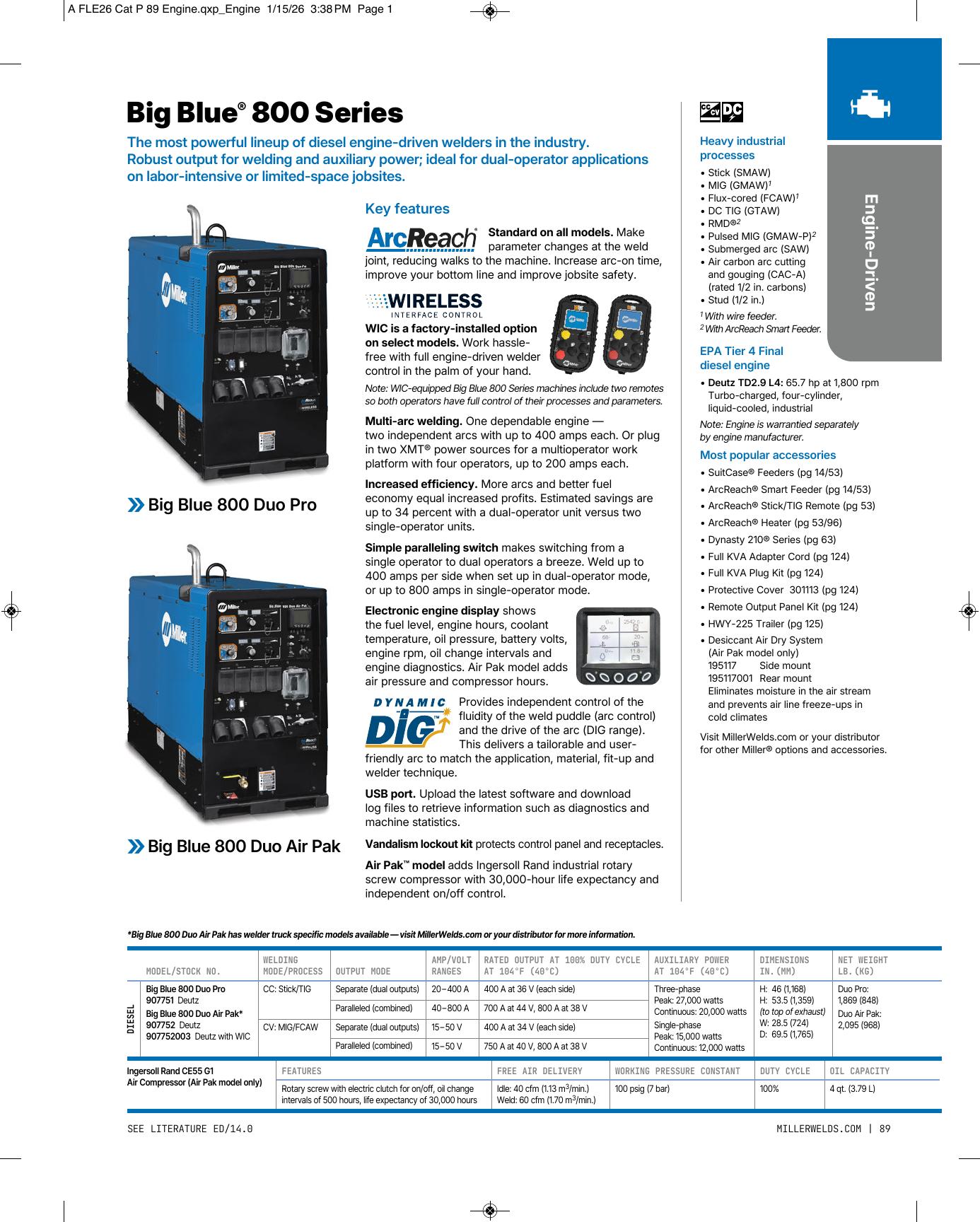

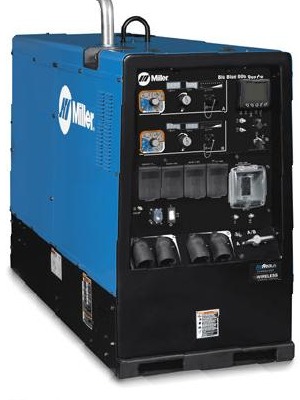

Big Blue 800 Series
Miller's highest-output diesel engine-driven series for dual-operator, multi-arc, Air Pak, stud, gouging, and heavy industrial work.
907751 907752 907752003
Placement Note
These are engine-driven welding machines, so they live in Stick Support under this Miller Engine-Drive area. When the catalog lists MIG, flux-cored, spool gun, feeder, plasma, TIG, or Air Pak accessories, those paths are linked from the machine page without moving the machine into MIG support.
Miller Catalog Accessories
These accessories are placed here only when the Miller catalog names this machine, torch, feeder, or family path. Verify plug style, voltage, package, and serial-specific details before ordering.
| Part | Accessory | Catalog fitment | Source / path |
|---|---|---|---|
| 399802 | Vandalism Lockout Kit | Field-installed kit for Big Blue 500 Pro / 600 Series. | Catalog p. 124 Open support path |
| 301439 | Trailer Fender Kit | For HWY-Mid Frame and HWY-225 trailers. | Catalog p. 125 Open support path |
| 043826 | Trailer Cable Tree | For HWY-Mid Frame and HWY-225 trailers. | Catalog p. 125 Open support path |
| 301441 | Dual Hitch | For HWY-Mid Frame and HWY-225 trailers. | Catalog p. 125 Open support path |
| 301236 | 2-in-1 Document / Fire Extinguisher Holder | For HWY-Mid Frame and HWY-225 trailers. | Catalog p. 125 Open support path |
| 137546 | WC-115A Weld Control | Without contactor; for CC DC power sources and CV/DC engine drives supplying 115 V. | Catalog p. 130 Open support path |
| 137546011 | WC-115A Weld Control with Contactor | For CC DC power sources and CV/DC engine drives supplying 115 V. | Catalog p. 130 Open support path |
| 137549 | WC-24 Weld Control | For Spoolmate 200, Spoolmatic, and Spoolmatic Pro with Miller CV power sources having 14-pin receptacles and 24 VAC. | Catalog p. 130 Open support path |
| 132228 | Spool Gun Extension Hose and Cable Kit | 25 ft; for Spoolmate 200, Spoolmatic, and Spoolmatic Pro. | Catalog p. 130 Open support path |
| 132229 | Spool Gun Extension Hose and Cable Kit | 50 ft; for Spoolmate 200, Spoolmatic, and Spoolmatic Pro. | Catalog p. 130 Open support path |
