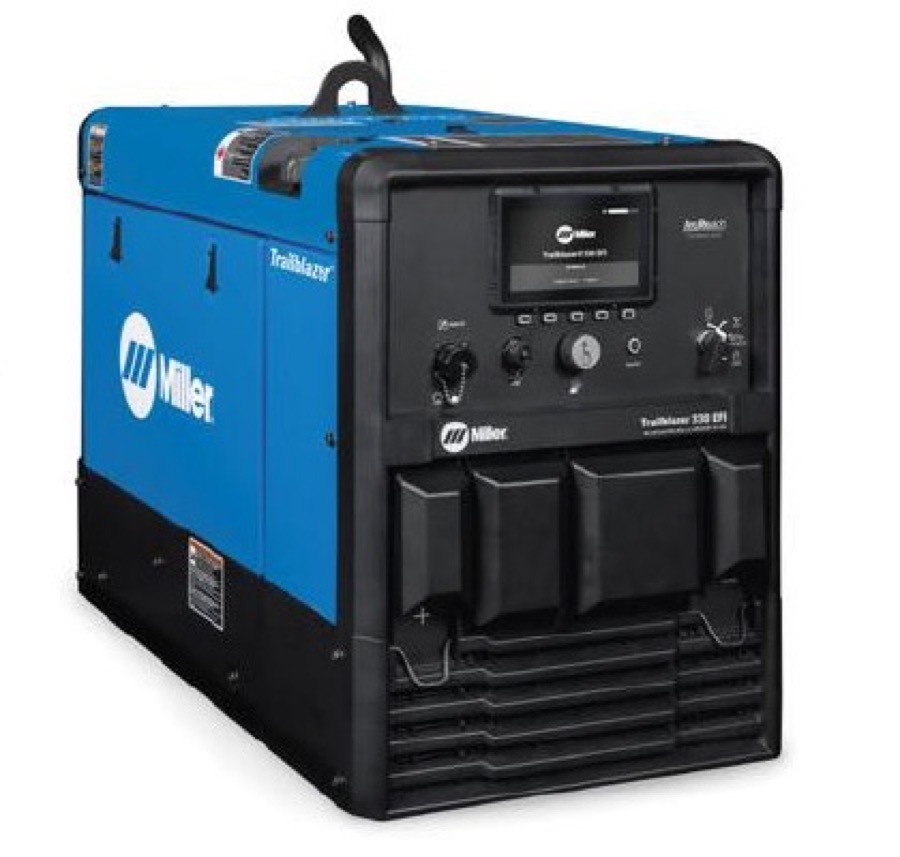

Miller diesel engine-driven welder / generator

Miller Trailblazer 330 Diesel Engine-Drive and Air Carbon Arc Support

The Trailblazer 330 Diesel is a Kubota D902 engine-driven welder with 330 amp output, 12,000 watt peak auxiliary power, optional Excel power, optional Wireless Interface Control, optional battery charge/crank assist, ArcReach support, and direct spool gun connection. Use this page for diesel package stock numbers 907849, 907849001, 907849002, and 907849003.

Machine packages Buy / lookup paths ArcReach feeders Search parts

Start Here

The fastest ownership paths for the diesel Trailblazer 330.

Trailblazer 330 Diesel

Confirm the diesel package

The four stock numbers differ by Excel power, Wireless Interface Control, and battery charge/crank assist options.

View packages Search 907849

Trailblazer 330 Diesel

Diesel maintenance path

Use the cold-weather kit, spark arrestor, and diesel engine filter kit rows for ownership and service searches.

Accessory table Search 259935

Trailblazer 330 Diesel

Add feeders, guns, or remotes

The sheet lists ArcReach SuitCase feeders, ArcReach Smart Feeder, Spoolmatic 30A, Spoolmate 200, and remote-control options.

Wire feeder support Spool gun support

Trailblazer 330 Diesel

Set up power and battery assist

Use the full KVA plug/adapter for 240 V equipment and 300422 cables for battery charge/crank assist machines.

Search 300517 Search 300422

Trailblazer 330 Diesel Specs

Core machine data from the Miller Trailblazer 330 Diesel spec sheet, index ED/4.86, issued September 2025.

Stick, MIG, Flux-Cored, DC TIGProcesses - Also supports RMD with ArcReach Smart Feeder, air carbon arc gouging, and plasma cutting with optional Spectrum units

20-330 A / 15-40 VWelding range - CC Stick/TIG amperage range and CV MIG/FCAW voltage range

330 A CC / 330 A CVRated output - 330 A at 31 V and 330 A at 30.5 V, both at 100% duty cycle

12,000 W peakAuxiliary power - 10,500 W continuous single-phase power at 104 F

2,400 WExcel power - Optional 120 V, 20 A, 60 Hz pure sine power at all speeds

12/24 VBattery assist - Optional 150 A charge and 300 A crank assist

Kubota D902Engine - 24.8 hp at 3,600 rpm, liquid-cooled diesel

11 gal.Fuel capacity - Diesel fuel tank capacity

27.02 x 20.6 x 45.72 in.Dimensions - Height x width x depth; 32.41 in. to top of exhaust

611 lb.Net weight - Weight without fuel

80.2 dB at 330 A loadSound level - Measured at 7 m per Miller sheet

3/16 in. ratedCarbon arc - Capable of 1/4 in. carbons per Miller sheet

Machine Packages

Use the package stock number to confirm whether the diesel machine includes Excel power, Wireless Interface Control, or battery charge/crank assist.

Stock #	Package	Included note	Buy / lookup
907849	Trailblazer 330 Diesel, Kubota engine	Base model.	Search Amazon Site lookup
907849001	Trailblazer 330 Diesel with Excel power	Adds Excel power for 120 V pure sine auxiliary power at low engine speed and while welding.	Search Amazon Site lookup
907849002	Trailblazer 330 Diesel with Excel power and Wireless Interface Control	Adds Excel power and factory Wireless Interface Control.	Search Amazon Site lookup
907849003	Trailblazer 330 Diesel with Excel power and battery charge/crank assist	Adds Excel power and the optional battery charge/crank assist feature.	Search Amazon Site lookup

Machine Features

Customer-facing features and fitment notes from the Miller sheet.

ArcReach support lets compatible feeders and remotes adjust output without a separate control cord.
Direct 10-pin spool gun connection is listed for the Trailblazer 330 Diesel platform.
Auto-Set helps set process-specific weld parameters for operators of different skill levels.
Advanced Auto-Speed varies engine speed from 2,400 to 3,600 rpm based on welding and battery-charge demand.
Optional Excel power provides 120 V pure sine auxiliary power at all speeds, including while welding.
Optional Wireless Interface Control allows process selection, output adjustment, custom programs, and engine on/off control from the remote.
Optional battery charge/crank assist supports 12 V and 24 V batteries; Miller lists the jump cables as a separate accessory.
The diesel unit is rated 330 A at 100% duty cycle in both CC and CV modes.

Setup Notes

Practical checks before choosing accessories or support paths.

Confirm the diesel package stock number first: 907849, 907849001, 907849002, and 907849003 do not include the same options.
If the machine has battery charge/crank assist, order or verify Miller 300422 charge/jump cables with plug.
Use the full KVA plug or adapter cord when powering 240 V equipment from the 120/240 V receptacle.
The 10-pin receptacle is the direct spool gun path for compatible Spoolmate and Spoolmatic guns.
RMD is called out for ArcReach models when used with the ArcReach Smart Feeder.
Use the diesel filter kit and cold weather kit rows for maintenance or cold-start ownership paths.

Diesel Engine Notes

Engine, fuel, and shutdown data from the Miller sheet.

Kubota D902 three-cylinder liquid-cooled industrial diesel engine.
Engine output is listed as 24.8 hp at 3,600 rpm.
Advanced Auto-Speed varies weld speed from 2,400 to 3,600 rpm; idle speed is listed at 2,400 rpm.
Fuel capacity is 11 gal. and oil capacity is listed at 3.8-4.0 qt.
Standard shutdowns include high coolant temperature, low oil pressure, and low fuel.
Miller lists the engine warranty separately through the engine manufacturer.

Accessories, Service Items, and Buy Paths

Rows come from the Miller spec sheet ordering section. Direct Amazon buttons appear only where the Miller part already has an approved registry link.

Group	Part #	Item	Use / note	Buy / lookup
Field option	301736	Cold Weather Kit Diesel option	Includes block heater and fuel heater for improved cold-temperature starting and filtration.	Search Amazon Site lookup
Field option	043579	Spark Arrestor Engine option	Required in some grassland, brush, forest, and national forest applications. Check local rules before operating.	Search Amazon Site lookup
Power	300517	Full KVA Adapter Cord Power adapter	NEMA 14-50P to NEMA 6-50R adapter for common Millermatic and Spectrum 240 V plugs.	Engine-drive support View on Amazon Site lookup
Power	119172	Full KVA Plug NEMA 14-50P plug	120/240 V, 50 A plug for the full KVA receptacle.	Search Amazon Site lookup
Service	259935	Diesel Engine Filter Kit Diesel service	Includes air filter, oil filter, fuel pre-filter, and primary fuel filter.	Search Amazon Site lookup
Machine accessory	301717	Multi-Terrain Running Gear with Never Flat Tires Running gear	Running gear listed for Trailblazer 330 Diesel with two heavy-duty 15 in. tires, two 8 in. casters, and handle.	Search Amazon Site lookup
Machine accessory	301718	Protective Cage with Cable Holders Protective cage	Rugged cage with cable holders for Trailblazer 330 Diesel.	Search Amazon Site lookup
Machine accessory	300422	25 ft. Battery Charge/Jump Cables with Plug Battery accessory	Required accessory path for the optional battery charge/crank assist feature.	View on Amazon Site lookup
Machine accessory	301731	Protective Cover Cover	For Trailblazer 330 Diesel without protective cage or running gear.	Search Amazon Site lookup
Machine accessory	301729	Protective Cover Cover	For Trailblazer 330 Diesel with protective cage and/or running gear.	Search Amazon Site lookup
Machine accessory	301714	Sun Shade Machine accessory	Compatible with Bobcat 265 and Trailblazer 330 engine-driven welders.	Search Amazon Site lookup
WIC accessory	301742	Screen Protector Kit Display accessory	Compatible with Bobcat 265 and Trailblazer 330 engine-driven welders.	Search Amazon Site lookup
WIC accessory	288137	Wireless Interface Control Replacement Kit Wireless control	For WIC-equipped machines only; includes replacement remote, lanyard, USB charger, adapter, and screen protectors.	Search Amazon Site lookup
WIC accessory	287594	Wireless Interface Control Protective Covers Wireless control	Five-pack of protective covers for the WIC remote.	Search Amazon Site lookup
MIG machine	907838	Millermatic 142 Auxiliary-powered MIG welder	Miller lists the Millermatic 142 as a portable MIG welder path that can run from auxiliary power.	Open 142 page Search Amazon Site lookup
MIG machine	907614	Millermatic 211 Auxiliary-powered MIG welder	Miller lists Millermatic 211 as an auxiliary-powered MIG welder path on the spec sheet.	Open 211 page Search Amazon Site lookup
Wire feeder	951726001	ArcReach SuitCase 8 with Bernard BTB Gun Portable feeder package	Arc voltage feeder package for compatible engine-drive work.	Feeder support Search Amazon Site lookup
Wire feeder	951727	ArcReach SuitCase 8 with Bernard S-Gun Portable feeder package	ArcReach SuitCase 8 package listed in the Miller spec sheet.	Feeder support Search Amazon Site lookup
Wire feeder	951728	ArcReach SuitCase 8 with Bernard Dura-Flux Gun Portable feeder package	ArcReach SuitCase 8 flux-cored package listed in the Miller spec sheet.	Feeder support Search Amazon Site lookup
Wire feeder	951729001	ArcReach SuitCase 12 with Bernard BTB Gun Portable feeder package	ArcReach SuitCase 12 package listed in the Miller spec sheet.	Feeder support Search Amazon Site lookup
Wire feeder	951730	ArcReach SuitCase 12 with Bernard S-Gun Portable feeder package	ArcReach SuitCase 12 package listed in the Miller spec sheet.	Feeder support Search Amazon Site lookup
Wire feeder	951731	ArcReach SuitCase 12 with Bernard Dura-Flux Gun Portable feeder package	ArcReach SuitCase 12 flux-cored package listed in the Miller spec sheet.	Feeder support Search Amazon Site lookup
Wire feeder	951733	ArcReach Smart Feeder Advanced feeder	Listed for MIG, FCAW, RMD, and pulse processes with compatible power sources.	Smart Feeder page Search Amazon Site lookup
Wire feeder	951580001	SuitCase 12RC Wire Feeder Remote-control feeder	Includes remote voltage control, drive roll kit, and Bernard BTB 300 A gun per the spec sheet.	Feeder support Search Amazon Site lookup
Spool gun	130831	Spoolmatic 30A Spool Gun Spool gun	Rated 200 A at 100% duty cycle with 30 ft. cable.	Spoolmatic page View on Amazon Site lookup
Spool gun	300497	Spoolmate 200 Spool Gun Spool gun	Rated 160 A at 60% duty cycle with 20 ft. cable.	Spoolmate page View on Amazon Site lookup
Push-pull gun	Various	XR Wire Feeder and Guns Aluminum push-pull path	Miller points soft-alloy aluminum push-pull users to the XR wire feeder and gun literature paths.	Push-pull support Search Amazon Site lookup
Stick	173851	2/0 Stick Cable Set, 50 ft. Stick lead set	50 ft. 2/0 electrode cable with holder and 50 ft. work cable with clamp; 350 A, 100% duty cycle.	Search Amazon Site lookup
Stick	043952	2/0 Stick Cable Set, 100/50 ft. Stick lead set	100 ft. 2/0 electrode cable with holder and 50 ft. work cable with clamp; 300 A, 100% duty cycle.	Search Amazon Site lookup
TIG	See page	Dynasty 210 Series Portable AC/DC TIG path	Miller points portable AC/DC TIG users to the Dynasty 210 Series.	Dynasty 210 page Search Amazon Site lookup
Multiprocess	907693	Multimatic 215 Portable multiprocess welder	Portable all-in-one multiprocess package listed as an auxiliary-powered welding path.	Multimatic 215 page View on Amazon Site lookup
Remote	301325	ArcReach Stick/TIG Remote Remote control	Cordless remote output control when paired with an ArcReach power source.	Search Amazon Site lookup
Remote	301582	Wireless Remote Hand Control Remote control	Remote current, voltage, and contactor control. Receiver plugs into a Miller 14-pin receptacle.	Search Amazon Site lookup
Remote	242211020	RHC-14 Hand Control Remote control	Miniature hand control with 20 ft. cord and 14-pin plug.	View on Amazon Site lookup
Remote	195511	PRHC-14 Hand Control Remote control	Current or voltage control that brings 120 V GFCI power to the work area in a single cord.	Search Amazon Site lookup
Remote cable	242208025	14-Pin Extension Cable, 25 ft. Remote cable	Extension cable for 14-pin remote controls.	View on Amazon Site lookup
Remote cable	242208050	14-Pin Extension Cable, 50 ft. Remote cable	Extension cable for 14-pin remote controls.	View on Amazon Site lookup
Remote cable	242208080	14-Pin Extension Cable, 80 ft. Remote cable	Extension cable for 14-pin remote controls.	View on Amazon Site lookup
Remote panel	951850	Remote Output Panel Kit Truck-mounted output panel	Moves auxiliary power and weld outputs closer to the point of use on truck-mounted installations.	Search Amazon Site lookup
Plasma	907529	Spectrum 375 X-TREME Auxiliary-powered plasma path	Optional Miller plasma cutter path listed on the spec sheet.	Spectrum support Search Amazon Site lookup
Plasma	907579	Spectrum 625 X-TREME Auxiliary-powered plasma path	Optional Miller plasma cutter path listed on the spec sheet.	Spectrum support View on Amazon Site lookup
Plasma	907583	Spectrum 875 Auxiliary-powered plasma path	Optional Miller plasma cutter path listed on the spec sheet.	Spectrum support Search Amazon Site lookup
Trailer	301438	HWY-Mid Frame Trailer Trailer	Highway trailer with lights, fenders, jack stand, and dual hitch.	Engine-drive support View on Amazon Site lookup
Trailer	043826	Cable Tree Trailer accessory	Trailer-mounted cable and extension-cord wrap area.	Search Amazon Site lookup
Trailer	301236	2-In-1 Document / Fire Extinguisher Holder Trailer accessory	Stores documents and holds a five-pound fire extinguisher. Fire extinguisher not included.	Engine-drive support View on Amazon Site lookup

Source: Miller Trailblazer 330 Diesel spec sheet, index ED/4.86, issued September 2025. Amazon search links are a buying aid; direct View on Amazon buttons only appear when a Miller registry match is already approved. Verify package stock number, serial-specific service details, plug style, fuel and engine-service requirements, and safety requirements before ordering.
