Consumable diagram
Shielded Consumables
Shielded consumable stack for the PAC105T torch.
Plasma torch support

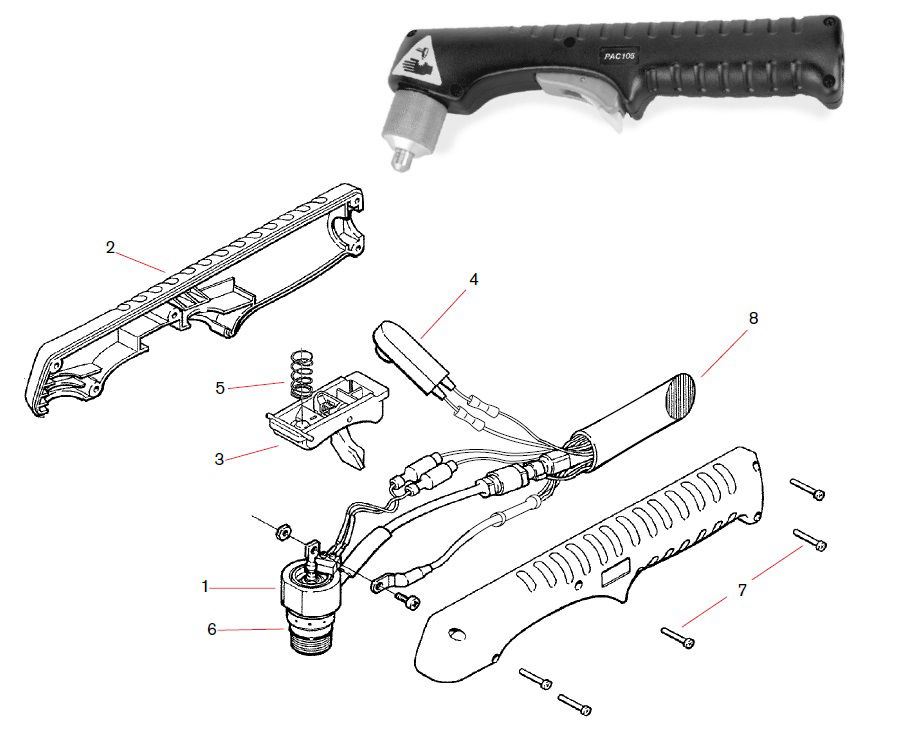

PAC105T torch assembly, replacement parts, work lead, shielded consumables, and unshielded consumables for the Powermax 190c platform.
Hypertherm consumable reference
Consumable diagrams for the PAC105T hand torch on the Powermax 190c support path. Use the parts list below to confirm shielded or unshielded consumables for the Powermax 190c torch.
Consumable diagram

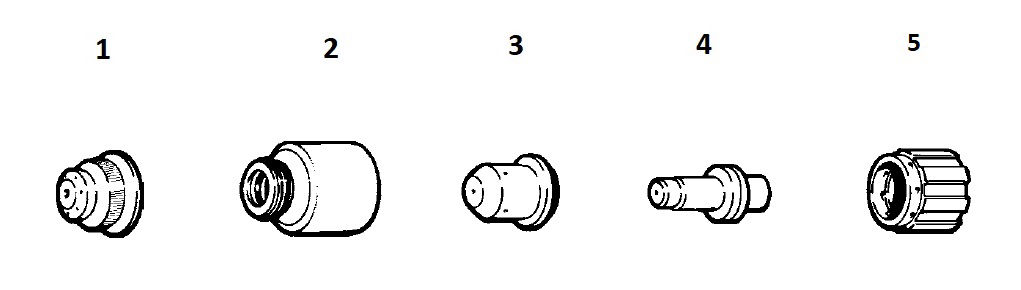

Shielded consumable stack for the PAC105T torch.
Consumable diagram

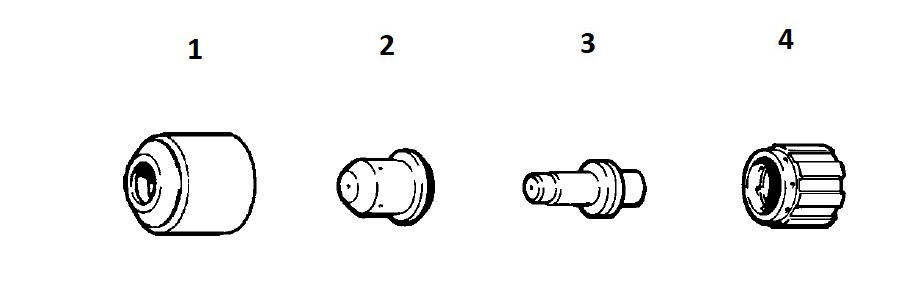

Unshielded consumable stack for the PAC105T torch.
As an Amazon Associate, I earn from qualifying purchases.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Torch | 128833 |
PAC105T torch assembly with 7.6 m (25') leads
|
Buy link unavailable. | |
| 1 | 120874 |
Torch main body with switch
|
Buy link unavailable. | |
| 2 | 001288 |
Handle (includes both halves)
|
Buy link unavailable. | |
| 3 | 002244 |
Safety trigger assembly
|
View on Amazon | |
| 4 | 005202 |
Switch, torch pushbutton
|
Buy link unavailable. | |
| 5 | 027254 |
Trigger spring
|
View on Amazon | |
| 6 | 058503 |
O-ring, Viton .625 x .070
|
View on Amazon | |
| 7 | 075339 |
Screws #4 x 1/2" (five required)
|
View on Amazon | |
| 8 | 128478 |
Torch lead replacement, 6.1 m (20')
|
Buy link unavailable. | |
| Ground | 060133 |
Work lead with clamp 4.5 m (15')
|
Buy link unavailable. | |
| 1 | 120884 |
Shield/Deflector
|
Buy link unavailable. | |
| 2 | 120898 |
Retaining cap
|
Buy link unavailable. | |
| 3 | 120882 |
12 Amp Shielded Nozzle (pk of 5)
|
pk of 5 | Buy link unavailable. |
| 4 | 120881 |
12 Amp Electrode (pk of 5)
|
pk of 5 | Buy link unavailable. |
| 5 | 120880 |
Swirl Ring
|
Buy link unavailable. | |
| 1 | 120883 |
Retaining cap
|
Buy link unavailable. | |
| 2 | 120882 |
12 Amp Nozzle (pk of 5)
|
pk of 5 | Buy link unavailable. |
| 3 | 120881 |
12 Amp Electrode (pk of 5)
|
pk of 5 | Buy link unavailable. |
| 4 | 120880 |
Swirl Ring
|
Buy link unavailable. |
Related consumables
Another compact Hypertherm legacy torch support path.
Open PAC110 MAX20Related legacy Hypertherm hand torch support path.
Open Powermax 350 PAC110
Match the part number, machine model, gun or torch family, package quantity, and generation before buying. Amazon links are convenience links only, not compatibility proof.
