Plasma torch support

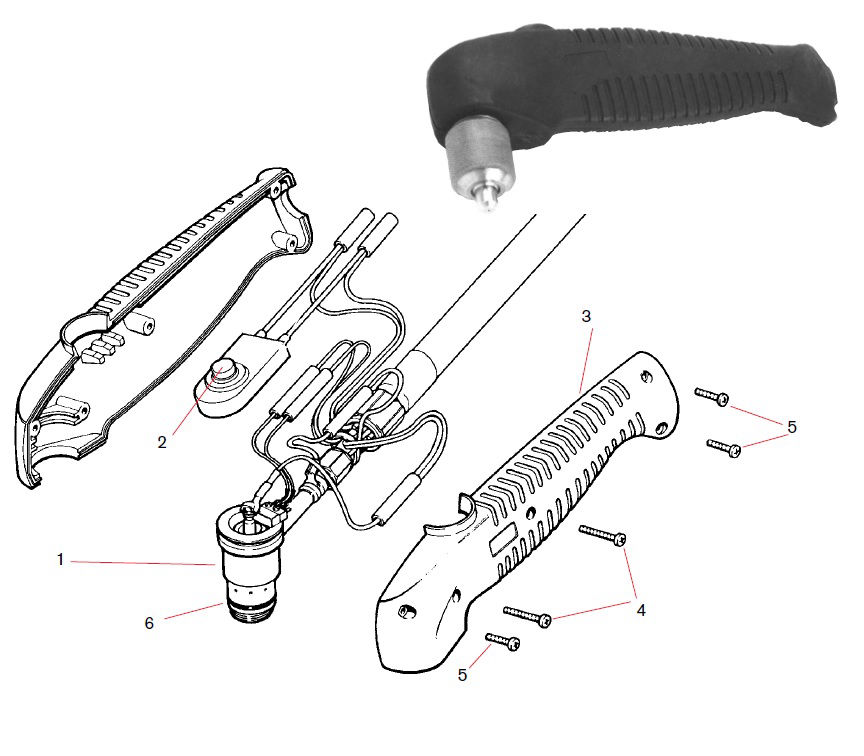

Hypertherm PAC110 MAX20 Torch Breakdown

PAC110 torch assemblies, torch body parts, leads, work lead, standard consumables, and extended consumables for the Hypertherm MAX20 platform.

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Torch 070003
PAC110 torch assembly with 4.5 m (15') leads
torch assembly PAC110 MAX20 Torch Replacement Parts
Hypertherm PAC110 MAX20 Torch Breakdown
Buy link unavailable.
Torch 070014
PAC110 torch assembly with 7.6 m (25') leads
torch assembly PAC110 MAX20 Torch Replacement Parts
Hypertherm PAC110 MAX20 Torch Breakdown
Buy link unavailable.
1 020588
Torch main body with switch
torch body PAC110 MAX20 Torch Replacement Parts
Hypertherm PAC110 MAX20 Torch Breakdown
Buy link unavailable.
2 005094
Switch, torch pushbutton
switch PAC110 MAX20 Torch Replacement Parts
Hypertherm PAC110 MAX20 Torch Breakdown
View on Amazon
3 001192
Handle (includes both halves)
handle PAC110 MAX20 Torch Replacement Parts
Hypertherm PAC110 MAX20 Torch Breakdown
Buy link unavailable.
4 075341
Screw, #4 x 3/4" (two required)
torch hardware PAC110 MAX20 Torch Replacement Parts
Hypertherm PAC110 MAX20 Torch Breakdown
Buy link unavailable.
5 075339
Screw, #4 x 1/2" (three required)
torch hardware PAC110 MAX20 Torch Replacement Parts
Hypertherm PAC110 MAX20 Torch Breakdown
View on Amazon
6 044016
O-ring, Buna – N 90 Duro (pk of 5)
o-ring PAC110 MAX20 Torch Replacement Parts Package quantity comes from the source row description.
Hypertherm PAC110 MAX20 Torch Breakdown
pk of 5 View on Amazon
029241
Torch leads, 4.5 m (15')
lead PAC110 MAX20 Torch Replacement Parts
Hypertherm PAC110 MAX20 Torch Breakdown
Buy link unavailable.
029257
Torch leads, 7.6 m (25')
lead PAC110 MAX20 Torch Replacement Parts
Hypertherm PAC110 MAX20 Torch Breakdown
Buy link unavailable.
Ground 023269
Work lead with clamp, 4.5 m (15')
lead PAC110 MAX20 Torch Replacement Parts
Hypertherm PAC110 MAX20 Torch Breakdown
Buy link unavailable.
1 220016
Retaining cap
retaining cap PAC110 MAX20 Standard Consumables
Hypertherm PAC110 MAX20 Torch Breakdown
View on Amazon
2 020299
25 Amp Standard Nozzle (pk of 5)
nozzle PAC110 MAX20 Standard Consumables Package quantity comes from the source row description.
Hypertherm PAC110 MAX20 Torch Breakdown
pk of 5 Buy link unavailable.
3 020220
25 Amp Standard Electrode (pk of 5)
electrode PAC110 MAX20 Standard Consumables Package quantity comes from the source row description.
Hypertherm PAC110 MAX20 Torch Breakdown
pk of 5 View on Amazon
4 220013
Swirl Ring
swirl ring PAC110 MAX20 Standard Consumables
Hypertherm PAC110 MAX20 Torch Breakdown
Buy link unavailable.
1 220016
Retaining cap
retaining cap PAC110 MAX20 Extended Consumables
Hypertherm PAC110 MAX20 Torch Breakdown
View on Amazon
2 120504
25 Amp Extended Nozzle (pk of 5)
nozzle PAC110 MAX20 Extended Consumables Package quantity comes from the source row description.
Hypertherm PAC110 MAX20 Torch Breakdown
pk of 5 View on Amazon
3 020382
25 Amp Extended Electrode (pk of 5)
electrode PAC110 MAX20 Extended Consumables Package quantity comes from the source row description.
Hypertherm PAC110 MAX20 Torch Breakdown
pk of 5 View on Amazon
4 220013
Swirl Ring
swirl ring PAC110 MAX20 Extended Consumables
Hypertherm PAC110 MAX20 Torch Breakdown
Buy link unavailable.

Related consumables

Plasma Fitment Check

Match the part number, machine model, gun or torch family, package quantity, and generation before buying. Amazon links are convenience links only, not compatibility proof.
