Consumable diagram
Standard Consumables
Standard PAC110T consumable stack for the Powermax 380 support path.
Plasma torch support
PAC110T hand torch assembly, replacement parts, work lead, standard consumables, and Profax-style replacement consumable rows for the Powermax 380 platform.
Hypertherm consumable reference

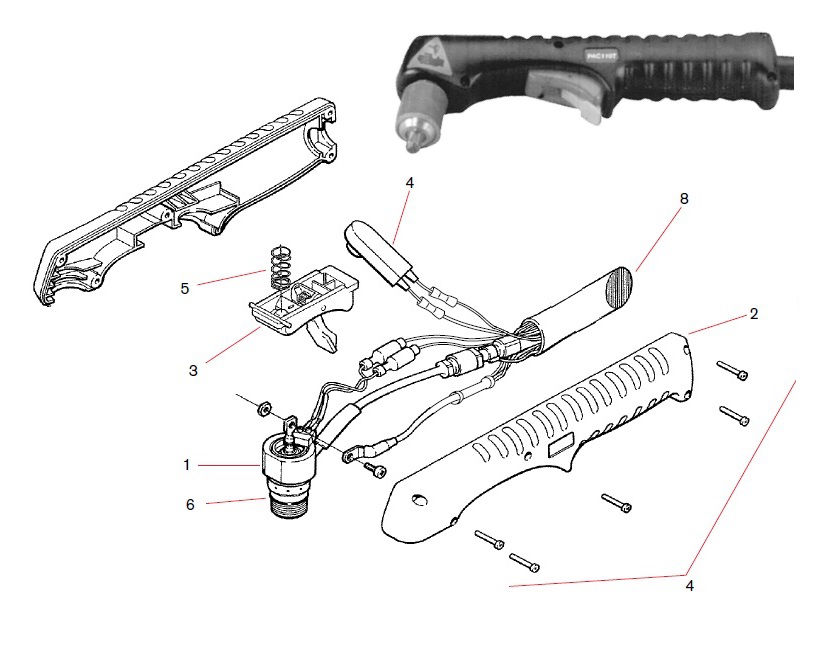

Consumable diagram for the PAC110T hand torch on the Powermax 380 support path. Use the parts list below to confirm standard and replacement consumable rows for the PAC110T torch.
Consumable diagram
Standard PAC110T consumable stack for the Powermax 380 support path.
As an Amazon Associate, I earn from qualifying purchases.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Torch | 070071 |
PAC110T hand torch assembly with 6.1 m (20') leads
|
Buy link unavailable. | |
| 1 | 120976 |
Torch main body with switch
|
Buy link unavailable. | |
| 2 | 001288 |
Handle (includes both halves)
|
Buy link unavailable. | |
| 3 | 002244 |
Safety trigger assembly
|
Check Price on Amazon | |
| 4 | 005202 |
Switch, torch pushbutton
|
Buy link unavailable. | |
| 5 | 027254 |
Trigger spring
|
Check Price on Amazon | |
| 6 | 058503 |
O-ring, Viton .625 x .070
|
Check Price on Amazon | |
| 7 | 075339 |
Screw #4 x 1/2", (five required)
|
Check Price on Amazon | |
| 8 | 060208 |
Torch lead replacement, 6.1 m (20')
|
Buy link unavailable. | |
| Ground | 060169 |
Work lead with clamp, 4.5 m (15')
|
Buy link unavailable. | |
| 1 | 220016 |
Retaining cap
|
Check Price on Amazon | |
| 2 | 120504 |
25 Amp Nozzle (pk of 5)
|
pk of 5 | Check Price on Amazon |
| 3 | 020382 |
25 Amp Electrode (pk of 5)
|
pk of 5 | Check Price on Amazon |
| 4 | 220013 |
Swirl Ring
|
Buy link unavailable. | |
| 1 | 220016 |
Retaining cap
|
Check Price on Amazon | |
| 2 | 220331 |
25 Amp Nozzle (pk of 5)
|
pk of 5 | Buy link unavailable. |
| 3 | 020382 |
25 Amp Electrode (pk of 5)
|
pk of 5 | Check Price on Amazon |
| 4 | 220013 |
Swirl Ring
|
Buy link unavailable. |
Related consumables
Related PAC110 torch support path.
Open PAC110 MAX20Related PAC110 hand torch support path.
Open Powermax 350 PAC110
Match the part number, machine model, gun or torch family, package quantity, and generation before buying. Amazon links are convenience links only, not compatibility proof.
