Home > Plasma Support Main > Miller Electric > XT60 Hand Torch

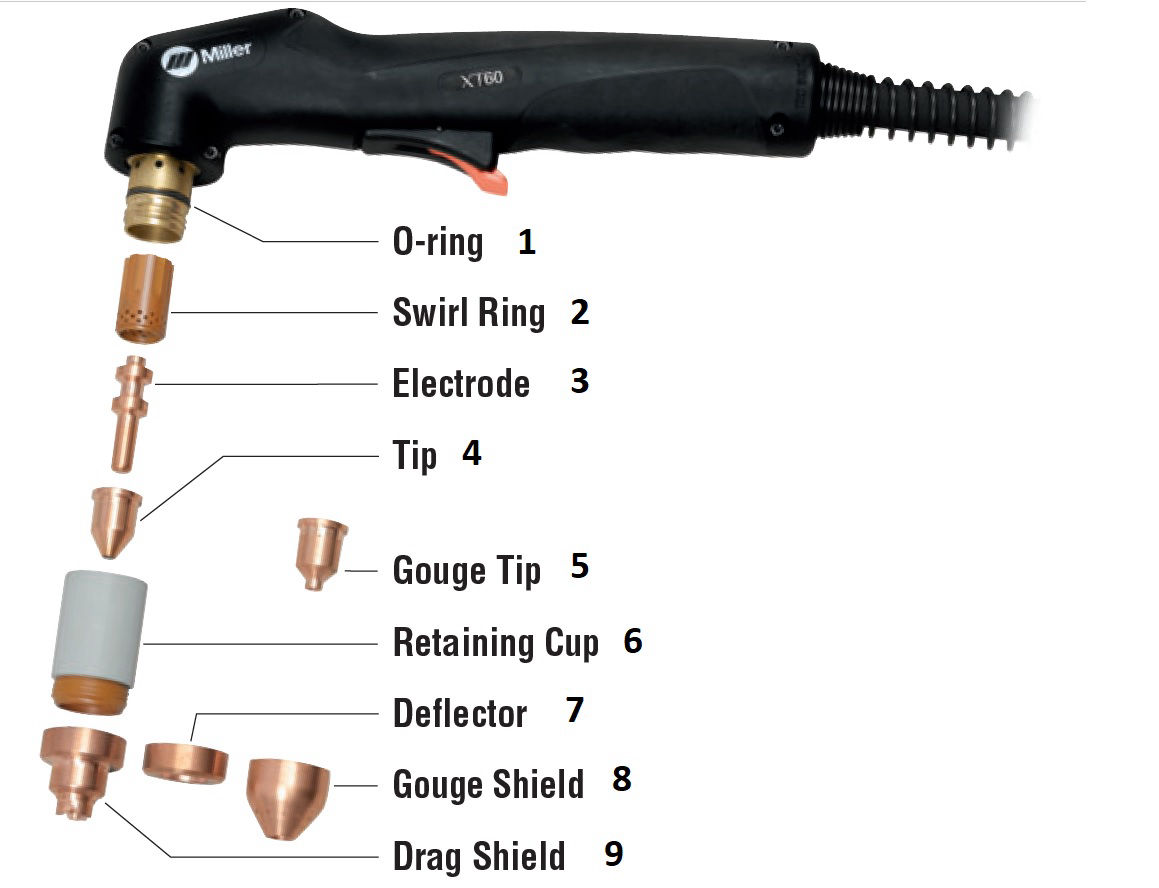

| Item # | Part # | Description |
|---|---|---|
| Torch | 249953 | XT60, 20 ft Hand Held Replacement Torch |
| Torch | 249954 | XT60, 50 ft Hand Held Replacement Torch |
| 1 | 263834 | O-ring |
| 2 | 256028 | Swirl Ring |
| 3 | 256026 | Electrode |
| 4 | 249929 262643 | 60A Tip 40A Tip |
| 5 | 249935 | Gouging Tip |
| 6 | 256029 | Retaining Cap |
| 7 | 256030 | Deflector |
| 8 | 256031 | Gouging Shield |
| 9 | 256027 | Drag Shield |
| n/a | 263950 | Torch Handle Kit w/Screws |
| n/a | 249971 | Torch Trigger (Microswitch) |
| n/a | 249961 | Leads, XT60 20 ft Hand-Held Replacement Torch |
| n/a | 249962 | Leads, XT60 50 ft Hand-Held Replacement Torch |
| n/a | 256039 | Torch Body Kit w/Switch |
| n/a | 249972 | Torch Trigger Assembly w/Spring |
| n/a | 249973 | Cup Detect Switch w/Screws |
Add this to your cutting guide for con -
venient attachment to all flat surfaces.
The extended arm accommodates holes
up to 30-inch diameter.
Helps maintain recommended
standoff distance to maximize
cutting performance and improve tip life.
Consumable
kit includes:
3 electrode, 3 tips, 1 swirl
ring, 1 retaining
cup, 1 o-ring, 1 gouging shield, 1 gouging tip, 1 drag Shield and silicone grease.
Field
NEMA 14-50P to NEMA 6-50R. Adapts
engine drive 120/240 V plug to Spectrum
240 V plug.

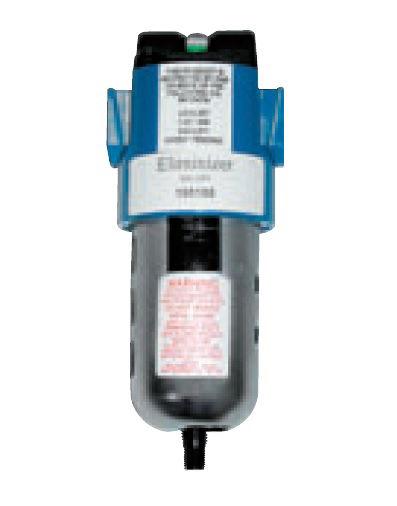

In-Line Air Filter / Replacement Filter Element
228926
Mounts to the back of the
Spectrum male and female 1/4-inch NPT
quick disconnect fittings and hose for easy
on/off connection. The replaceable filter
element filters to .85 microns for removal
of 99.9 percent of water, dirt and oil.
228928
Replacement filter element for the 228926 In-Line Air filter.
