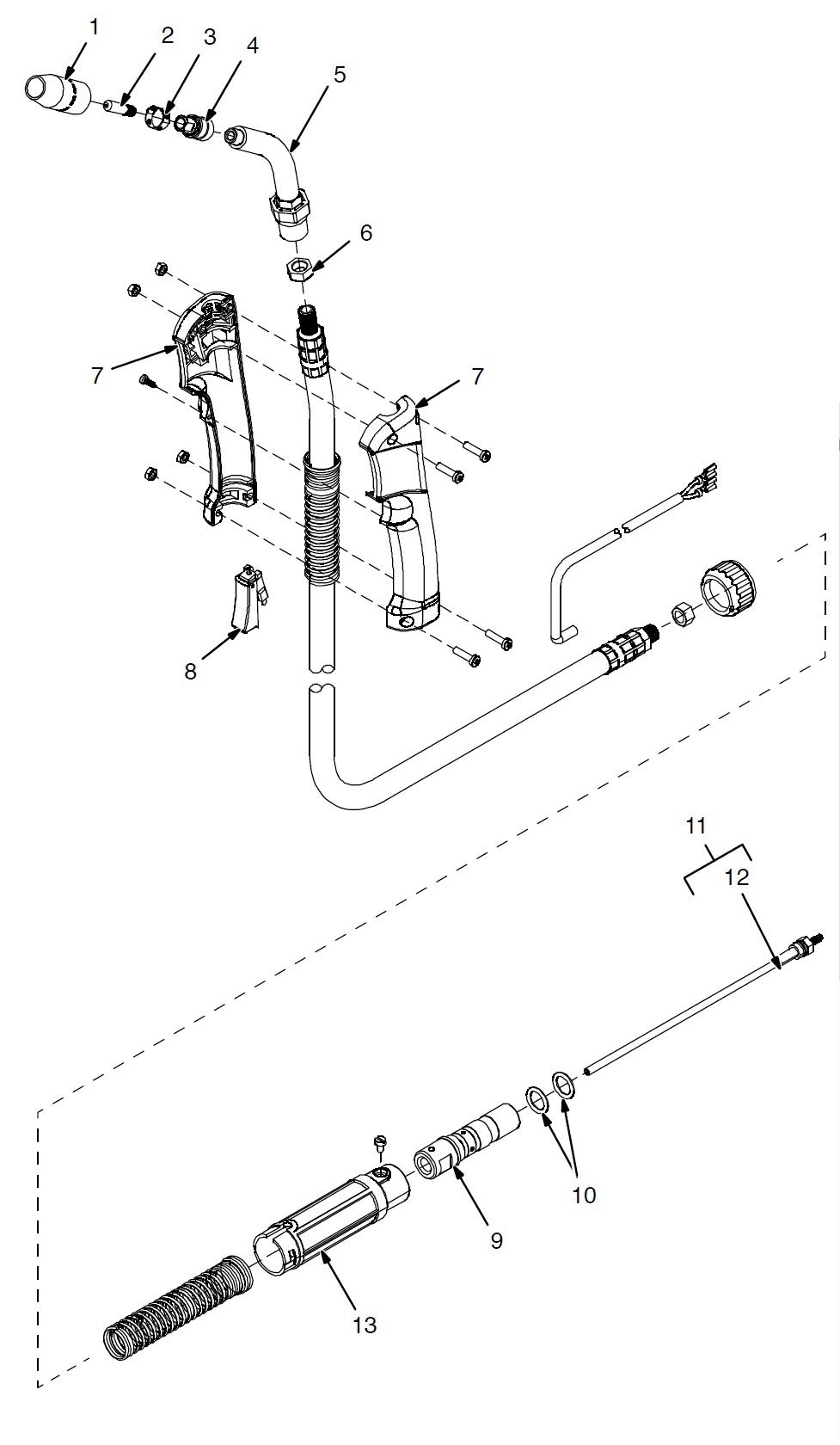

Miller M-80 Gun Breakdown

Mobirise
Item # Part # Description
Gun273618M-80 Gun, 8 ft. (2.4 m), 100A, .030-.035 (.8-.9 mm)
1246372Nozzle, Slip Type, .500 Opening, Flush Tip
1226190Nozzle, Slip Type, Flux Cored Wire
2087299.023 (.6 mm) Contact Tip, Screw Type - 1.125"
2000067.030 (.8 mm) Contact Tip, Screw Type - 1.125"
2000068.035 (.9 mm) Contact Tip, Screw Type - 1.125"
2000069.045 (1.2 mm) Contact Tip, Screw Type - 1.125"
3170470Retaining Ring
4169716Tip Adapter - Gas Diffuser
5246373Tube Head - Gooseneck
6243865Jam Nut
7246082Handle
8246376Trigger Switch
9242833Miller Type Power Pin - Feeder Connector
10079974O-ring, .500 ID x .103CS rbr
11194010.023-.025 (.6 mm) Wire Size x 15' Length
11194011.030-.035 (.8-.9 mm) Wire Size x 15' Length
11194012.035-.045 (.9-1.2 mm) Wire Size x 15' Length
12079975O-Ring .187 ID x .103CS rbr
13246380Power Pin Housing
9169732Jam Nut
10169737Front End Handle
11227799Rear End Handle
12227800Replacement Trigger Cord
13209495Miller Type Power Pin - Feeder Connector
234607M Series Consumable Kit .023 (10 Tips, 1 Diffuser, 1 Nozzle)
234608M Series Consumable Kit .030 (10 Tips, 1 Diffuser, 1 Nozzle)
234609M Series Consumable Kit .035 (10 Tips, 1 Diffuser, 1 Nozzle)
