Home > Plasma Support Main > Miller Electric > ICE-55C Torch

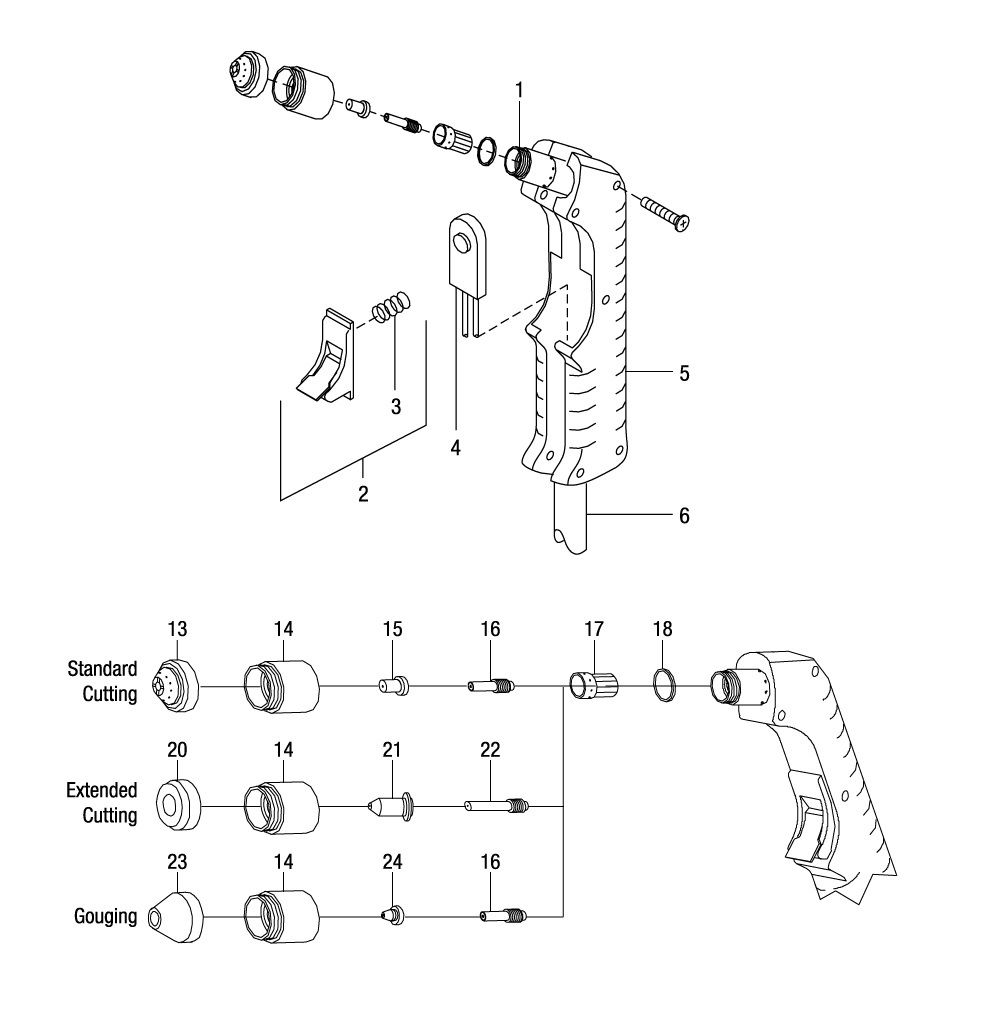

| Item # | Part # | Description |
|---|---|---|
| Torch | 193347 | Torch, 25 ft (ICE-55C) |
| Torch | 193348 | Torch, 50 ft (ICE-55C) |
| 1 | 192059 | Main Body |
| 202932 | Plunger Repair Kit | |
| 2 | 185833 | Switch Assembly |
| 3 | 190220 | Spring |
| 4 | 171248 | Push Button Switch |
| 5 | 183427 | Handle Assembly, complete |
| 6 | 192062 | Leads, 25 ft |
| 6 | 192063 | Leads, 50 ft |
| 252951 | Grease, Silicon | |
| 13 | 192053 | Shield, drag |
| 14 | 192050 | Cup, retaining |
| 15 | 192051 | Tip, standard (5 per pkg) |
| 16 | 192047 | Electrode, standard (5 per pkg) |
| 17 | 192049 | Swirl Ring |
| 18 | 169232 | O-Ring (3 per pkg) |
| 19 | 192058 | Shield, machine |
| 20 | 177888 | Deflector |
| 21 | 192056 192052 | Tip, extended tapered (55 A) (5 per pkg) Tip, extended tapered (40 A) (5 per pkg) |
| 22 | 192048 | Electrode, extended (5 per pkg) |
| 23 | 192203 | Shield, gouge |
| 24 | 192204 | Tip, gouge (5 per pkg) |
| 222941 | Consumable Kit (ICE-55C) | |
| 253055 | Circle Cutting Guide |
Add this to your cutting guide for con -
venient attachment to all flat surfaces.
The extended arm accommodates holes
up to 30-inch diameter.
Helps maintain recommended
standoff distance to maximize
cutting performance and improve tip life.
In-Line Air Filter / Replacement Filter Element
228926
Mounts to the back of the
Spectrum male and female 1/4-inch NPT
quick disconnect fittings and hose for easy
on/off connection. The replaceable filter
element filters to .85 microns for removal
of 99.9 percent of water, dirt and oil.
228928
Replacement filter element for the 228926 In-Line Air filter.
