Home > Plasma Support Main > Miller Electric > ICE-40C Torch

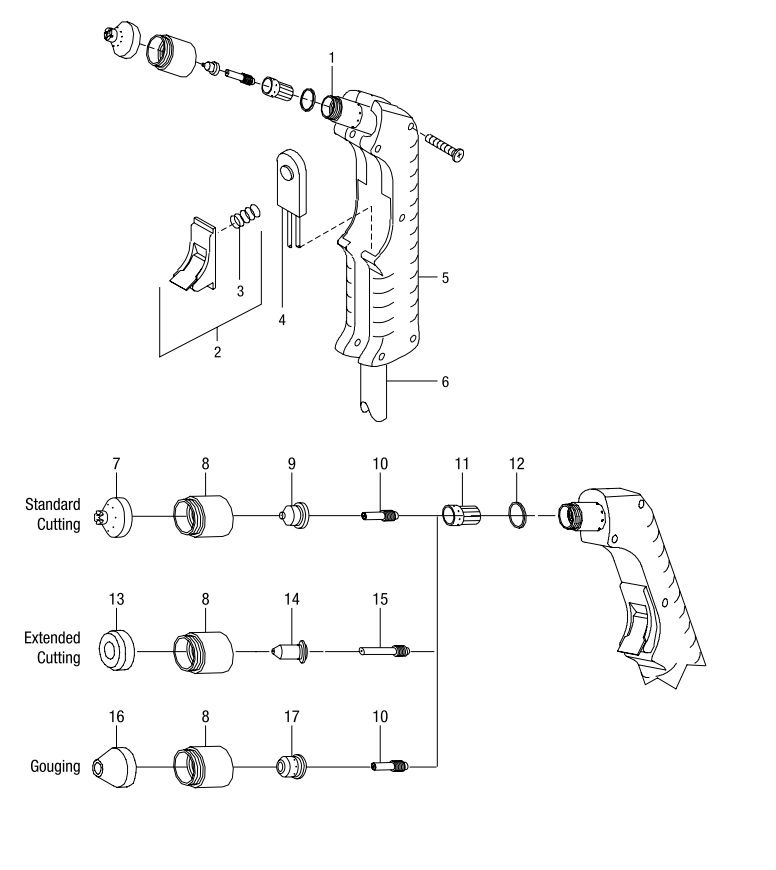

| Item # | Part # | Description |
|---|---|---|
| Torch | 195110 | ICE-40C, 25 ft (7.6 m) Hand-Held |
| Torch | 195111 | ICE-40C, 50 ft (15.2 m) Hand-Held |
| 1 | 192059 | Main Body |
| 2 | 185833 | Switch Assembly (includes switch) |
| 3 | 190220 | Spring |
| 4 | 171248 | Push Button Switch |
| 5 | 183427 | Handle Assembly, complete |
| 6 | 209298 | Leads, 25 ft/ Leads, 12ft |
| 209299 | Leads, 50 ft | |
| 252951 | Grease, Silicon | |
| 7 | 204323 | Shield, drag |
| 8 | 192050 | Cup, retaining |
| 9 | 204325 | Tip, standard (40 A) (5 per pkg) |
| 10 | 192047 | Electrode, standard (5 per pkg) |
| 11 | 192049 | Swirl Ring |
| 12 | 169232 | O-Ring (3 per pkg) |
| 13 | 177888 | Deflector |
| 14 | 192052 | Tip, extended (40 A) (5 per pkg) |
| 15 | 192048 | Electrode, extended (5 per pkg) |
| 16 | 192203 | Shield, gouge |
| 17 | 204332 | Tip, gouge |
Add this to your cutting guide for con -
venient attachment to all flat surfaces.
The extended arm accommodates holes
up to 30-inch diameter.
Helps maintain recommended
standoff distance to maximize
cutting performance and improve tip life.
Consumable
kit includes:
5 electrodes,
5 tips, 1 swirl
ring, 1 retaining
cup, 1 o-ring and silicone grease.
Sturdy case
provides ultimate
protection for
transport and
storage. Also
features convenient top carrying handle
and side recessed hand grips. Store the
Spectrum® 375 X-TREME, accessories and
gear in this generous case to be ready to
go at any time. Dimensions (H x W x D):
13 x 10.5 x 30.625 in. (330 x 267 x 778 mm).
Field
NEMA 14-50P to NEMA 6-50R. Adapts
engine drive 120/240 V plug to Spectrum
240 V plug.
In-Line Air Filter / Replacement Filter Element
228926
Mounts to the back of the
Spectrum male and female 1/4-inch NPT
quick disconnect fittings and hose for easy
on/off connection. The replaceable filter
element filters to .85 microns for removal
of 99.9 percent of water, dirt and oil.
228928
Replacement filter element for the 228926 In-Line Air filter.
