Hypertherm Duramax 45 XP - 15 Degree Hand Torch

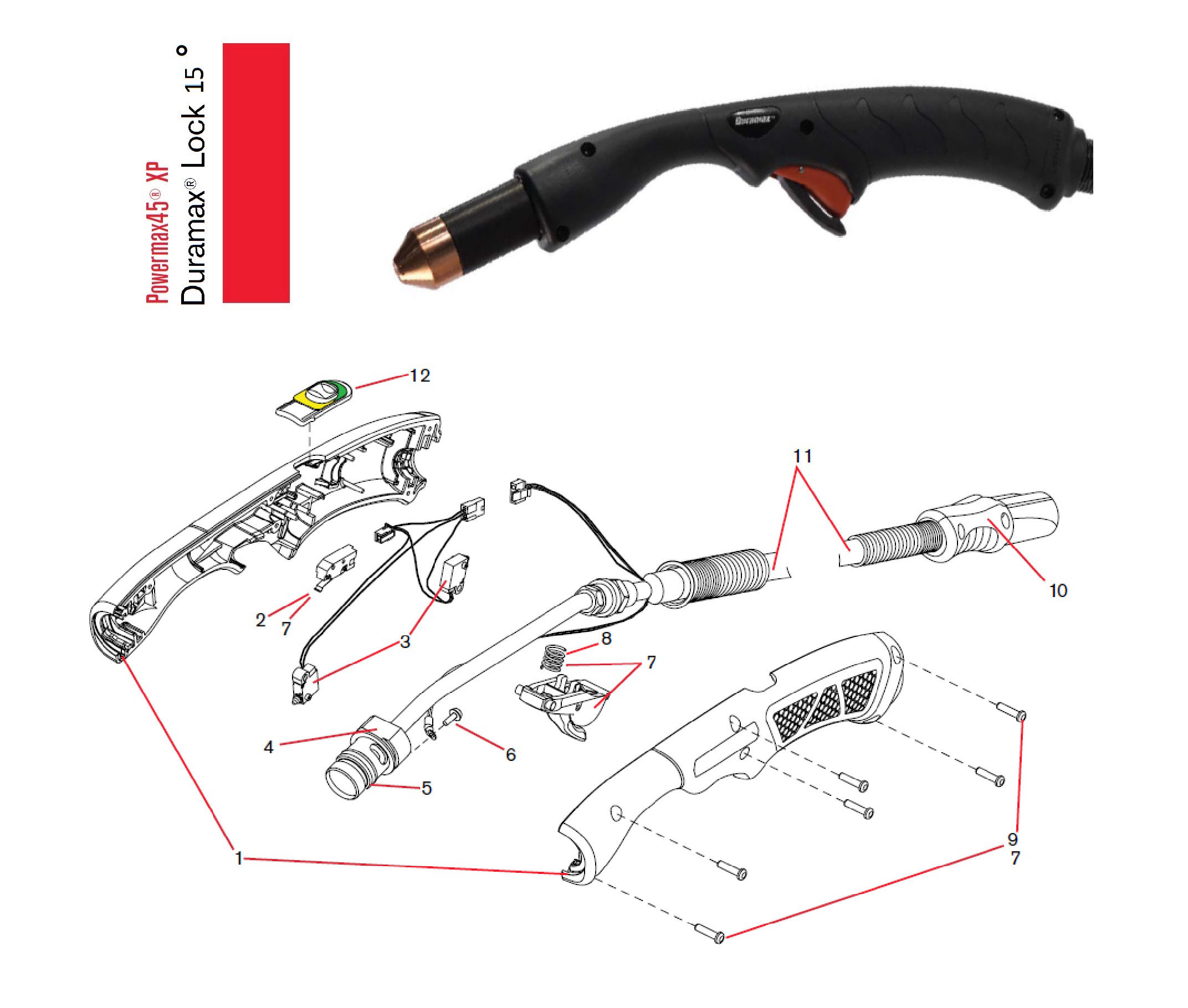

Duramax Lock 15 Degree Hand Torch For 45XP

Mobirise

Item #	Part #	Description
Torch	088162	Duramax 15° hand torch assembly with 6.1 m (20 foot) lead (Consumables not included)
Torch	088163	Duramax 15° hand torch assembly with 15 m (50 foot) lead (Consumables not included)
1	428591	15° hand torch handle (with screws)
2	428162	Hand torch start switch
3	428594	Cap-sensor switch/torch-disable switch assembly for hand torch (includes wires and connectors)
4	428589	15° hand torch main body (with O-ring)
5	428180	Replacement O-rings for torch body
6	075504	Pilot terminal screw
7	428156	Hand torch trigger and spring – includes start switch and screws for torch handle
8	428182	Replacement springs for hand torch trigger
9	428148	Replacement screws for torch handle
10	228314	Torch quick-disconnect repair (shell with button – does not include torch lead)
11	428592	Hand torch lead replacement, 20 ft.
11	428593	Hand torch lead replacement, 50 ft.
12	428595	Torch-disable slider for hand torch (with yellow/green label)

Duramax 45XP - 75 Degree
Standard Consumables

Mobirise

Item #	Part #	Description
1	220818	Shield/deflector
2	220854	Retaining cap
3	220941	15-45 Amp Nozzle (pk of 5)
4	220842	15-45 Amp Electrode (pk of 5)
4	220777	15-45 Amp Electrode (pk of 5) - Extended life for 1/2" and smaller Material
5	220857	Swirl Ring
6	851510	Essential Consumable Kit - 2 Standard Shield 220818 1 Retaining Cap 220854 7 Standard Nozzle 220941 7 Standard Electrode 220842 1 Swirl Ring 220857

Duramax 45XP Fine Cut Consumables

Mobirise

Item #	Part #	Description
1	220931	Standard Finecut Shield/deflector
2	220854	Standard Finecut Retaining Cap
3	220930	15-45 Amp Finecut Nozzle (pk of 5)
4	220842	15-45 Amp Electrode (pk of 5)
5	220947	Finecut Swirl Ring

Duramax 45XP HyAccess Consumables

Mobirise

Item #	Part #	Description
1	420413	HyAccess Drag-Cutting Retaining Cap 15-45A
2	420410	HyAccess Drag-Cutting Nozzle 15-45A
3	420412	HyAccess Gouging Nozzle 15-45A
4	420408	HyAccess Electrode 15-45A
5	220857	Swirl Ring
Kit	428414	HyAccess Starter Consumable Kit - 1 HyAccess Retaining Cap 420413 1 HyAccess Drag-Cutting Nozzle 420410 1 HyAccess Gouging Nozzle 420412 2 HyAccess Electrode 420408 1 Swirl Ring 220857
Kit	428445	HyAccess Drag-Cutting Starter Kit - 1 HyAccess Retaining Cap 420413 1 HyAccess Drag-Cutting Nozzle 420410 1 HyAccess Electrode 420408
Kit	428446	HyAccess Gouging Starter Kit - 1 HyAccess Retaining Cap 420413 1 HyAccess Drag-Cutting Nozzle 420412 1 HyAccess Electrode 420408

Duramax 45XP Flush Cut Consumables

Mobirise

Item #	Part #	Description
1	420540	Flushcut Retaining Ring
2	420536	Flushcut Retaining Cap
3	420633	Flushcut Nozzle 15-45A
4	420635	Flush Cut Electrode 15-45A (pk of 5)
5	420634	Flush Cut Swirl Ring 15-45A
Kit	428746	Flushcut Consumable Kit - 1 Flushcut Retaining Ring 420540 1 Flushcut Retaining Cap 420536 1 Flushcut Nozzle 420633 1 Flushcut Electrode 420633 1 Flushcut Swirlring 420634

Duramax 45XP Gouging and Marking Consumables

Mobirise

Item #	Part #	Description
1 Standard	220817	Standard Mechanized Shield/deflector
1 Ohmic	220955	Ohmic Mechanized Shield/deflector
2 Standard	220854	Standard Mechanized Retaining Cap
2 Ohmic	220953	Ohmic Mechanized Retaining Cap
3	220941	15-45 Amp Nozzle (pk of 5)
4	220842	15-45 Amp Electrode (pk of 5)
4	220777	15-45 Amp Electrode (pk of 5) - Extended life for 1/2" and smaller Material
5	220857	Swirl Ring
6	851511	Standard Mechanized Consumable Kit - 2 Standard Shield 220817 1 Retaining Cap 220854 7 Standard Nozzle 220941 4 Standard Electrode 220842 3 Extended Life Electrode 220777 ( for 1/2" and below ) 1 Swirl Ring 220857
6	851512	Ohmic Mechanized Consumable Kit - 1 Standard Shield 220955 1 Retaining Cap 220953 7 Standard Nozzle 220941 4 Standard Electrode 220842 3 Extended Life Electrode 220777 ( for 1/2" and below ) 1 Swirl Ring 220857

Duramax 45XP Bulk Consumables

Mobirise

Item #	Part #	Description
1	228934	220777 15-45 Amp Electrode (pk of 25) - Extended life for 1/2" and smaller Material
2	228767	220842 15-45 Amp Electrode (pk of 25)
3	228761	220930 30-45 Amp Finecut Nozzle (pk of 25)
4	228765	220941 15-45 Amp Standard Nozzle (pk of 10)
5	228763	220817 15-45 Amp Mechanized Shield (pk of 10)
6	228764	220818 15-45 Amp Hand Shield (pk of 25)
