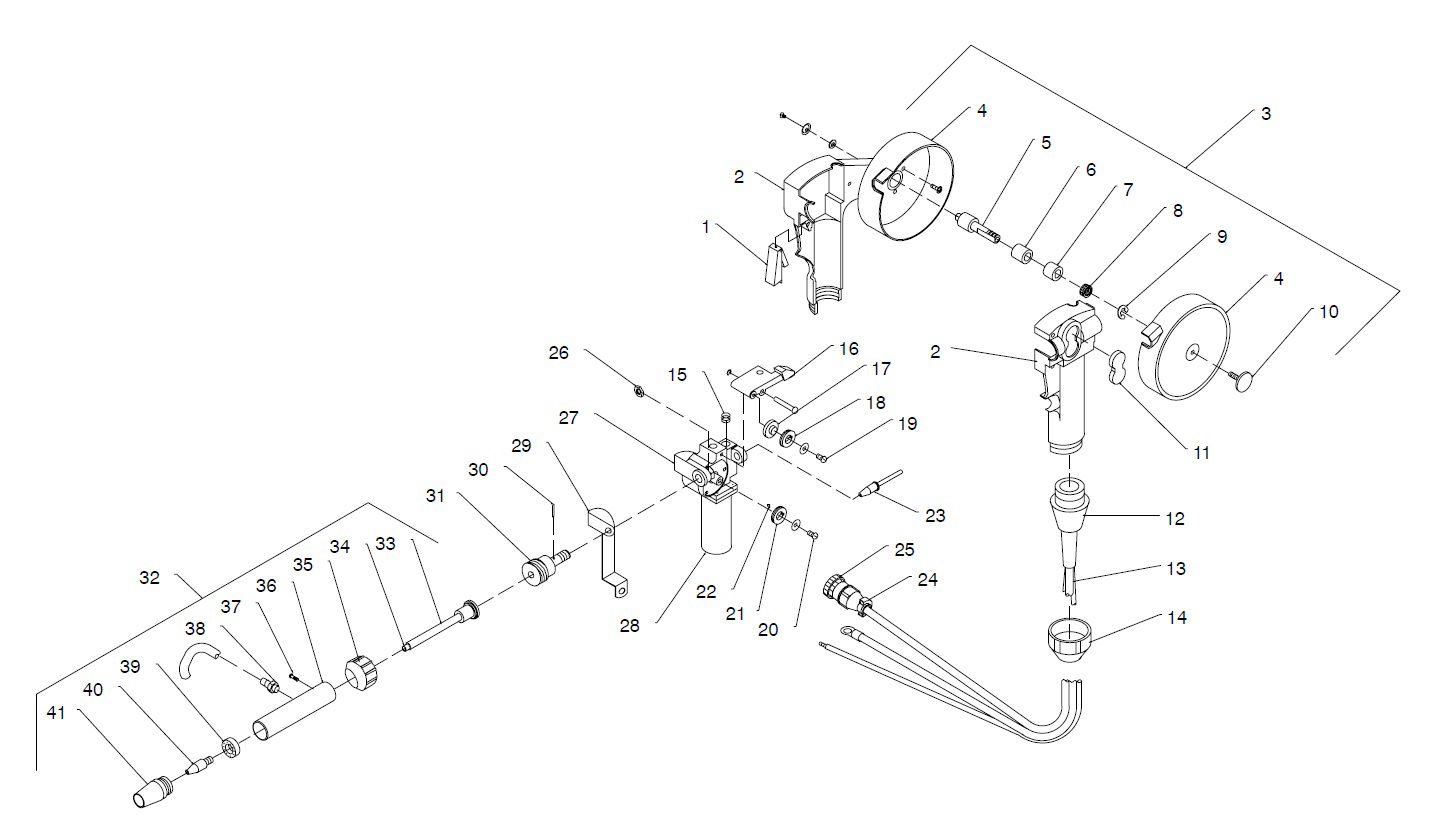

Home > Mig Support Main > Hobart > 3035-20 Spool Gun
| Item # | Part # | Description |
|---|---|---|
| Gun | 195016 | 3035-20 Gun complete 20' |
| 1 | 186416 | TRIGGER SWITCH |
| 2 | 226855 | PLASTIC HANDLE |
| 3 | 226853 | SPOOL COVER ASSY (#4 Through #10) |
| 4 | 226854 | SPOOL DEFENCE SHELL |
| 5 | 194623 | SPOOL SHAFT |
| 6 | 194624 | BUSHING RESISTANCE RUBBER |
| 7 | 194625 | LOCATION BUSHING |
| 8 | 194626 | ADJUSTING NUT |
| 9 | RING, rtng C-clip .140 shaft x .015 thick | |
| 10 | 194627 | LOCKING SCREW |
| 11 | 187239 | COVER, drive roll |
| 12 | 208850 | STRAIN RELIEF |
| 13 | 186489 | CABLE/GAS HOSE ASSEMBLY |
| 14 | 208851 | NUT, handle plastic |
| 15 | 193999 | SPRING, CPRSN .310 OD x .040 wire x 1.380 |
| 16 | 186415 | PRESS ARM W/SHAFT, C-clip washer |
| 17 | 187238 | BEARING |
| 18 | 186414 | PUSH ROLL .030/.035 (0.8/0.9 MM) |
| 18 | 199732 | PUSH ROLL UK .023 |
| 19 | 209079 | SCREW M4 x 0.7 x 16 |
| 20 | 209080 | SCREW M4 x 0.7 x 6 |
| 21 | 186413 | DRIVE ROLL .030/.035 (0.8/0.9 MM) |
| 21 | 199731 | DRIVE ROLL UK .023 |
| 22 | 186488 | KEY |
| 23 | 186410 | INLET GUIDE |
| 24 | 048834 | CLAMP, circ |
| 25 | 079878 | CONNECTOR W/SOCKETS |
| 26 | 194631 | NUT, brass |
| 27 | 186412 | GEARBOX ASSEMBLY |
| 28 | 186417 | MOTOR |
| 29 | 196398 | BUSS BAR, interconnecting |
| 30 | 197570 | ANTI-ROTATION PIN |
| 31 | 196848 | CONTACT ADAPTER |
| 32 | 196827 | GUN TUBE ASSEMBLY (#33 Through #41) |
| 33 | 196849 | HEAD TUBE ASSY |
| 34 | 206363 | LINER KIT |
| 35 | 196847 | LOCKING NUT |
| 36 | 194633 | BARREL |
| 37 | 209080 | SCREW, M4 x 0.7 x 6 mm |
| 38 | 186408 | GAS NIPPLE |
| 39 | 186409 | GAS DIFFUSER |
| 40 | 186419 | CONTACT TIP .030 (PK of 5) |
| 40 | 186406 | CONTACT TIP .035 (PK of 5) |
| 40 | 199730 | CONTACT TIP .023 (PK of 5) |
| 41 | 186405 | NOZZLE |
