Hypertherm plasma support
SmartSYNC Machine Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Torch | 059719 |
Hypertherm Torch Assembly 059719
|
Verification pending | |
| Torch | 059720 |
Hypertherm Torch Assembly 059720
|
Verification pending | |
| Torch | 059721 |
Hypertherm Torch Assembly 059721
|
Verification pending | |
| Torch | 059722 |
Hypertherm Torch Assembly 059722
|
Verification pending | |
| 1 | 428874 |
Hypertherm Kit 428874
|
Verification pending | |
| 2 | 428703 |
Hypertherm Kit 428703
|
View on Amazon | |
| 3 | 428872 |
Hypertherm Kit 428872
|
Verification pending | |
| 4 | 428847 |
Hypertherm Torch Lead 428847
|
Verification pending | |
| 4 | 428848 |
Hypertherm Torch Lead 428848
|
Verification pending | |
| 4 | 428849 |
Hypertherm Torch Lead 428849
|
Verification pending | |
| 4 | 428850 |
Hypertherm Torch Lead 428850
|
Verification pending | |
| 4 | 428851 |
Hypertherm Torch Lead 428851
|
Verification pending | |
| 5 | 428863 |
Hypertherm Torch Lead 428863
|
Verification pending | |
| 6 | 428148 |
Hypertherm Kit 428148
|
Verification pending | |
| 7 | 428877 |
Hypertherm Kit 428877
|
Verification pending | |
| 8 | 528066 |
Hypertherm Kit 528066
|
Verification pending | |
| 9 | 428950 |
Hypertherm O-Ring 428950
|
Verification pending | |
| 10 | 428859 |
Hypertherm Torch Handle 428859
|
Verification pending | |
| 11 | 428866 |
Hypertherm Switch/Sensor 428866
|
Verification pending | |
| 12 | 428870 |
Hypertherm Kit 428870
|
Verification pending | |
| 13 | 428868 |
Hypertherm Torch Assembly 428868
|
Verification pending |

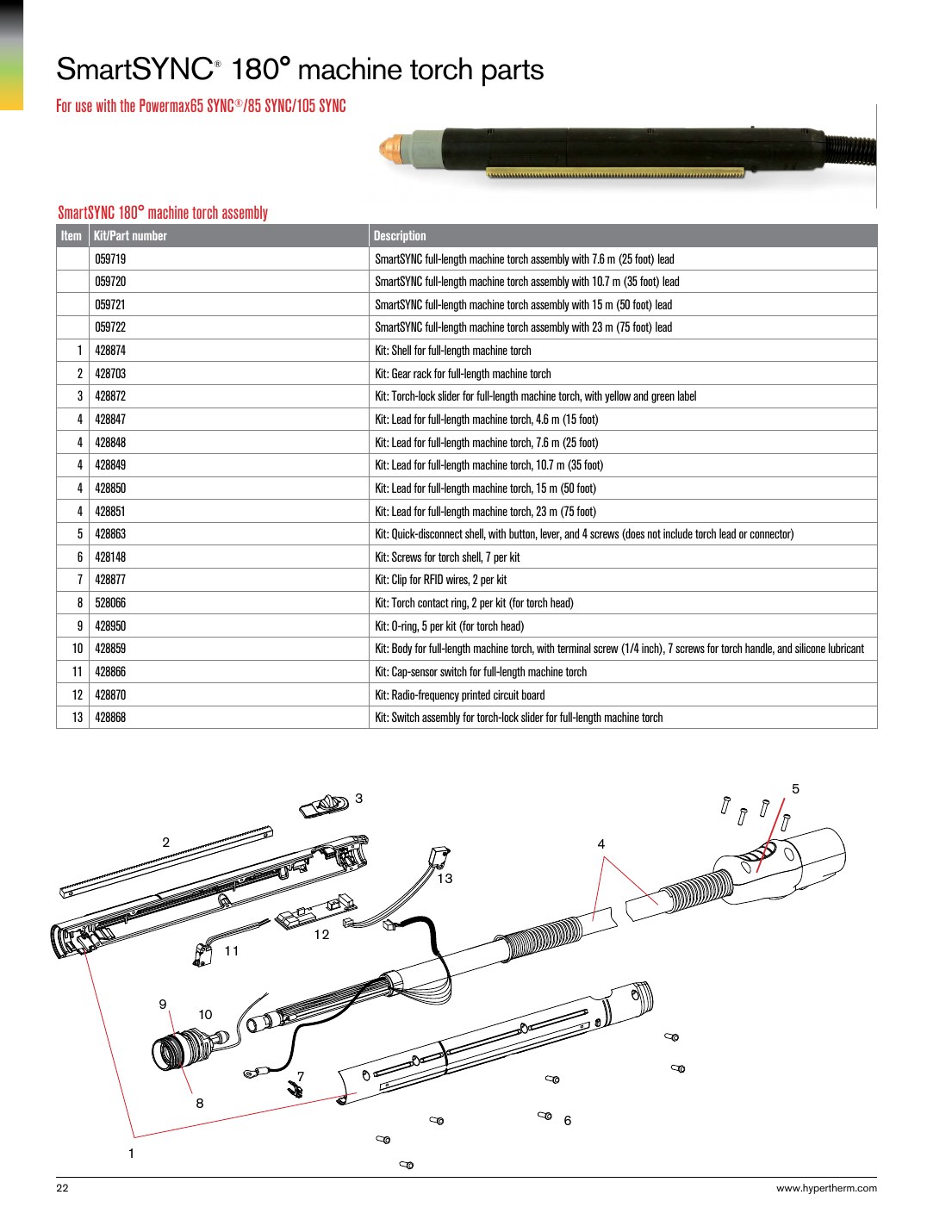

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 24. Catalog page images are used when a cleaned diagram asset is not already available.
Hypertherm plasma support
SmartSYNC Machine Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Torch | 059733 |
Hypertherm Torch Assembly 059733
|
Verification pending | |
| Torch | 059734 |
Hypertherm Torch Assembly 059734
|
Verification pending | |
| Torch | 059735 |
Hypertherm Torch Assembly 059735
|
Verification pending | |
| 1 | 428896 |
Hypertherm Kit 428896
|
Verification pending | |
| 2 | 528066 |
Hypertherm Kit 528066
|
Verification pending | |
| 3 | 428950 |
Hypertherm O-Ring 428950
|
Verification pending | |
| 4 | 428860 |
Hypertherm Torch Handle 428860
|
Verification pending | |
| 5 | 428867 |
Hypertherm Switch/Sensor 428867
|
Verification pending | |
| 6 | 428870 |
Hypertherm Kit 428870
|
Verification pending | |
| 7 | 428900 |
Hypertherm Torch Lead 428900
|
Verification pending | |
| 7 | 428901 |
Hypertherm Torch Lead 428901
|
Verification pending | |
| 7 | 428902 |
Hypertherm Torch Lead 428902
|
Verification pending | |
| 7 | 428903 |
Hypertherm Torch Lead 428903
|
Verification pending | |
| 7 | 428904 |
Hypertherm Torch Lead 428904
|
Verification pending | |
| 8 | 428863 |
Hypertherm Torch Lead 428863
|
Verification pending | |
| 9 | 428148 |
Hypertherm Kit 428148
|
Verification pending | |
| 10 | 428877 |
Hypertherm Kit 428877
|
Verification pending | |
| 11 | 428899 |
Hypertherm Kit 428899
|
Verification pending |
Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 25. Catalog page images are used when a cleaned diagram asset is not already available.
Hypertherm plasma support
SmartSYNC Machine Torch consumables from the Hypertherm consumables catalog. Confirm machine, torch style, amperage, and process before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| 45 | 428925 |
Hypertherm Cartridge 428925
|
View on Amazon | |
| 45 | 428927 |
Hypertherm Cartridge 428927
|
View on Amazon | |
| 65 | 428930 |
Hypertherm Cartridge 428930
|
View on Amazon | |
| 65 | 428931 |
Hypertherm Cartridge 428931
|
View on Amazon | |
| 65 | 428952 |
Hypertherm Cartridge 428952
|
View on Amazon | |
| 85 | 428934 |
Hypertherm Cartridge 428934
|
View on Amazon | |
| 85 | 428935 |
Hypertherm Cartridge 428935
|
View on Amazon | |
428895 |
Hypertherm Cartridge 428895
|
View on Amazon | ||
428926 |
Hypertherm Cartridge 428926
|
View on Amazon | ||
428928 |
Hypertherm Cartridge 428928
|
View on Amazon | ||
428932 |
Hypertherm Cartridge 428932
|
View on Amazon | ||
428933 |
Hypertherm Cartridge 428933
|
View on Amazon | ||
428936 |
Hypertherm Cartridge 428936
|
View on Amazon | ||
428937 |
Hypertherm Cartridge 428937
|
View on Amazon | ||
428938 |
Hypertherm Cartridge 428938
|
View on Amazon | ||
428939 |
Hypertherm Cartridge 428939
|
View on Amazon | ||
428953 |
Hypertherm Cartridge 428953
|
View on Amazon | ||
428954 |
Hypertherm Cartridge 428954
|
View on Amazon | ||
428984 |
Hypertherm Cartridge 428984
|
View on Amazon | ||
428987 |
Hypertherm Cartridge 428987
|
View on Amazon | ||
528079 |
Hypertherm Cartridge 528079
|
View on Amazon |
Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 20. Catalog page images are used when a cleaned diagram asset is not already available.
Hypertherm plasma support
SmartSYNC Machine Torch consumables from the Hypertherm consumables catalog. Confirm machine, torch style, amperage, and process before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
428951 |
Hypertherm Cartridge 428951
|
Verification pending |

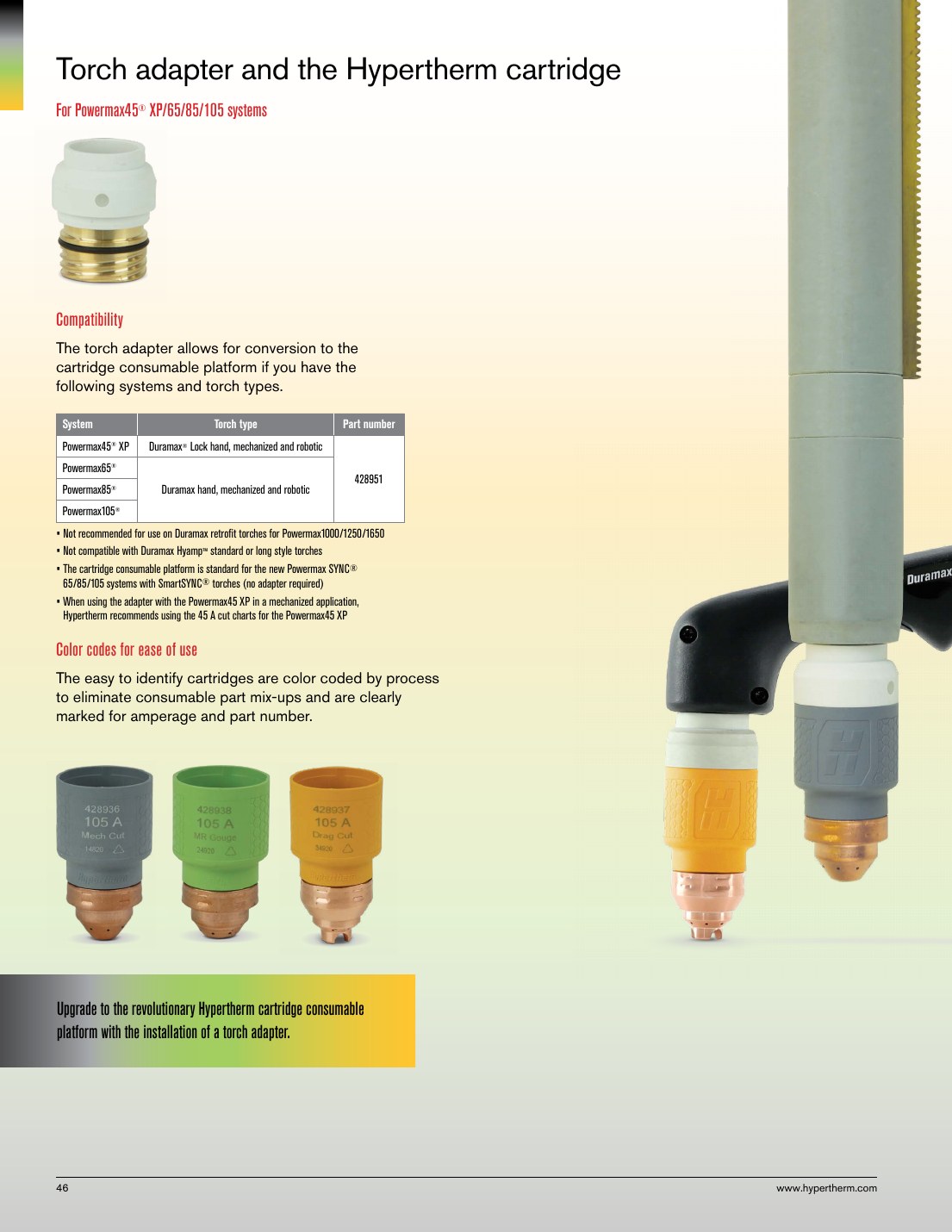

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 48. Catalog page images are used when a cleaned diagram asset is not already available.
