Hypertherm plasma support

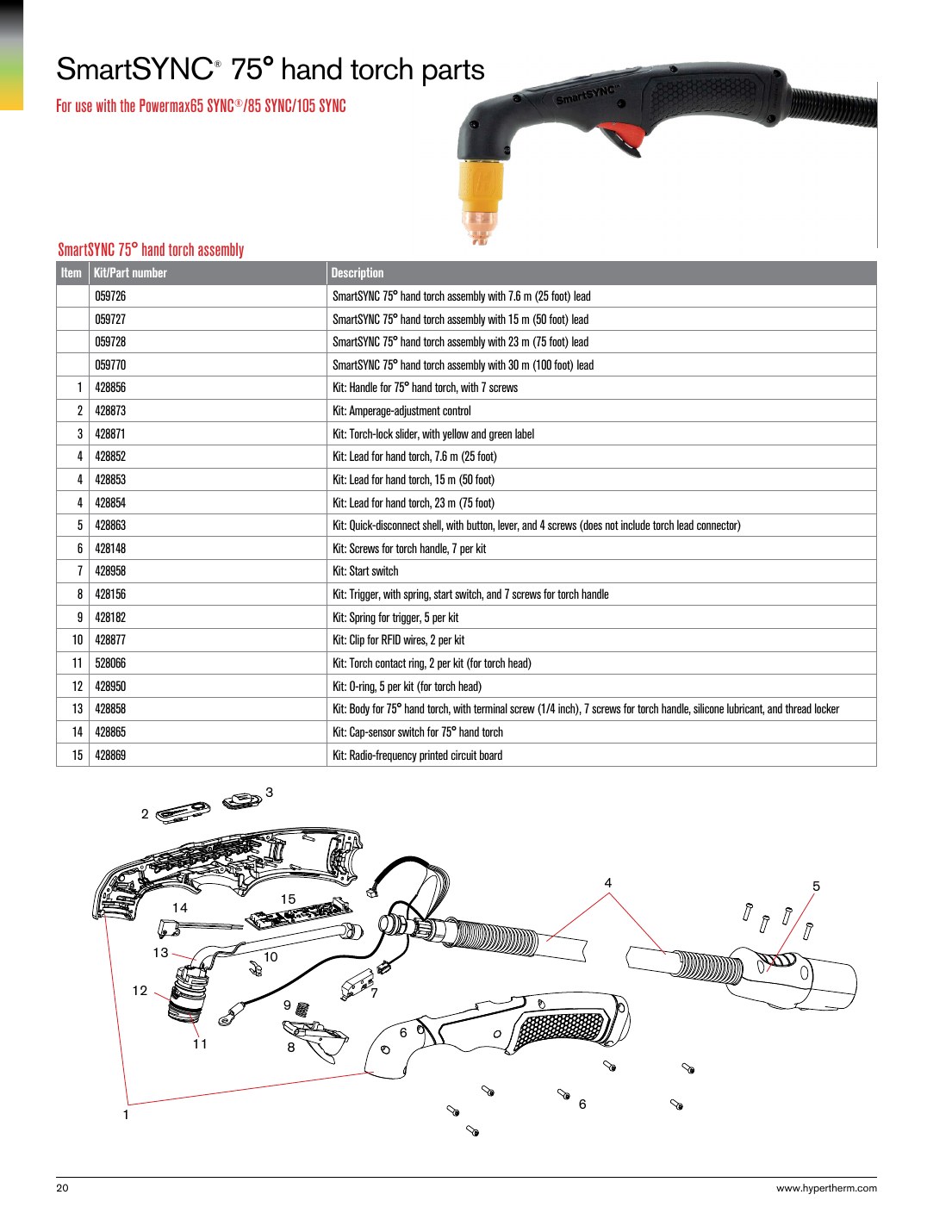

Hypertherm SmartSYNC Hand Torch Parts Breakdown

SmartSYNC Hand Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.

2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems Catalog page 22

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item # Part # Description Qty Buy
Torch 059726
Hypertherm Torch Assembly 059726
torch assembly SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
Torch 059727
Hypertherm Torch Assembly 059727
torch assembly SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
Torch 059728
Hypertherm Torch Assembly 059728
torch assembly SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
Torch 059770
Hypertherm Torch Assembly 059770
torch assembly SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
1 428856
Hypertherm Torch Handle 428856
torch handle SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
2 428873
Hypertherm Kit 428873
kit SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
3 428871
Hypertherm Kit 428871
kit SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
4 428852
Hypertherm Torch Lead 428852
torch lead SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
4 428853
Hypertherm Torch Lead 428853
torch lead SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
4 428854
Hypertherm Torch Lead 428854
torch lead SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
5 428863
Hypertherm Torch Lead 428863
torch lead SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
6 428148
Hypertherm Torch Handle 428148
torch handle SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
7 428958
Hypertherm Switch/Sensor 428958
switch/sensor SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
8 428156
Hypertherm Torch Handle 428156
torch handle SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
View on Amazon
9 428182
Hypertherm Kit 428182
kit SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
View on Amazon
10 428877
Hypertherm Kit 428877
kit SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
11 528066
Hypertherm Kit 528066
kit SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
12 428950
Hypertherm O-Ring 428950
o-ring SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
13 428858
Hypertherm Torch Handle 428858
torch handle SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
14 428865
Hypertherm Switch/Sensor 428865
switch/sensor SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
15 428869
Hypertherm Kit 428869
kit SmartSYNC 75 hand torch parts catalog verified
Powermax65 SYNC
Verification pending

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 22. Catalog page images are used when a cleaned diagram asset is not already available.

Hypertherm plasma support

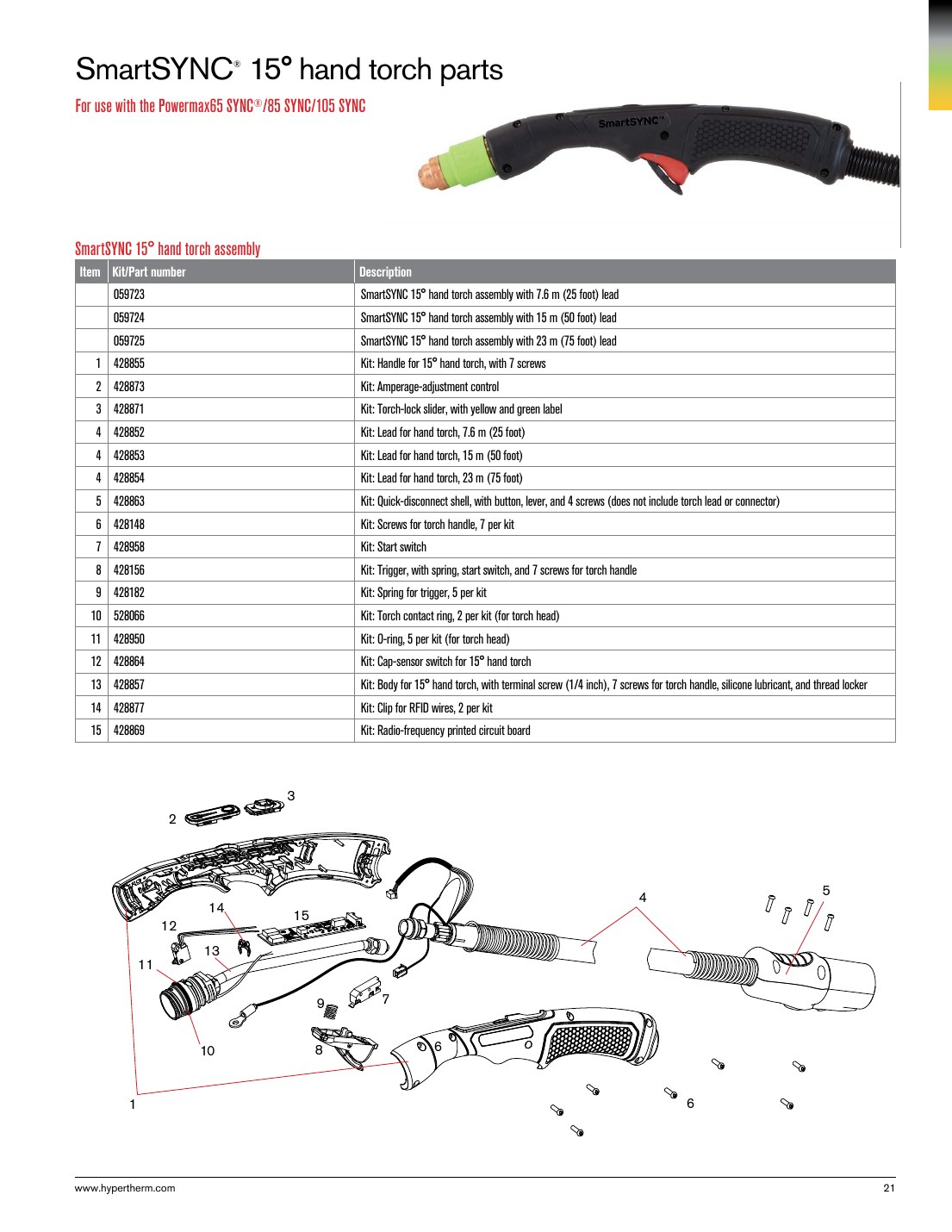

Hypertherm SmartSYNC Hand Torch Parts Breakdown

SmartSYNC Hand Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.

2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems Catalog page 23

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item # Part # Description Qty Buy
Torch 059723
Hypertherm Torch Assembly 059723
torch assembly SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
Torch 059724
Hypertherm Torch Assembly 059724
torch assembly SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
Torch 059725
Hypertherm Torch Assembly 059725
torch assembly SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
1 428855
Hypertherm Torch Handle 428855
torch handle SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
2 428873
Hypertherm Kit 428873
kit SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
3 428871
Hypertherm Kit 428871
kit SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
4 428852
Hypertherm Torch Lead 428852
torch lead SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
4 428853
Hypertherm Torch Lead 428853
torch lead SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
4 428854
Hypertherm Torch Lead 428854
torch lead SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
5 428863
Hypertherm Torch Lead 428863
torch lead SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
6 428148
Hypertherm Torch Handle 428148
torch handle SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
7 428958
Hypertherm Switch/Sensor 428958
switch/sensor SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
8 428156
Hypertherm Torch Handle 428156
torch handle SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
View on Amazon
9 428182
Hypertherm Kit 428182
kit SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
View on Amazon
10 528066
Hypertherm Kit 528066
kit SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
11 428950
Hypertherm O-Ring 428950
o-ring SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
12 428864
Hypertherm Switch/Sensor 428864
switch/sensor SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
13 428857
Hypertherm Torch Handle 428857
torch handle SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
14 428877
Hypertherm Kit 428877
kit SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending
15 428869
Hypertherm Kit 428869
kit SmartSYNC 15 hand torch parts catalog verified
Powermax65 SYNC
Verification pending

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 23. Catalog page images are used when a cleaned diagram asset is not already available.

Hypertherm plasma support

Hypertherm SmartSYNC Hand Torch Consumables

SmartSYNC Hand Torch consumables from the Hypertherm consumables catalog. Confirm machine, torch style, amperage, and process before ordering.

2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems Catalog page 20

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item # Part # Description Qty Buy
45 428925
Hypertherm Cartridge 428925
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
45 428927
Hypertherm Cartridge 428927
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
65 428930
Hypertherm Cartridge 428930
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
65 428931
Hypertherm Cartridge 428931
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
65 428952
Hypertherm Cartridge 428952
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
85 428934
Hypertherm Cartridge 428934
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
85 428935
Hypertherm Cartridge 428935
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428895
Hypertherm Cartridge 428895
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428926
Hypertherm Cartridge 428926
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428928
Hypertherm Cartridge 428928
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428932
Hypertherm Cartridge 428932
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428933
Hypertherm Cartridge 428933
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428936
Hypertherm Cartridge 428936
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428937
Hypertherm Cartridge 428937
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428938
Hypertherm Cartridge 428938
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428939
Hypertherm Cartridge 428939
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428953
Hypertherm Cartridge 428953
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428954
Hypertherm Cartridge 428954
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428984
Hypertherm Cartridge 428984
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428987
Hypertherm Cartridge 428987
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
528079
Hypertherm Cartridge 528079
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 20. Catalog page images are used when a cleaned diagram asset is not already available.

Hypertherm plasma support

Hypertherm SmartSYNC Hand Torch Consumables

SmartSYNC Hand Torch consumables from the Hypertherm consumables catalog. Confirm machine, torch style, amperage, and process before ordering.

2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems Catalog page 48

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item # Part # Description Qty Buy
428951
Hypertherm Cartridge 428951
cartridge Torch adapter and the Hypertherm cartridge catalog verified
Powermax45 XP Powermax65 Powermax85 Powermax105
Verification pending

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 48. Catalog page images are used when a cleaned diagram asset is not already available.

Hypertherm support Torch guide Consumables Find My Part
Built from 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems (page 22, page 23, page 20, page 48).
