Home > Mig Support Main > ESAB > Tweco Fusion 250

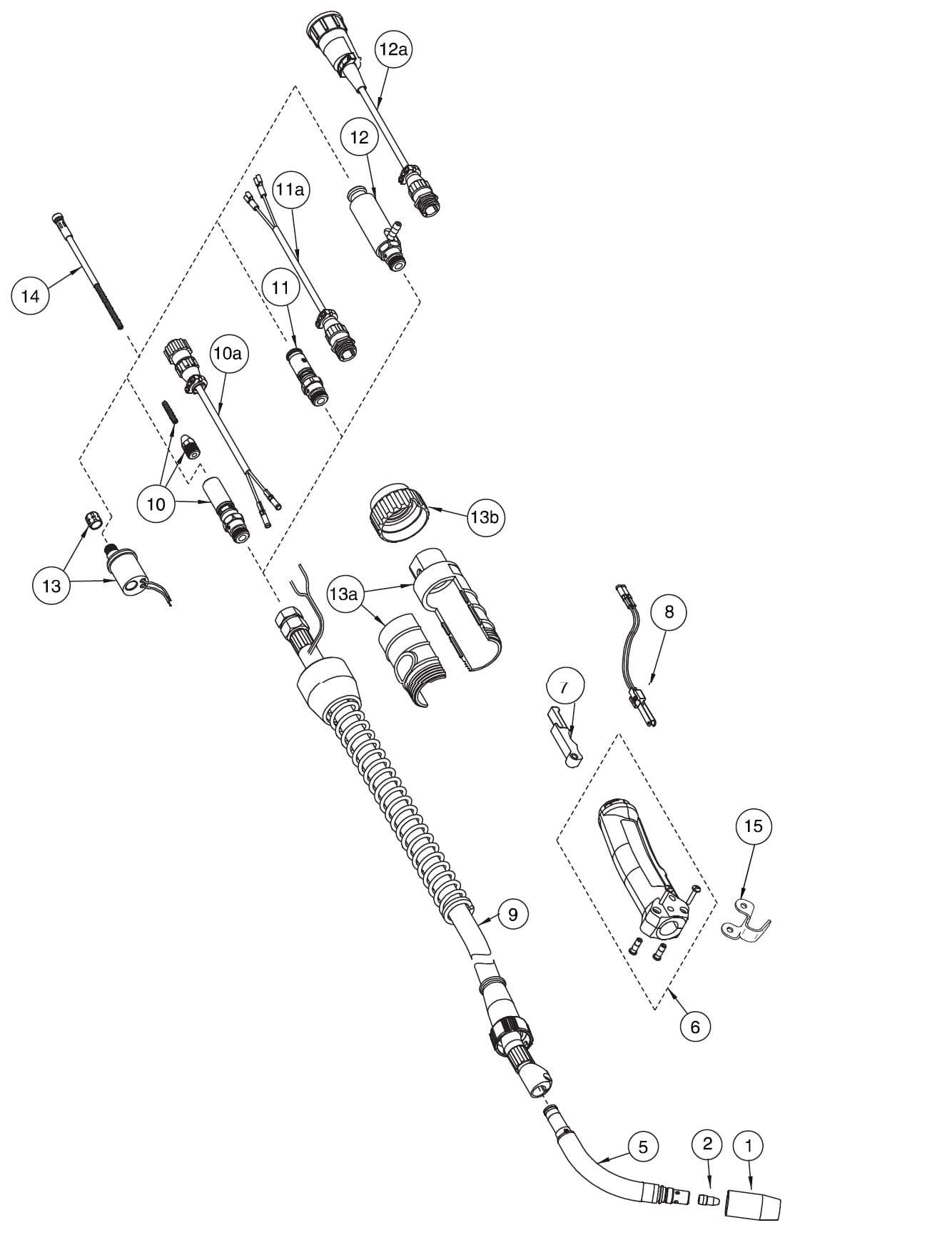

| Item # | Part # | Description |
|---|---|---|
| Complete Gun Tweco | 1023-1059 1023-1060 1023-1061 1023-1062 1023-1063 | Tweco® Style (4 Pin) Rear Connector 10 ft., .035, FV210-3545 Tweco® Style (4 Pin) Rear Connector 12 ft., .035, FV212-3545 Tweco® Style (4 Pin) Rear Connector 15 ft., .035, FV215-3545 Tweco® Style (4 Pin) Rear Connector 20 ft., .035, FV220-3545 Tweco® Style (4 Pin) Rear Connector 25 ft., .035, FV225-3545 |
| Complete Gun Miller | 1023-1067 1023-1068 1023-1069 1023-1070 1023-1071 | Miller Style (4 Pin) Rear Connector 10 ft., .035 FV210M-3545 Miller Style (4 Pin) Rear Connector 12 ft., .035 FV210M-3545 Miller Style (4 Pin) Rear Connector 15 ft., .035 FV210M-3545 Miller Style (4 Pin) Rear Connector 20 ft., .035 FV210M-3545 Miller Style (4 Pin) Rear Connector 25 ft., .035 FV210M-3545 |
| Complete Gun Lincoln | 1023-1084 1023-1085 | Lincoln® Style Rear Connector 12 ft., .035 FV212L-3545 Lincoln® Style Rear Connector 15 ft., .035 FV215L-3545 |
| Complete Gun Euro-Kwik | 1023-1089 1023-1090 1023-1091 1023-1092 | Euro-kwik Style Rear Connector 10 ft., .035 FV210X-3545 Euro-kwik Style Rear Connector 12 ft., .035 FV212X-3545 Euro-kwik Style Rear Connector 15 ft., .035 FV215X-3545 Euro-kwik Style Rear Connector 25 ft., .035 FV225X-3545 |
| Complete Gun For 252i ThermalArc | 1023-1097 | Thermal Arc 252i Rear Connector 15 ft., .035 FV215TA3545 |
| Cable Repair Kit | 2060-2134 | CABLEHOZ back end repair kit MS172-RK |
| 1 | See Below | Refer to Gun Consumables |
| 2 | See Below | Refer to Gun Consumables |
| 5 | See Below | Conductor Tube Assembly |
| 6 | 2060-2126 | Handle – Standard, F84 |
| 7 | 2060-2647 | Trigger– Standard, ELC94 |
| 8 | 2060-2671 | Trigger Blade Assembly, ELC94-BL |
| 9 | 1720-2115 1720-2116 1720-2117 1720-2118 1720-2107 1720-2108 1720-2109 | Cablehoz® Assembly - 10 ft (3 m), MS210 Cablehoz Assembly - 12 ft (4 m), MS212 Cablehoz Assembly - 15 ft (5 m), MS215 Cablehoz Assembly - 25 ft (8 m), MS225 Cablehoz Assembly, Euro-Kwik - 12 ft (4 m), MS212X Cablehoz Assembly, Euro-Kwik - 15 ft (5 m), MS215X Cablehoz Assembly, Euro-Kwik - 25 ft (8 m), MS225X |
| 9a | 2060-2132 | Cablehoz Front Mechanical Connector Replacement Kit, MS102-RK |
| 9b | 2060-2134 | Cablehoz Rear Mechanical Connector Replacement Kit, MS172-RK |
| 9c | 2020-2181 | Cablehoz Rear Mechanical Connector Replacement Kit For Euro-Style, 172X-M |
| 10a | 2035-2111 | Miller® Rear Connector, 350-174MH |
| 10b | 2030-2075 | Miller Control Wire & Plug, WM-354M |
| 11a | 2035-2110 | Tweco® Rear Connector, 350-174H |
| 11b | 2060-2139 | Tweco Control Wire, MS354-TAJ |
| 12a | 2035-2112 | Lincoln® Rear Connector, 350-174LH |
| 12b | 2060-2137 | Lincoln Control Wire & Plug, MS-354DS-LJ |
| 13 | 2040-2276 | Euro-Kwik Connection Assy., 174EX-1 |
| 13a | 2040-2177 | Euro-Kwik Nut, 174X-2 |
| 13b | 2060-2006 | Euro-Kwik Connector Case, X6RC |
| 15 | 2020-2152 | Gun Hanger |

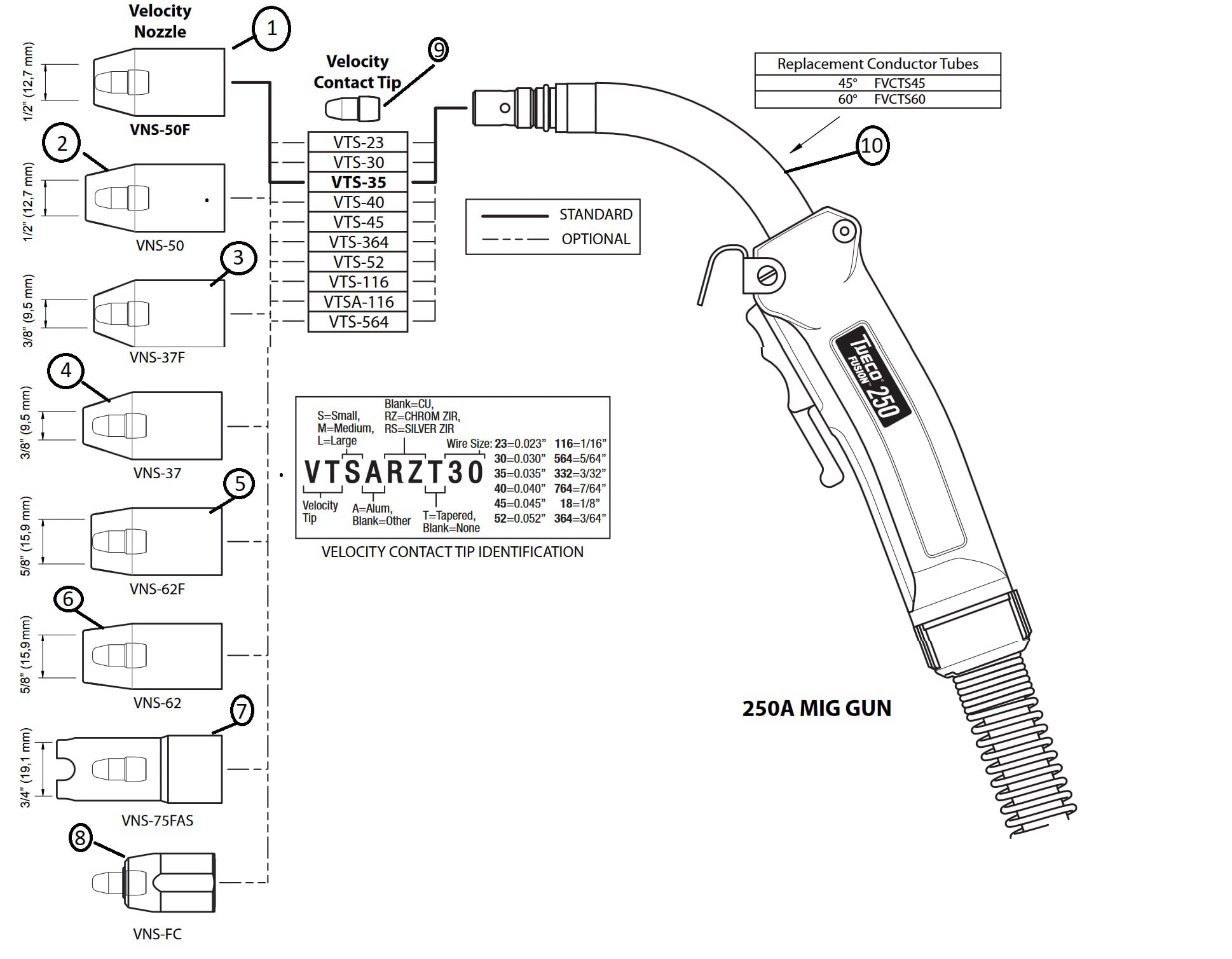

| Item # | Part# | Description |
|---|---|---|
| 1 | 1220-1200 | 1/2" Fixed Threaded-Flush VNS-50F |
| 2 | 1220-1201 | 1/2" Fixed Threaded-1/8" Recess VNS-50 |
| 3 | 1220-1204 | 3/8" Fixed Threaded-Flush VNS-37F |
| 4 | 1220-1206 | 3/8" Fixed Threaded-1/8" Recess VNS-37 |
| 5 | 1220-1202 | 5/8" Fixed Threaded- Flush VNS-62F |
| 6 | 1220-1203 | 5/8" Fixed Threaded- 1/8" Recess VNS-62 |
| 7 | 1220-1205 | Spot Welding Velocity Nozzle, VNS-75FAS |
| 8 | VNS-FC | Flux-cored mig welding nozzle |
| 9 | 1110-1308
| .023" (0.6 mm) Standard VTS23
.030" (0.8 mm) Standard VTS30 .035" (0.9 mm) Standard VTS35 .040" (1.0 mm) Standard VTS40 .045" (1.2 mm) Standard VTS45 3/64" (1.2 mm) Standard VTSA364 (Aluminum) .052" (1.3 mm) Standard VTS52 1/16" (1.6 mm) Standard VTS116 1/16" (1.6 mm) Standard VTSA116 (Aluminum) 5/64" (2.0 mm) Standard VTS564 |
| 10 | 1620-1369 1620-1368 | Velocity 45° Conductor Tube, FVCT-S45 Velocity 60° Conductor Tube, FVCT-S60 |
| 1420-1113 1420-1115 1420-1123 1420-1125 1420-1124 | Liner, .030-.035 Steel Wound, 15ft., 42-3035-15 Liner, .030-.035 Steel Wound, 25ft., 42-3035-25 Liner, .040-.045 Steel Wound, 15ft., 42-4045-15 Liner, .040-.045 Steel Wound, 15ft., 42-4045-25 Liner, .052-1/16" Steel Wound, 15ft., 42-116-15 |
