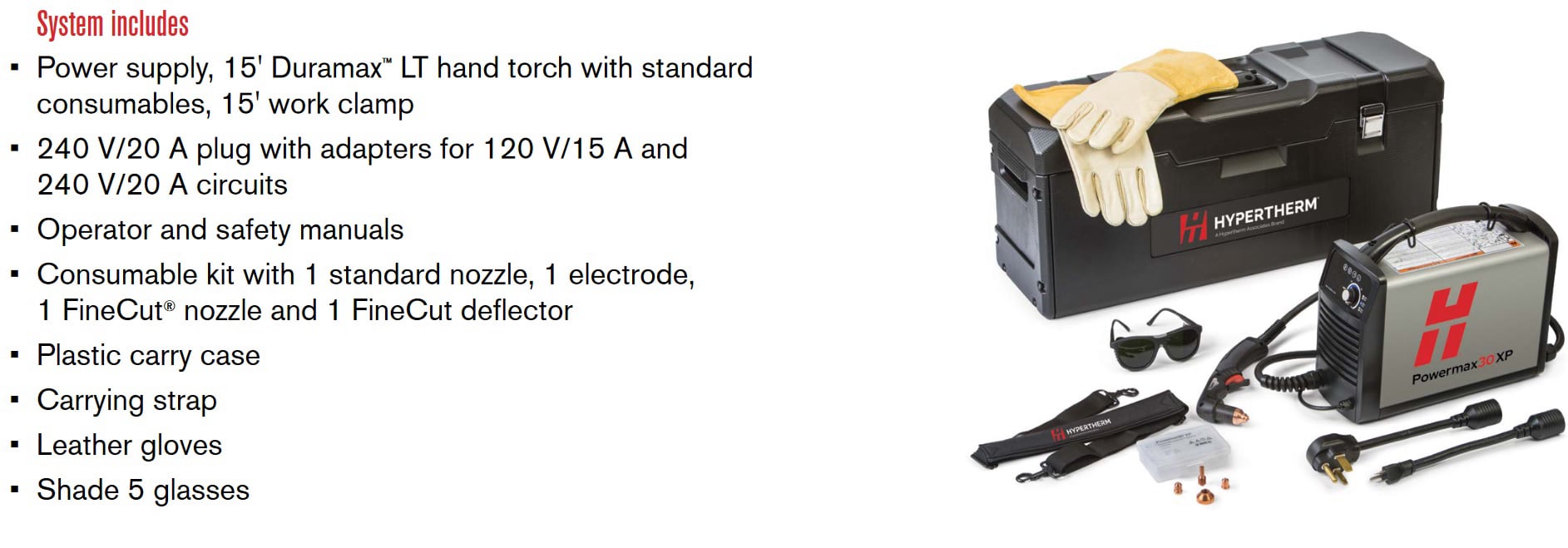

Powermax 30XP

Powermax 30XP Plasma Cutter

Light Industrial Applications
Drag Cutting: For dragging the torch directly across the work piece
Extended Reach Cutting: For improved visibility and accessibility when cutting in confined spaces
Extended Reach Gouging: For improved visibility and accessibility when gouging in confined spaces
Fine Cut: For narrow kerf width with minimal dross and heat affected zone

Process
Plasma Cutting, Gouging

Input Power
120-240 V, 1-PH, 50/60 Hz

Net Weight 9.7 kg (21.4 lbs)

Power Cord: 10 ft. w/6-50 Plug (240V/50A)

Gas Supply: Clean, dry, oil-free air or nitrogen
113.3 l/min (4 scfm) at 5.5 bar (80 psi)

Input Power	Rated Cut	Rated Output	Dimensions	Net Weight
115V 120V	1/4" @ 19 IPM	25 Amp - 20% Duty Cycle	14" x 6.6" x 12"	Item: 21 LB
230V	3/8" @ 20 IPM	30 Amp - 35% Duty Cycle		Shipping Weight 30 LB

Powermax 30 XP Torch and Accessories:

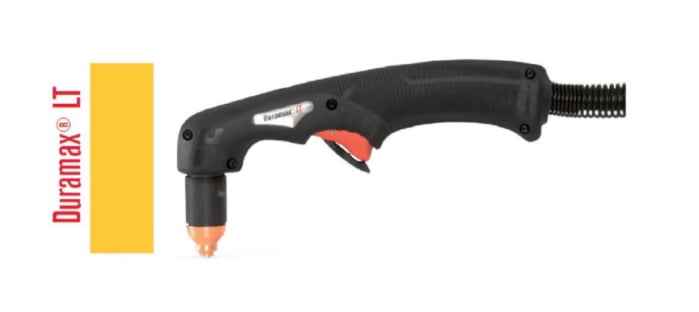

Replacement Torch

Torch and Consumables

428174

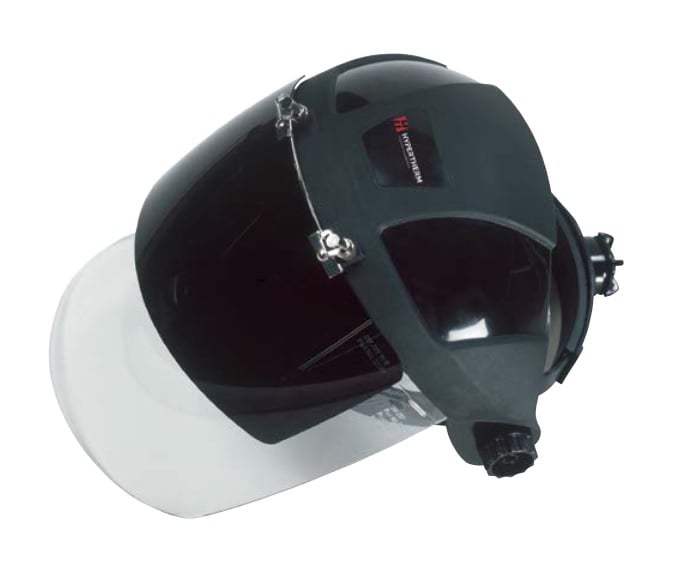

Face Shield

Clear face shield with flip-up shade
for cutting and grinding. Safety shield
included. ANSI Z87.1, CSA Z94.3, CE, Shade 8

127103

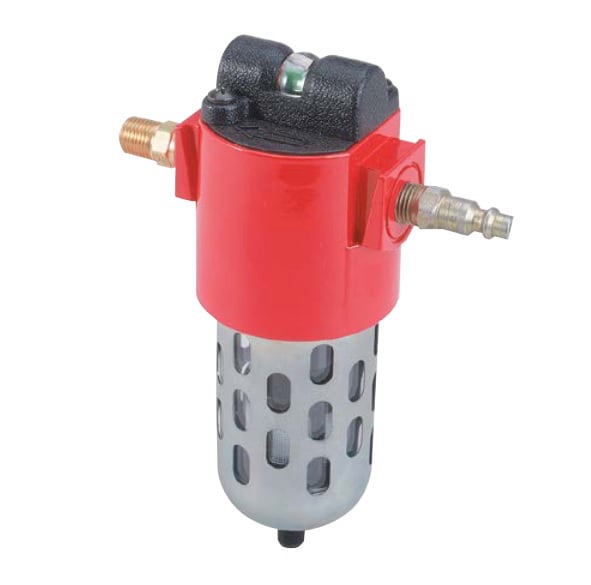

Air filtration kit

A ready-to-install kit with a
1-micron filter and an auto drain
moisture separator protects
against contaminated air.
Made in USA.

128647

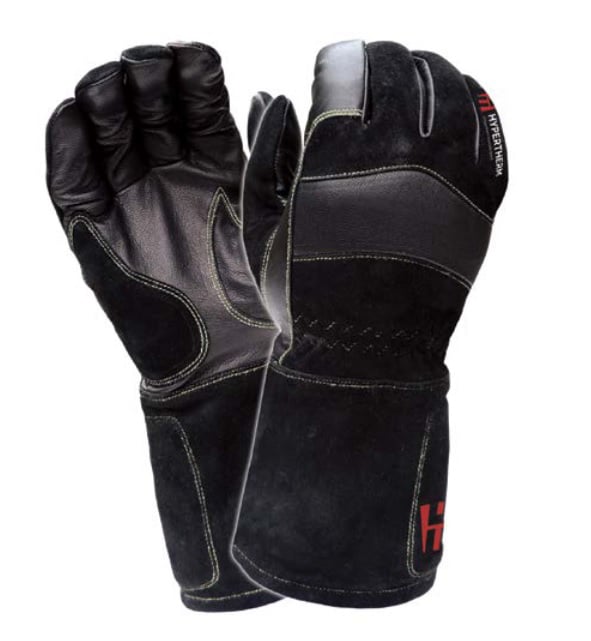

Durafit cutting gloves

Designed to offer maximum dexterity
and fine-motor control. Fire resistant
goatskin leather and stretch Nomex®
backhand. Reinforced leather in wear
areas. Made in USA.

017037 Medium
017038 Large
017039 X-large
017040 2X-large

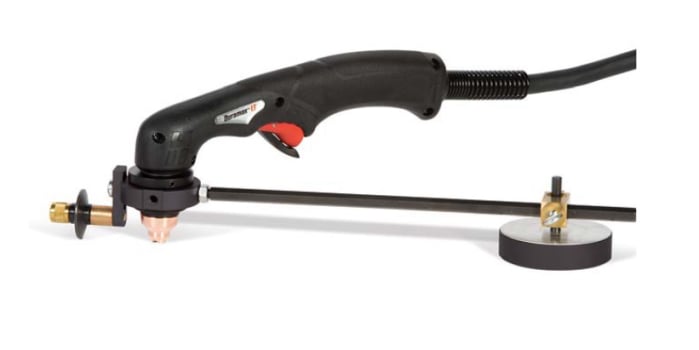

Circle cutting guides

Quick and easy set up for accurate
circles up to 28" diameter. For optional
use as a stand-off guide for straight
and bevel cuts. Made in USA.

127102 Basic kit—15" arm, wheels
and pivot pin

027668 Deluxe kit—arm, wheels,
pivot pin, anchor base and plastic case

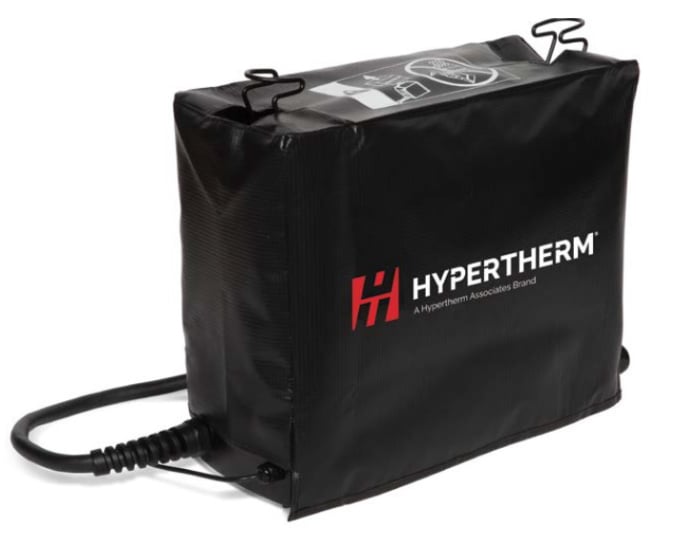

System dust cover

Made from a flame-retardant vinyl, a
dust cover will protect your Powermax
system for years. Made in USA.

127144 Cover, Powermax30/30 XP

Pocket level and tape holder

Magnetic base and tape holder with
built-in level. Made in USA.

017044 Pocket level and tape holder

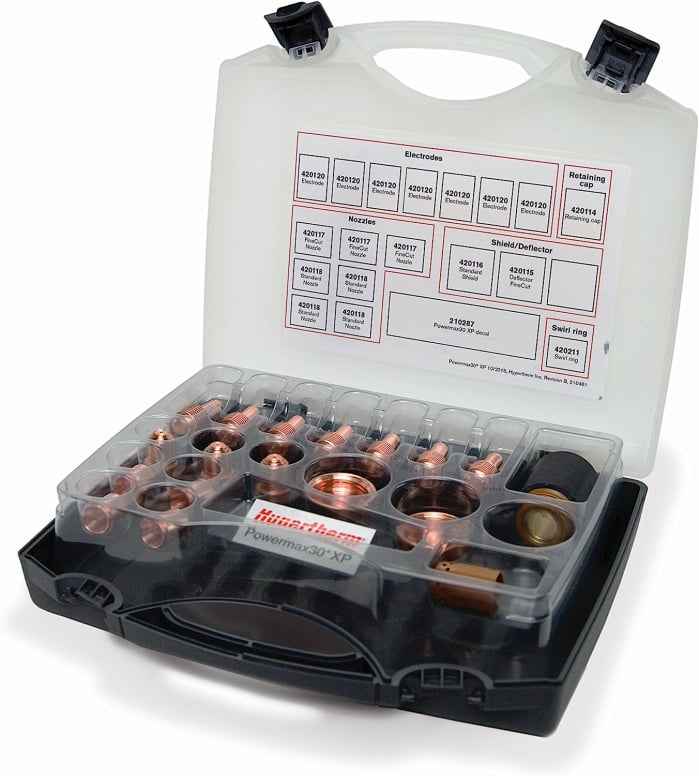

Essential consumable kit

Essential kits provide a convenient assortment
of standard consumables for your Powermax
system. The storage case protects and
organizes your consumables and provides part
number information for ease of reordering your
consumables. Made in USA.

851479 Powermax30 XP kit

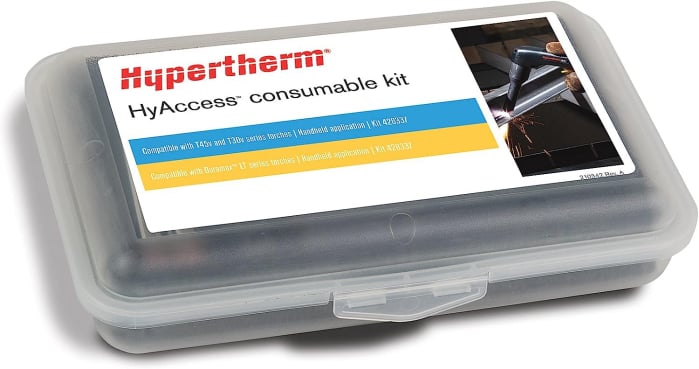

HyAccess consumable kit

Uniquely designed for accessibility, the patented HyAccess™ extended consumables provide the extra reach needed when cutting or gouging in hard to reach or confined spaces.

428337 HyAccess consumable kit

Hypertherm Powermax 30XP
