WP9 TIG Torch Parts, Consumables & Breakdown

WP9 TIG Torch

Use this page to confirm the WP9 / Weldcraft A-125 air-cooled torch path, then use the diagram and parts table below.

Compatible Machines

Maxstar 161 STL/STHCompact TIG machine path; verify package and torch connector. Maxstar SeriesPortable TIG machine path; verify torch package. Miller TIG MachinesUse the machine lookup if the exact package is unknown.

Most Common Replacement Parts

Common Consumables

9/20 CupsCup size controls gas coverage and tight-access clearance. 9/20 ColletsMatch the collet to tungsten diameter. 9/20 Collet BodiesMatch standard or gas-lens setup before ordering. 9/20 Gas LensesUse the 9/20 gas lens path for smoother shielding gas coverage. Back CapsShort, medium, and long cap choice depends on clearance.

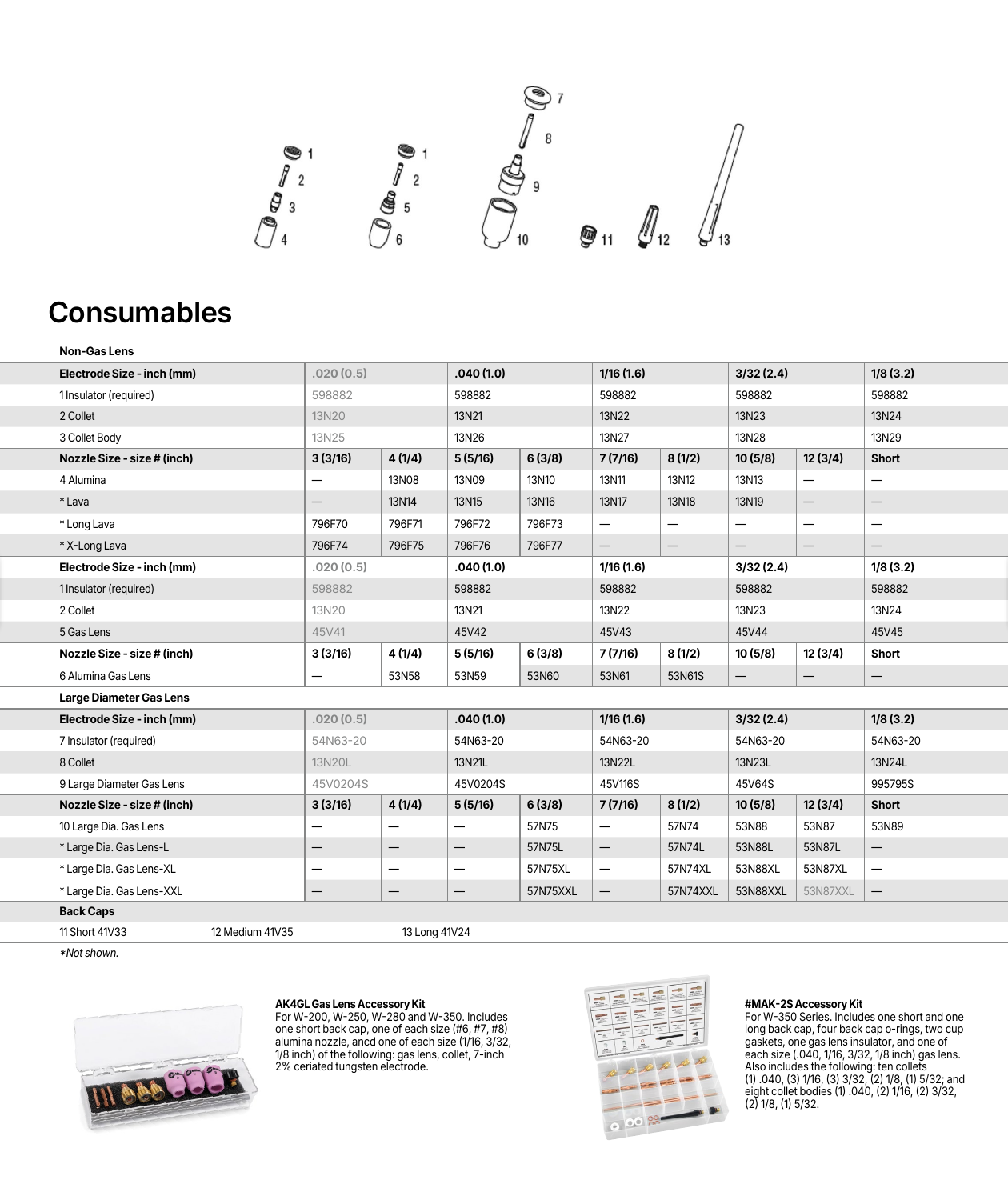

Breakdown Diagram

Jump to WP9 Diagram and Parts Table

Need More Help?

For unstable arc or poor gas coverage, inspect tungsten condition, cup damage, collet grip, gas lens seating, and shielding gas flow before replacing the torch body.

Torch family

WP-9 / Weldcraft A-125 air-cooled TIG torch path.

Consumable system

9/20 style cups, collets, collet bodies, gas lenses, large-diameter gas lenses, and back caps.

Fitment risk

Do not mix WP-9/WP-20 consumables with WP-17/WP-26 front-end parts.
