WP17 TIG Torch Parts, Consumables & Breakdown

WP17 TIG Torch

Use this page to confirm the WP17 / Weldcraft A-150 air-cooled torch path, then use the diagram and parts table below.

Compatible Machines

Syncrowave SeriesCommon TIG machine path; verify package. Maxstar SeriesPortable TIG machine path. Dynasty SeriesVerify torch/cooler choice by setup.

Most Common Replacement Parts

Common Consumables

17/18/26 CupsShared larger TIG front-end family. 17/18/26 ColletsMatch tungsten diameter. 17/18/26 Collet BodiesMatch standard, stubby, or gas-lens front-end setup. 17/18/26 Gas LensesGas coverage upgrade path. Back CapsShort, medium, and long cap fitment path.

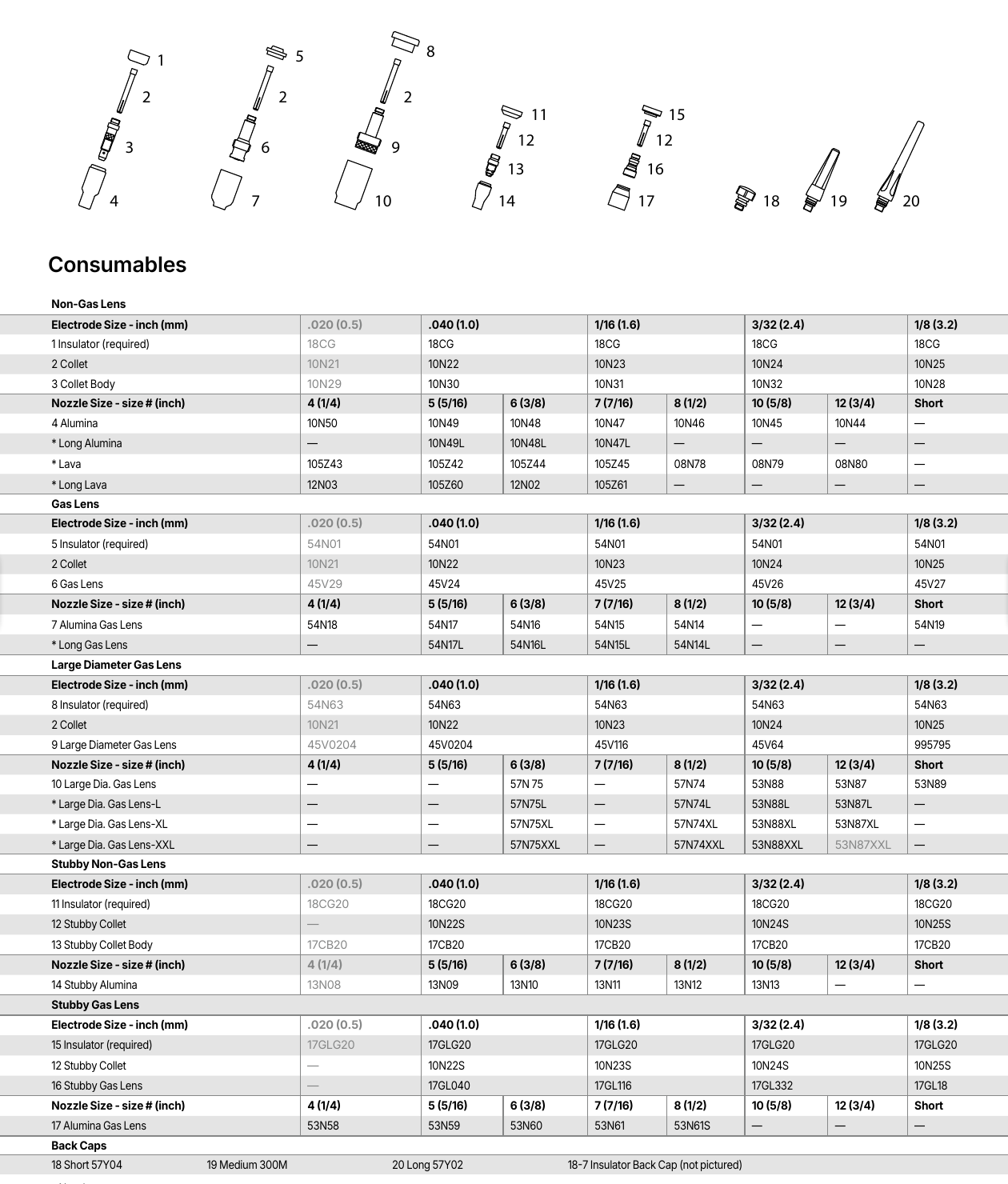

Breakdown Diagram

Jump to WP17 Diagram and Parts Table

Need More Help?

If the arc is unstable, inspect tungsten contamination, collet tightness, gas coverage, and cup condition before replacing larger parts.

Torch family

WP-17 / Weldcraft A-150 air-cooled TIG torch path.

Consumable system

17/18/26 style cups, collets, collet bodies, gas lenses, stubby parts, and back caps.

Fitment risk

Do not mix WP-17/WP-26 consumables with WP-9/WP-20 front-end parts.
