Miller Spoolmate 200 Spool Gun, Heavy Duty Barrel

Home > Mig Support Main > Miller > Spoolmate 200 - Heavy Duty

Item #	Part #	Description
Gun	300497	Spoolmate 100 Spool Gun, 12 ft., 135A @ 30% Duty Cycle, Originally sold with light-duty barrels, all new guns come with a heavy-duty barrel.
1	050622	Nozzle, 5/8 orf (15.9 mm) x 1-5/8, Pack of (2)
2	199387 199388	Contact Tip .030, Pack of (5) Contact Tip .035, Pack of (5)
3	199390	Gas Diffuser
4	244857	Barrel, Spoolmate 200 HD
5	243383	Locking Nut
6	244858	Head Tube, Spoolmate 200 HD
7	247367	Kit, Liner W/Outlet Guide Spoolmate 200 HD
8	300593	Barrel Assy, Heavy Duty/Spoolmate 200
9	243390	Contact Adapter
10	243391	Seal, Gas Valve
11	243392	Bus Bar
12	243393	Pot, C Std Sft 1/T .5 W 10k Ohm
13	243451	Knob, Pressure Adjust
14	243452 ♦136135	Drive Roll .030/.035(0.8mm/0.9mm) Drive Roll VK Groove .030−1/16 Wire
15	247347	Press Arm w/Idler Bearing
16	243466	Guide, Inlet
17	243467	Spring, Press Arm
18	243470	Housing, Wire Drive
19	243760	Drive Motor/Gear Box
20	243491	Strain Relief, Cable
21	243716	Hose, Gas Internal
22	243493	Barbed Gas Fitting
23	243490	Knob, Wire Speed
24	243489	Cable Assembly, 20 ft w/Connector
25	217292	Housing Plug+Pins (Service Kit)
26	056851 010606 056108	All 3 pieces needed Ftg, Hose Brs Barbed Nipple 3/16 Tbg Ftg, Hose Brs Nut .625−18 RH Ftg, Hose Brs Ferrule .450 ID x .718 L .262 Dia
27	194626	Adjusting Nut
28	132529	Pad, Brake
29	194625	Location Bushing
30	243481	Shaft, Spool
31	243488	Locking Screw, Cover
32	243487	Cover
33	243486	Case, Gun Handles RH/LH
34	243483	Trigger
35	243482	Circuit Card Assy, Trigger Switch
36	243484	Spring, Trigger
37	243485	Pin, Trigger
	244657	Hardware Kit, Complete
		♦Optional

Item #

Part #

Description

Gun

Spoolmate 100 Spool Gun, 12 ft., 135A @ 30% Duty Cycle,
Originally sold with light-duty barrels, all new guns come
with a heavy-duty barrel.

050622

Nozzle, 5/8 orf (15.9 mm) x 1-5/8, Pack of (2)

199387
199388

Contact Tip .030, Pack of (5)
Contact Tip .035, Pack of (5)

199390

Gas Diffuser

244857

Barrel, Spoolmate 200 HD

243383

Locking Nut

244858

Head Tube, Spoolmate 200 HD

247367

Kit, Liner W/Outlet Guide Spoolmate 200 HD

300593

Barrel Assy, Heavy Duty/Spoolmate 200

243390

Contact Adapter

243391

Seal, Gas Valve

243392

Bus Bar

243393

Pot, C Std Sft 1/T .5 W 10k Ohm

243451

Knob, Pressure Adjust

243452
♦136135

Drive Roll .030/.035(0.8mm/0.9mm)
Drive Roll VK Groove .030−1/16 Wire

247347

Press Arm w/Idler Bearing

243466

Guide, Inlet

243467

Spring, Press Arm

243470

Housing, Wire Drive

243760

Drive Motor/Gear Box

243491

Strain Relief, Cable

243716

Hose, Gas Internal

243493

Barbed Gas Fitting

243490

Knob, Wire Speed

243489

Cable Assembly, 20 ft w/Connector

217292

Housing Plug+Pins (Service Kit)

056851
010606
056108

All 3 pieces needed
Ftg, Hose Brs Barbed Nipple 3/16 Tbg
Ftg, Hose Brs Nut .625−18 RH
Ftg, Hose Brs Ferrule .450 ID x .718 L .262 Dia

194626

Adjusting Nut

132529

Pad, Brake

194625

Location Bushing

243481

Shaft, Spool

243488

Locking Screw, Cover

243487

Cover

243486

Case, Gun Handles RH/LH

243483

Trigger

243482

Circuit Card Assy, Trigger Switch

243484

Spring, Trigger

243485

Pin, Trigger

244657

Hardware Kit, Complete

♦Optional

Power Source	Effective Serial Number	Spoolmate 200
Millermatic® 212 Auto-Set™, 251 and 252	All serial numbers	Direct connect
Millermatic® 210 and 212	All serial numbers	Need adapter cable 195287 (wire feed speed controlled at the machine)
Multimatic™ 235	All serial numbers	Direct connect
Miller CV power sources supplying 24 VAC and 14-pin receptacles	All serial numbers	WC-24 weld control 137549

Power Source

Effective Serial Number

Spoolmate 200

Millermatic® 212 Auto-Set™, 251 and 252

All serial numbers

Direct connect

Millermatic® 210 and 212

All serial numbers

Need adapter cable 195287 (wire feed speed controlled at the machine)

Multimatic™ 235

All serial numbers

Direct connect

Miller CV power sources supplying 24 VAC and 14-pin receptacles

All serial numbers

WC-24 weld control 137549

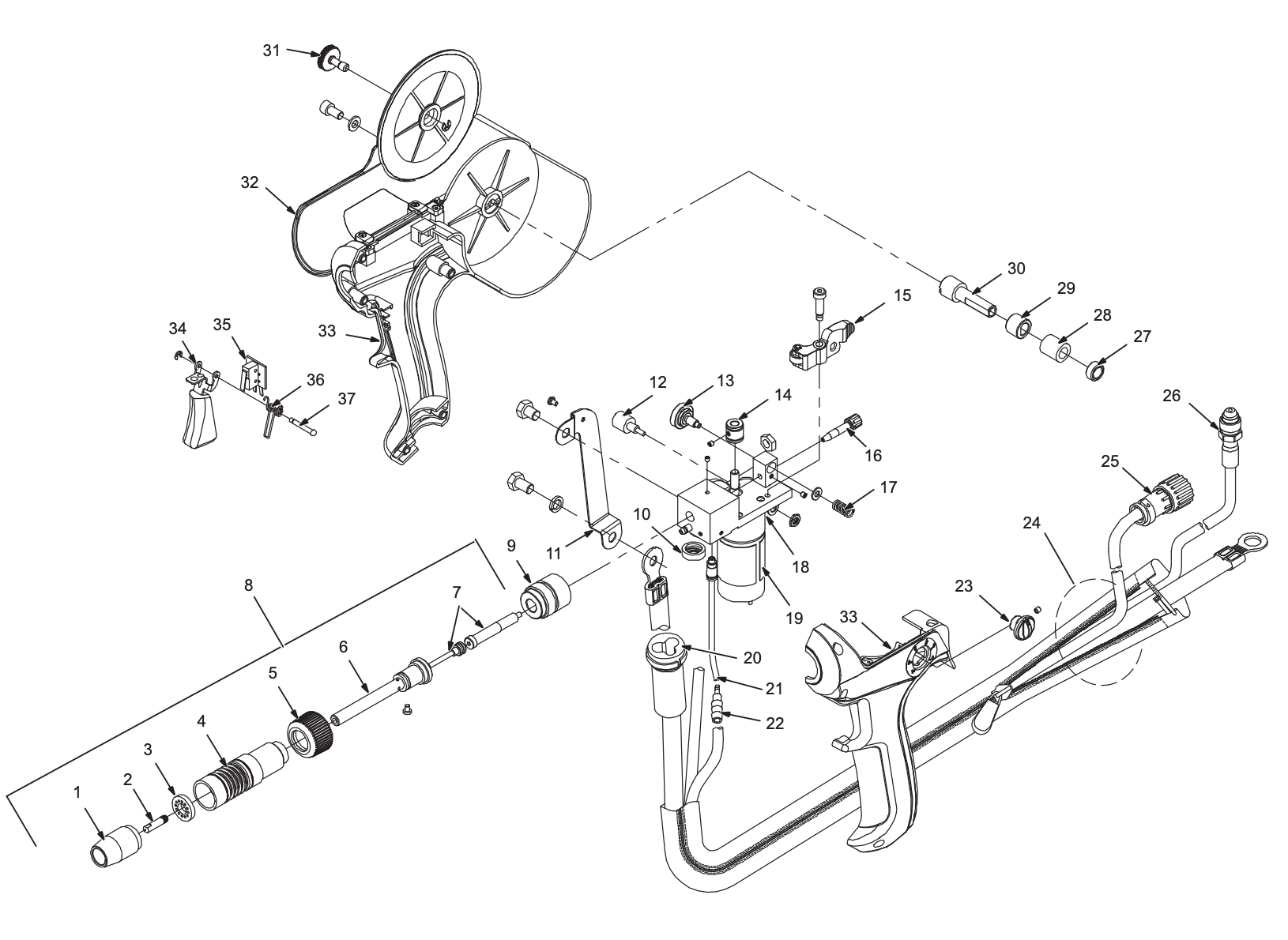

Miller Spoolmate 200,
Heavy-Duty Gun Parts

Miller Spoolmate 200
Connection Chart

Miller Spoolmate 200, Heavy-Duty Gun Parts

Miller Spoolmate 200Connection Chart

Miller Spoolmate 200,
Heavy-Duty Gun Parts

Miller Spoolmate 200
Connection Chart
