CK Worldwide TIG torch

CK9 TIG Torch Support

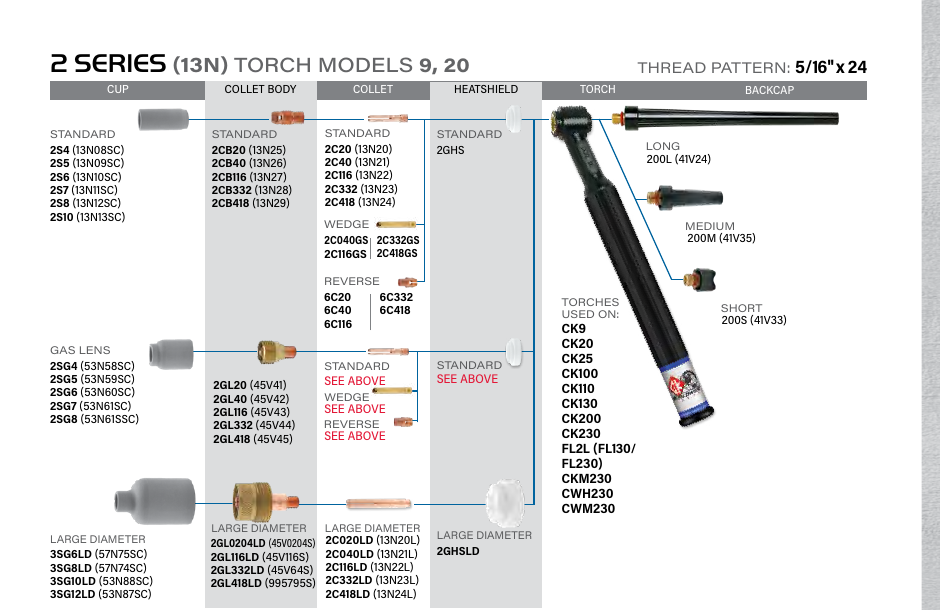

CK9 routes through the CK Series 2 consumable breakdown. Use the diagram first, then match the cup, collet, collet body, gas lens, and back cap.

Torch family

CK9, CK9V, CK9P, CK9PV, CKPF130.

Consumable path

CK Series 2 cups, collets, collet bodies, gas lenses, and 200-series back caps.

Part number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Cup 2S4
CK 2 Series TIG cup - #4 standard cup, 1/4 in.
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2S5
CK 2 Series TIG cup - #5 standard cup, 5/16 in.
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2S6
CK 2 Series TIG cup - #6 standard cup, 3/8 in.
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2S7
CK 2 Series TIG cup - #7 standard cup, 7/16 in.
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2S8
CK 2 Series TIG cup - #8 standard cup, 1/2 in.
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2S10
CK 2 Series TIG cup - #10 standard cup, 5/8 in.
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2SG4
CK 2 Series TIG cup - #4 gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2SG5
CK 2 Series TIG cup - #5 gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2SG6
CK 2 Series TIG cup - #6 gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2SG7
CK 2 Series TIG cup - #7 gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2SG8
CK 2 Series TIG cup - #8 gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG6LD
CK 2 Series TIG cup - #6 large-diameter gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG8LD
CK 2 Series TIG cup - #8 large-diameter gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG10LD
CK 2 Series TIG cup - #10 large-diameter gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG12LD
CK 2 Series TIG cup - #12 large-diameter gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Collet body 2CB020
CK 2 Series collet body - .020 in. standard collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2CB040
CK 2 Series collet body - .040 in. standard collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2CB116
CK 2 Series collet body - 1/16 in. standard collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2CB332
CK 2 Series collet body - 3/32 in. standard collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2CB418
CK 2 Series collet body - 1/8 in. standard collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL20
CK 2 Series collet body - .020 in. gas lens collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL40
CK 2 Series collet body - .040 in. gas lens collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL116
CK 2 Series collet body - 1/16 in. gas lens collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL332
CK 2 Series collet body - 3/32 in. gas lens collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL418
CK 2 Series collet body - 1/8 in. gas lens collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL0204LD
CK 2 Series collet body - .020/.040 large-diameter gas lens body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL116LD
CK 2 Series collet body - 1/16 in. large-diameter gas lens body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL332LD
CK 2 Series collet body - 3/32 in. large-diameter gas lens body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL418LD
CK 2 Series collet body - 1/8 in. large-diameter gas lens body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet 2C020
CK 2 Series collet - .020 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C040
CK 2 Series collet - .040 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C116
CK 2 Series collet - 1/16 in. standard collet
collet Match tungsten diameter exactly.
View on Amazon
Collet 2C332
CK 2 Series collet - 3/32 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C418
CK 2 Series collet - 1/8 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C040GS
CK 2 Series collet - .040 in. wedge collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C116GS
CK 2 Series collet - 1/16 in. wedge collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C332GS
CK 2 Series collet - 3/32 in. wedge collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C418GS
CK 2 Series collet - 1/8 in. wedge collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 6C020
CK 2 Series collet - .020 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 6C040
CK 2 Series collet - .040 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 6C116
CK 2 Series collet - 1/16 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 6C332
CK 2 Series collet - 3/32 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 6C418
CK 2 Series collet - 1/8 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Heat shield 2GHS
CK 2 Series standard heat shield
heat shield Used with standard CK 2 Series front-end setup.
Amazon link: Needs verification.
Heat shield 2GHSLD
CK 2 Series large-diameter heat shield
heat shield Used with large-diameter gas lens setup.
Amazon link: Needs verification.
Back cap 200L
CK 2 Series long back cap, equivalent 41V24
back cap Confirm torch clearance and back-cap length.
View on Amazon
Back cap 200M
CK 2 Series medium back cap, equivalent 41V35
back cap Confirm torch clearance and back-cap length.
Amazon link: Needs verification.
Back cap 200S
CK 2 Series short back cap, equivalent 41V33
back cap Confirm torch clearance and back-cap length.
Amazon link: Needs verification.

Replace first

Common Wear Guidance

1. Inspect the cup

Cracked or contaminated cups are the fastest visual check when gas coverage is poor.

2. Match collet to tungsten

Loose tungsten usually points to the wrong collet size or a worn collet before the whole torch is bad.

3. Verify gas lens or collet body

If the arc is unstable or gas coverage is poor, confirm the front-end style before buying parts.

Verify fitment

Check Before Ordering

Confirm torch family first

CK front-end parts are series-specific. Match the torch family before ordering cups, collets, or gas lens parts.

Match tungsten diameter

The collet and collet body must match the tungsten diameter. A near-match can cause poor arc starts or loose tungsten.

Standard vs gas lens

Do not mix standard collet bodies, gas lenses, and large-diameter gas lens cups unless the setup is confirmed.

Related consumables

CK Series 2 Breakdown

The primary parts lookup for CK9 front-end consumables.

Open support

CK20 TIG Torch Support

Another CK 2 Series torch path.

Open support

CK TIG Consumable Support

Open CK TIG consumables overview.

Open support
Need More Help? Troubleshooting, FAQs, and deeper TIG setup notes

TIG unstable arc

Inspect tungsten contamination, collet tightness, gas coverage, and work connection first.

Open troubleshooting

TIG torch overheating

Verify amperage range, cooling flow on water-cooled torches, and front-end fitment.

Open troubleshooting

TIG gas coverage

Cup size, gas lens seating, flow rate, and drafts are the common checks.
