CK Worldwide TIG torch

CK20 TIG Torch Support

CK20 routes through the CK Series 2 consumable breakdown. Verify coolant flow and adapter style before replacing front-end parts.

CK20 TIG Torch

CK20 uses the CK Series 2 front-end path. Confirm torch and cooler setup before selecting consumables.

Compatible Machines

Dynasty SeriesWater-cooled TIG machine path. Syncrowave SeriesVerify cooler and adapter setup. Maxstar SeriesVerify adapter and package.

Most Common Replacement Parts

  • Cups
  • Collets
  • Gas Lenses
  • Back Caps

Common Consumables

CK Series 2 CupsFront-end cup path. CK Series 2 ColletsMatch tungsten diameter. CK Series 2 Gas LensesGas lens path.
Back CapsVerify cap length and thread.

Breakdown Diagram

Jump to CK20 Diagram and Parts Table
Need More Help?

If cups or gas lenses do not thread correctly, verify the torch is CK20 and the consumables are Series 2 before ordering replacements.

Torch family

CK20, CK20V, CK20 FX, CK200.

Consumable path

CK Series 2 cups, collets, collet bodies, gas lenses, and 200-series back caps.

Part number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Cup 2S4
CK 2 Series TIG cup - #4 standard cup, 1/4 in.
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2S5
CK 2 Series TIG cup - #5 standard cup, 5/16 in.
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2S6
CK 2 Series TIG cup - #6 standard cup, 3/8 in.
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2S7
CK 2 Series TIG cup - #7 standard cup, 7/16 in.
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2S8
CK 2 Series TIG cup - #8 standard cup, 1/2 in.
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2S10
CK 2 Series TIG cup - #10 standard cup, 5/8 in.
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2SG4
CK 2 Series TIG cup - #4 gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2SG5
CK 2 Series TIG cup - #5 gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2SG6
CK 2 Series TIG cup - #6 gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2SG7
CK 2 Series TIG cup - #7 gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 2SG8
CK 2 Series TIG cup - #8 gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG6LD
CK 2 Series TIG cup - #6 large-diameter gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG8LD
CK 2 Series TIG cup - #8 large-diameter gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG10LD
CK 2 Series TIG cup - #10 large-diameter gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG12LD
CK 2 Series TIG cup - #12 large-diameter gas lens cup
cup Use only on CK 2 Series front-end systems.
Amazon link: Needs verification.
Collet body 2CB020
CK 2 Series collet body - .020 in. standard collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2CB040
CK 2 Series collet body - .040 in. standard collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2CB116
CK 2 Series collet body - 1/16 in. standard collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2CB332
CK 2 Series collet body - 3/32 in. standard collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2CB418
CK 2 Series collet body - 1/8 in. standard collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL20
CK 2 Series collet body - .020 in. gas lens collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL40
CK 2 Series collet body - .040 in. gas lens collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL116
CK 2 Series collet body - 1/16 in. gas lens collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL332
CK 2 Series collet body - 3/32 in. gas lens collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL418
CK 2 Series collet body - 1/8 in. gas lens collet body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL0204LD
CK 2 Series collet body - .020/.040 large-diameter gas lens body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL116LD
CK 2 Series collet body - 1/16 in. large-diameter gas lens body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL332LD
CK 2 Series collet body - 3/32 in. large-diameter gas lens body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet body 2GL418LD
CK 2 Series collet body - 1/8 in. large-diameter gas lens body
collet body Match standard vs gas-lens setup before ordering.
Amazon link: Needs verification.
Collet 2C020
CK 2 Series collet - .020 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C040
CK 2 Series collet - .040 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C116
CK 2 Series collet - 1/16 in. standard collet
collet Match tungsten diameter exactly.
View on Amazon
Collet 2C332
CK 2 Series collet - 3/32 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C418
CK 2 Series collet - 1/8 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C040GS
CK 2 Series collet - .040 in. wedge collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C116GS
CK 2 Series collet - 1/16 in. wedge collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C332GS
CK 2 Series collet - 3/32 in. wedge collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 2C418GS
CK 2 Series collet - 1/8 in. wedge collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 6C020
CK 2 Series collet - .020 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 6C040
CK 2 Series collet - .040 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 6C116
CK 2 Series collet - 1/16 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 6C332
CK 2 Series collet - 3/32 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 6C418
CK 2 Series collet - 1/8 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Heat shield 2GHS
CK 2 Series standard heat shield
heat shield Used with standard CK 2 Series front-end setup.
Amazon link: Needs verification.
Heat shield 2GHSLD
CK 2 Series large-diameter heat shield
heat shield Used with large-diameter gas lens setup.
Amazon link: Needs verification.
Back cap 200L
CK 2 Series long back cap, equivalent 41V24
back cap Confirm torch clearance and back-cap length.
View on Amazon
Back cap 200M
CK 2 Series medium back cap, equivalent 41V35
back cap Confirm torch clearance and back-cap length.
Amazon link: Needs verification.
Back cap 200S
CK 2 Series short back cap, equivalent 41V33
back cap Confirm torch clearance and back-cap length.
Amazon link: Needs verification.

Replace first

Common Wear Guidance

1. Verify coolant flow

A hot CK20 often points to cooling flow or cable/hose trouble before cup failure.

2. Match Series 2 front end

Confirm 2 Series standard vs gas lens setup before ordering.

3. Check adapter style

Confirm water-cooled Dinse or Safe-Loc adapter before replacing the torch.

Verify fitment

Check Before Ordering

Confirm torch family first

CK front-end parts are series-specific. Match the torch family before ordering cups, collets, or gas lens parts.

Match tungsten diameter

The collet and collet body must match the tungsten diameter. A near-match can cause poor arc starts or loose tungsten.

Standard vs gas lens

Do not mix standard collet bodies, gas lenses, and large-diameter gas lens cups unless the setup is confirmed.

Related consumables

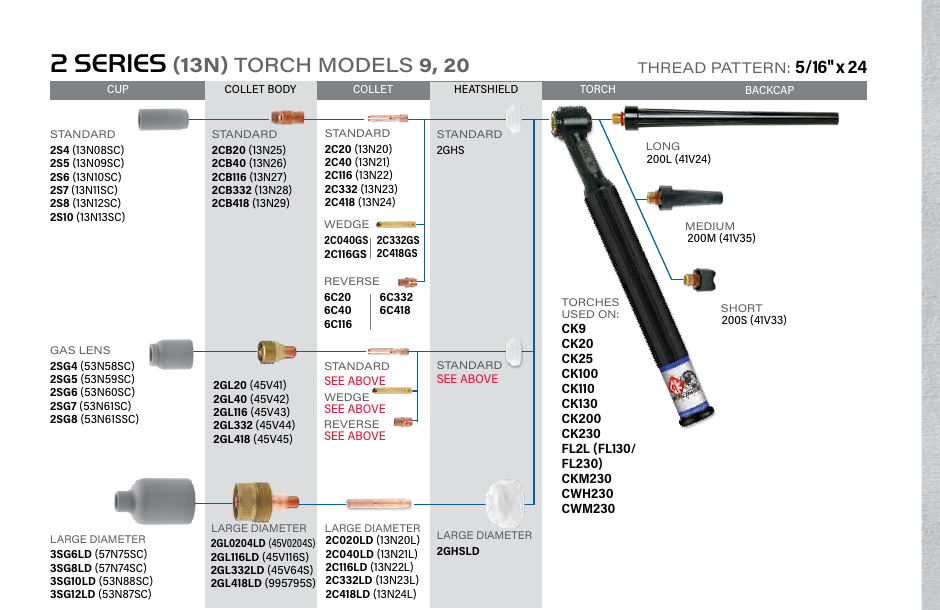

CK Series 2 Breakdown

The primary parts lookup for CK20 front-end consumables.

Open support

CK230 TIG Torch Support

Heavy-duty CK 2 Series water-cooled path.

Open support

CK Water-Cooled TIG Support

Open water-cooled CK torch support.

Open support
