CK Worldwide TIG torch

CK26 TIG Torch Support

CK26 routes through the CK Series 3 consumable breakdown. Confirm amperage range and cable heat before ordering front-end parts.

Torch family

CK26, CK26V, CK26P, CK26HD.

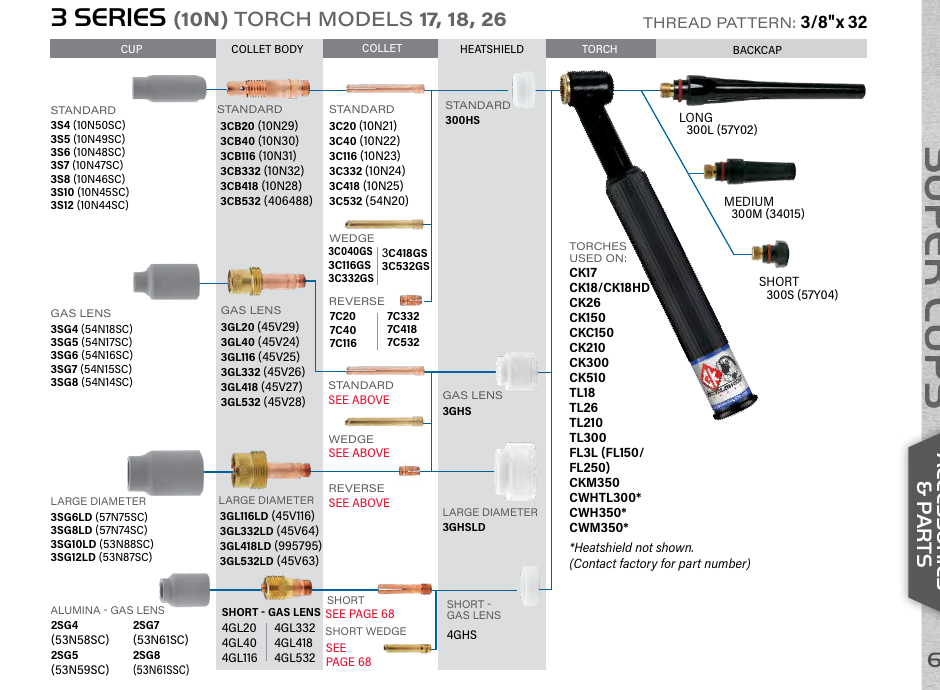

Consumable path

CK Series 3 cups, collets, collet bodies, gas lenses, and 300-series back caps.

Part number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Cup 3S4
CK 3 Series TIG cup - #4 standard cup, 1/4 in.
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3S5
CK 3 Series TIG cup - #5 standard cup, 5/16 in.
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3S6
CK 3 Series TIG cup - #6 standard cup, 3/8 in.
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3S7
CK 3 Series TIG cup - #7 standard cup, 7/16 in.
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3S8
CK 3 Series TIG cup - #8 standard cup, 1/2 in.
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3S10
CK 3 Series TIG cup - #10 standard cup, 5/8 in.
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3S12
CK 3 Series TIG cup - #12 standard cup, 3/4 in.
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG4
CK 3 Series TIG cup - #4 gas lens cup
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG5
CK 3 Series TIG cup - #5 gas lens cup
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG6
CK 3 Series TIG cup - #6 gas lens cup
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG7
CK 3 Series TIG cup - #7 gas lens cup
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG8
CK 3 Series TIG cup - #8 gas lens cup
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG6LD
CK 3 Series TIG cup - #6 large-diameter gas lens cup
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG8LD
CK 3 Series TIG cup - #8 large-diameter gas lens cup
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG10LD
CK 3 Series TIG cup - #10 large-diameter gas lens cup
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 3SG12LD
CK 3 Series TIG cup - #12 large-diameter gas lens cup
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 2SG4
CK 3 Series TIG cup - #4 short gas lens cup
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Cup 2SG7
CK 3 Series TIG cup - #7 short gas lens cup
cup Use only on CK 3 Series front-end systems.
Amazon link: Needs verification.
Collet body 3CB20
CK 3 Series collet body - .020 in. standard collet body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3CB40
CK 3 Series collet body - .040 in. standard collet body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3CB116
CK 3 Series collet body - 1/16 in. standard collet body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3CB332
CK 3 Series collet body - 3/32 in. standard collet body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3CB418
CK 3 Series collet body - 1/8 in. standard collet body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3CB532
CK 3 Series collet body - 5/32 in. standard collet body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3GL20
CK 3 Series collet body - .020 in. gas lens collet body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3GL40
CK 3 Series collet body - .040 in. gas lens collet body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3GL116
CK 3 Series collet body - 1/16 in. gas lens collet body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3GL332
CK 3 Series collet body - 3/32 in. gas lens collet body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3GL418
CK 3 Series collet body - 1/8 in. gas lens collet body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3GL532
CK 3 Series collet body - 5/32 in. gas lens collet body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3GL116LD
CK 3 Series collet body - 1/16 in. large-diameter gas lens body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3GL332LD
CK 3 Series collet body - 3/32 in. large-diameter gas lens body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3GL418LD
CK 3 Series collet body - 1/8 in. large-diameter gas lens body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 3GL532LD
CK 3 Series collet body - 5/32 in. large-diameter gas lens body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 4GL20
CK 3 Series collet body - .020 in. short gas lens body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 4GL40
CK 3 Series collet body - .040 in. short gas lens body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 4GL116
CK 3 Series collet body - 1/16 in. short gas lens body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 4GL332
CK 3 Series collet body - 3/32 in. short gas lens body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 4GL418
CK 3 Series collet body - 1/8 in. short gas lens body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet body 4GL532
CK 3 Series collet body - 5/32 in. short gas lens body
collet body Match standard, gas lens, large diameter, or short gas lens setup.
Amazon link: Needs verification.
Collet 3C20
CK 3 Series collet - .020 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 3C40
CK 3 Series collet - .040 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 3C116
CK 3 Series collet - 1/16 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 3C332
CK 3 Series collet - 3/32 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 3C418
CK 3 Series collet - 1/8 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 3C532
CK 3 Series collet - 5/32 in. standard collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 3C040GS
CK 3 Series collet - .040 in. wedge collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 3C116GS
CK 3 Series collet - 1/16 in. wedge collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 3C332GS
CK 3 Series collet - 3/32 in. wedge collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 3C418GS
CK 3 Series collet - 1/8 in. wedge collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 3C532GS
CK 3 Series collet - 5/32 in. wedge collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 7C20
CK 3 Series collet - .020 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 7C40
CK 3 Series collet - .040 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 7C116
CK 3 Series collet - 1/16 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 7C332
CK 3 Series collet - 3/32 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 7C418
CK 3 Series collet - 1/8 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Collet 7C532
CK 3 Series collet - 5/32 in. reverse collet
collet Match tungsten diameter exactly.
Amazon link: Needs verification.
Heat shield 300HS
CK 3 Series standard heat shield
heat shield Used with standard CK 3 Series setup.
Amazon link: Needs verification.
Heat shield 3GHS
CK 3 Series gas lens heat shield
heat shield Used with gas lens setup.
Amazon link: Needs verification.
Heat shield 3GHSLD
CK 3 Series large-diameter gas lens heat shield
heat shield Used with large-diameter gas lens setup.
Amazon link: Needs verification.
Heat shield 4GHS
CK 3 Series short gas lens heat shield
heat shield Used with short gas lens setup.
Amazon link: Needs verification.
Back cap 300L
CK 3 Series long back cap, equivalent 57Y02
back cap Confirm torch clearance and back-cap length.
Amazon link: Needs verification.
Back cap 300M
CK 3 Series medium back cap, equivalent 34015
back cap Confirm torch clearance and back-cap length.
Amazon link: Needs verification.
Back cap 300S
CK 3 Series short back cap, equivalent 57Y04
back cap Confirm torch clearance and back-cap length.
Amazon link: Needs verification.

Replace first

Common Wear Guidance

1. Confirm amperage range

If the torch is overheating, check duty cycle and cable heat before buying front-end parts.

2. Match Series 3 front end

Confirm 3 Series standard vs gas lens setup before ordering.

3. Check tungsten grip

Loose tungsten usually starts with collet size or wear.

Verify fitment

Check Before Ordering

Confirm torch family first

CK front-end parts are series-specific. Match the torch family before ordering cups, collets, or gas lens parts.

Match tungsten diameter

The collet and collet body must match the tungsten diameter. A near-match can cause poor arc starts or loose tungsten.

Standard vs gas lens

Do not mix standard collet bodies, gas lenses, and large-diameter gas lens cups unless the setup is confirmed.

Related consumables

CK Series 3 Breakdown

The primary parts lookup for CK26 front-end consumables.

Open support

CK17 TIG Torch Support

Common CK 3 Series air-cooled path.

Open support

CK Air-Cooled TIG Support

Open air-cooled CK torch support.

Open support
Need More Help? Troubleshooting, FAQs, and deeper TIG setup notes

TIG unstable arc

Inspect tungsten contamination, collet tightness, gas coverage, and work connection first.

Open troubleshooting

TIG torch overheating

Verify amperage range, cooling flow on water-cooled torches, and front-end fitment.

Open troubleshooting

TIG gas coverage

Cup size, gas lens seating, flow rate, and drafts are the common checks.

Open TIG support
