Fusion 180 parts list
Open the item-number table and diagram for this gun family.
Jump to parts list
Tweco MIG gun support
Use this Tweco MIG gun parts diagram to match Fusion 180 gun assemblies, liners, nozzles, diffusers, replacement hardware, and consumables by item number.
This page is the Fusion 180 diagram path. For a different Tweco or ESAB MIG torch, start with the ESAB / Tweco support page, then open the closest gun family before matching part numbers.
Search shortcut
Use this page when your search is for a Tweco Fusion 180 MIG gun parts diagram. Start with the gun assembly rows, then use the consumables section for nozzles, tips, diffusers, and liners.
Open the item-number table and diagram for this gun family.
Jump to parts listUse when the gun may be a different Tweco Fusion, Velocity, or Classic model.
Open Tweco supportSearch by liner, nozzle, contact tip, or gun assembly part number.
Search this gunAs an Amazon Associate, I earn from qualifying purchases.

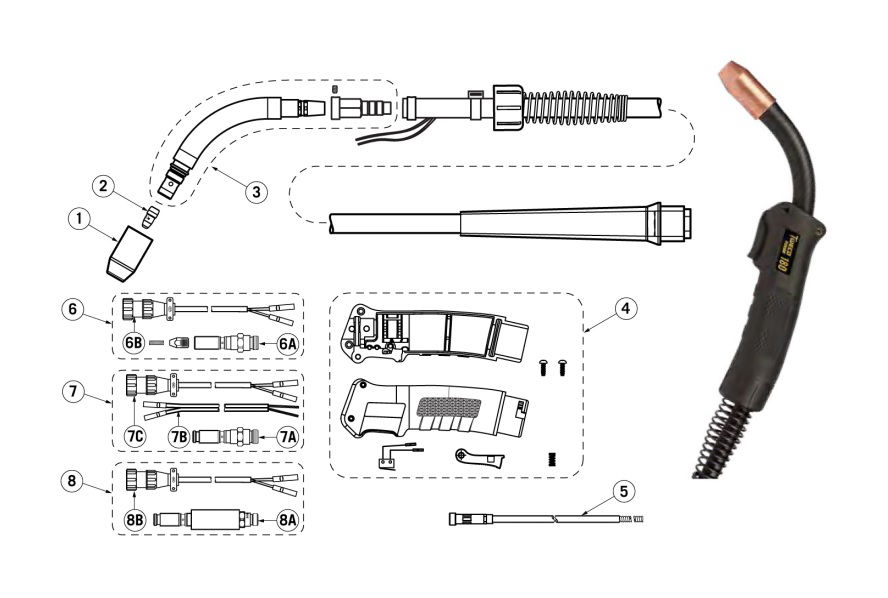

| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Complete Gun | 1017-1331 |
Tweco® Style (4 Pin) Rear Connector 12 ft., .035, F180T-12-3035
|
View on Amazon | |
| Complete Gun | 1017-1338 |
Tweco® Style (8 Pin) Rear Connector for Rebel® 10 ft., .035 F180TA-10-3035
|
View on Amazon | |
| Complete Gun | 1017-1332 |
Tweco® Style (8 Pin) Rear Connector for Rebel® 12 ft., .035 F180TA-12-3035
|
Buy link unavailable. | |
| Complete Gun | 1017-1330 |
Miller® Style Rear Connector 12 ft., .035 F180M-12-3035
|
View on Amazon | |
| Complete Gun | 1017-1329 |
Lincoln® Style Rear Connector 12 ft., .035 F180L-12-3035
|
Buy link unavailable. | |
| Complete Gun | 1017-1335 |
Euro-kwik Style Rear Connector 10 ft., .035 F180X-10-3035
|
Buy link unavailable. | |
| 1 | See Below |
Refer to Gun Consumables
|
N/A | |
| 2 | See Below |
Refer to Gun Consumables
|
N/A | |
| 3 | 1620-1108 |
Conductor Tube Assembly FVCTS-220-60
|
N/A | |
| 4 | 2020-2025 |
Handle/ Trigger Repair Kit F80
|
Buy link unavailable. | |
| 5 | 1420-1113 |
Conduit Liner – Steel Welding Wire 15 ft., .030-.035" 42-3035-15
|
Buy link unavailable. | |
| 5 | 1420-1123 |
Conduit Liner – Steel Welding Wire 15 ft., .035-.045" 42-4045-15
|
Buy link unavailable. | |
| 5 | 1420-1124 |
Conduit Liner – Steel Welding Wire 15 ft., .052-1/16" 42-116-15
|
Buy link unavailable. | |
| 5 | 1420-1003 |
Conduit Liner – Aluminum Welding Wire 15 ft., .030-3/64 42N-3545-15
|
Buy link unavailable. | |
| 6a | 2035-2111 |
Miller® Rear Connector 350-174MH
|
View on Amazon | |
| 6b | 2030-2075 |
Miller® & Lincoln® Control Wire & Plug WM354-M
|
View on Amazon | |
| 7a | 2035-2110 |
Tweco® Rear Connector 350-174H
|
Buy link unavailable. | |
| 7b | 2000-2352 |
Tweco® Control Wire & Plug 35K-350-1
|
N/A | |
| 7c | 2060-2141 |
Thermal Arc® Control Wire WS-354-TA-LC
|
N/A | |
| 8a | 2035-2116 |
Lincoln® Rear Connector 350-174HXL
|
Buy link unavailable. | |
| 8b | 2030-2075 |
Miller® & Lincoln® Control Wire & Plug WM354-M
|
View on Amazon |
Related consumables
Tweco Fusion 180 Consumables on this same support page.
Open related sectionBrowse more ESAB / Tweco MIG gun support paths.
Open brand support
Tweco MIG gun support
Tweco Fusion 180 Consumables structured from the existing support table for faster visual-to-part lookup.
As an Amazon Associate, I earn from qualifying purchases.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| 1 | 1220-1200 |
1/2" Fixed Threaded-Flush VNS50F
|
View on Amazon | |
| 1 | 1220-1201 |
1/2" Fixed Threaded-Recess VNS50
|
View on Amazon | |
| 1 | 1220-1202 |
5/8" Fixed Threaded-Flush VNS62F
|
View on Amazon | |
| 1 | 1220-1203 |
5/8" Fixed Threaded-Recess VNS62
|
Buy link unavailable. | |
| 1 | 1220-1204 |
3/8" Fixed Threaded-Flush VNS37F
|
Buy link unavailable. | |
| 1 | 1220-1206 |
3/8" Fixed Threaded-Recess VNS37
|
Buy link unavailable. | |
| 2 | 1220-1229 |
1/2" Adj. Slip-Heavy Cone VNSH50S
|
Buy link unavailable. | |
| 3 | 1220-1205 |
3/4" Spot Nozzle Assembly VNS75FAS
|
Buy link unavailable. | |
| 4 | 1220-1207 |
FC Tip Holder-Insulator Assembly VNSFC
|
Buy link unavailable. | |
| 4 | 1220-1208 |
FC Tip Holder-Insulator Only VTSET30
|
Buy link unavailable. | |
| 5 | 1220-1235 |
3/8" Extended Tapper Nozzle VNSET37F
|
Buy link unavailable. | |
| 6 | 1340-1132 |
Adj. Slip-Tip Holder VNSSINS
|
Buy link unavailable. | |
| 7 | 1110-1308 |
.023" (0.6 mm) Standard VTS23
|
View on Amazon | |
| 7 | 1110-1309 |
.030" (0.8 mm) Standard VTS30
|
View on Amazon | |
| 7 | 1110-1310 |
.035" (0.9 mm) Standard VTS35
|
View on Amazon | |
| 7 | 1110-1311 |
.040" (1.0 mm) Standard VTS40
|
Buy link unavailable. | |
| 7 | 1110-1312 |
.045" (1.2 mm) Standard VTS45
|
View on Amazon | |
| 7 | 1110-1313 |
3/64" (1.2 mm) Standard VTSA364 (Aluminum)
|
Buy link unavailable. | |
| 7 | 1110-1314 |
.052" (1.3 mm) Standard VTS52
|
Buy link unavailable. | |
| 7 | 1110-1315 |
1/16" (1.6 mm) Standard VTS116
|
Buy link unavailable. | |
| 7 | 1110-1317 |
1/16" (1.6 mm) Standard VTSA116 (Aluminum)
|
Buy link unavailable. | |
| 7 | 1110-1316 |
5/64" (2.0 mm) Standard VTS564
|
Buy link unavailable. | |
| 8 | 1110-1330 |
.023" (0.6 mm) Extended Tapper VTSET23
|
Buy link unavailable. | |
| 8 | 1110-1331 |
.030" (0.8 mm) Extended Tapper VTSET30
|
Buy link unavailable. | |
| 8 | 1110-1332 |
.035" (0.9 mm) Extended Tapper VTSET35
|
Buy link unavailable. | |
| 8 | 1110-1333 |
.040" (1.0 mm) Extended Tapper VTSET40
|
Buy link unavailable. | |
| 8 | 1110-1334 |
.045" (1.2 mm) Extended Tapper VTSET45
|
Buy link unavailable. | |
| 8 | 1110-1335 |
3/64" (1.2 mm) Extended Tapper VTSETA364 (Aluminum)
|
Buy link unavailable. | |
| 8 | 1110-1336 |
.052" (1.3 mm) Extended Tapper VTSET52
|
Buy link unavailable. | |
| 8 | 1110-1337 |
1/16" (1.6 mm) Extended Tapper VTSET116
|
Buy link unavailable. | |
| 8 | 1110-1338 |
1/16" (1.6 mm) Extended Tapper VTSETA116 (Aluminum)
|
Buy link unavailable. |
Related consumables
Tweco Fusion 180 Gun Models on this same support page.
Open related sectionBrowse more ESAB / Tweco MIG gun support paths.
Open brand support
Match the part number, machine model, gun or torch family, package quantity, and generation before buying. Amazon links are convenience links only, not compatibility proof.
