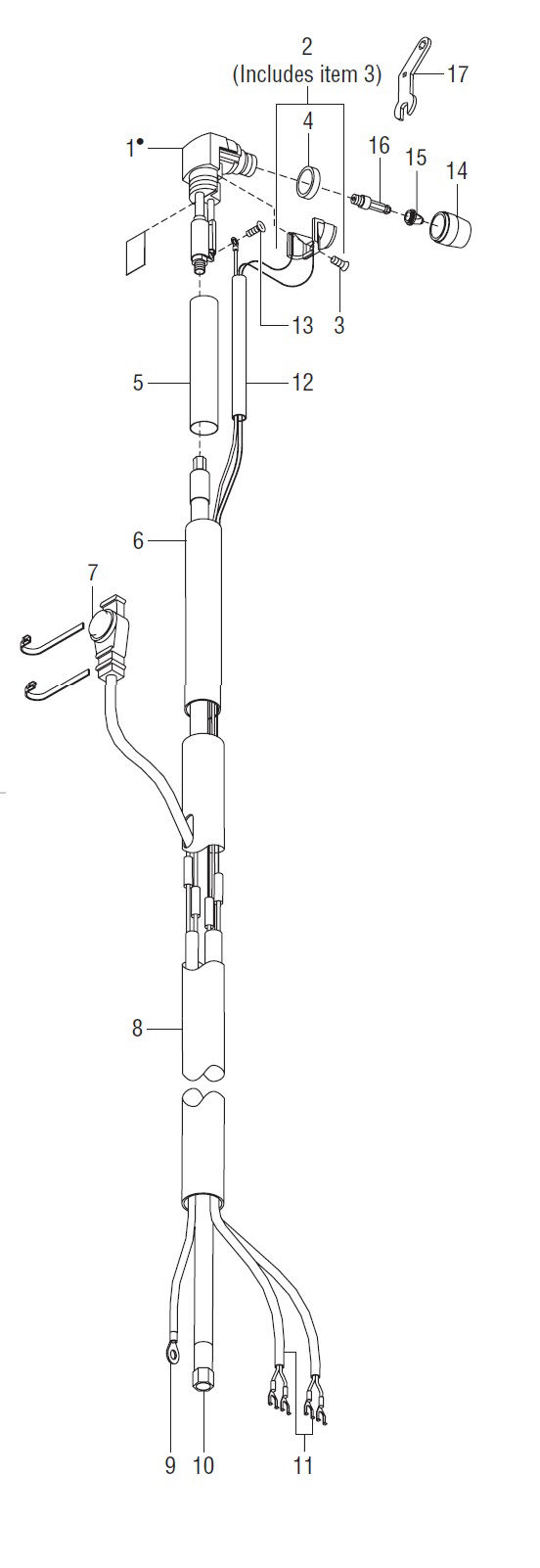

Miller APT-5000 Plasma Torch Breakdown

Miller APT-5000 Plasma Torch item-number lookup with torch assemblies, replacement parts, consumables, and accessories from the existing WSP table.

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Torch 126771
10 m (33 ft) APT-5000 Torch (Hand-Held)
torch assembly APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
1 130287
Torch Body, (includes )
torch body APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
2 130288
Detective Pin Kit, (includes 3 & 4)
torch hardware APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
3 125445
Screw
torch hardware APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
4 125446
Insulating Cover
torch hardware APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
5 125288
Insulation Tube
torch hardware APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
6 130038
Handle
handle APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
7 125006
Torch Switch Assembly
switch APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
8 125007
Hose Sheath
lead APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
9 125009
Pilot Cable
lead APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
10 125008
Assembly Power Cable
lead APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
11 169514
Kit Detective/Trigger Lead
switch APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
12 125289
Insulation Tube
torch hardware APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
13 125286
Screw
torch hardware APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
14 123897
Shield Cup
shield APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
15 123898
“S” Tip (pk of 5)
tip APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
pk of 5 N/A
16 123899
Electrode (pk of 5)
electrode APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
pk of 5 N/A
17 125041
Wrench
torch hardware APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
N/A
18 132658
Guide, stand off (pk of 2)
torch hardware APT-5000 Replacement Parts and Consumables
Miller APT-5000 Plasma Torch Breakdown
pk of 2 N/A

Related consumables

Plasma Fitment Check

Match the part number, machine model, gun or torch family, package quantity, and generation before buying. Amazon links are convenience links only, not compatibility proof.
