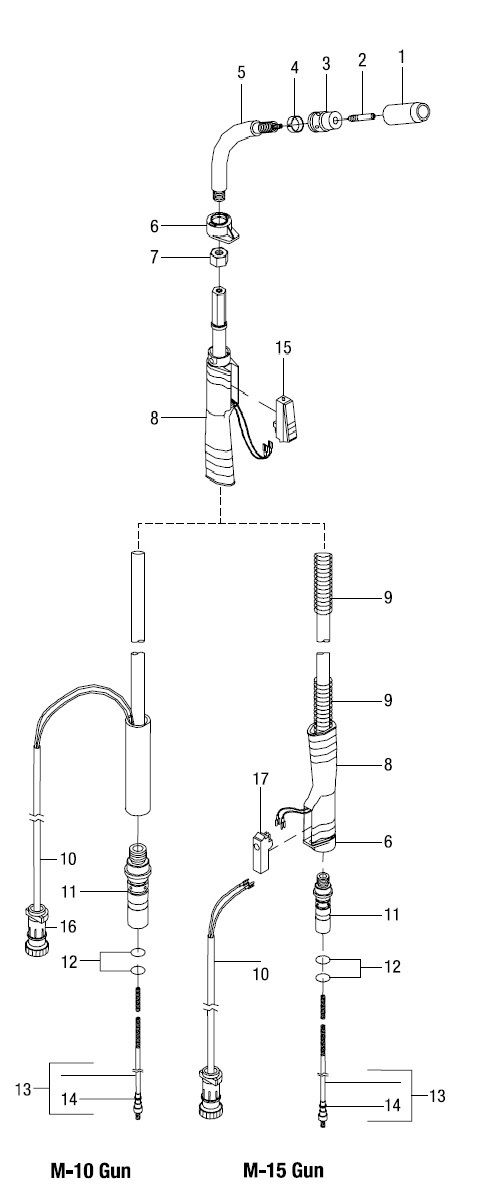

| Item # | Part # | Description |
|---|---|---|
| Gun | 195605 | M-10 Gun, 10 ft. (3 m), 100A, .030-.035 (.8-.9 mm) |
| Gun | 169598 | M-15 Gun, 10 ft. (3 m), 150A, .030-.035 (.8-.9 mm) |
| Gun | 169591 | M-15 Gun, 12 ft. (3.7 m), 150A .030-.035 (.8-.9 mm) |
| Gun | 169593 | M-15 Gun, 15 ft. (4.6 m), 150A .030-.035 (.8-.9 mm) |
| 1 | 169715 | Nozzle, Slip Type, .500, (12.7 mm) Opening, Flush Tip |
| 1 | 226190 | Nozzle, Slip Type, Flux Cored |
| 2 | 087299 | .023 (.6 mm) Contact Tip, Screw Type - 1.125" |
| 2 | 000067 | .030 (.8 mm) Contact Tip, Screw Type - 1.125" |
| 2 | 000068 | .035 (.9 mm) Contact Tip, Screw Type - 1.125" |
| 2 | 000069 | .045 (1.2 mm) Contact Tip, Screw Type - 1.125" |
| 3 | 169716 | Contact Tip Adapter - Gas Diffuser |
| 4 | 170470 | Retaining Ring |
| 5 | 169718 | Tube Head - Gooseneck |
| 6 | 169738 | Handle Locking Nut |
| 7 | 169719 | Gun End Jam Nut |
| 8 | 169729 | Nozzle Adapter |
| 5 | 170468 | O-Ring |
| 6 | 169730 | Shock Washer |
| 7 | 169731 | |
| 8 | 169738 | Handle Locking Nut |
| 9 | 169741 | Cable Strain Relief |
| 10 | 227800 | Cable Assembly |
| 11 | 209495 | Miller Type Power Pin - Feeder Connector M-10 |
| 11 | 209486 | Miller Type Power Pin - Feeder Connector M-15 |
| 12 | 079974 | O-ring, .500 ID x .103CS rbr |
| 13 | 194010 | .023-.025 (.6 mm) Wire Size x 15' Length |
| 13 | 194011 | .030-.035 (.8-.9 mm) Wire Size x 15' Length |
| 14 | 079975 | O-Ring .187 ID x .103CS rbr |
| 15 | 227798 | Replacement Trigger |
| 16 | 079878 | Housing Plug and Pins |
| 079531 | Connector, circ cpc clamp str. rlf | |
| 17 | 169736 | Terminal Block |
Match the part number, machine model, gun or torch family, package quantity, and generation before buying. Amazon links are convenience links only, not compatibility proof.
