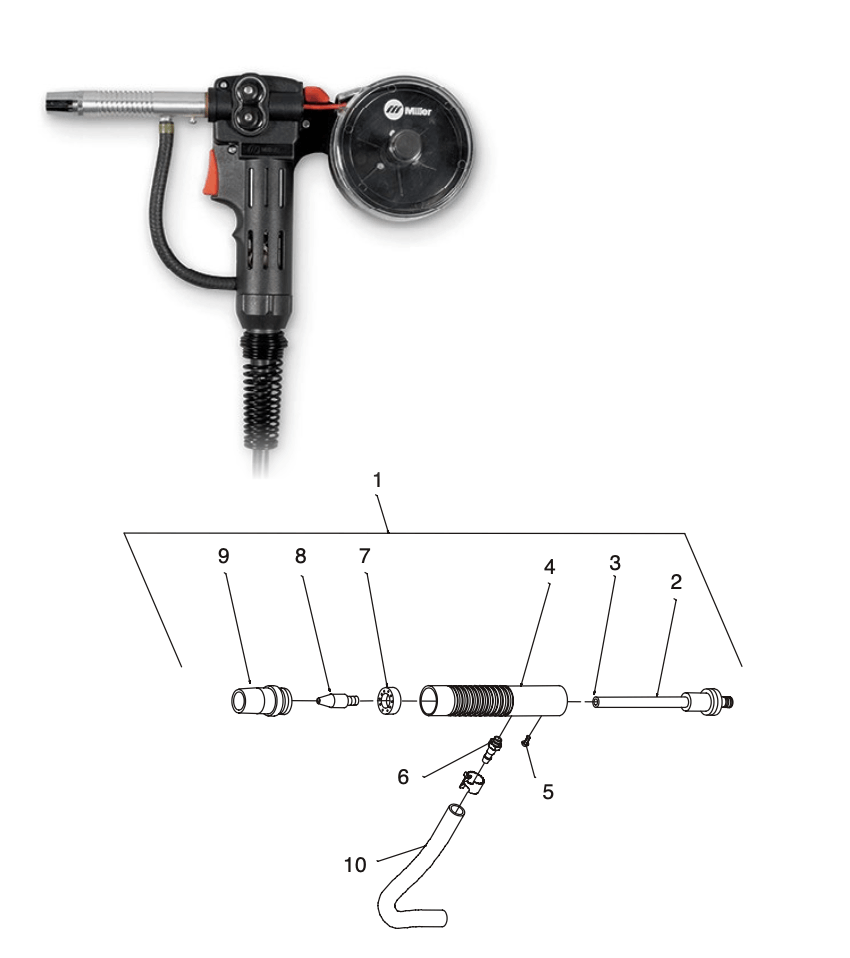

Miller Spoolmate 100 Spool Gun Parts Breakdown

Spoolmate 100 is a light industrial aluminum spool gun for compact Miller MIG and multiprocess machines.

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Gun 300371
Spoolmate 100, 12 ft., Catalog lists light industrial aluminum fabrication
gun assembly Spoolmate 100 gun models Wire size: .023 - .035 in. (0.6 - 0.9 mm)
Spoolmate 100 family
1 N/A
1 186404
Gun Tube Assembly (Includes)
gun tube Spoolmate 100 consumables and replacement parts
Spoolmate 100 family
1 View on Amazon
2 234348
Head Tube Assembly
head tube Spoolmate 100 consumables and replacement parts
Spoolmate 100 family
1 View on Amazon
3 206363
Liner Kit
liner Spoolmate 100 consumables and replacement parts Common replacement
Spoolmate 100 family
1 View on Amazon
4 194633
Barrel
barrel Spoolmate 100 consumables and replacement parts Shown with gun tube assembly 186404.
Spoolmate 100 family
1 Amazon link: Needs verification.
5 209080
Screw, M4 x 0.7 x 6 mm
hardware Spoolmate 100 consumables and replacement parts
Spoolmate 100 family
1 Amazon link: Needs verification.
6 186408
Gas Nipple
gas fitting Spoolmate 100 consumables and replacement parts
Spoolmate 100 family
1 Amazon link: Needs verification.
7 186409
Gas Diffuser
diffuser Spoolmate 100 consumables and replacement parts Common replacement
Spoolmate 100 family
1 View on Amazon
8 199730
Contact Tip .023
contact tip Spoolmate 100 consumables and replacement parts Wire size: .023 in. Common replacement
Spoolmate 100 family
1 View on Amazon
8 186419
Contact Tip .030
contact tip Spoolmate 100 consumables and replacement parts Wire size: .030 in. Common replacement
Spoolmate 100 family
1 View on Amazon
8 186406
Contact Tip .035
contact tip Spoolmate 100 consumables and replacement parts Wire size: .035 in. Common replacement
Spoolmate 100 family
1 View on Amazon
9 186405
Nozzle
nozzle Spoolmate 100 consumables and replacement parts Common replacement
Spoolmate 100 family
1 View on Amazon
10 111400
Hose, SAE .187 ID x .410 OD x 8.000
hose Spoolmate 100 consumables and replacement parts
Spoolmate 100 family
1 Amazon link: Needs verification.

Related consumables

Millermatic 211 PRO

Machine path connected to this spool gun family.

Open machine page

Multimatic 220 AC/DC

Machine path connected to this spool gun family.

Open machine page

MIG spool gun support

Miller Spoolmate 100 Machine Connection Accessories

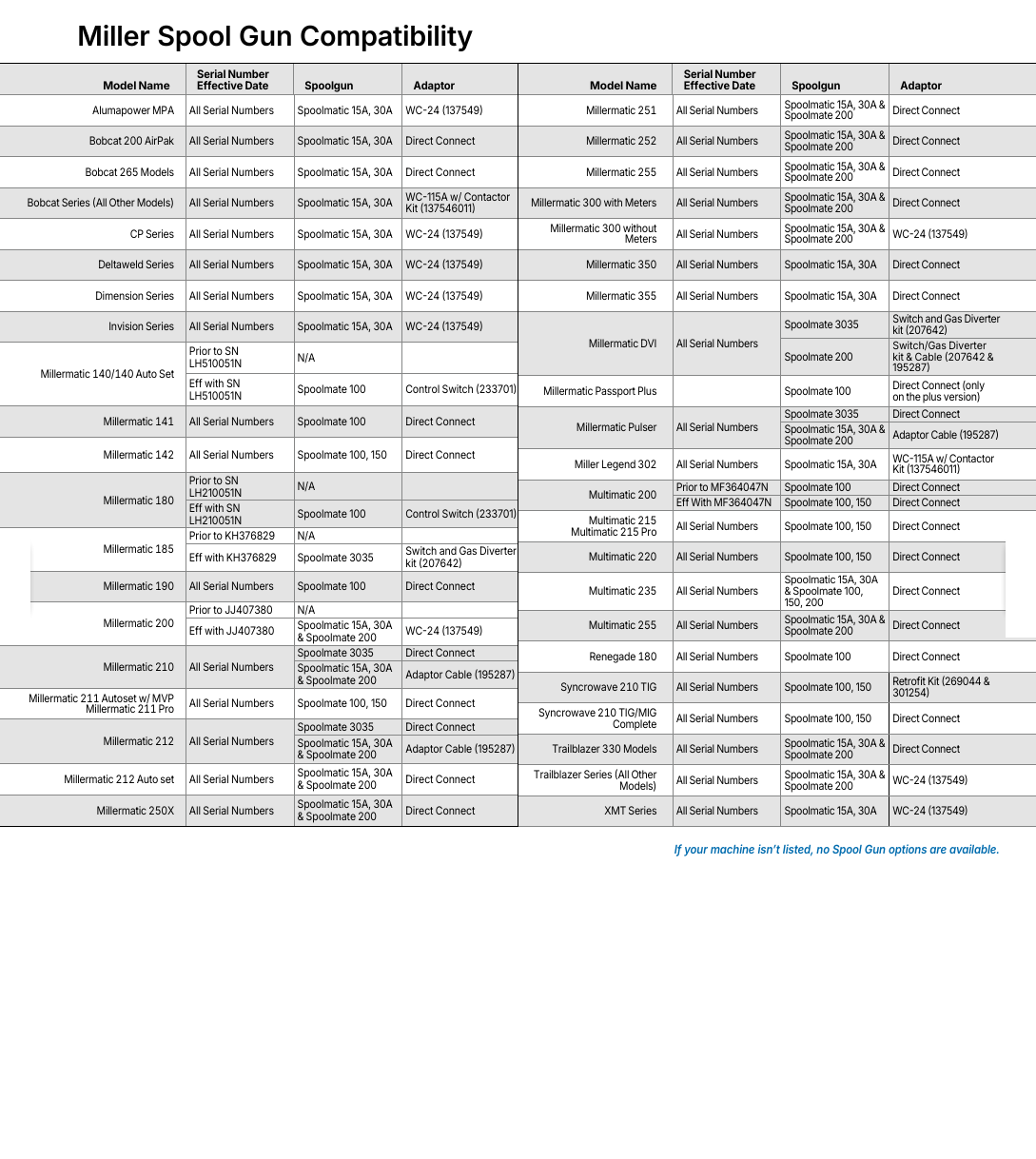

Machine hookup accessories and direct-connect notes from the Miller spool gun compatibility chart. These are machine connection parts, not internal gun service parts.

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Accessory 233701
Control Switch
machine connection accessory Machine connection accessories Machine fit: Used for Millermatic 140/140 Auto-Set effective with serial number LH510051N and Millermatic 180 effective with serial number LH210051N.
Spoolmate 100 family
1 N/A
Accessory 269044
Retrofit Kit Component
machine connection accessory Machine connection accessories Machine fit: Used with Syncrowave 210 TIG retrofit paths for Spoolmate 100 and Spoolmate 150.
Spoolmate 100 family
1 N/A
Accessory 301254
Retrofit Kit Component
machine connection accessory Machine connection accessories Machine fit: Used with Syncrowave 210 TIG retrofit paths for Spoolmate 100 and Spoolmate 150.
Spoolmate 100 family
1 N/A
Machine
Direct-connect machine paths
machine connection note Machine connection accessories Machine fit: Catalog lists direct connect paths for Millermatic 141, 142, 190, 211 Auto-Set with MVP, 211 Pro, Multimatic 200, Multimatic 215, Multimatic 220, Multimatic 235, Renegade 180, and Syncrowave 210 TIG/MIG Complete.
Spoolmate 100 family
N/A
