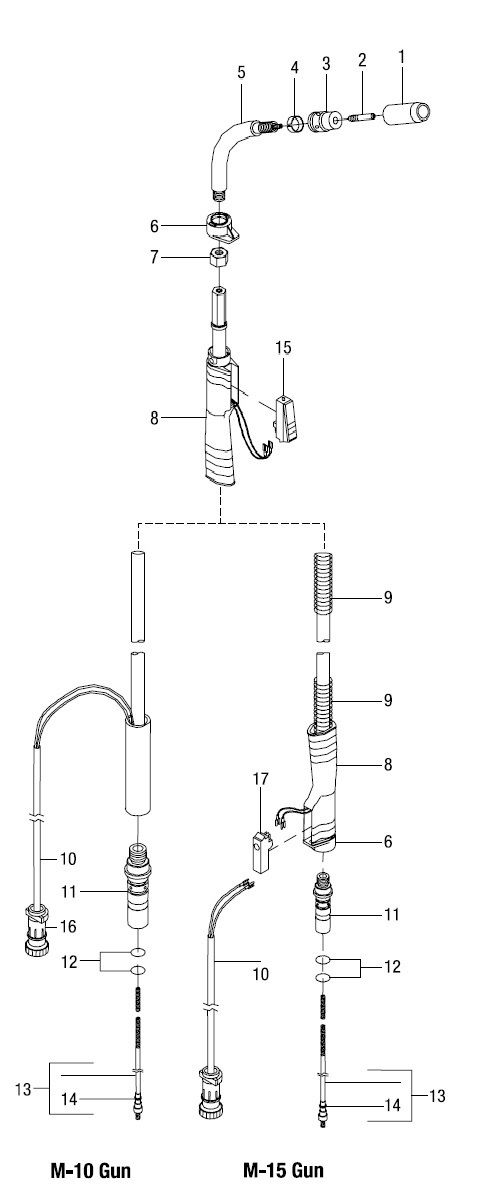

Miller M-10/M-15 MIG Gun Parts Diagram

Miller M-10/M-15 MIG gun diagram

Miller M-10/M-15 MIG Gun Parts Diagram and Lookup

Use the exploded diagram and item-number table to match Miller M-10/M-15 gun parts, consumables, and replacement items. This is a MIG gun parts diagram, not a Miller welder machine parts diagram.

Looking for a Miller Welder Parts Diagram?

This page is for the M-10/M-15 MIG gun. For Miller welder machine parts diagrams, start with the machine support path, then choose the matching gun, torch, accessory, helmet, or machine page.

Miller Support Home Miller MIG Machine Support Miller Parts and Accessory Lookup Miller Helmet Parts Diagram Find My Part

Search shortcut

Miller Welder Parts Diagram Routing

This page is for Miller M-10 and M-15 MIG gun parts. If you need a Miller welder machine diagram, open the Miller machine or accessory lookup first.

Miller MIG machine support

Machine pages, compatible guns, and accessory support.

Open MIG machines

Miller MIG gun support

MIG gun families and replacement consumable paths.

Open MIG guns

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Gun 195605
M-10 Gun, 10 ft. (3 m), 100A, .030-.035 (.8-.9 mm)
gun assembly Wire size: .030-.035 (.8-.9 mm) Legacy gun assembly. Replacement path: M-10/M-15 -> M-100/M-150 -> MDX-100. Confirm exact replacement configuration before ordering. Replacement: M-100/M-150, then MDX-100 current replacement chain discontinued
M-10/M-15 Replacement Parts
1 Check Price on Amazon
Gun 169589
M-15 Gun, 10 ft. (3 m), 150A, .030-.035 (.8-.9 mm)
gun assembly Wire size: .030-.035 (.8-.9 mm) Legacy gun assembly. Replacement path: M-10/M-15 -> M-100/M-150 -> MDX-100. Confirm exact replacement configuration before ordering. Replacement: M-100/M-150, then MDX-100 current replacement chain discontinued
M-10/M-15 Replacement Parts
1 Check Price on Amazon
Gun 169591
M-15 Gun, 12 ft. (3.7 m), 150A .030-.035 (.8-.9 mm)
gun assembly Wire size: .030-.035 (.8-.9 mm) Legacy gun assembly. Replacement path: M-10/M-15 -> M-100/M-150 -> MDX-100. Confirm exact replacement configuration before ordering. Replacement: M-100/M-150, then MDX-100 current replacement chain discontinued
M-10/M-15 Replacement Parts
1 Buy link unavailable.
Gun 169593
M-15 Gun, 15 ft. (4.6 m), 150A .030-.035 (.8-.9 mm)
gun assembly Wire size: .030-.035 (.8-.9 mm) Legacy gun assembly. Replacement path: M-10/M-15 -> M-100/M-150 -> MDX-100. Confirm exact replacement configuration before ordering. Replacement: M-100/M-150, then MDX-100 current replacement chain discontinued
M-10/M-15 Replacement Parts
1 Buy link unavailable.
1 169715
Nozzle, Slip Type, .500, (12.7 mm) Opening, Flush Tip
nozzle Bore / opening: .500 (12.7 mm) nozzle bore/opening; not wire size.
M-10/M-15 Nozzles
Check Price on Amazon
1 226190
Nozzle, Slip Type, Flux Cored
nozzle Fit note: Flux-cored nozzle seats snug against the contact tip; bore size is not needed.
M-10/M-15 Nozzles
Check Price on Amazon
2 087299
.023 (.6 mm) Contact Tip, Screw Type - 1.125 in.
contact tip Wire size: .023 (.6 mm)
M-10/M-15 Contact Tips
Check Price on Amazon
2 000067
.030 (.8 mm) Contact Tip, Screw Type - 1.125 in.
contact tip Wire size: .030 (.8 mm)
M-10/M-15 Contact Tips
Check Price on Amazon
2 000068
.035 (.9 mm) Contact Tip, Screw Type - 1.125 in.
contact tip Wire size: .035 (.9 mm)
M-10/M-15 Contact Tips
Check Price on Amazon
2 000069
.045 (1.2 mm) Contact Tip, Screw Type - 1.125 in.
contact tip Wire size: .045 (1.2 mm)
M-10/M-15 Contact Tips
Check Price on Amazon
3 169716
Contact Tip Adapter - Gas Diffuser
diffuser Fit note: Works with all listed M-10/M-15 wire sizes.
M-10/M-15 Diffuser and Front-End Adapter
Check Price on Amazon
4 170470
Retaining Ring
retaining hardware Fit note: Works with all listed M-10/M-15 wire sizes.
M-10/M-15 Diffuser and Front-End Adapter
Check Price on Amazon
5 169718
Tube Head - Gooseneck
gooseneck
M-10/M-15 Replacement Parts
Check Price on Amazon
6 169738
Handle Locking Nut
handle hardware
M-10/M-15 Replacement Parts
Check Price on Amazon
7 169719
Gun End Jam Nut
handle hardware
M-10/M-15 Replacement Parts
Buy link unavailable.
8 169737
Handle
handle
M-10/M-15 Replacement Parts
Check Price on Amazon
9 169741
Cable Strain Relief
cable support
M-10/M-15 Replacement Parts
Buy link unavailable.
10 227800
Cable Assembly
cable assembly
M-10/M-15 Replacement Parts
Check Price on Amazon
11 209495
Miller Type Power Pin - Feeder Connector M-10
power pin
M-10/M-15 Replacement Parts
Buy link unavailable.
11 209486
Miller Type Power Pin - Feeder Connector M-15
power pin
M-10/M-15 Replacement Parts
Buy link unavailable.
12 079974
O-ring, .500 ID x .103CS rbr
o-ring O-ring size: .500 ID x .103CS; this is o-ring size, not wire size.
M-10/M-15 Diffuser and Front-End Adapter
Check Price on Amazon
13 194010
.023-.025 (.6 mm) Wire Size x 15 ft. Length
liner Wire size: .023-.025 (.6 mm)
M-10/M-15 Liners
Check Price on Amazon
13 194011
.030-.035 (.8-.9 mm) Wire Size x 15 ft. Length
liner Wire size: .030-.035 (.8-.9 mm)
M-10/M-15 Liners
Check Price on Amazon
14 079975
O-Ring .187 ID x .103CS rbr
o-ring O-ring size: .187 ID x .103CS; this is o-ring size, not wire size.
M-10/M-15 Diffuser and Front-End Adapter
Check Price on Amazon
15 227798
Replacement Trigger (Discontinued)
trigger Existing page marks this as discontinued. Replacement: 196255 discontinued
M-10/M-15 Replacement Parts
Check Price on Amazon
15 196255
Replacement Trigger
trigger
M-10/M-15 Replacement Parts
Check Price on Amazon
16 079878
Housing Plug and Pins
connector
M-10/M-15 Replacement Parts
Check Price on Amazon
079531
Connector, circ cpc clamp str. rlf
connector No item number shown in source table.
M-10/M-15 Replacement Parts
Check Price on Amazon
17 169736
Terminal Block
terminal block
M-10/M-15 Replacement Parts
Buy link unavailable.
Feeder 261157
Drive Roll
drive roll Machine-side note: Check liner, contact tip, drive roll condition, and machine settings when troubleshooting burnback or birdnesting. Verify machine and wire-size compatibility before ordering.
M-10/M-15 Replacement Parts
Check Price on Amazon
