Build the STR package
The STR package path adds the stick cable set, A-150V valve torch, and flow gauge argon regulator.

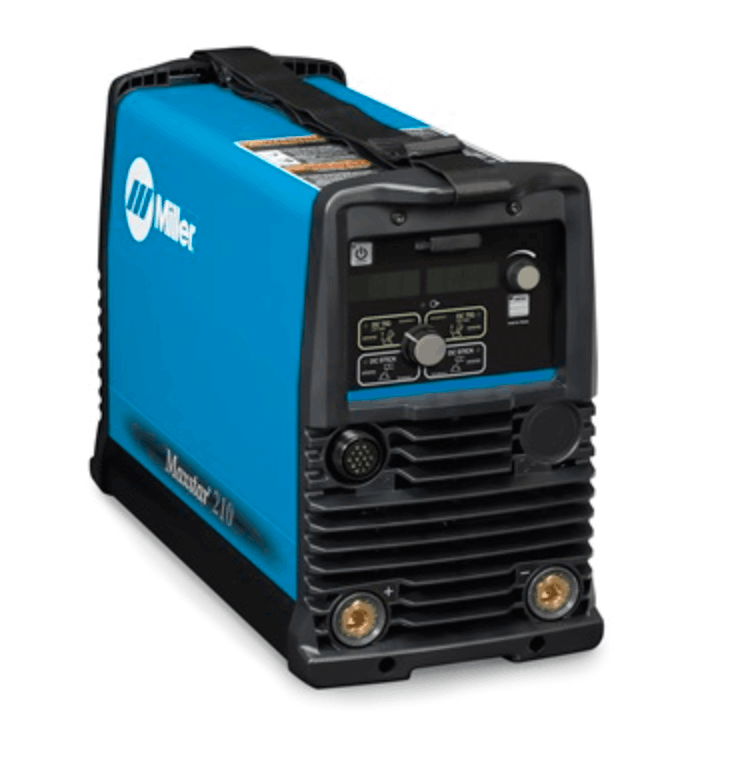

Miller Maxstar 210 STR
Miller Maxstar 210 STR TIG/Stick Welder Support
The STR version is the simpler Maxstar 210 field machine with Lift-Arc TIG, stick controls, DIG, Hot Start, Stick-Stuck, and 50 mm Dinse-style output connectors.
Start Here
Fast paths for the exact Maxstar 210 STR version.
Open TIG torch support
Use the Weldcraft A-150 / WP-17 path for cups, collets, gas lenses, and torch replacement details.
Stick accessories
Use the 50 mm Dinse-style stick cable path before replacing holders, clamps, or lead sets.
Compare the 210 family
Use the family page if you are not sure whether the machine is STR, Base, DX, or DX CE.
Maxstar 210 Versions
Pick the exact version first. The 210 series does not have Cooler Power Supply; Coolmate 1.3 needs external 120 V facility power.
| Stock # | Version | What changes |
|---|---|---|
| 907682 | Maxstar 210 STR Maxstar 210 STR | Lift-Arc TIG and stick-focused controls. No pulsed TIG or Blue Lightning high-frequency start. |
| 907683 | Maxstar 210 Base Maxstar 210 | Base model with Blue Lightning high-frequency starts, Lift-Arc, and pulsed TIG. |
| 907684 | Maxstar 210 DX Maxstar 210 DX | DX model with extended pulse, sequencer, and waveform control paths. |
| 907684001 | Maxstar 210 DX CE Maxstar 210 DX, CE | CE-certified DX model. The 210 series does not include Cooler Power Supply. |
Maxstar 210 STR Specs
Core machine data from Miller Maxstar 210 Series spec sheet DC/32.1, issued March 2024.
Maxstar 210 STR Features
Version-specific notes from the Miller Maxstar 210 sheet.
- Lift-Arc starts DC TIG without high frequency.
- Dual schedule stick lets the operator switch between two stick parameter sets.
- DIG, Hot Start, and Stick-Stuck support stick welding setup.
- Fan-On-Demand and Wind Tunnel Technology help reduce noise and protect internal components.
- Power source includes adjustable shoulder strap, 8 ft. power cord with no plug, and two 50 mm Dinse-style connectors.
Air-Cooled Package Path
Use this when the customer wants a portable A-150 or A-200 TIG/stick setup.
- Step 1: select the power source: STR 907682, Base 907683, DX 907684, or DX CE 907684001.
- STR only: add 195196 No. 2 stick cable set, WP-17V-25-2 A-150V TIG torch, and 31-50-580 flow gauge argon regulator.
- Base/DX/DX CE: choose one contractor kit: 301309, 301311, 301549, or 301550.
- A-150 contractor kits use the Weldcraft A-150 / WP-17 path. A-200 contractor kits use the Weldcraft A-200 / WP-26 path.
Accessories, Torches, Remotes, and Buy Paths
Direct Amazon buttons are shown only when the part already has an approved registry link. Other rows use Amazon search plus site lookup.
| Part # | Item | Use / note | Buy / lookup |
|---|---|---|---|
| 907682 | Maxstar 210 STR Machine |
Auto-Line 120-480 V, 50/60 Hz, 8 ft. power cord. | Search Amazon Site lookup |
| 195196 | No. 2 Stick Cable Set STR package item |
15 ft electrode cable with holder and work cable with clamp. 200 A, 100% duty cycle. | View on Amazon Site lookup |
| WP-17V-25-2 | Weldcraft A-150V (WP-17) TIG torch, 25 ft. STR TIG torch |
Two-piece cable and valve torch listed for the Maxstar 210 STR package path. | View on Amazon Site lookup |
| 31-50-580 | Flow Gauge Argon Regulator STR regulator |
Flow gauge argon regulator listed for the STR air-cooled package build. | View on Amazon Site lookup |
| 301580 | Wireless Remote Foot Control Remote control |
Foot control with wireless 90 ft. operating range. | View on Amazon Site lookup |
| 301589 | RFCS-14 HD Foot Control Remote control |
Heavy-duty foot pedal current and contactor control with 20 ft cord and 14-pin plug. | Search Amazon Site lookup |
| 151086 | RCC-14 Fingertip Control Remote control |
East/west rotary fingertip current and contactor control. | View on Amazon Site lookup |
| 043688 | RCCS-14 Fingertip Control Remote control |
North/south rotary fingertip current and contactor control. | Search Amazon Site lookup |
| 187208 | RMS-14 On/Off Control Remote control |
Momentary-contact rubber dome switch for contactor control. | Search Amazon Site lookup |
| 129337 | RMLS-14 Switch Remote control |
Momentary- and maintained-contact rocker switch. | Search Amazon Site lookup |
| 242211020 | RHC-14 Hand Control Remote control |
Miniature hand control for remote current and contactor control. | View on Amazon Site lookup |
| 301582 | Wireless Remote Hand Control Remote control |
Wireless hand control with 300 ft. operating range. | Search Amazon Site lookup |

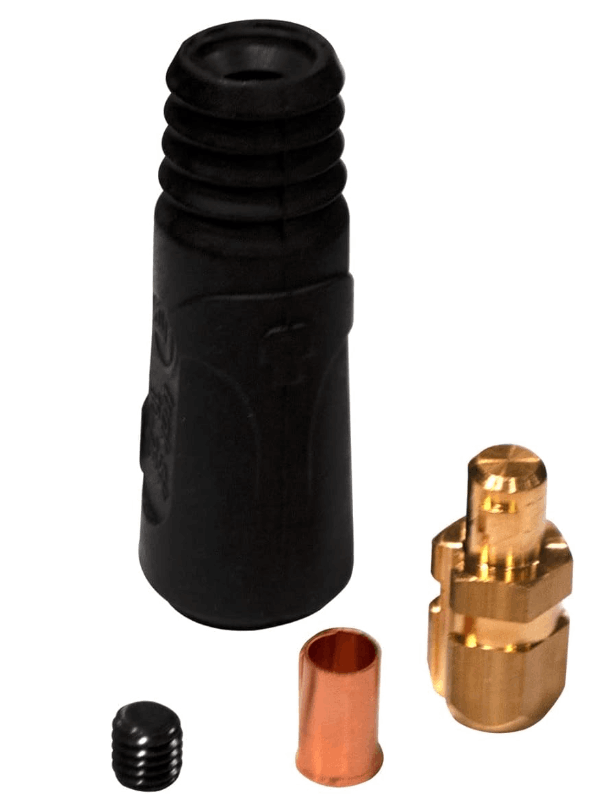

| 195378 | Air-Cooled TIG Torch Connector TIG connector |
Connects all air-cooled Weldcraft torches except A-200 to the 50 mm Dinse-style connector. | View on Amazon Site lookup |
| 195379 | Air-Cooled TIG Torch Connector for A-200 TIG connector |
Connects Weldcraft A-200 (WP-26) torch to the 50 mm Dinse-style connector. | View on Amazon Site lookup |
| 195377 | Water-Cooled TIG Torch Connector TIG connector |
50 mm Dinse-style connector with water return line for Weldcraft water-cooled torches. | View on Amazon Site lookup |
Source: Miller Maxstar 210 Series TIG/Stick Welding Power Source data sheet, index DC/32.1, issued March 2024. Verify exact stock number, serial-specific documentation, input power, plug wiring, torch connector, cooler power, and safety requirements before ordering.
