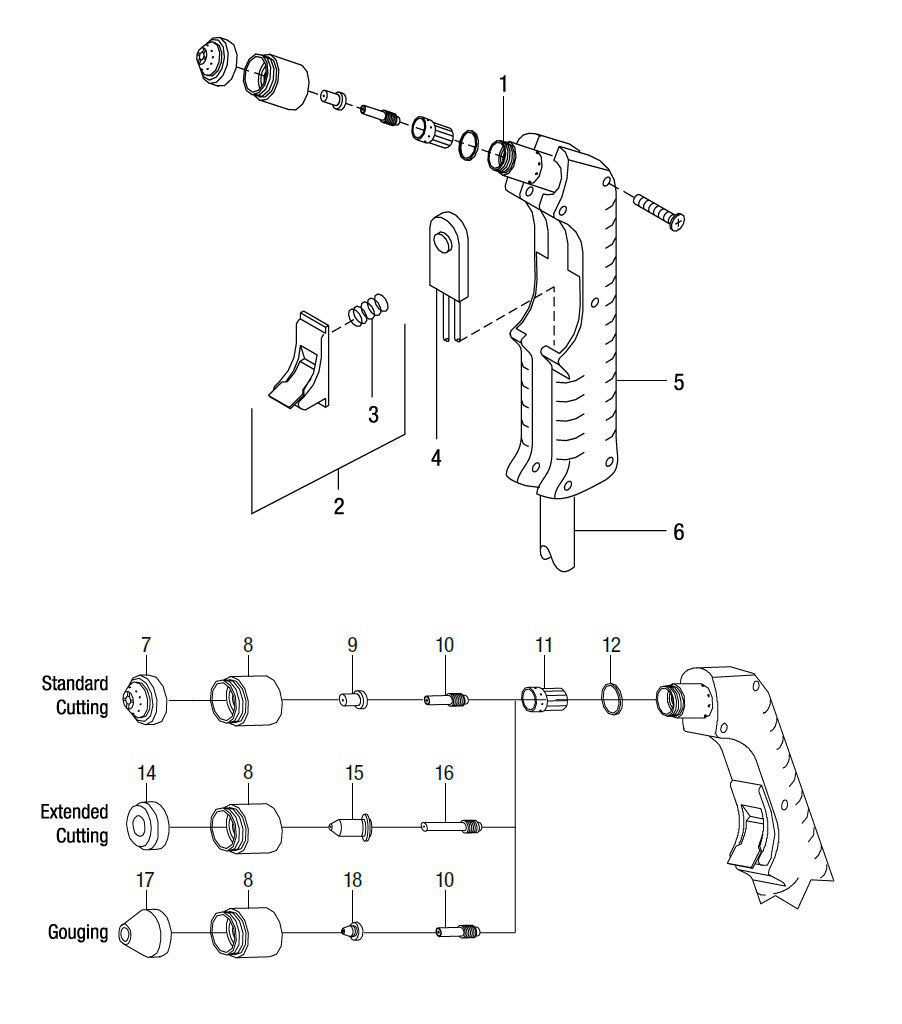

| Item # | Part # | Description |
|---|---|---|
| Torch | 176824 | ICE-50C, 25 ft Hand Held Replacement Torch |
| Torch | 176826 | ICE-50C, 50 ft Hand Held Replacement Torch |
| 1 | 188794 | Main Body |
| 2 | 185833 | Switch Assembly (includes switch) |
| 3 | 190220 | Spring |
| 4 | 171248 | Push Button Switch |
| 5 | 183427 | Handle Assembly, complete |
| 6 | 179829 | Leads, 25 ft |
| 179830 | Leads, 50 ft | |
| 252951 | Grease, Silicon | |
| 7 | 192053 | Shield, drag |
| 8 | 192050 | Cup, retaining |
| 9 | 177890 192051* | Tip, standard (50 A) (5 per pkg) Tip, standard (50 A) *(ICE-55C) (5 per pkg) |
| 10 | 192047 | Electrode, standard (5 per pkg) |
| 11 | 177886 192049* | Swirl Ring Swirl Ring *(ICE-55C) |
| 12 | 169232 | O-Ring (3 per pkg) |
| 14 | 177888 | Deflector |
| 15 | 177876 192056* 192052* | Tip, extended (50 A) (5 per pkg) Tip, extended (55 A)*(ICE-55C) (5 per pkg) Tip, extended (40 A)*(ICE-55C) (5 per pkg) |
| 16 | 192048 | Electrode, extended (5 per pkg) |
| 17 | 192203 | Shield, gouge |
| 18 | 177878 192204* | Tip, gouge Tip, gouge *(ICE-55C)(5 per pkg) |
| 253055 | Circle Cutting Guide |
Add this to your cutting guide for con -
venient attachment to all flat surfaces.
The extended arm accommodates holes
up to 30-inch diameter.
Helps maintain recommended
standoff distance to maximize
cutting performance and improve tip life.
In-Line Air Filter / Replacement Filter Element
228926
Mounts to the back of the
Spectrum male and female 1/4-inch NPT
quick disconnect fittings and hose for easy
on/off connection. The replaceable filter
element filters to .85 microns for removal
of 99.9 percent of water, dirt and oil.
228928
Replacement filter element for the 228926 In-Line Air filter.
