Hypertherm SmartSYNC Long Hand Torch Parts Breakdown

SmartSYNC Long Hand Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.

2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems Catalog page 28

Item number lookup

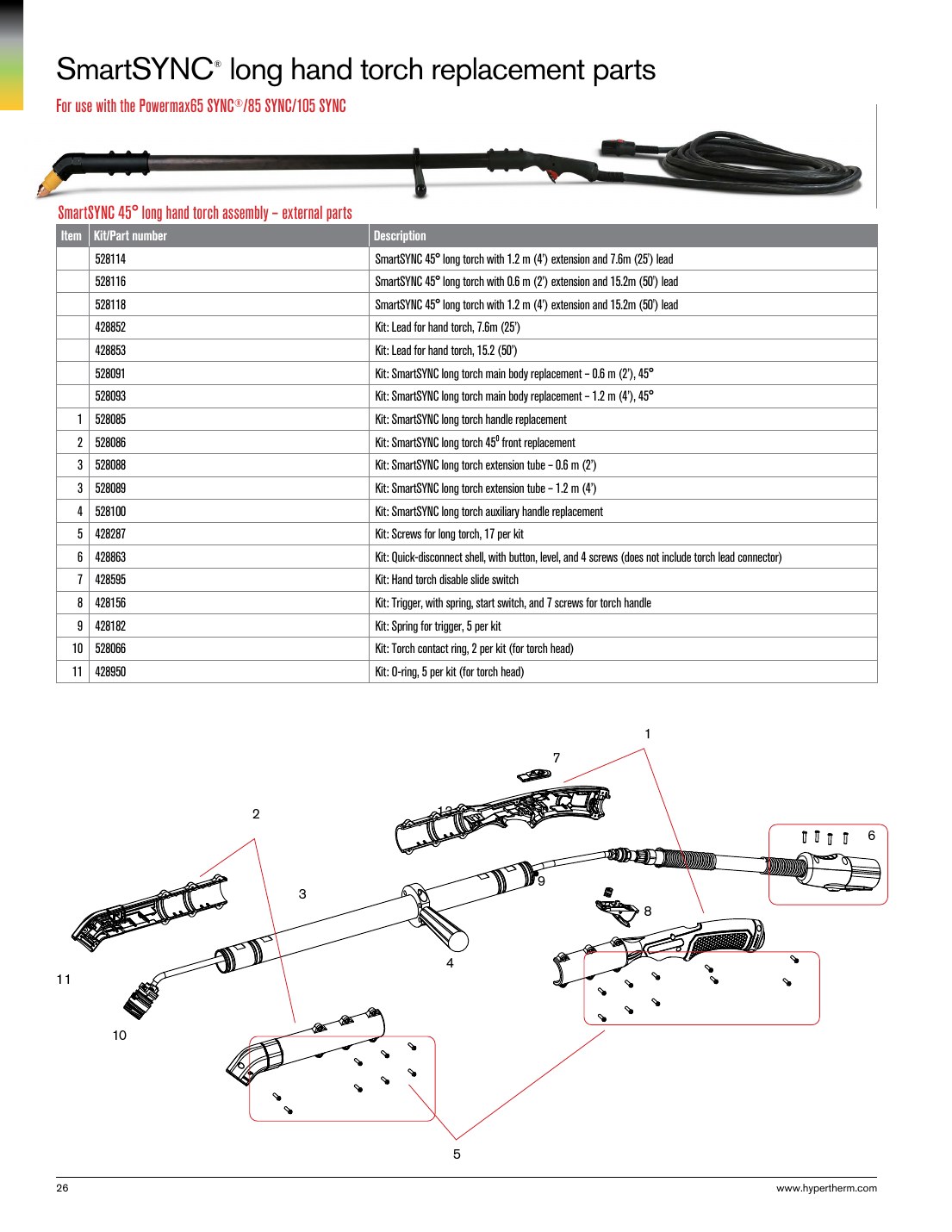

Parts List

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item # Part # Description Qty Buy
1 528085
Hypertherm Torch Handle 528085
torch handle SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
2 528086
Hypertherm Kit 528086
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
3 528088
Hypertherm Kit 528088
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
3 528089
Hypertherm Kit 528089
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
4 528100
Hypertherm Torch Handle 528100
torch handle SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
5 428287
Hypertherm Kit 428287
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
6 428863
Hypertherm Torch Lead 428863
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
7 428595
Hypertherm Switch/Sensor 428595
switch/sensor SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
8 428156
Hypertherm Torch Handle 428156
torch handle SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
View on Amazon
9 428182
Hypertherm Kit 428182
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
View on Amazon
10 528066
Hypertherm Kit 528066
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
11 428950
Hypertherm O-Ring 428950
o-ring SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
428852
Hypertherm Torch Lead 428852
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
428853
Hypertherm Torch Lead 428853
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528091
Hypertherm Torch Body 528091
torch body SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528093
Hypertherm Torch Body 528093
torch body SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528114
Hypertherm Torch Lead 528114
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528116
Hypertherm Torch Lead 528116
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528118
Hypertherm Torch Lead 528118
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 28. Catalog page images are used when a cleaned diagram asset is not already available.

Hypertherm plasma support

Hypertherm SmartSYNC Long Hand Torch Parts Breakdown

SmartSYNC Long Hand Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.

2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems Catalog page 29

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

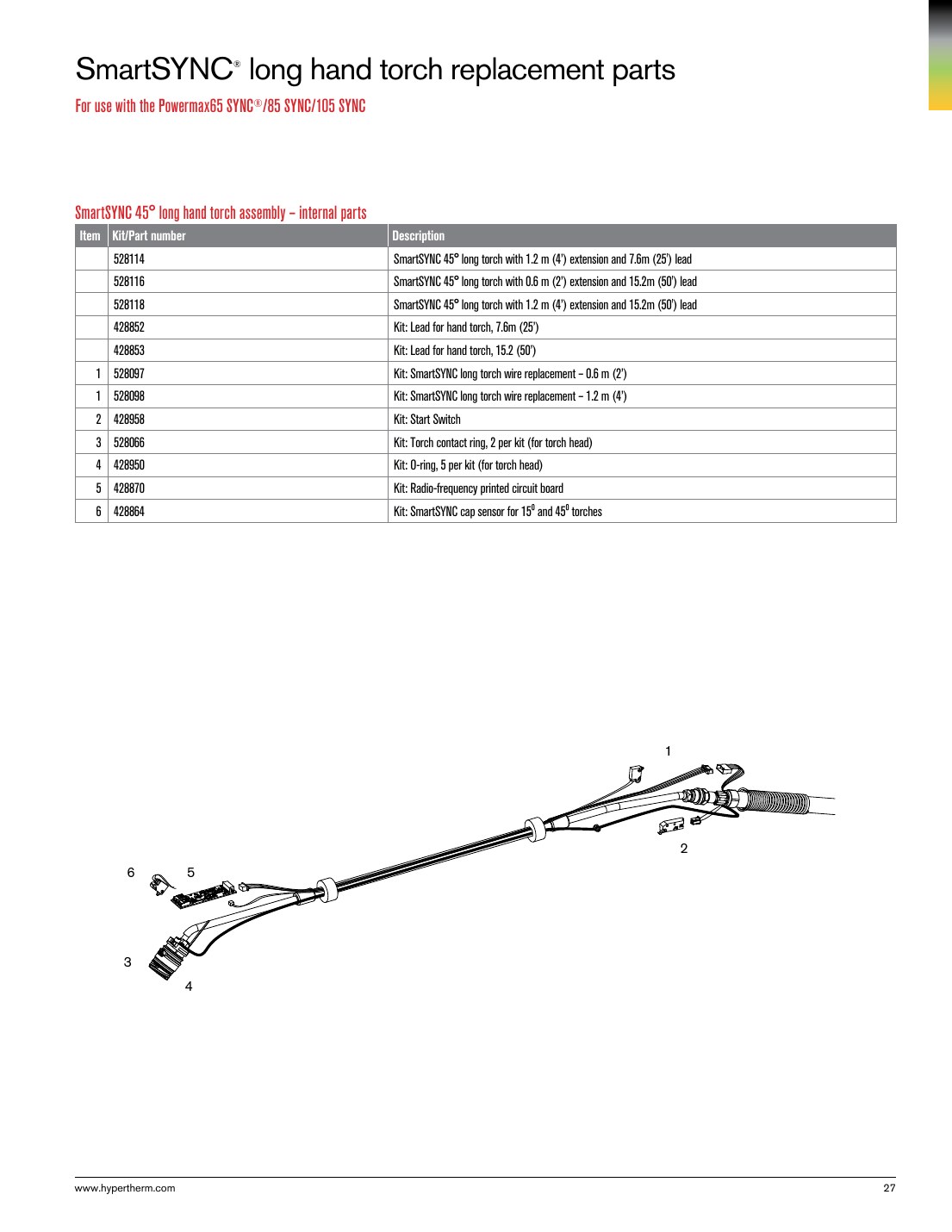

Item # Part # Description Qty Buy
1 528097
Hypertherm Kit 528097
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
1 528098
Hypertherm Kit 528098
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
2 428958
Hypertherm Switch/Sensor 428958
switch/sensor SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
3 528066
Hypertherm Kit 528066
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
4 428950
Hypertherm O-Ring 428950
o-ring SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
5 428870
Hypertherm Kit 428870
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
6 428864
Hypertherm Switch/Sensor 428864
switch/sensor SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
428852
Hypertherm Torch Lead 428852
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
428853
Hypertherm Torch Lead 428853
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528114
Hypertherm Torch Lead 528114
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528116
Hypertherm Torch Lead 528116
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528118
Hypertherm Torch Lead 528118
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 29. Catalog page images are used when a cleaned diagram asset is not already available.

Hypertherm plasma support

Hypertherm SmartSYNC Long Hand Torch Parts Breakdown

SmartSYNC Long Hand Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.

2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems Catalog page 30

Item number lookup

Parts List

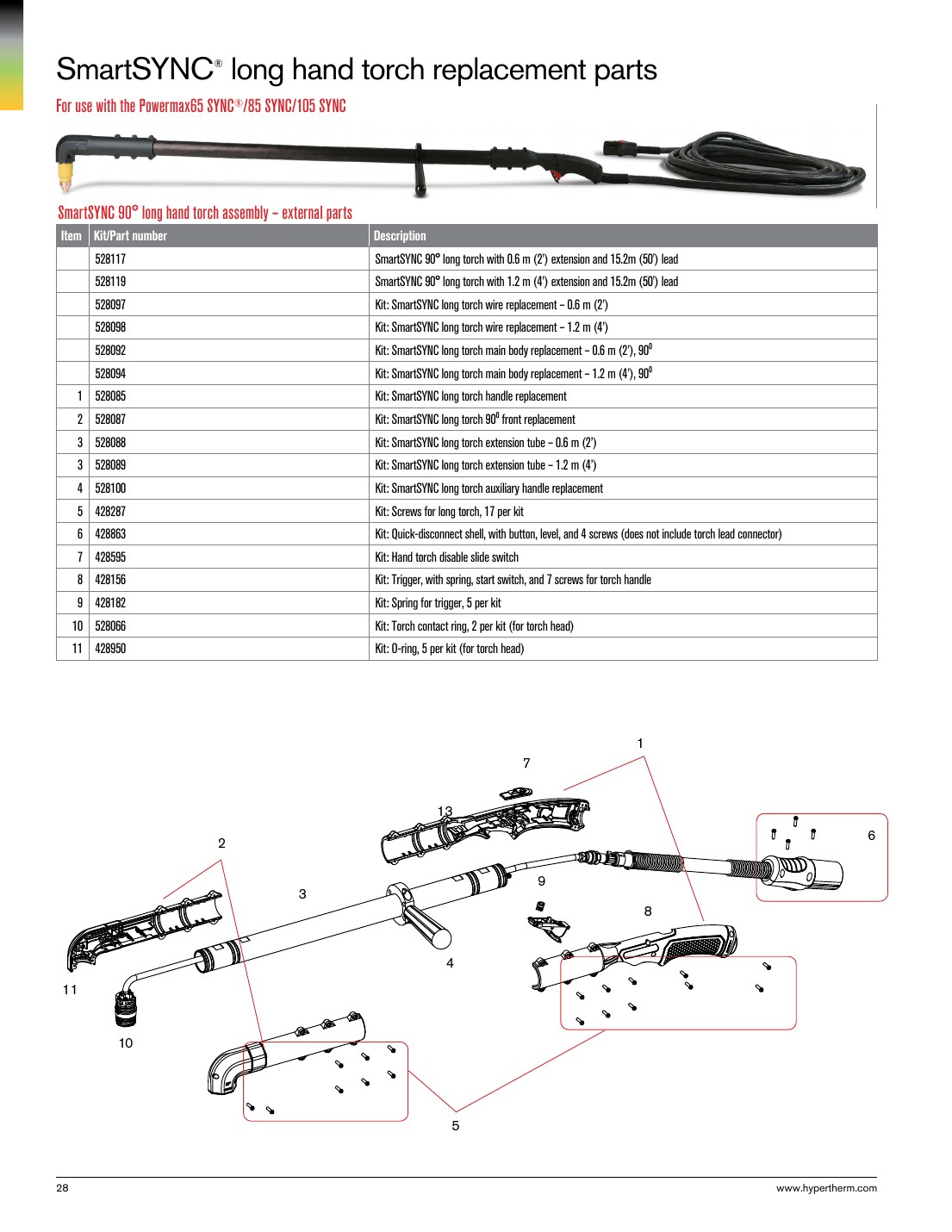

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item # Part # Description Qty Buy
1 528085
Hypertherm Torch Handle 528085
torch handle SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
2 528087
Hypertherm Kit 528087
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
3 528088
Hypertherm Kit 528088
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
3 528089
Hypertherm Kit 528089
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
4 528100
Hypertherm Torch Handle 528100
torch handle SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
5 428287
Hypertherm Kit 428287
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
6 428863
Hypertherm Torch Lead 428863
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
7 428595
Hypertherm Switch/Sensor 428595
switch/sensor SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
8 428156
Hypertherm Torch Handle 428156
torch handle SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
View on Amazon
9 428182
Hypertherm Kit 428182
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
View on Amazon
10 528066
Hypertherm Kit 528066
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
11 428950
Hypertherm O-Ring 428950
o-ring SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528092
Hypertherm Torch Body 528092
torch body SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528094
Hypertherm Torch Body 528094
torch body SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528097
Hypertherm Kit 528097
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528098
Hypertherm Kit 528098
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528117
Hypertherm Torch Lead 528117
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528119
Hypertherm Torch Lead 528119
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 30. Catalog page images are used when a cleaned diagram asset is not already available.

Hypertherm plasma support

Hypertherm SmartSYNC Long Hand Torch Parts Breakdown

SmartSYNC Long Hand Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.

2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems Catalog page 31

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item # Part # Description Qty Buy

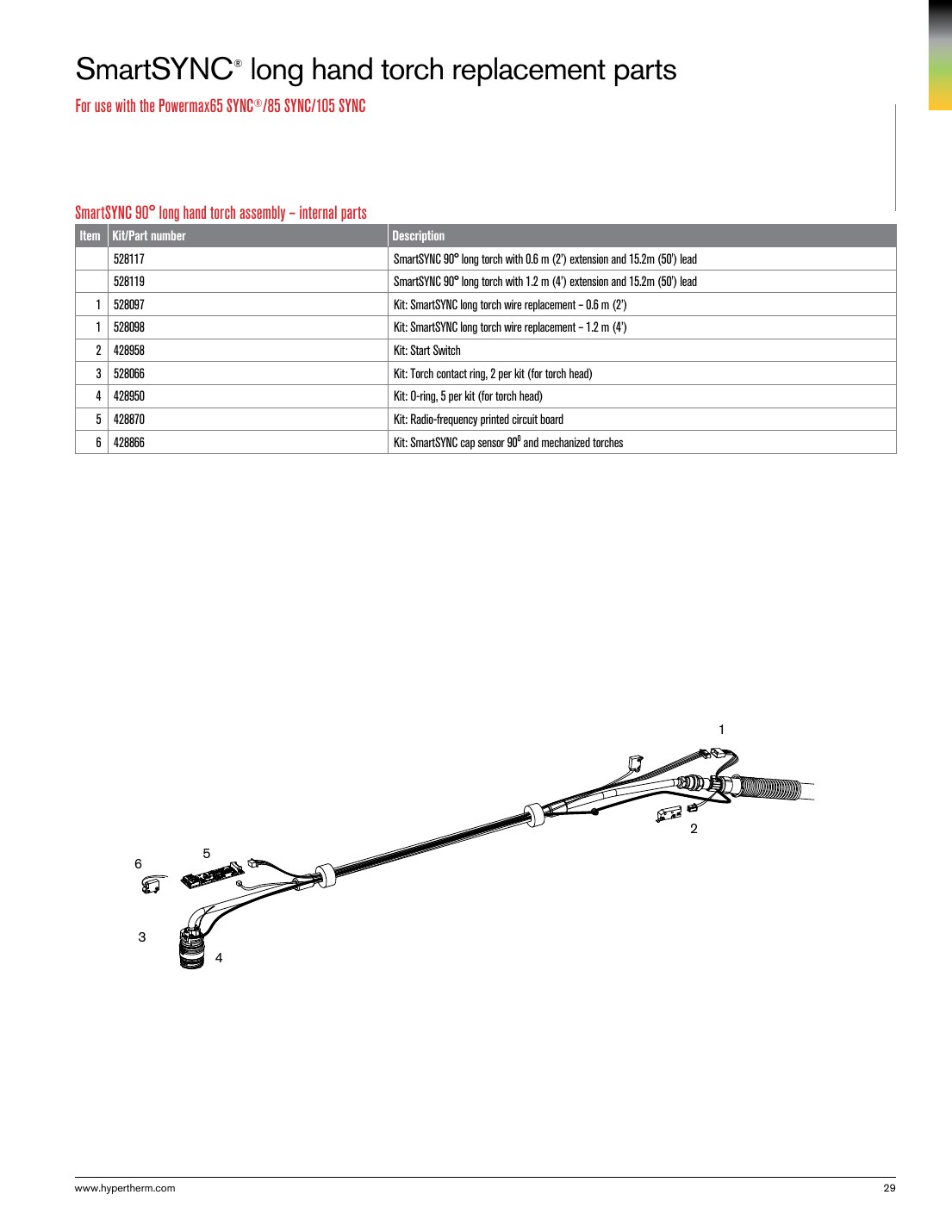

1 528097
Hypertherm Kit 528097
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
1 528098
Hypertherm Kit 528098
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
2 428958
Hypertherm Switch/Sensor 428958
switch/sensor SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
3 528066
Hypertherm Kit 528066
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
4 428950
Hypertherm O-Ring 428950
o-ring SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
5 428870
Hypertherm Kit 428870
kit SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
6 428866
Hypertherm Switch/Sensor 428866
switch/sensor SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528117
Hypertherm Torch Lead 528117
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending
528119
Hypertherm Torch Lead 528119
torch lead SmartSYNC long hand torch replacement parts catalog verified
Powermax65 SYNC
Verification pending

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 31. Catalog page images are used when a cleaned diagram asset is not already available.

Hypertherm plasma support

Hypertherm SmartSYNC Long Hand Torch Consumables

SmartSYNC Long Hand Torch consumables from the Hypertherm consumables catalog. Confirm machine, torch style, amperage, and process before ordering.

2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems Catalog page 20

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item # Part # Description Qty Buy
45 428925
Hypertherm Cartridge 428925
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
45 428927
Hypertherm Cartridge 428927
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
65 428930
Hypertherm Cartridge 428930
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
65 428931
Hypertherm Cartridge 428931
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
65 428952
Hypertherm Cartridge 428952
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
85 428934
Hypertherm Cartridge 428934
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
85 428935
Hypertherm Cartridge 428935
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428895
Hypertherm Cartridge 428895
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428926
Hypertherm Cartridge 428926
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428928
Hypertherm Cartridge 428928
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428932
Hypertherm Cartridge 428932
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428933
Hypertherm Cartridge 428933
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428936
Hypertherm Cartridge 428936
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428937
Hypertherm Cartridge 428937
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428938
Hypertherm Cartridge 428938
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428939
Hypertherm Cartridge 428939
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428953
Hypertherm Cartridge 428953
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428954
Hypertherm Cartridge 428954
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428984
Hypertherm Cartridge 428984
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
428987
Hypertherm Cartridge 428987
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon
528079
Hypertherm Cartridge 528079
cartridge Powermax65 SYNC /85 SYNC/105 SYNC - SmartSYNC hand/machine torch cartridges catalog verified
Powermax65 SYNC Powermax85 SYNC Powermax105 SYNC
View on Amazon

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 20. Catalog page images are used when a cleaned diagram asset is not already available.

Hypertherm support Torch guide Consumables Find My Part
Built from 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems (page 28, page 29, page 30, page 31, page 20).
