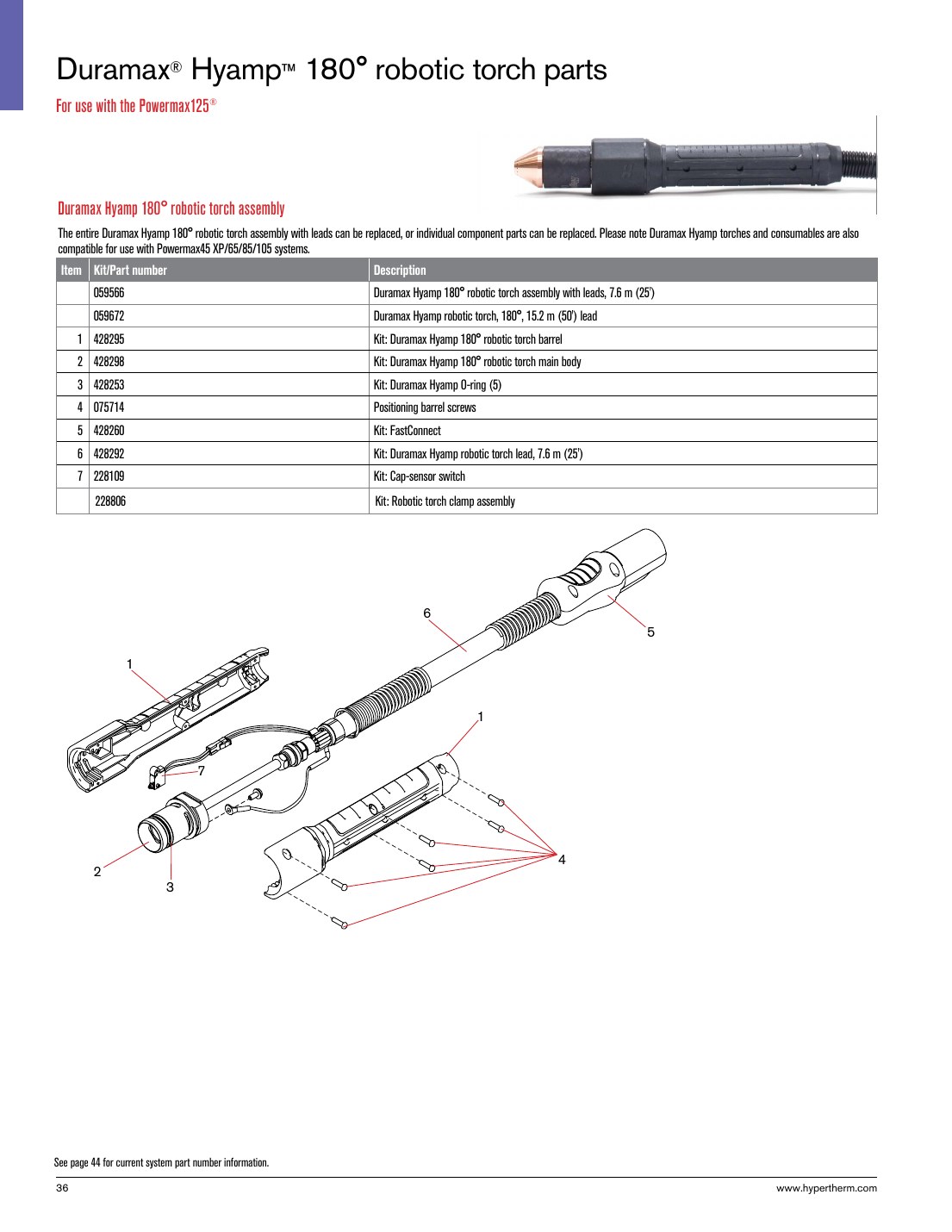

Duramax Hyamp Robotic Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.
Common replacement parts
Start with these high-turnover rows for Hypertherm Duramax Hyamp Robotic Torch Parts Breakdown. Buy buttons are copied only from WSP-approved links already present in the parts table.
228806Hypertherm Torch Assembly 228806
Jump to table row428260Hypertherm Kit 428260
Jump to table row228806Hypertherm Torch Assembly 228806
Jump to table row228806Hypertherm Torch Assembly 228806
Jump to table row428260Hypertherm Kit 428260
Jump to table row428260Hypertherm Kit 428260
Jump to table rowAs an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Torch | 059566 |
Hypertherm Torch Assembly 059566
|
Verification pending | |
| 1 | 428295 |
Hypertherm Kit 428295
|
Verification pending | |
| 2 | 428298 |
Hypertherm Torch Body 428298
|
Verification pending | |
| 3 | 428253 |
Hypertherm O-Ring 428253
|
Verification pending | |
| 4 | 075714 |
Hypertherm part 075714
|
Verification pending | |
| 5 | 428260 |
Hypertherm Kit 428260
|
Check Price on Amazon | |
| 6 | 428292 |
Hypertherm Torch Lead 428292
|
Verification pending | |
| 7 | 228109 |
Hypertherm Switch/Sensor 228109
|
Verification pending | |
| Torch | 228806 |
Hypertherm Torch Assembly 228806
|
Check Price on Amazon | |
059672 |
Hypertherm Torch Lead 059672
|
Verification pending |
Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 38. Catalog page images are used when a cleaned diagram asset is not already available.
Hypertherm plasma support

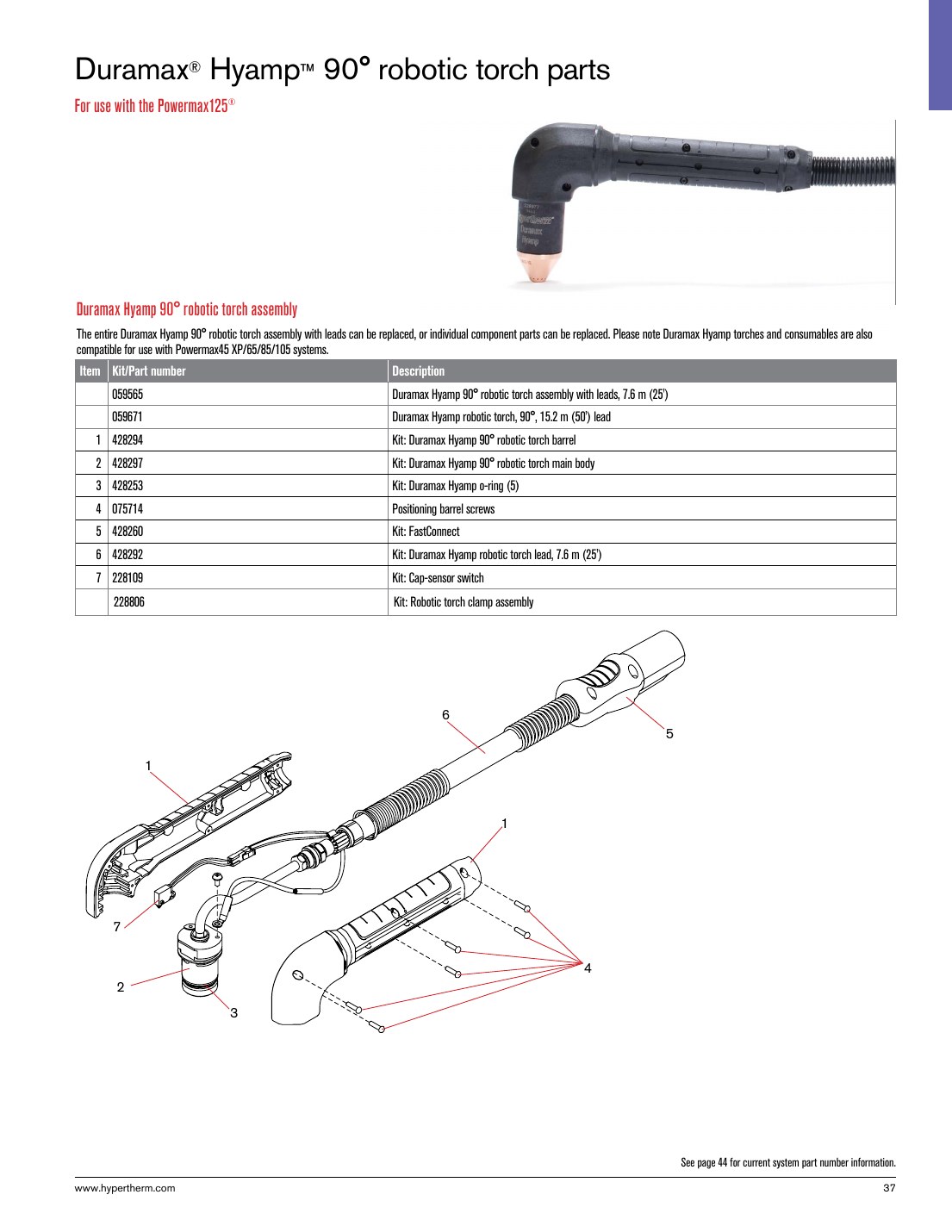

Duramax Hyamp Robotic Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Torch | 059565 |
Hypertherm Torch Assembly 059565
|
Verification pending | |
| 1 | 428294 |
Hypertherm Kit 428294
|
Verification pending | |
| 2 | 428297 |
Hypertherm Torch Body 428297
|
Verification pending | |
| 3 | 428253 |
Hypertherm O-Ring 428253
|
Verification pending | |
| 4 | 075714 |
Hypertherm part 075714
|
Verification pending | |
| 5 | 428260 |
Hypertherm Kit 428260
|
Check Price on Amazon | |
| 6 | 428292 |
Hypertherm Torch Lead 428292
|
Verification pending | |
| 7 | 228109 |
Hypertherm Switch/Sensor 228109
|
Verification pending | |
| Torch | 228806 |
Hypertherm Torch Assembly 228806
|
Check Price on Amazon | |
059671 |
Hypertherm Torch Lead 059671
|
Verification pending |
Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 39. Catalog page images are used when a cleaned diagram asset is not already available.
Hypertherm plasma support

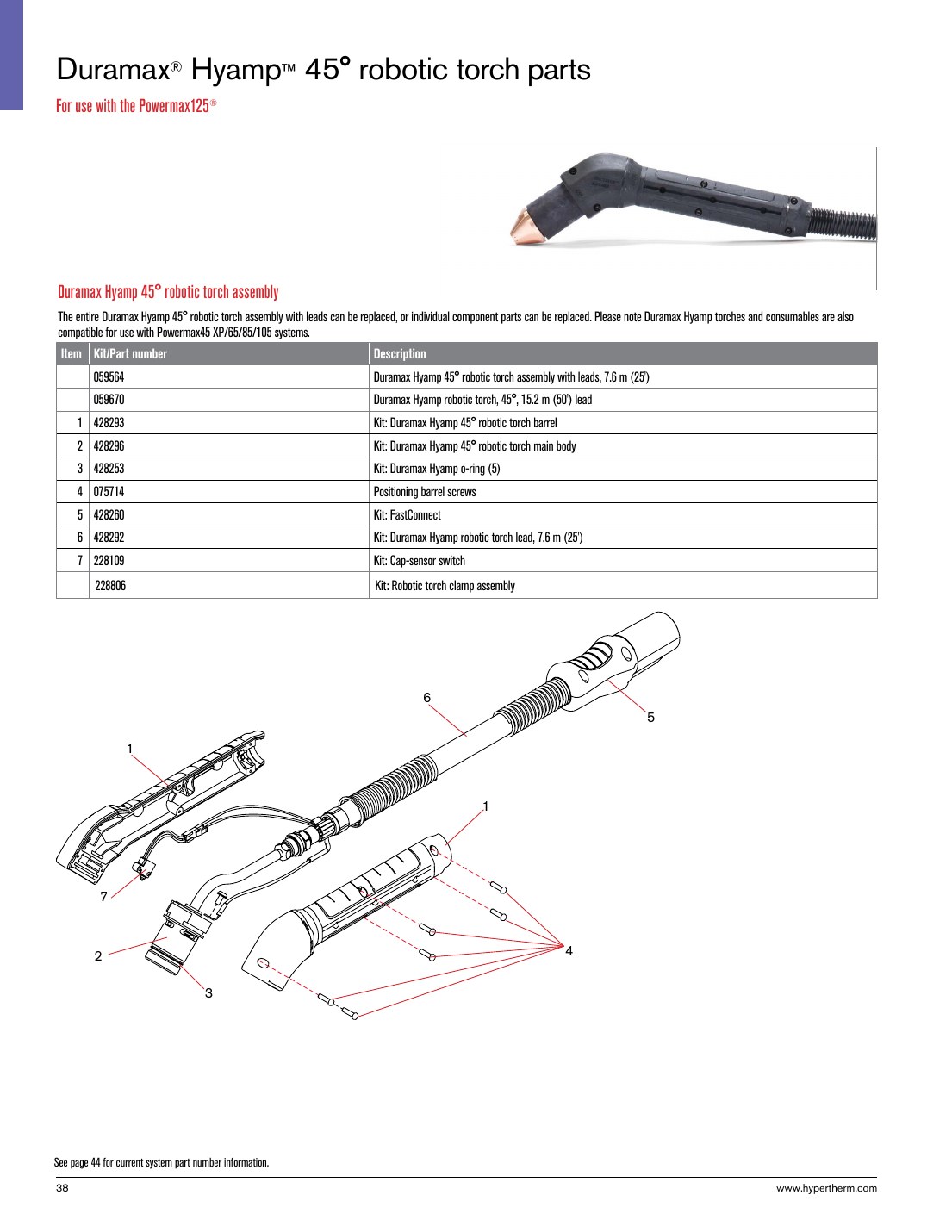

Duramax Hyamp Robotic Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
| Torch | 059564 |
Hypertherm Torch Assembly 059564
|
Verification pending | |
| 1 | 428293 |
Hypertherm Kit 428293
|
Verification pending | |
| 2 | 428296 |
Hypertherm Torch Body 428296
|
Verification pending | |
| 3 | 428253 |
Hypertherm O-Ring 428253
|
Verification pending | |
| 4 | 075714 |
Hypertherm part 075714
|
Verification pending | |
| 5 | 428260 |
Hypertherm Kit 428260
|
Check Price on Amazon | |
| 6 | 428292 |
Hypertherm Torch Lead 428292
|
Verification pending | |
| 7 | 228109 |
Hypertherm Switch/Sensor 228109
|
Verification pending | |
| Torch | 228806 |
Hypertherm Torch Assembly 228806
|
Check Price on Amazon | |
059670 |
Hypertherm Torch Lead 059670
|
Verification pending |
Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 40. Catalog page images are used when a cleaned diagram asset is not already available.
Hypertherm plasma support
Duramax Hyamp Robotic Torch consumables from the Hypertherm consumables catalog. Confirm machine, torch style, amperage, and process before ordering.
As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.
| Item # | Part # | Description | Qty | Buy |
|---|---|---|---|---|
220971 |
Hypertherm part 220971
|
Verification pending | ||
220975 |
Hypertherm part 220975
|
Verification pending | ||
220976 |
Hypertherm part 220976
|
Check Price on Amazon | ||
220977 |
Hypertherm part 220977
|
Check Price on Amazon | ||
220997 |
Hypertherm part 220997
|
Check Price on Amazon | ||
420000 |
Hypertherm part 420000
|
Check Price on Amazon | ||
420001 |
Hypertherm part 420001
|
Verification pending | ||
420112 |
Hypertherm part 420112
|
Check Price on Amazon | ||
420156 |
Hypertherm part 420156
|
Check Price on Amazon | ||
420158 |
Hypertherm part 420158
|
Verification pending | ||
420168 |
Hypertherm part 420168
|
Check Price on Amazon | ||
420169 |
Hypertherm part 420169
|
Verification pending | ||
420172 |
Hypertherm part 420172
|
Check Price on Amazon | ||
420509 |
Hypertherm part 420509
|
Check Price on Amazon | ||
851474 |
Hypertherm Kit 851474
|
Check Price on Amazon | ||
851475 |
Hypertherm part 851475
|
Check Price on Amazon | ||
851476 |
Hypertherm part 851476
|
Check Price on Amazon |
Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 32. Catalog page images are used when a cleaned diagram asset is not already available.
