Hypertherm Duramax Hyamp Long Hand Torch Parts and Consumables

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item #	Part #	Description	Buy
Torch	`059562`	Hypertherm Torch Assembly 059562 torch assembly Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
Torch	`059567`	Hypertherm Torch Assembly 059567 torch assembly Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
Torch	`059579`	Hypertherm Torch Assembly 059579 torch assembly Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
Torch	`059581`	Hypertherm Torch Assembly 059581 torch assembly Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
Torch	`059667`	Hypertherm Torch Assembly 059667 torch assembly Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
1	`428278`	Hypertherm Kit 428278 kit Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
2	`059587`	Hypertherm Kit 059587 kit Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
2	`428280`	Hypertherm Kit 428280 kit Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
2	`428281`	Hypertherm Kit 428281 kit Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
2	`428820`	Hypertherm part 428820 unknown Duramax Hyamp 45 Long hand torch replacement parts review Powermax45 XP Powermax125	Verification pending
2	`428822`	Hypertherm Switch/Sensor 428822 switch/sensor Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
3	`428286`	Hypertherm Torch Handle 428286 torch handle Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
4	`428287`	Hypertherm Torch Handle 428287 torch handle Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
5	`428156`	Hypertherm Kit 428156 kit Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	View on Amazon
6	`428277`	Hypertherm Torch Handle 428277 torch handle Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
7	`428260`	Hypertherm Kit 428260 kit Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	View on Amazon
	`059758`	Hypertherm Torch Lead 059758 torch lead Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
	`059759`	Hypertherm Torch Lead 059759 torch lead Duramax Hyamp 45 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending

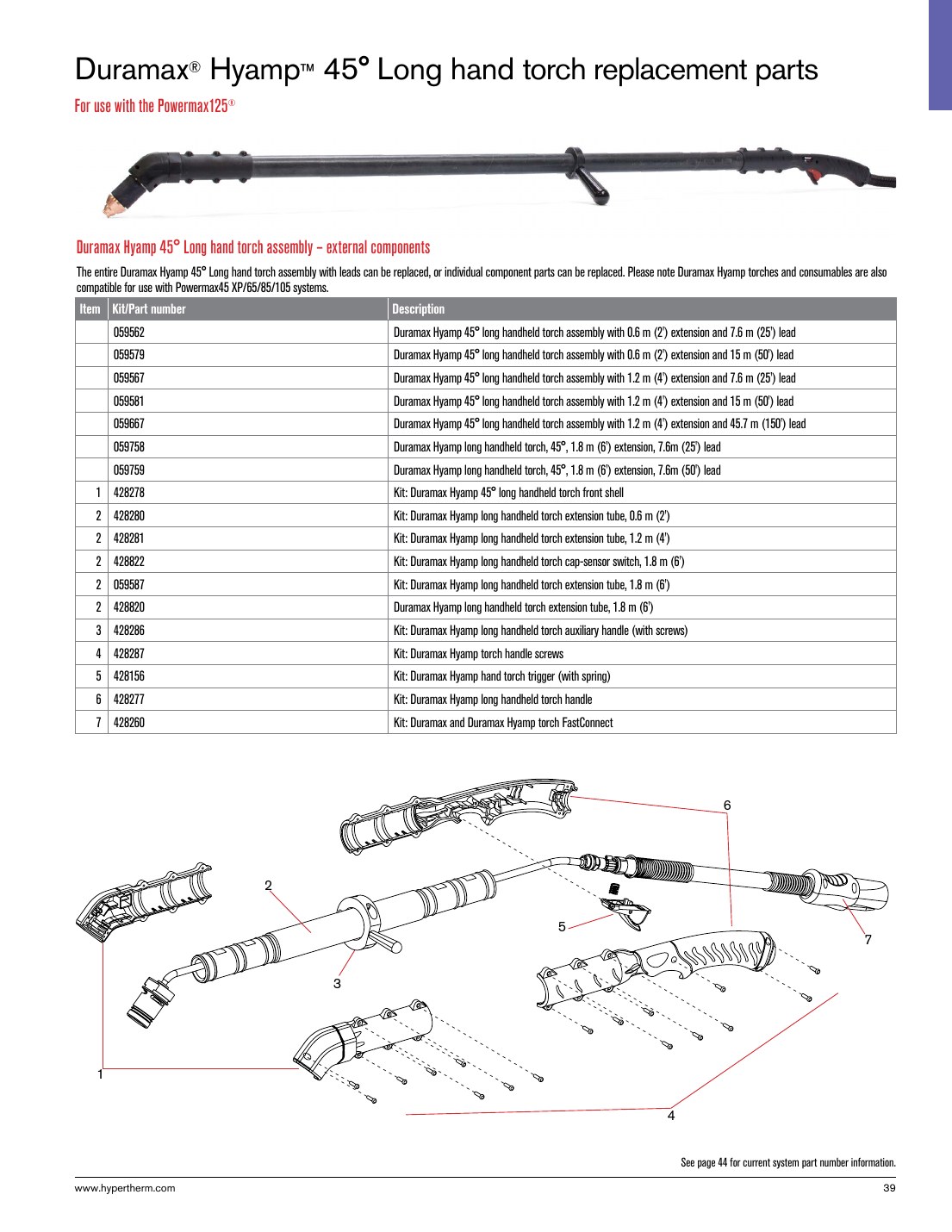

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 41. Catalog page images are used when a cleaned diagram asset is not already available.

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item #	Part #	Description	Buy
1	`428288`	Hypertherm Switch/Sensor 428288 switch/sensor Duramax Hyamp 45 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
1	`428289`	Hypertherm Switch/Sensor 428289 switch/sensor Duramax Hyamp 45 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
2	`428282`	Hypertherm Torch Body 428282 torch body Duramax Hyamp 45 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
2	`428284`	Hypertherm Torch Body 428284 torch body Duramax Hyamp 45 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
2	`428822`	Hypertherm Switch/Sensor 428822 switch/sensor Duramax Hyamp 45 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
3	`428253`	Hypertherm O-Ring 428253 o-ring Duramax Hyamp 45 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
4	`428290`	Hypertherm Kit 428290 kit Duramax Hyamp 45 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
4	`428291`	Hypertherm Kit 428291 kit Duramax Hyamp 45 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
5	`428162`	Hypertherm Switch/Sensor 428162 switch/sensor Duramax Hyamp 45 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	View on Amazon
6	`428159`	Hypertherm Torch Lead 428159 torch lead Duramax Hyamp 45 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
6	`428160`	Hypertherm Torch Lead 428160 torch lead Duramax Hyamp 45 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
6	`428762`	Hypertherm Torch Lead 428762 torch lead Duramax Hyamp 45 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending

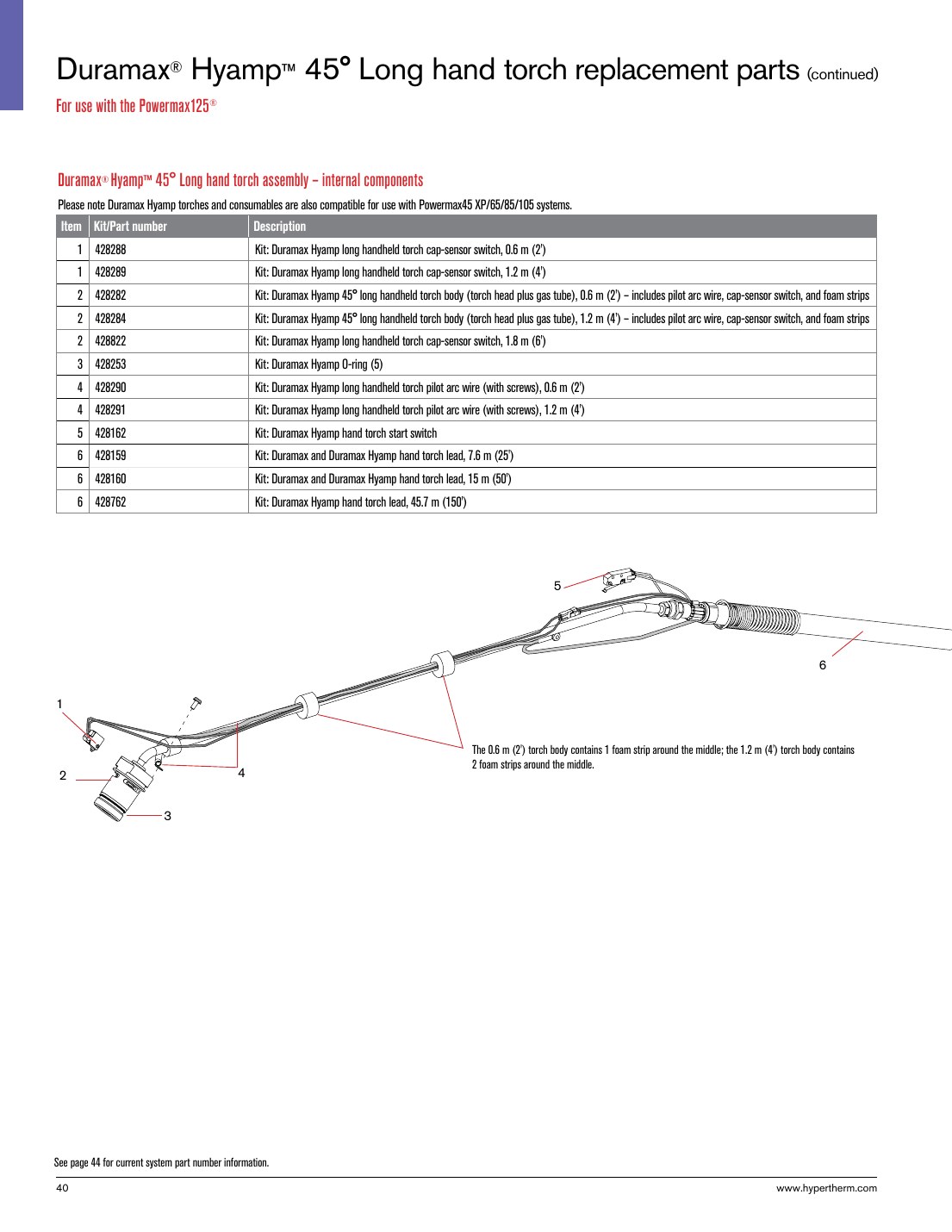

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 42. Catalog page images are used when a cleaned diagram asset is not already available.

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item #	Part #	Description	Buy
Torch	`059563`	Hypertherm Torch Assembly 059563 torch assembly Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
Torch	`059568`	Hypertherm Torch Assembly 059568 torch assembly Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
Torch	`059580`	Hypertherm Torch Assembly 059580 torch assembly Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
Torch	`059582`	Hypertherm Torch Assembly 059582 torch assembly Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
Torch	`059623`	Hypertherm Torch Assembly 059623 torch assembly Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
Torch	`059624`	Hypertherm Torch Assembly 059624 torch assembly Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
Torch	`059668`	Hypertherm Torch Assembly 059668 torch assembly Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
1	`428279`	Hypertherm Kit 428279 kit Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
2	`428280`	Hypertherm Kit 428280 kit Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
2	`428281`	Hypertherm Kit 428281 kit Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
2	`428820`	Hypertherm part 428820 unknown Duramax Hyamp 90 Long hand torch replacement parts review Powermax45 XP Powermax125	Verification pending
3	`428286`	Hypertherm Torch Handle 428286 torch handle Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
4	`428287`	Hypertherm Torch Handle 428287 torch handle Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
5	`428156`	Hypertherm Kit 428156 kit Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	View on Amazon
6	`428277`	Hypertherm Torch Handle 428277 torch handle Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	Verification pending
7	`428260`	Hypertherm Kit 428260 kit Duramax Hyamp 90 Long hand torch replacement parts catalog verified Powermax45 XP Powermax125	View on Amazon

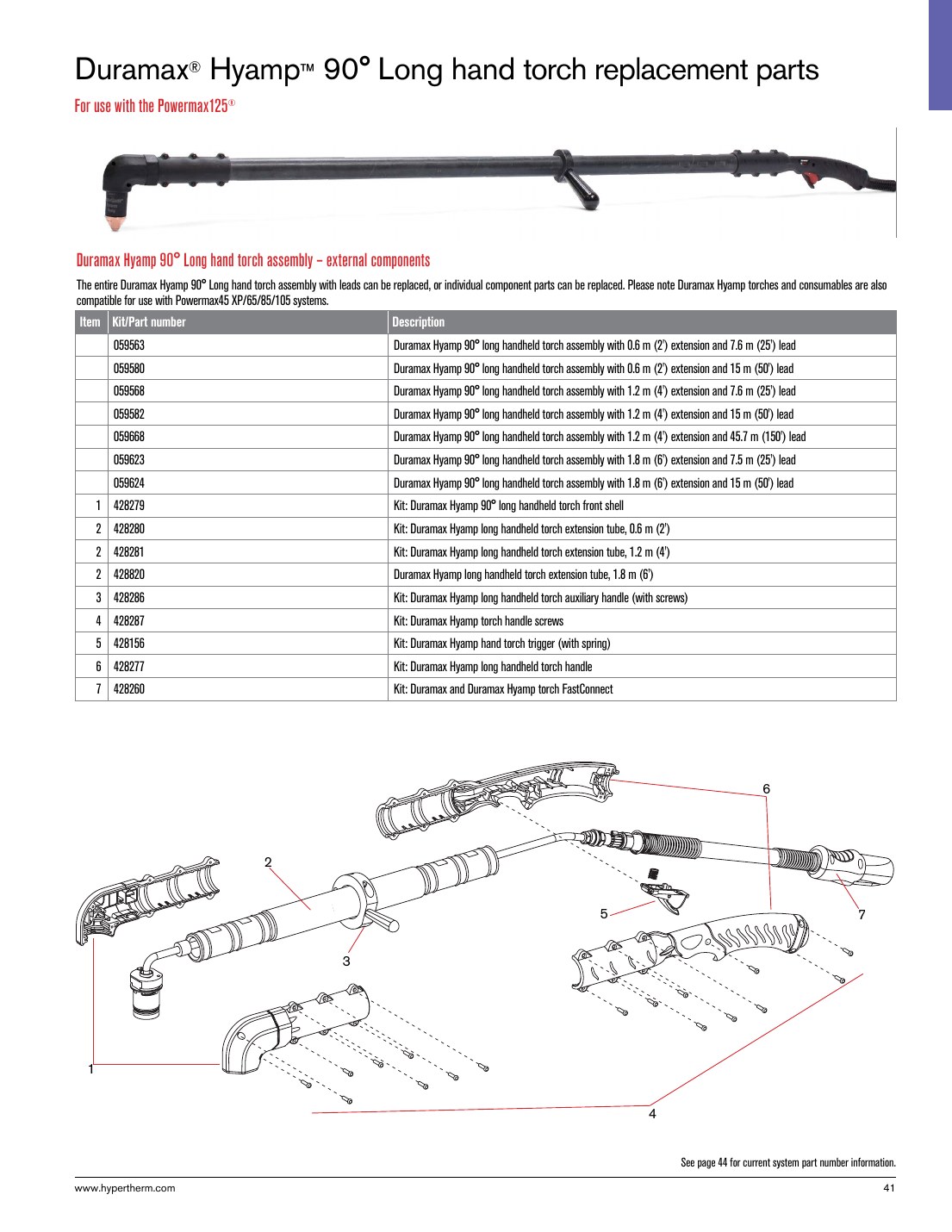

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 43. Catalog page images are used when a cleaned diagram asset is not already available.

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item #	Part #	Description	Buy
1	`428288`	Hypertherm Switch/Sensor 428288 switch/sensor Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
1	`428289`	Hypertherm Switch/Sensor 428289 switch/sensor Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
2	`428283`	Hypertherm Torch Body 428283 torch body Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
2	`428285`	Hypertherm Torch Body 428285 torch body Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
2	`428821`	Hypertherm Torch Body 428821 torch body Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
2	`428822`	Hypertherm Switch/Sensor 428822 switch/sensor Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
3	`428253`	Hypertherm O-Ring 428253 o-ring Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
4	`428290`	Hypertherm Kit 428290 kit Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
4	`428291`	Hypertherm Kit 428291 kit Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
4	`428823`	Hypertherm Kit 428823 kit Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
5	`428162`	Hypertherm Switch/Sensor 428162 switch/sensor Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	View on Amazon
6	`428159`	Hypertherm Torch Lead 428159 torch lead Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
6	`428160`	Hypertherm Torch Lead 428160 torch lead Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending
6	`428762`	Hypertherm Torch Lead 428762 torch lead Duramax Hyamp 90 Long hand torch replacement parts (continued) catalog verified Powermax45 XP Powermax125	Verification pending

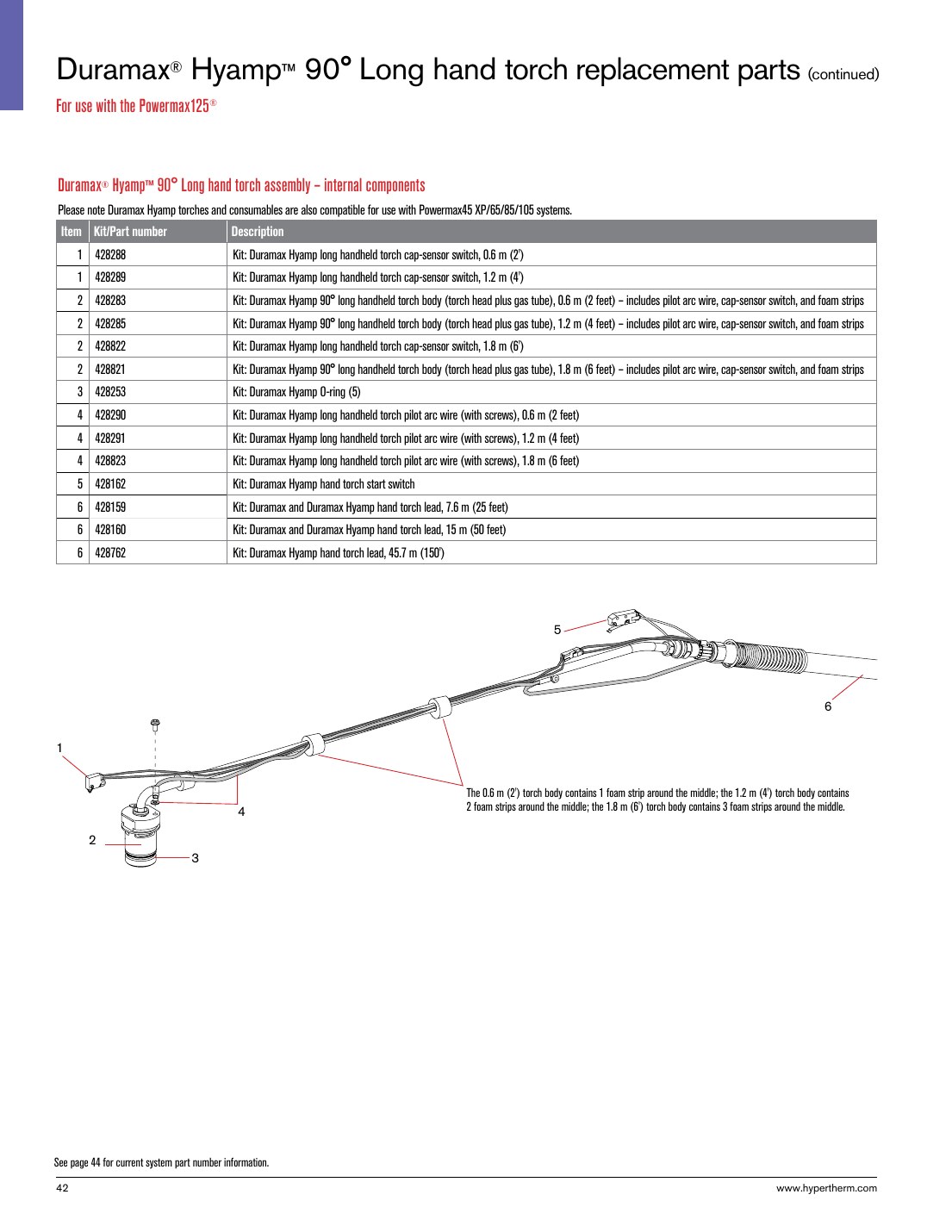

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 44. Catalog page images are used when a cleaned diagram asset is not already available.

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Part #	Description	Buy
`220971`	Hypertherm part 220971 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	Verification pending
`220975`	Hypertherm part 220975 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	Verification pending
`220976`	Hypertherm part 220976 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	View on Amazon
`220977`	Hypertherm part 220977 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	View on Amazon
`220997`	Hypertherm part 220997 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	View on Amazon
`420000`	Hypertherm part 420000 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	View on Amazon
`420001`	Hypertherm part 420001 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	Verification pending
`420112`	Hypertherm part 420112 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	View on Amazon
`420156`	Hypertherm part 420156 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	View on Amazon
`420158`	Hypertherm part 420158 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	Verification pending
`420168`	Hypertherm part 420168 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	View on Amazon
`420169`	Hypertherm part 420169 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	Verification pending
`420172`	Hypertherm part 420172 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	View on Amazon
`420509`	Hypertherm part 420509 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	View on Amazon
`851474`	Hypertherm Kit 851474 kit Powermax125 - Duramax Hyamp hand/machine torch consumables catalog verified Powermax125	View on Amazon
`851475`	Hypertherm part 851475 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	View on Amazon
`851476`	Hypertherm part 851476 unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review Powermax125	View on Amazon

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 32. Catalog page images are used when a cleaned diagram asset is not already available.
