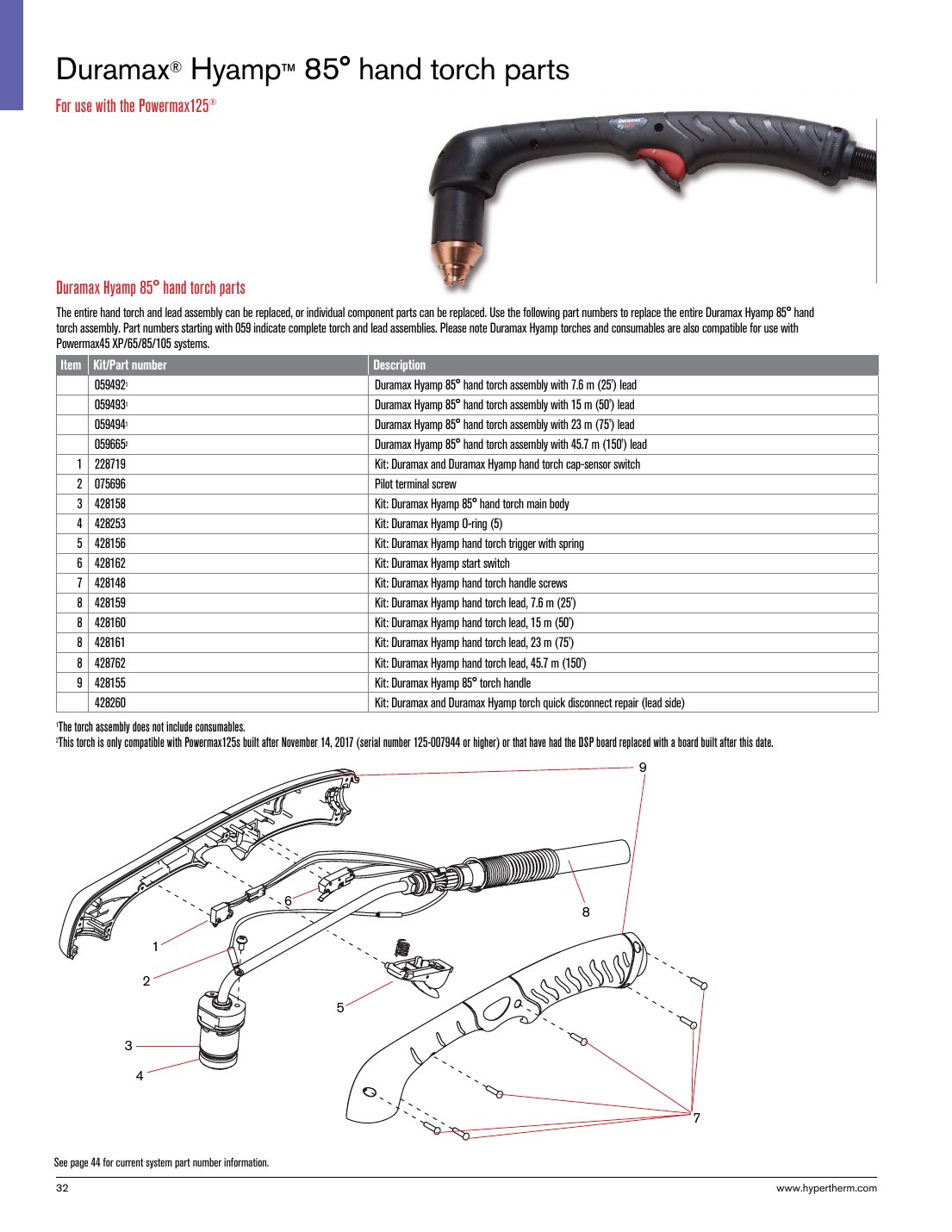

Hypertherm plasma support

Hypertherm Duramax Hyamp Hand Torch Parts Breakdown

Duramax Hyamp Hand Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.

2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems Catalog page 34

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item # Part # Description Qty Buy
Torch 059492
Hypertherm Torch Assembly 059492
torch assembly Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
Torch 059493
Hypertherm Torch Assembly 059493
torch assembly Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
Torch 059494
Hypertherm Torch Assembly 059494
torch assembly Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
Torch 059665
Hypertherm Torch Assembly 059665
torch assembly Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
1 228719
Hypertherm Switch/Sensor 228719
switch/sensor Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
View on Amazon
2 075696
Hypertherm part 075696
unknown Duramax Hyamp 85 hand torch parts review
Powermax45 XP Powermax125
Verification pending
3 428158
Hypertherm Torch Body 428158
torch body Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
4 428253
Hypertherm O-Ring 428253
o-ring Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
5 428156
Hypertherm Kit 428156
kit Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
View on Amazon
6 428162
Hypertherm Switch/Sensor 428162
switch/sensor Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
View on Amazon
7 428148
Hypertherm Torch Handle 428148
torch handle Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
8 428159
Hypertherm Torch Lead 428159
torch lead Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
8 428160
Hypertherm Torch Lead 428160
torch lead Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
8 428161
Hypertherm Torch Lead 428161
torch lead Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
8 428762
Hypertherm Torch Lead 428762
torch lead Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
9 428155
Hypertherm Torch Handle 428155
torch handle Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
007944
Hypertherm part 007944
unknown Duramax Hyamp 85 hand torch parts review
Powermax45 XP Powermax125
Verification pending
428260
Hypertherm Torch Lead 428260
torch lead Duramax Hyamp 85 hand torch parts catalog verified
Powermax45 XP Powermax125
View on Amazon

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 34. Catalog page images are used when a cleaned diagram asset is not already available.

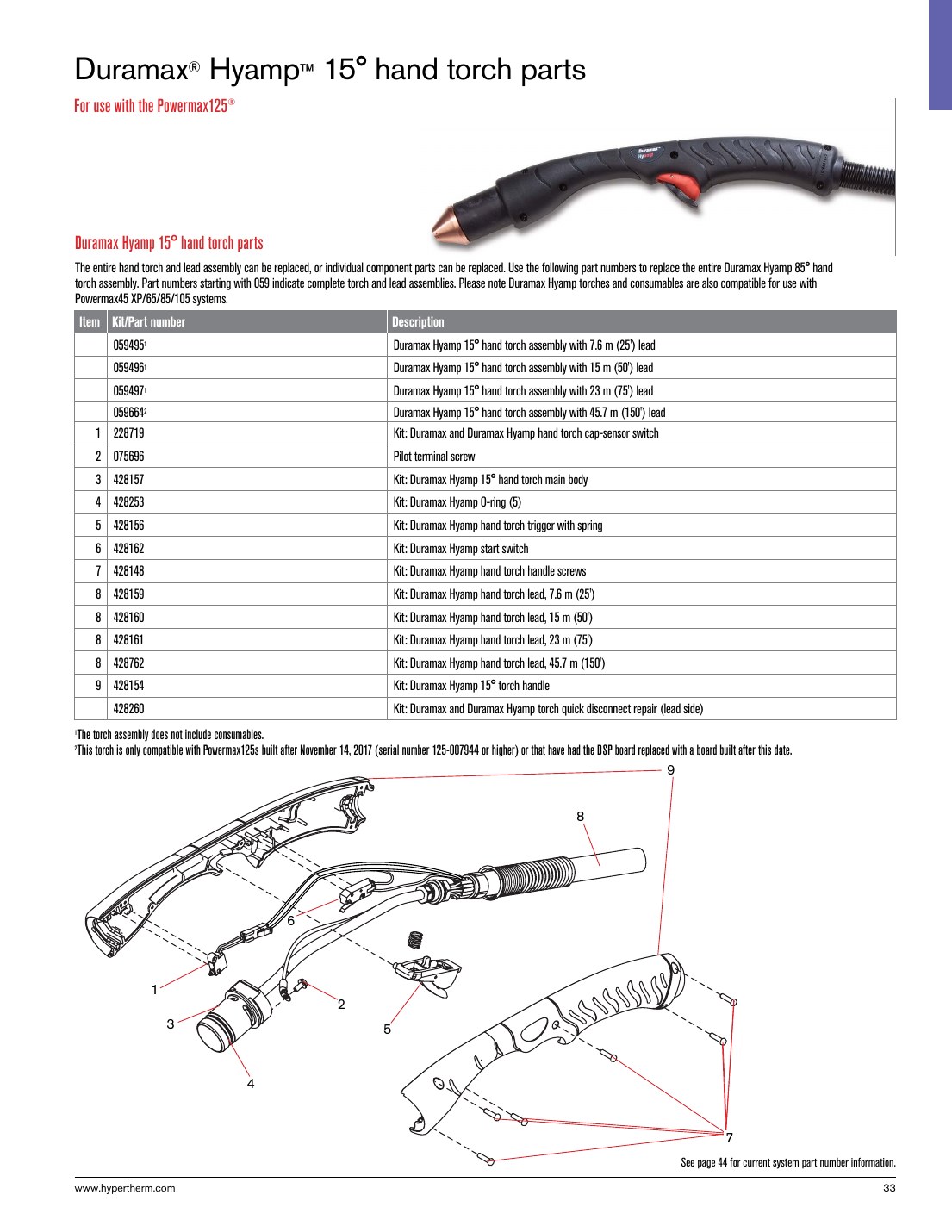

Hypertherm plasma support

Hypertherm Duramax Hyamp Hand Torch Parts Breakdown

Duramax Hyamp Hand Torch torch assembly and replacement parts from the Hypertherm parts catalog. Match the item number on the breakdown to the parts list before ordering.

2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems Catalog page 35

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item # Part # Description Qty Buy
Torch 059495
Hypertherm Torch Assembly 059495
torch assembly Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
Torch 059496
Hypertherm Torch Assembly 059496
torch assembly Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
Torch 059497
Hypertherm Torch Assembly 059497
torch assembly Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
Torch 059664
Hypertherm Torch Assembly 059664
torch assembly Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
1 228719
Hypertherm Switch/Sensor 228719
switch/sensor Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
View on Amazon
2 075696
Hypertherm part 075696
unknown Duramax Hyamp 15 hand torch parts review
Powermax45 XP Powermax125
Verification pending
3 428157
Hypertherm Torch Body 428157
torch body Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
4 428253
Hypertherm O-Ring 428253
o-ring Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
5 428156
Hypertherm Kit 428156
kit Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
View on Amazon
6 428162
Hypertherm Switch/Sensor 428162
switch/sensor Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
View on Amazon
7 428148
Hypertherm Torch Handle 428148
torch handle Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
8 428159
Hypertherm Torch Lead 428159
torch lead Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
8 428160
Hypertherm Torch Lead 428160
torch lead Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
8 428161
Hypertherm Torch Lead 428161
torch lead Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
8 428762
Hypertherm Torch Lead 428762
torch lead Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
9 428154
Hypertherm Torch Handle 428154
torch handle Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
Verification pending
007944
Hypertherm part 007944
unknown Duramax Hyamp 15 hand torch parts review
Powermax45 XP Powermax125
Verification pending
428260
Hypertherm Torch Lead 428260
torch lead Duramax Hyamp 15 hand torch parts catalog verified
Powermax45 XP Powermax125
View on Amazon

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 35. Catalog page images are used when a cleaned diagram asset is not already available.

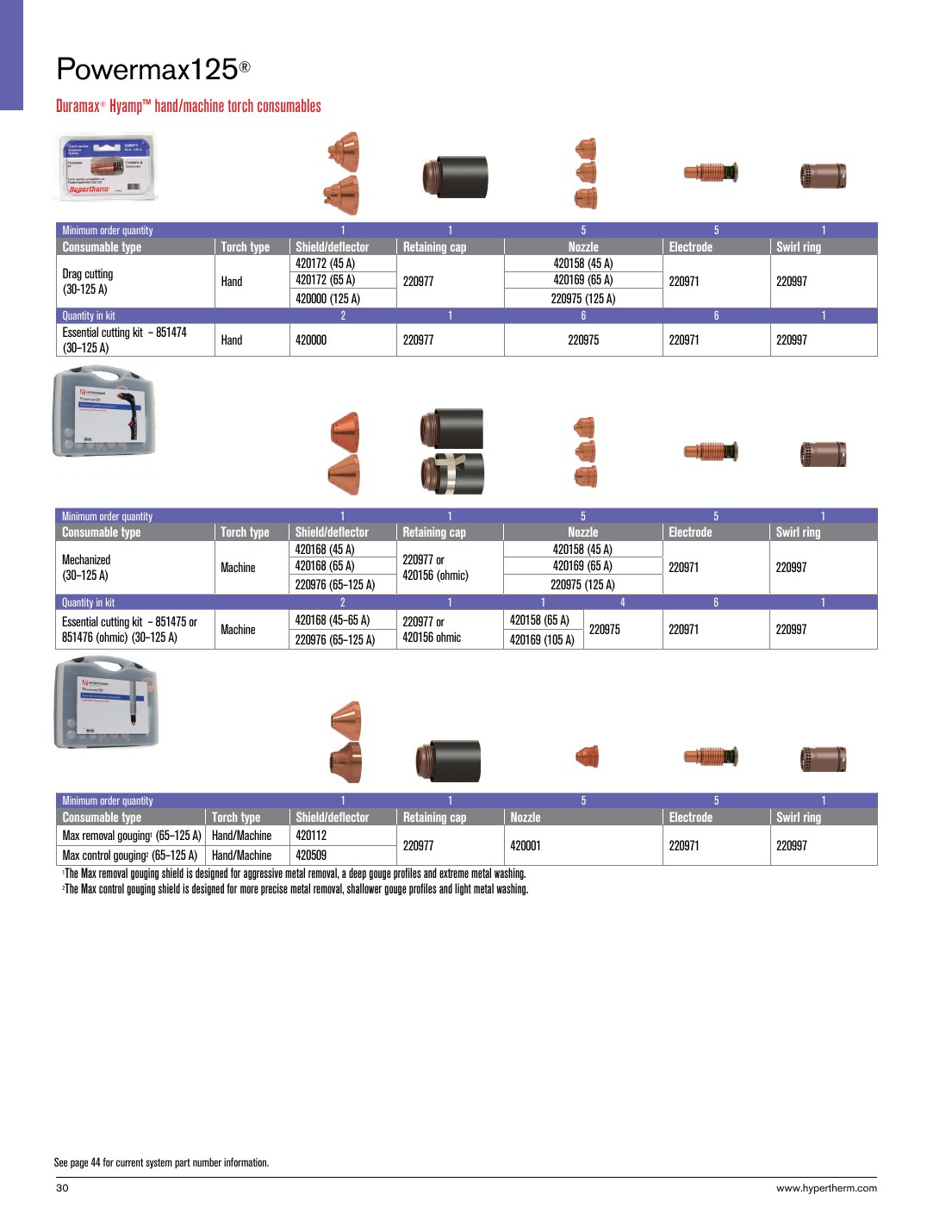

Hypertherm plasma support

Hypertherm Duramax Hyamp Hand Torch Consumables

Duramax Hyamp Hand Torch consumables from the Hypertherm consumables catalog. Confirm machine, torch style, amperage, and process before ordering.

2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems Catalog page 32

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases. Buy buttons only appear where a WSP-approved Amazon registry match exists.

Item # Part # Description Qty Buy
220971
Hypertherm part 220971
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
Verification pending
220975
Hypertherm part 220975
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
Verification pending
220976
Hypertherm part 220976
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
View on Amazon
220977
Hypertherm part 220977
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
View on Amazon
220997
Hypertherm part 220997
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
View on Amazon
420000
Hypertherm part 420000
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
View on Amazon
420001
Hypertherm part 420001
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
Verification pending
420112
Hypertherm part 420112
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
View on Amazon
420156
Hypertherm part 420156
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
View on Amazon
420158
Hypertherm part 420158
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
Verification pending
420168
Hypertherm part 420168
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
View on Amazon
420169
Hypertherm part 420169
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
Verification pending
420172
Hypertherm part 420172
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
View on Amazon
420509
Hypertherm part 420509
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
View on Amazon
851474
Hypertherm Kit 851474
kit Powermax125 - Duramax Hyamp hand/machine torch consumables catalog verified
Powermax125
View on Amazon
851475
Hypertherm part 851475
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
View on Amazon
851476
Hypertherm part 851476
unknown Powermax125 - Duramax Hyamp hand/machine torch consumables review
Powermax125
View on Amazon

Source: 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems, page 32. Catalog page images are used when a cleaned diagram asset is not already available.

Hypertherm support Torch guide Consumables Find My Part
Built from 2023 Hypertherm Torch and Consumables Catalog for Powermax and MAX Plasma Systems (page 34, page 35, page 32).
