Miller Weld Booth Support

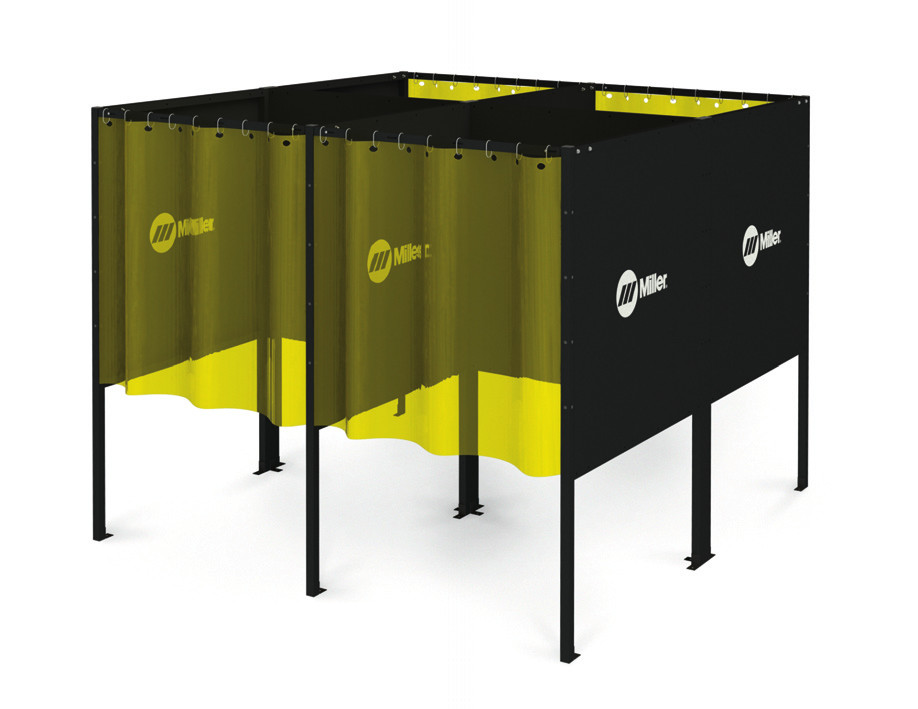

Build a modular Miller weld booth from 4 ft., 5 ft., and 6 ft. panels, then add the hardware kit, workstation, and FILTAIR extraction path that match the layout.
Start Here
Choose the booth footprint first, then add the required hardware kit and optional workstation or extraction arm.
Use 4 ft., 5 ft., and 6 ft. panels as back or side walls. Panels are sold individually.
ConfigurationChoose the booth layoutSingle, connected, and shared-wall examples show how many panels the layout requires.
AccessoriesAdd a workstation or armArcStation 60WX, ArcStation 30FX, and FILTAIR extraction arms are listed separately from the booth panels.
LookupSearch the WSP indexSearch by Miller weld booth, panel stock number, hardware kit, or ArcStation number.
Weld Booth Panel and Hardware Ordering
Panels are sold individually. The hardware kit includes the hardware, curtain rod, and weld curtain; AY/49.0 says to order one hardware kit per booth.
| Stock number | Item | Documented description | Type | Buy / lookup |
|---|---|---|---|---|
295140 | 4 ft. panel | Single panel used as a back or side wall | Weld booth panel | Search Amazon Site lookup |
295126 | 5 ft. panel | Single panel used as a back or side wall | Weld booth panel | Search Amazon Site lookup |
296015 | 6 ft. panel | Single panel used as a back or side wall | Weld booth panel | Search Amazon Site lookup |
295581 | Hardware kit | Includes hardware, curtain rod, and weld curtain; order one kit per booth | Booth hardware kit | Search Amazon Site lookup |
Weld Booth Configurations
The document shows these layout examples. Panel dimensions can be different within a configuration; confirm the final layout before ordering.
| Layout example | Back walls | Side walls | Total panels | Planning note |
|---|---|---|---|---|
| Single booth | 1 | 2 | 3 | One back wall and two side walls; choose width and depth. |
| Two connected booths, shared back wall | 1 | 4 | 5 | One shared back wall with four side walls. |
| Two connected booths, shared side wall | 2 | 3 | 5 | Two back walls with three side walls. |
| Even number of connected booths, shared side and back walls | 2 | 6 | 8 | Two back walls with six side walls for four connected booth spaces. |
Genuine Miller Accessories
The catalog lists two ArcStation workstations and directs customers to FILTAIR literature AY/3.7 for extraction-arm details.
| Stock number | Accessory | Compatibility / dimensions | Type | Buy / lookup |
|---|---|---|---|---|
951000107 | ArcStation 60WX | 35 x 58 x 29 in. (H x W x D); compatible with 5 ft. and larger weld booths | Workstation | Search Amazon Site lookup |
300837 | ArcStation 30FX | 35 x 29 x 29 in. (H x W x D); compatible with 4 ft. and larger weld booths | Workstation | Search Amazon Site lookup |
| Not listed | FILTAIR extraction arms | Telescoping, standard, and mounting-bracket/ducting options are shown; see the FILTAIR accessory path. | Fume extraction | Open FILTAIR accessories |
Weld Booth Specifications and Safety Notes
Values below are transcribed from AY/49.0. Confirm the final engineered layout and installation responsibilities with Miller or the responsible installer.
| Detail | Documented value |
|---|---|
| Applications | Heavy equipment manufacturing, fabrication, schools, and training facilities. |
| Panel material | 16-gauge steel with 1.5 in. square-tube structure and black textured powder coat. |
| Panel widths | 4 ft., 5 ft., and 6 ft.; panels can be mixed and matched as sides or backs. |
| Overall booth height | 78 in. |
| Panel height from ground | 27.5 in. |
| Panel weights | 4 ft.: 63 lb.; 5 ft.: 75 lb.; 6 ft.: 88 lb. |
| Curtain and safety details | Amber see-through weld curtains; the document states California fire marshal approval. Confirm current site requirements. |
| Assembly | Simple nut-and-bolt assembly is required. Floor anchoring feet are optional; installation is the customer responsibility. |
| Warranty | One year, parts and labor. |
Source: Miller Electric Weld Booths specification sheet AY/49.0, issued July 2024, pages 1-4. Miller does not publish a single complete-booth stock number in this document. Amazon links are optional search aids and direct buttons are limited to existing WSP-approved registry matches.
