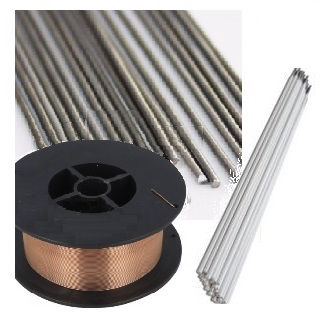

Stainless Steel 310 GTAW
310 stainless TIG rod setup guidance and filler reference.
TIG (GTAW)
Stainless Steel
Amazon gated until verified
Process Notes
310 is used for welding types AISI 310, 304 clad stainless steel, ferritic and martensitic chromium steels, and for stainless steel overlay work on mild and carbon steels. 310 welding wire produces weld deposits of high strength and high resistance to scalling at elevated temperatures.
TYPICAL CHEMISTRY : Carbon 0.14 Manganese 1.80
Nickel 21.10 Chromium 27.00
Silicon 0.50
Operating Range
Power: DCEN with EWTh-2 tungsten(2% Thoriated red) truncated conical tip Shielding gas: 100% Argon | SPECIFICATIONS: ANSI/AWS A5.9 ER310 ASME SFA 5.9 ER310 |
| Wire Size | Tungsten | Amps | Volts | Cup Size | Argon | Flow(CFH) | Base Metal | Thickness |
|---|---|---|---|---|---|---|
| 1/16" | 1/16" | 80-150 | 12 | 3/8" | 20 | 1/16-1/8" |
| 3/32" | 3/32" | 150-250 | 12 | 3/8" | 20 | 1/8-3/16" |
| 1/8" | 1/8" | 200-375 | 12 | 1/2" | 25 | 1/4-1/2" |
