Miller TIG Support
Find Miller TIG machine families, match Weldcraft torch series, confirm consumable families, and use short service-counter troubleshooting paths.
Start here
Use the machine path when matching power source packages, controls, and coolers. Use the torch path when matching cups, collets, gas lenses, tungsten, and back caps.
Find by machine family
Start with Maxstar, Syncrowave, or Dynasty when the power source model is known.
Find by torch series
Use WP-9, WP-17, WP-20, WP-26, A-series, or W-series when the torch body is known.
Find by symptom
Use short TIG flows for unstable arc, poor gas coverage, torch overheating, and tungsten splitting.
Catalog-backed Miller TIG machine families

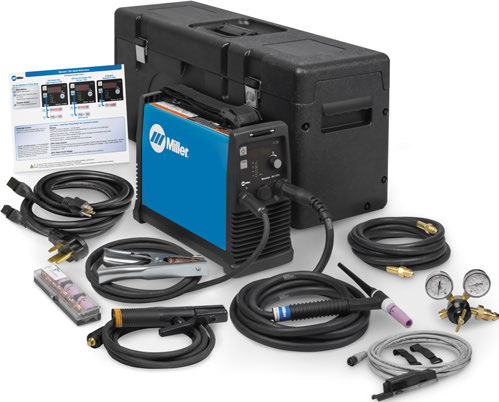

Maxstar 161 STL and STH
Portable DC TIG/stick package. STL uses Lift-Arc starting; STH adds high frequency, Lift-Arc, and built-in pulsing.

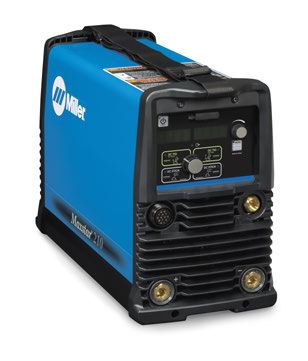

Maxstar 210 STR
DC TIG/stick STR model with Auto-Line 120-480 V input, Lift-Arc TIG, dual schedule stick, DIG, Hot Start, Stick-Stuck, and 50 mm Dinse-style connectors.

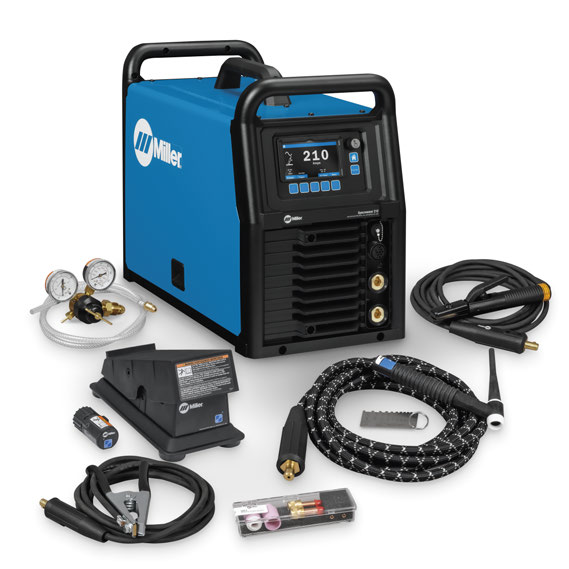

Syncrowave 212
AC/DC TIG, stick

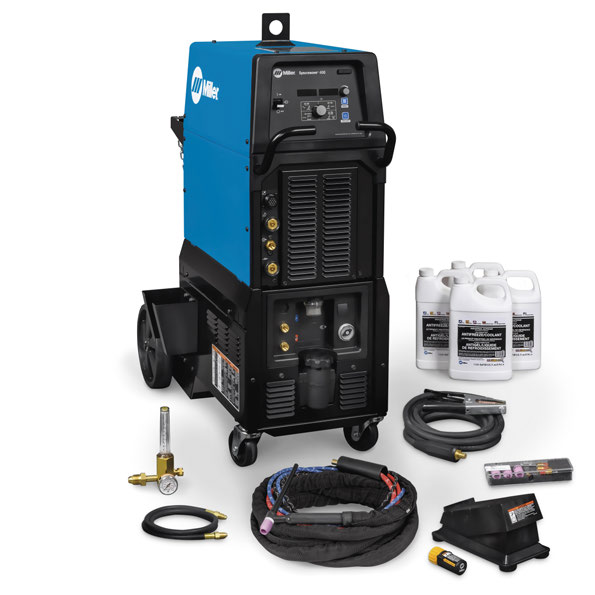

Syncrowave 300 and 400
Industrial AC/DC TIG and stick platform. Syncrowave 300 supports 5-300 A TIG and 5-230 A stick; Syncrowave 400 supports 5-400 A TIG and 5-300 A stick with 208/240/480 V or 600 V single- or three-phase input and machine-only, TIGRunner, wired Complete, and wireless Complete packages.
Maxstar 210 Series
DC TIG/stick series covering Maxstar 210 Base and Maxstar 210 DX. Supports Auto-Line 120-480 V input, HF or Lift-Arc TIG on Base/DX models, pulsed TIG except STR, and air-cooled or externally powered Coolmate 1.3 water-cooled package builds.
Maxstar 280 Series
DC TIG/stick series covering Maxstar 280 Base, CPS, DX, DX CPS, and TIGRunner packages. Supports Auto-Line 208-575 V input, 1-280 A TIG, 5-280 A stick, air carbon arc, CPS/Cooler Power Supply models, and water-cooled package builds with W-280 or W-375 torch options.

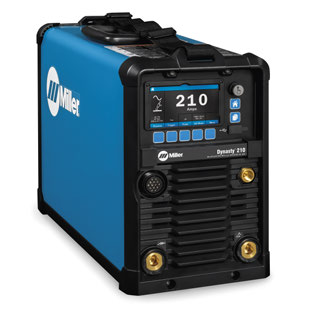

Dynasty 210 Series
AC/DC TIG and stick series covering Dynasty 210 machine-only, CPS, CE, TIGRunner, and Complete packages. Supports 120-480 V Auto-Line input, pulsed TIG, advanced AC waveforms, CPS cooler control on CPS models, and W-250 or W-280 water-cooled package paths.
Dynasty 300 Series
AC/DC TIG and stick series covering Dynasty 300 machine-only, CE, TIGRunner, CE TIGRunner, and Complete packages. Supports 208-600 V Auto-Line input, 1-300 A DC TIG, 2-300 A AC TIG, 5-300 A stick, air carbon arc, Coolmate 1.3 package builds, and W-280 or W-375 torch paths.

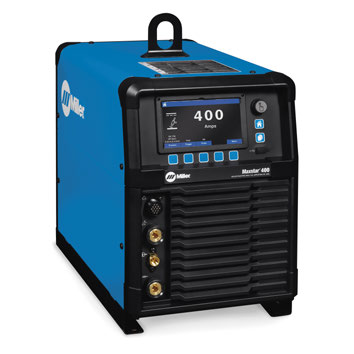

Maxstar 400
Heavy industrial DC TIG/stick power source with pulsed TIG, carbon arc gouging, 7-inch LCD controls, Auto-Line 208-600 V input, integrated cooler power, and water-cooled TIGRunner package paths.

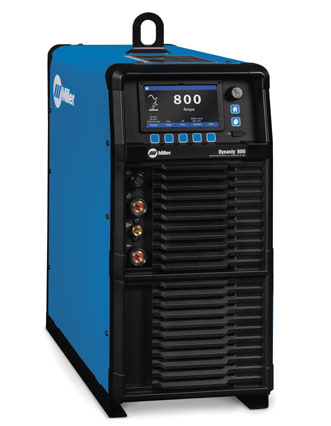

Dynasty 400
Heavy industrial 400 amp AC/DC TIG and stick power source with 7-inch LCD controls, Auto-Line 208-600 V input, Coolmate 3.5/CPS support, water-cooled TIGRunner, and W-375 Complete package path.
Dynasty 800
Heavy industrial 800 amp AC/DC TIG and stick power source with Auto-Line 208-600 V input, Coolmate 3.5/CPS support, thread-lock connector package path, and W-400 Complete package path.
Direct TIG support paths
What to check first
Unstable arc
Inspect tungsten contamination first. Verify collet tightness. Inspect cup or gas lens seating. Verify shielding gas flow.
Poor gas coverage
Inspect cup condition. Verify gas lens seating. Check flow rate. Inspect hose or fitting leaks.
Torch overheating
Verify cooling system on water-cooled setups. Inspect torch cable and handle heat. Check amperage against torch class. Verify front-end consumable fitment.
Tungsten splitting
Verify polarity. Verify amperage. Inspect shielding gas coverage. Confirm tungsten type and diameter.
Verify torch series before ordering
TIG front-end parts are not universal. Match the torch series, tungsten diameter, gas lens or standard setup, and cooling requirement before ordering. Amazon links remain optional buying references only and are not used as compatibility truth.
