Parts Included

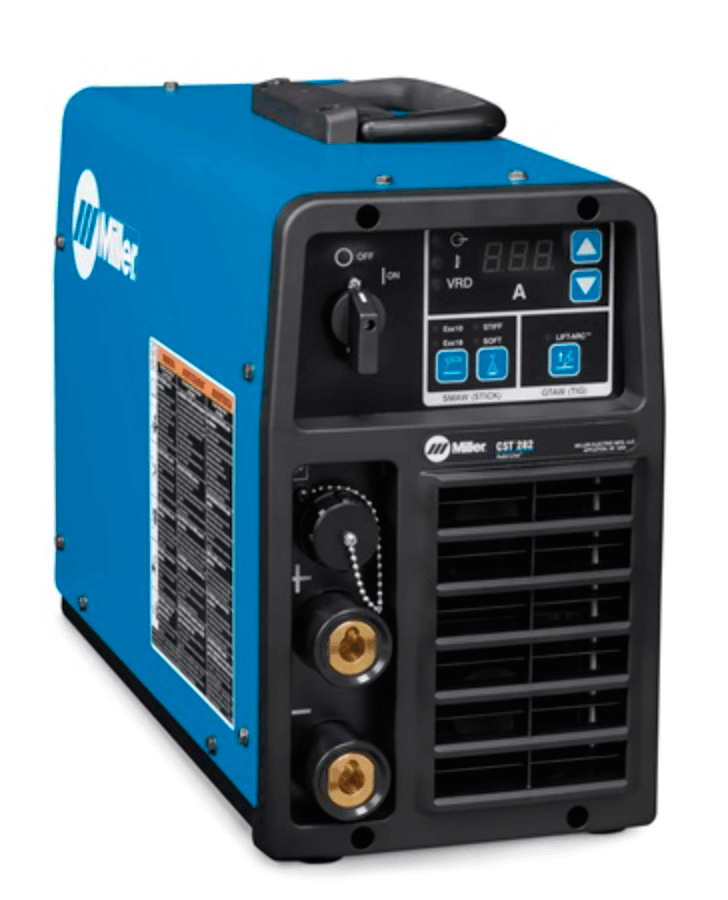

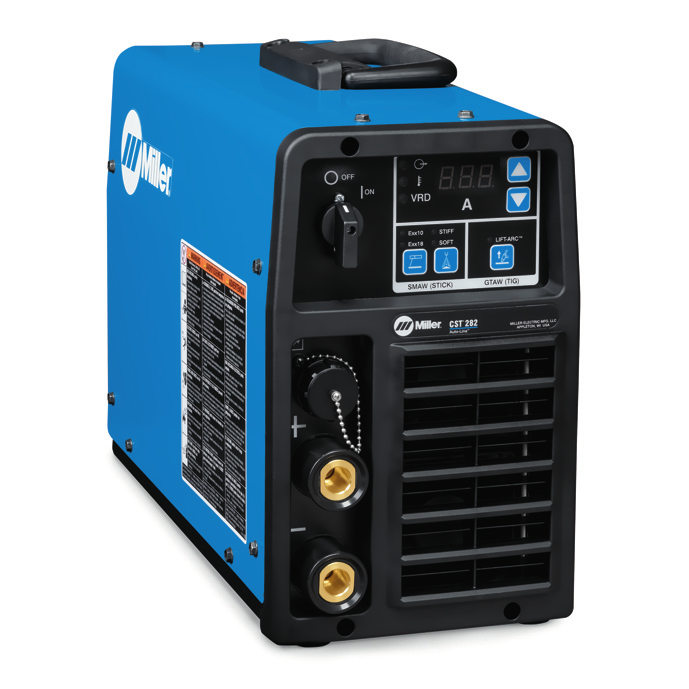

CST™ 282 208-575V, Tweco
Industrial Applications
Power plant Construction
Petrochemical Construction
Maintenance and repair
Shipbuilding
Process
DC Stick (SMAW)
DC TIG (GTAW)
Input Power
208–575 V, 3- or 1-phase power
Weight 35 lbs.
Weld Output CC
Amperage Stick: 30–280 A, TIG: 5–280 A
Rated Output
Stick:
3-PH 30–280 A, 280 A at 31.2 VDC, 35% duty cycle
1-PH 30–280 A, 200 A at 28 VDC, 50% duty cycle
Tig:
3-PH 5–280 A, 280 A at 21.2 VDC, 35% duty cycle
1-PH 5–280 A, 200 A at 18 VDC, 50% duty cycle
Amazon link: Needs verification.
15-foot electrode cable with holder and work cable with clamp. 200 A, 100% duty cycle. Lug Cable Connectors Included.
*If you can not re-use the Tweco Style connectors, you will need to order (2) of part# 191981 Amazon link: Needs verification.
Amazon link: Needs verification.
50-foot electrode cable with holder and work cable with clamp. 200 A, 100% duty cycle. Lug Cable Connectors Included.
*If you can not re-use the Tweco Style connectors, you will need to order (2) of part# 191981 Amazon link: Needs verification.
Amazon link: Needs verification.

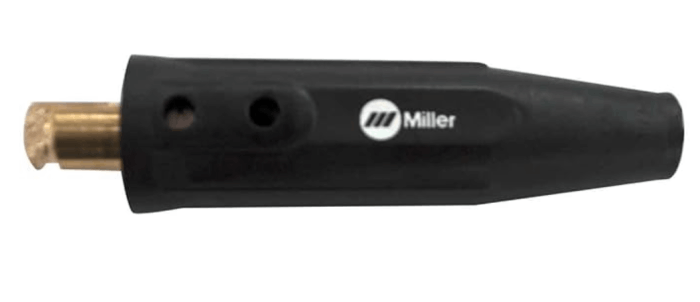

Replacement Tweco style connector
As an Amazon Associate, I earn from qualifying purchases.
Consumables

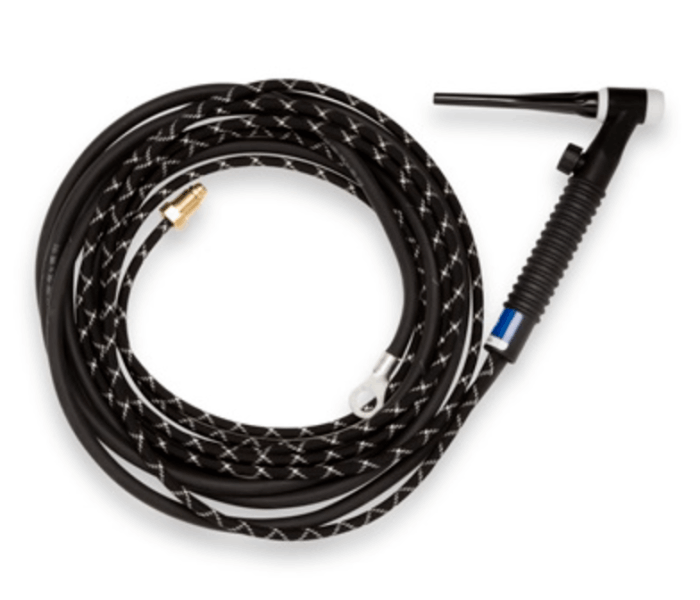

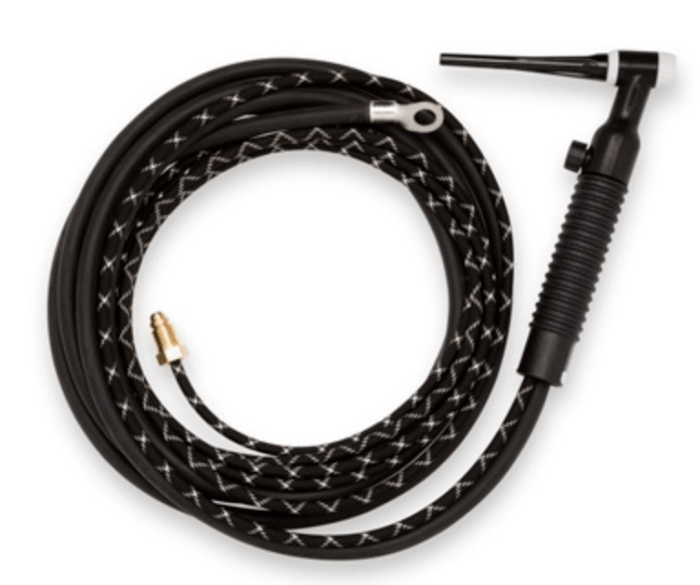

Weldcraft TIG Torch 150-amp air-cooled torch with valve and two-piece cable. Torch sets come with a lug and will need to be replaced with Tweco Connector part# 191981 Amazon link: Needs verification.
A-150 - Complete Torches
WP-17V-12-2 Amazon link: Needs verification. 12 ft. (3.7 m)
WP-17V-25-2 Amazon link: Needs verification. 25 ft. (7.6 m)
A-150 Flex Head
WP-17FV-12-2 Amazon link: Needs verification. 12 ft. (3.7 m)
WP-17FV-25-2 Amazon link: Needs verification.25 ft. (7.6 m)
Consumables
Weldcraft TIG Torch 200-amp air-cooled torch with valve and two-piece cable. Torch sets come with a lug and will need to be replaced with Tweco Connector part# 191981 Amazon link: Needs verification.
A-200 - Complete Torches
WP-26V-12-2 12 Amazon link: Needs verification. ft. (3.7 m)
WP-26V-25-2 Amazon link: Needs verification. 25 ft. (7.6 m)
A-200 Flex Head
WP-26FV-12-2 Amazon link: Needs verification. 12 ft. (3.7 m)
WP-26FV-25-2 Amazon link: Needs verification. 25 ft. (7.6 m)
Amazon link: Needs verification.

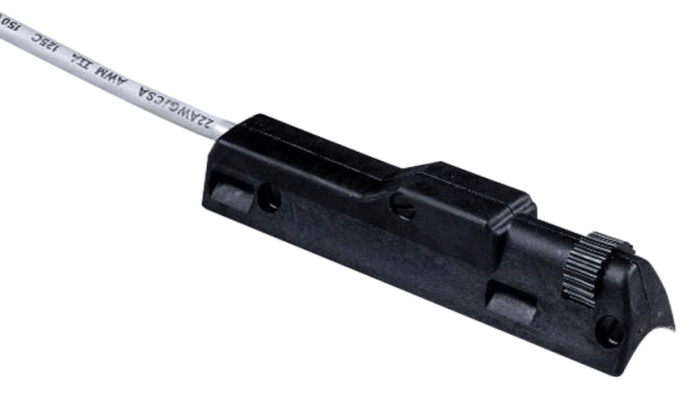

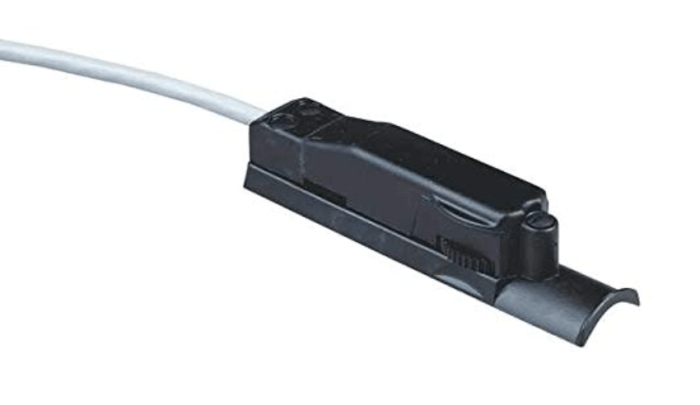

26.5 ft. (8 m) cord with 14-pin plug. Attaches to TIG torch using hook and loop fasteners. East/West rotary-motion fingertip control.
Amazon link: Needs verification.
26.5 ft. (8 m.) cord with 14-pin plug. Attaches to TIG torch using hook and loop fasteners. North/South rotary-motion fingertip control.

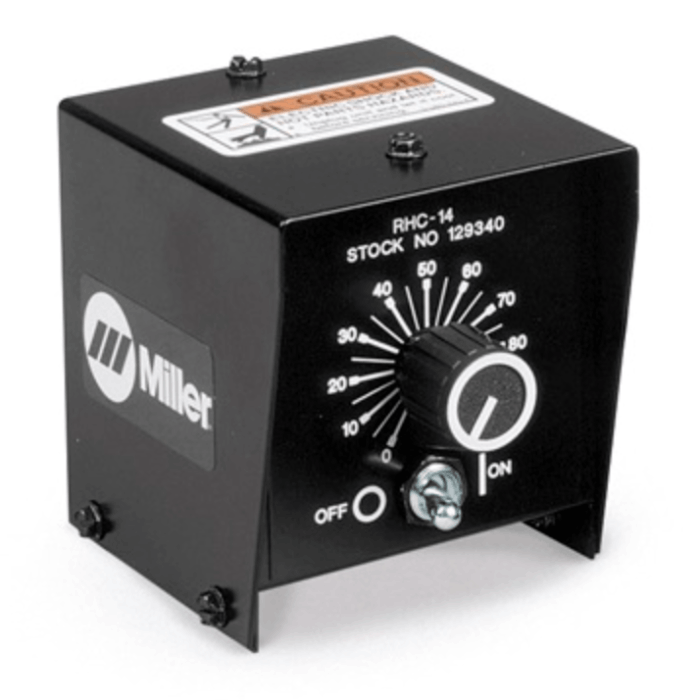

Miniature hand control for remote current and contactor control. Dimensions: 4 x 4 x 3.25 inches (102 x 102 x 82 mm). Includes cord and 14-pin plug.
RHC-14 Hand Control
242211020 Amazon link: Needs verification. 20 ft. (6 m)
242211100 Amazon link: Needs verification. 100 ft. (30.5 m)
Extension Cables for 14-Pin Remote Controls
242208025 Amazon link: Needs verification. 25 ft. (7.6 m)
242208050 Amazon link: Needs verification. 50 ft. (15.2 m)

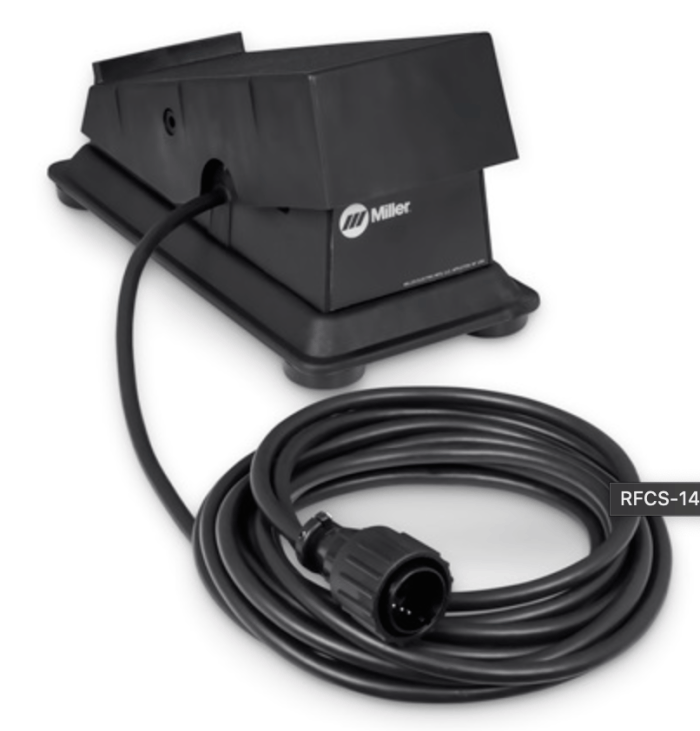

Heavy-duty foot pedal current and contactor
control with increased stability and durability
from a larger base and heavier cord. The reconfigurable cord can exit front, back, or either side of the pedal for flexibility. Includes 20-foot (6 m) cord and 14-pin plug.
Extension Cables for 14-Pin Remote Controls
242208025 Amazon link: Needs verification. 25 ft. (7.6 m)
242208050 Amazon link: Needs verification. 50 ft. (15.2 m)
Amazon link: Needs verification.

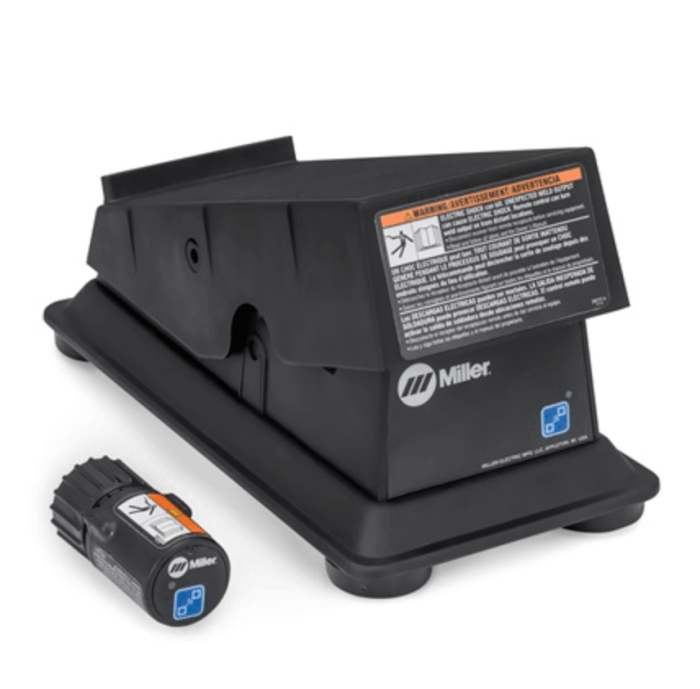

For remote current and contactor
control. The receiver plugs directly into
the 14-pin receptacle of the Miller® machine.
90-foot (27.4 m) operating range.

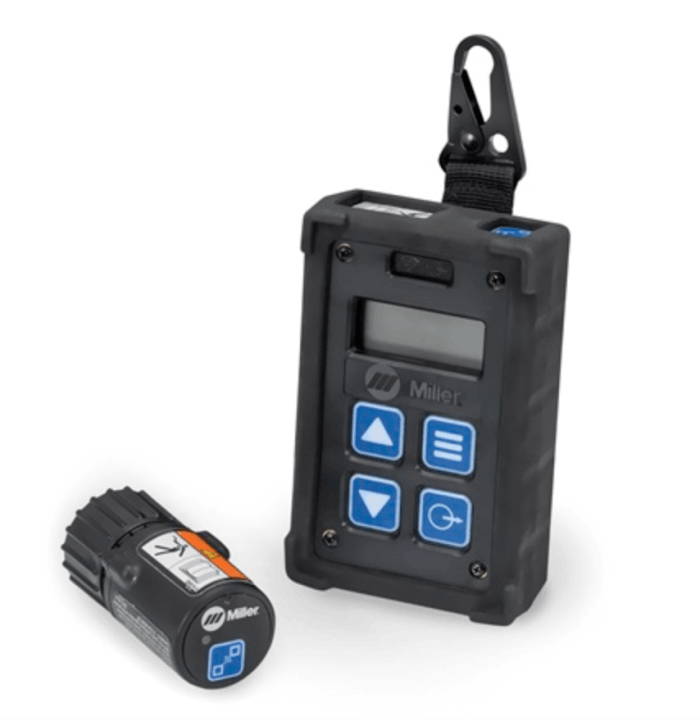

For remote current and contactor control. The receiver plugs directly into the 14-pin receptacle of Miller® machine. 300-foot (91.4 m) operating range.

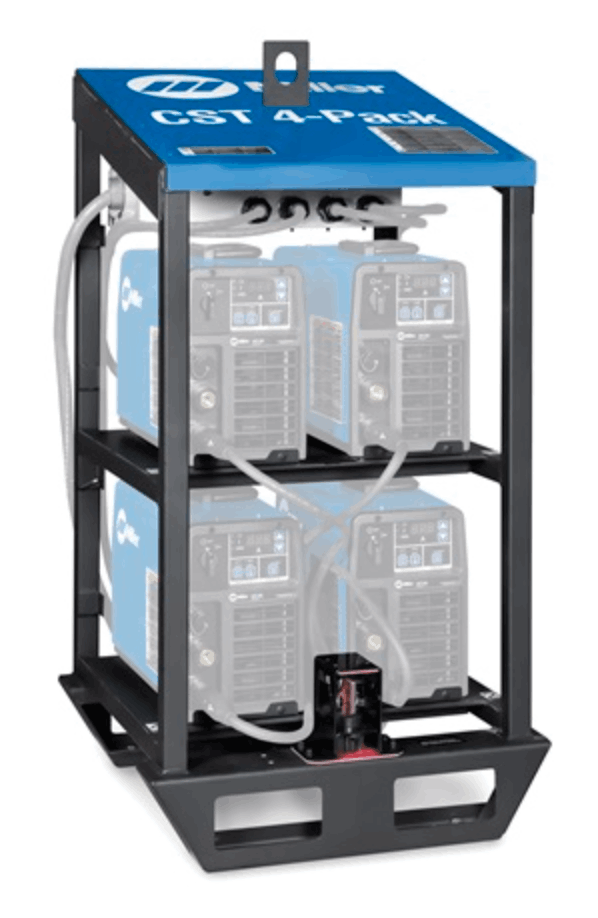

A rugged enclosure provides a simple means of protecting and transporting multiple welding power sources for construction, maintenance/repair, and shipbuilding applications.
4-pack rack, includes castors and cables to connect power sources to common work connection, 951934
8-pack rack, includes castors and cables to connect power sources to common work connection, 301610
20 A fuse for 575 V input (order 12 per 4-pack rack or 24 per 8-pack rack), 212541
