Parts Included

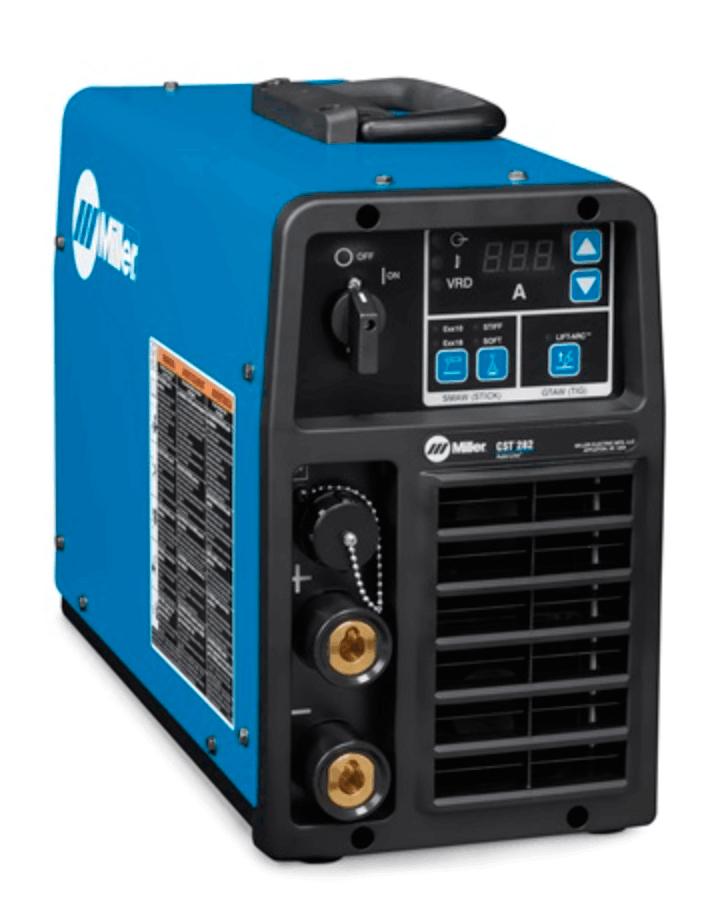

CST™ 282 208-575V, Dinse
Industrial Applications
Power plant Construction
Petrochemical Construction
Maintenance and repair
Shipbuilding
Process
DC Stick (SMAW)
DC TIG (GTAW)
Input Power
208–575 V, 3- or 1-phase power
Weight 35 lbs.
Weld Output CC
Amperage Stick: 30–280 A, TIG: 5–280 A
Rated Output
Stick:
3-PH 30–280 A, 280 A at 31.2 VDC, 35% duty cycle
1-PH 30–280 A, 200 A at 28 VDC, 50% duty cycle
Tig:
3-PH 5–280 A, 280 A at 21.2 VDC, 35% duty cycle
1-PH 5–280 A, 200 A at 18 VDC, 50% duty cycle
Amazon link: Needs verification.

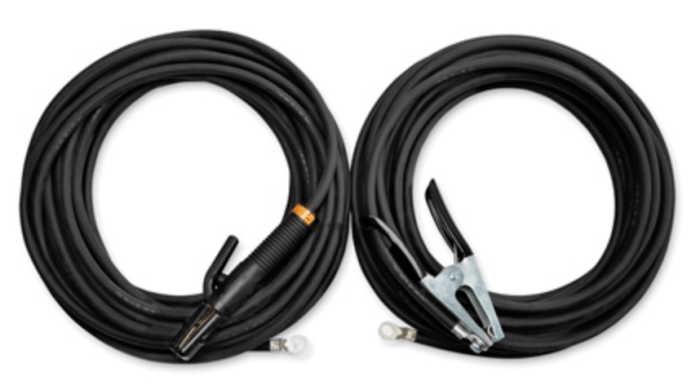

15-foot electrode cable with holder and work cable with clamp. 200 A, 100% duty cycle. Lug Cable Connectors Included.
*If you can not re-use the 50mm Dinse connectors, you will need to order (2) of part# 042533 Amazon link: Needs verification.
Amazon link: Needs verification.
50-foot electrode cable with holder and work cable with clamp. 200 A, 100% duty cycle. Lug Cable Connectors Included.
*If you can not re-use the 50mm Dinse connectors, you will need to order (2) of part# 042533 Amazon link: Needs verification.
Amazon link: Needs verification.

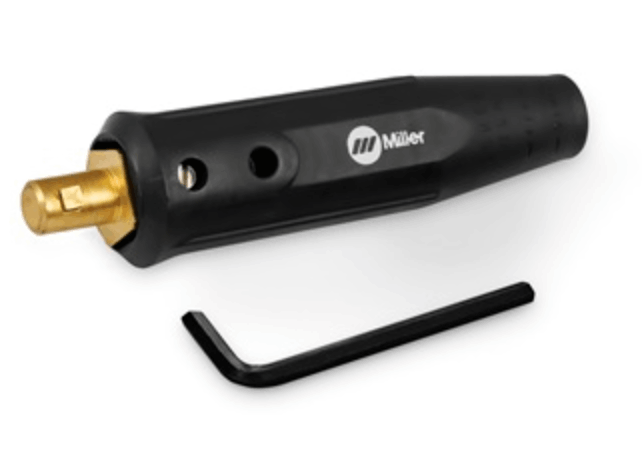

Replacement 50mm Dinse style connector
As an Amazon Associate, I earn from qualifying purchases.
Consumables

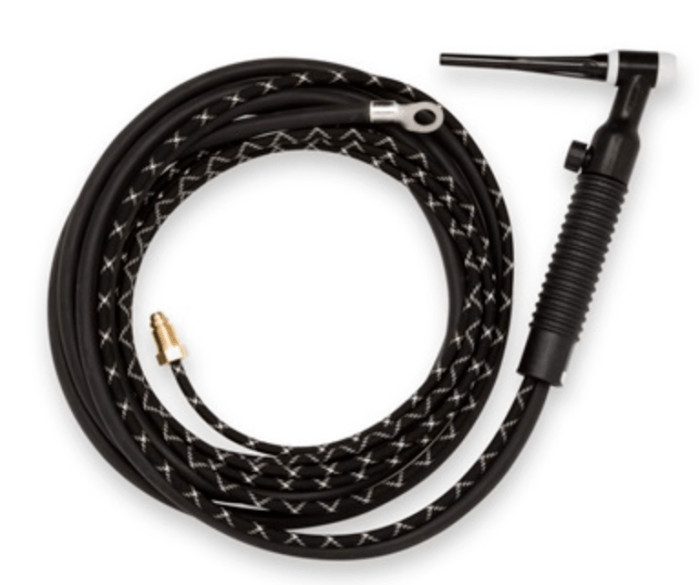

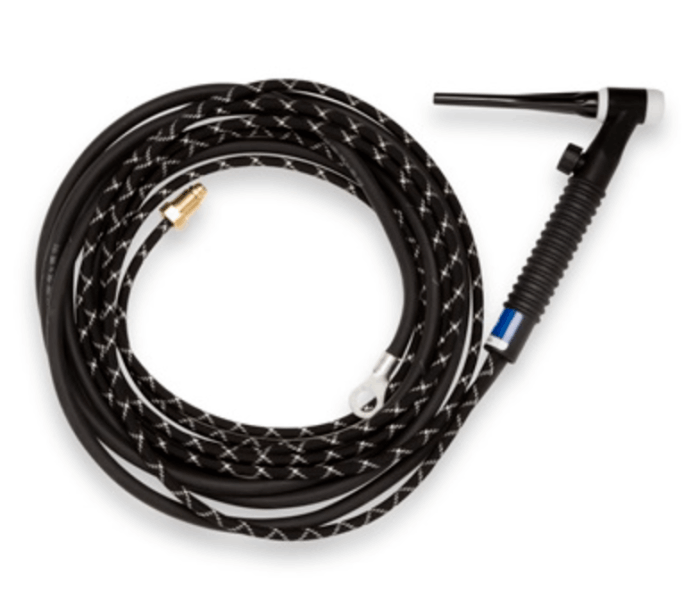

Weldcraft TIG Torch 150-amp air-cooled torch with valve and two-piece cable. Torch sets come with a lug and will need to be replaced with 50mm dinse part# 042533 Amazon link: Needs verification.
A-150 - Complete Torches
WP-17V-12-2 Amazon link: Needs verification. 12 ft. (3.7 m)
WP-17V-25-2 Amazon link: Needs verification. 25 ft. (7.6 m)
A-150 Flex Head
WP-17FV-12-2 Amazon link: Needs verification. 12 ft. (3.7 m)
WP-17FV-25-2 Amazon link: Needs verification.25 ft. (7.6 m)
Consumables
Weldcraft TIG Torch 200-amp air-cooled torch with valve and two-piece cable. Torch sets come with a lug and will need to be replaced with 50mm dinse part# 042533 Amazon link: Needs verification.
A-200 - Complete Torches
WP-26V-12-2 12 Amazon link: Needs verification. ft. (3.7 m)
WP-26V-25-2 Amazon link: Needs verification. 25 ft. (7.6 m)
A-200 Flex Head
WP-26FV-12-2 Amazon link: Needs verification. 12 ft. (3.7 m)
WP-26FV-25-2 Amazon link: Needs verification. 25 ft. (7.6 m)
Amazon link: Needs verification.

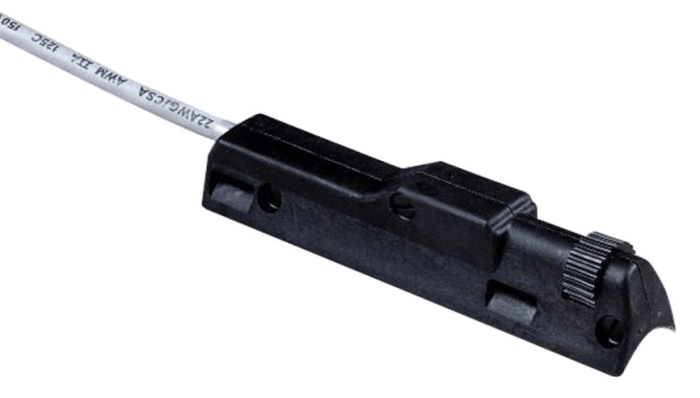

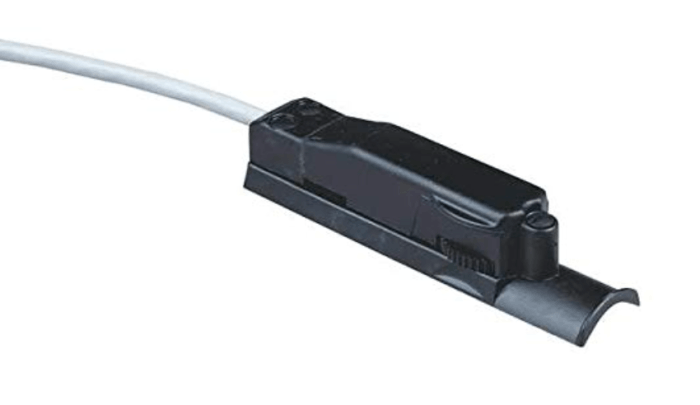

26.5 ft. (8 m) cord with 14-pin plug. Attaches to TIG torch using hook and loop fasteners. East/West rotary-motion fingertip control.
26.5 ft. (8 m.) cord with 14-pin plug. Attaches to TIG torch using hook and loop fasteners. North/South rotary-motion fingertip control.

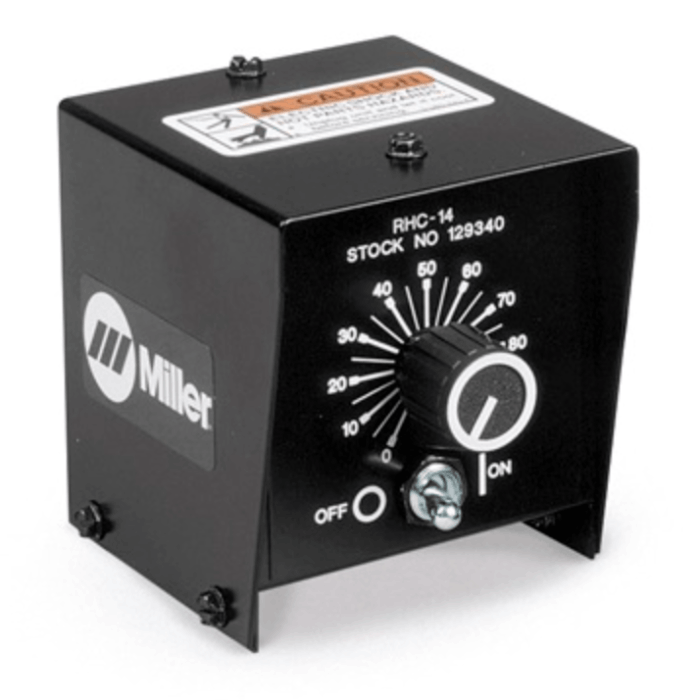

Miniature hand control for remote current and contactor control. Dimensions: 4 x 4 x 3.25 inches (102 x 102 x 82 mm). Includes cord and 14-pin plug.
RHC-14 Hand Control
242211020 Amazon link: Needs verification. 20 ft. (6 m)
242211100 Amazon link: Needs verification. 100 ft. (30.5 m)
Extension Cables for 14-Pin Remote Controls
242208025 Amazon link: Needs verification. 25 ft. (7.6 m)
242208050 Amazon link: Needs verification. 50 ft. (15.2 m)

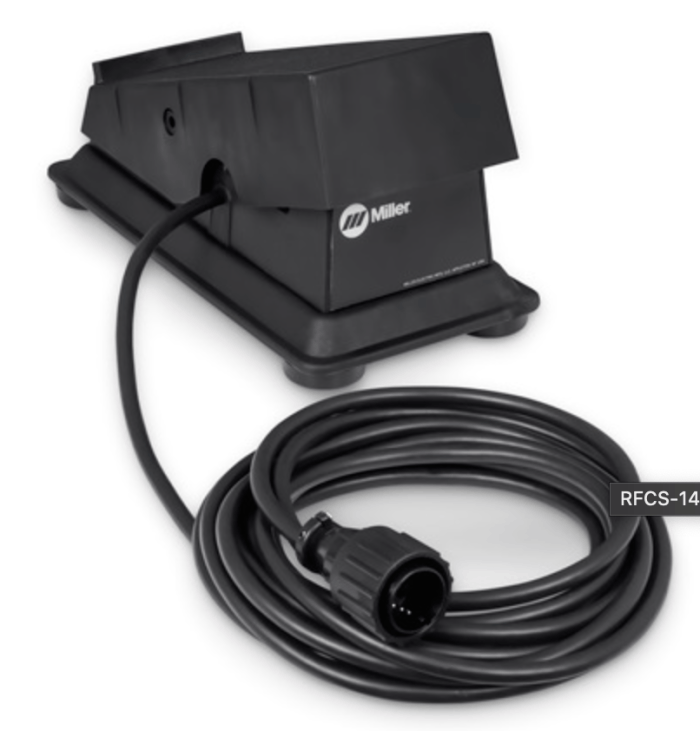

Heavy-duty foot pedal current and contactor
control with increased stability and durability
from a larger base and heavier cord. The reconfigurable cord can exit front, back, or either side of the pedal for flexibility. Includes 20-foot (6 m) cord and 14-pin plug.
Extension Cables for 14-Pin Remote Controls
242208025 Amazon link: Needs verification. 25 ft. (7.6 m)
242208050 Amazon link: Needs verification. 50 ft. (15.2 m)
Amazon link: Needs verification.

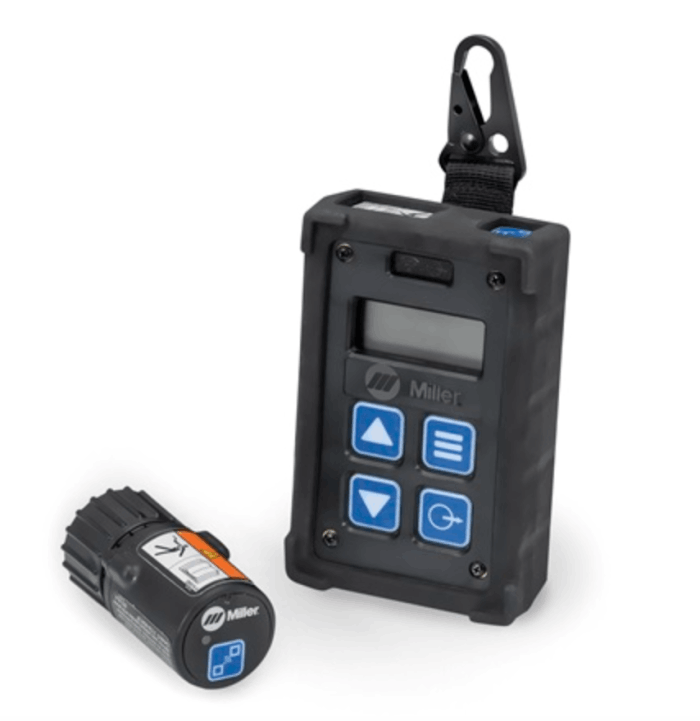

For remote current and contactor
control. The receiver plugs directly into
the 14-pin receptacle of the Miller® machine.
90-foot (27.4 m) operating range.

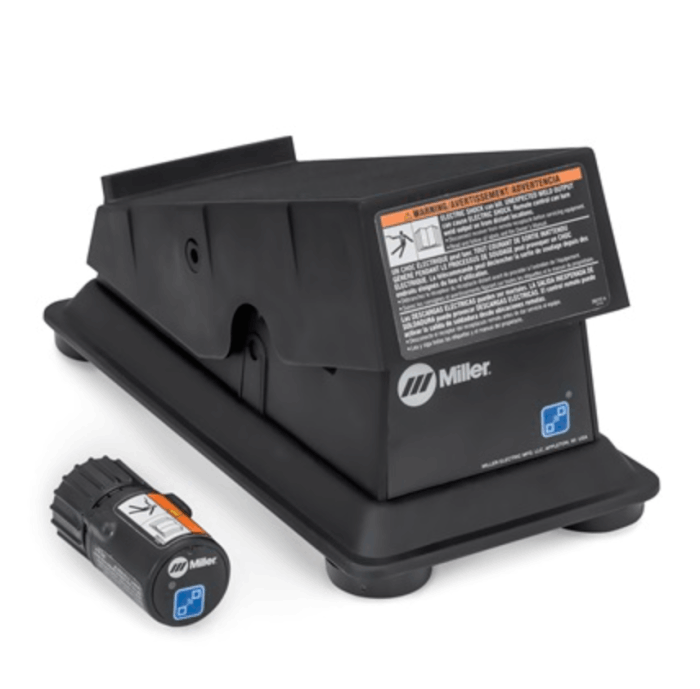

For remote current and contactor control. The receiver plugs directly into the 14-pin receptacle of Miller® machine. 300-foot (91.4 m) operating range.

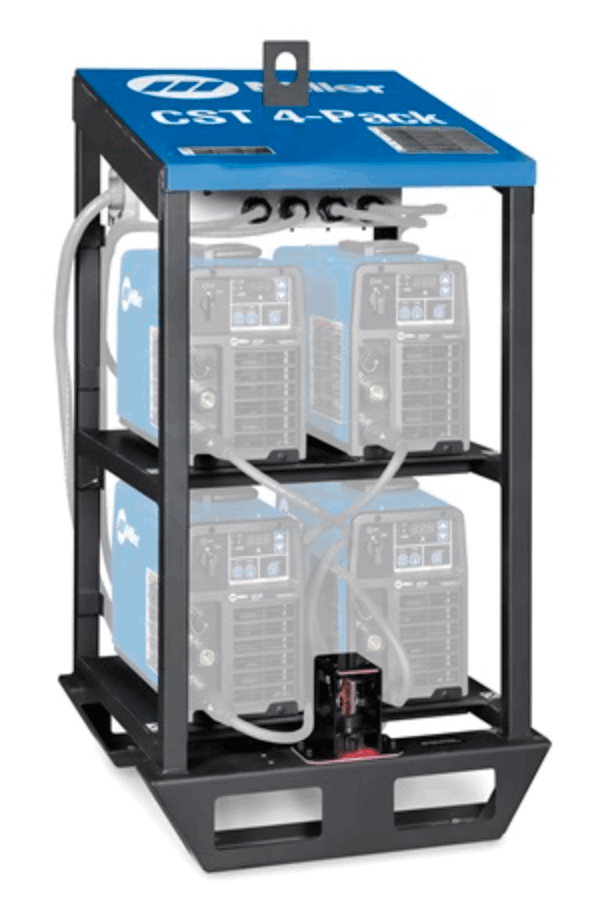

A rugged enclosure provides a simple means of protecting and transporting multiple welding power sources for construction, maintenance/repair, and shipbuilding applications.
4-pack rack, includes castors and cables to connect power sources to common work connection, 951934
8-pack rack, includes castors and cables to connect power sources to common work connection, 301610
20 A fuse for 575 V input (order 12 per 4-pack rack or 24 per 8-pack rack), 212541
Shop tip: confirm rod type, amperage, polarity, and work clamp condition before assuming the machine has failed.
The most useful nearby paths, kept short for fast scanning.
A plasma electrode carries the arc inside the torch. Electrode wear affects arc starting, cut quality, and consumable life.
These accessories are placed here only when the Miller catalog names this machine, torch, feeder, or family path. Verify plug style, voltage, package, and serial-specific details before ordering.
| Part | Accessory | Catalog fitment | Source / path |
|---|---|---|---|
| 042418 | Dinse-Style Connector Kit | Accepts #4 to #1/0 AWG cable. Catalog lists Dinse/Tweco secondary-connection power-source paths. | Catalog p. 121 Open support path |
| 042419 | Extension Kit for Dinse-Style Connectors | Extension path for Dinse-style secondary connectors. | Catalog p. 121 Open support path |
| 134460 | Male Dinse-Style Plug | Male Dinse-style extension component. | Catalog p. 121 Open support path |
| 134600 | Female Dinse-Style Receptacle | Female Dinse-style extension component. | Catalog p. 121 Open support path |
| 042465 | Dinse / Tweco Adapter | Adapter between Dinse-style and Tweco-style secondary connections. | Catalog p. 121 Open support path |
| 042466 | Dinse / Cam-Lok Adapter | Adapter between Dinse-style and Cam-Lok secondary connections. | Catalog p. 121 Open support path |
| 042934 | Universal Cart and Cylinder Rack | For XMT 400, CST, Maxstar 210/280, and Dynasty 210/300. | Catalog p. 121 Open support path |
| 195378 | Air-Cooled TIG Torch Connector | 50 mm Dinse-style for Multimatic 235/255, CST, Syncrowave 300/400, Maxstar 210/280/400, and Dynasty 210/300/400. | Catalog p. 128 Open support path |
