SubArc controls and wire drives

Miller SubArc Components

SubArc components connect the power source to the wire drive, pendant, control interface, cables, flux hopper, and torch head.

Interface controlMotor controlRemote pendantWire drives

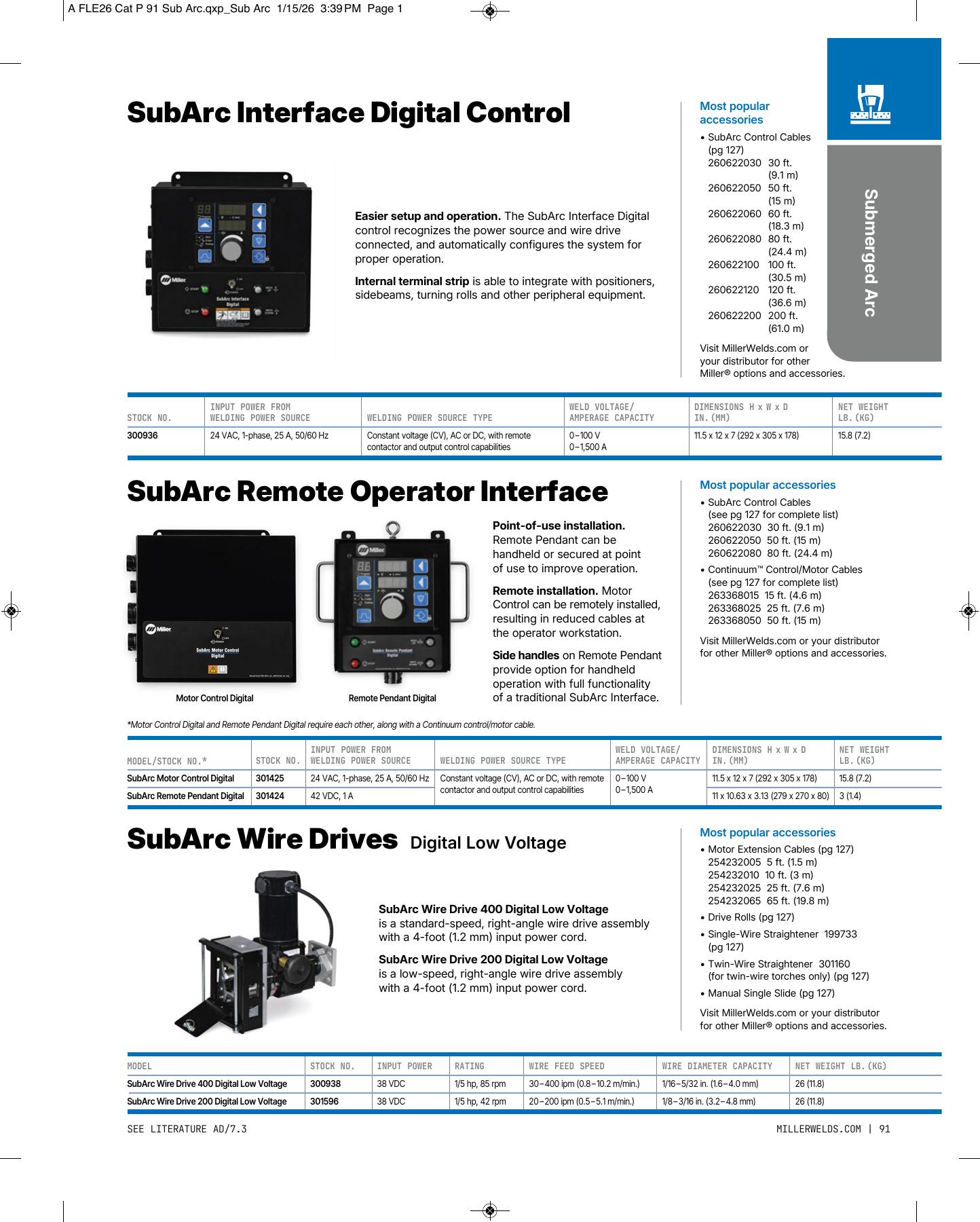

Miller SubArc Components catalog page

Controls and Wire Drives

Part numberComponentPower / ratingUse
300936SubArc Interface Digital Control24 VAC, 1-phase, 25 AControls power source and wire drive; recognizes connected SubArc equipment.
301425SubArc Motor Control Digital24 VAC, 1-phase, 25 ARequires SubArc Remote Pendant Digital and Continuum control/motor cable.
301424SubArc Remote Pendant Digital42 VDC, 1 APoint-of-use pendant for remote operation.
300938SubArc Wire Drive 400 Digital Low Voltage38 VDC; 1/5 hp, 85 rpm30-400 ipm; 1/16-5/32 in. wire diameter capacity.
301596SubArc Wire Drive 200 Digital Low Voltage38 VDC; 1/5 hp, 42 rpm20-200 ipm; 1/8-3/16 in. wire diameter capacity.

Interface and Converter Specs

Part numberModelInput powerCapacity / functionDimensionsNet weight
300936SubArc Interface Digital24 VAC, single-phase, 25 A, 50/60 Hz0-100 V; 0-1,500 AH 11.5 in, W 12 in, D 7 in15.8 lb
301425SubArc Motor Control Digital24 VAC, single-phase, 25 A, 50/60 Hz0-100 V; 0-1,500 AH 11.5 in, W 12 in, D 7 in15.8 lb
301424SubArc Remote Pendant Digital42 VDC, 1 ARemote operator interfaceH 11 in, W 10.63 in, D 3.125 in3 lb
301578SubArc Digital Converter120 VAC, single-phase, 5 A, 50/60 Hz0-100 VH 12 in, W 13.75 in, D 5.4 in25 lb

Control and Motor Cables

Part numberCableLength / note
260622030SubArc Control Cable30 ft Check Price on Amazon
260622050SubArc Control Cable50 ft Check Price on Amazon
260622060SubArc Control Cable60 ft Check Price on Amazon
260622080SubArc Control Cable80 ft
260622100SubArc Control Cable100 ft
260622120SubArc Control Cable120 ft
260622200SubArc Control Cable200 ft
254232005Motor Extension Cable5 ft Check Price on Amazon
254232010Motor Extension Cable10 ft Check Price on Amazon
254232025Motor Extension Cable25 ft Check Price on Amazon
254232065Motor Extension Cable65 ft Check Price on Amazon
260623010Flux Hopper Extension Cable10 ft
260623025Flux Hopper Extension Cable25 ft
260623065Flux Hopper Extension Cable65 ft
263368015Continuum Motor/Control Cable15 ft Check Price on Amazon
263368020Continuum Motor/Control Cable20 ft
263368025Continuum Motor/Control Cable25 ft Check Price on Amazon
263368050Continuum Motor/Control Cable50 ft Check Price on Amazon
263368080Continuum Motor/Control Cable80 ft
263368100Continuum Motor/Control Cable100 ft

Feeder Unit Pages

SubArc Wire Drive 400 Digital Low Voltage

300938 30-400 ipm (0.8-10.2 m/min); 1/16-5/32 in. (1.6-4.0 mm).

View feeder

SubArc Wire Drive 200 Digital Low Voltage

301596 20-200 ipm (0.5-5.1 m/min); 1/8-3/16 in. (3.2-4.8 mm).

View feeder
