Lincoln MIG gun support

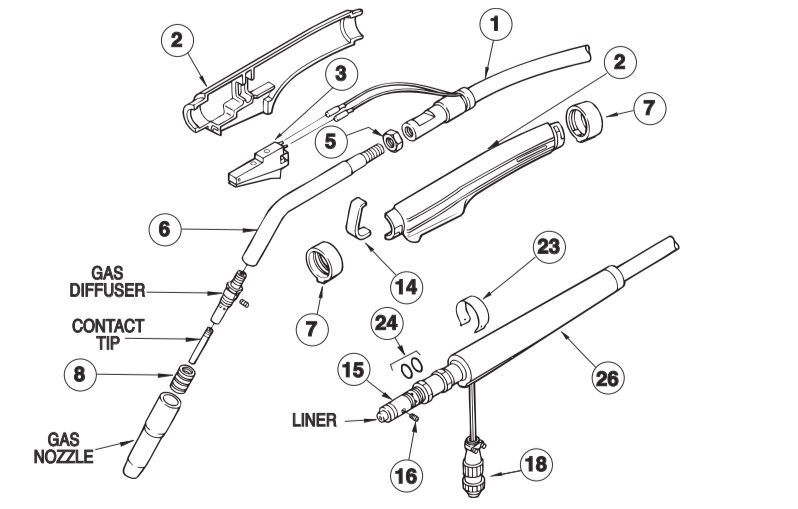

Lincoln Magnum 250L Parts Breakdown

Lincoln Magnum 250L Parts structured from the existing support table for faster visual-to-part lookup.

Item number lookup

Parts List

As an Amazon Associate, I earn from qualifying purchases.

Item # Part # Description Qty Buy
Gun K533-7 / K533-3
Magnum 250L, 12' Lead, W/ Thread on Nozzle (OEM Discontinued) | Magnum 250L, 15' Lead, W/Slip-on Nozzle (OEM Discontinued) |
gun assembly Lincoln Magnum 250L Parts Multiple source part numbers appear in this row. Confirm exact model, length, connector, wire size, or package option before ordering. discontinued Common replacement
Lincoln Magnum 250L Parts
N/A
1 L8324-1 / L8324-2 / L8324-3
Cable Assembly, 10' Lead | Cable Assembly, 12' Lead | Cable Assembly, 15' Lead
cable assembly Lincoln Magnum 250L Parts Multiple source part numbers appear in this row. Confirm exact model, length, connector, wire size, or package option before ordering.
Lincoln Magnum 250L Parts
N/A
2 G2217
Gun Handle (Left & Right)
gun assembly Lincoln Magnum 250L Parts
Lincoln Magnum 250L Parts
N/A
3 S18932
Trigger Assembly |
replacement hardware Lincoln Magnum 250L Parts
Lincoln Magnum 250L Parts
N/A
Contact | Tip KP14-25 / KP14-30 / KP14-35 / KP14-45 / KP14A-364 / KP14H-35 / KP14H-40 / KP14H-45 / KP14H-364 / KP14T-25 / KP14T-30 / KP14T-35 / KP14T-45
Contact Tip (.025), Pack of (10) | Contact Tip (.030), Pack of (10) | Contact Tip (.035), Pack of (10) | Contact Tip (.045), Pack of (10) | Contact Tip (3/64), Pack of (10) Aluminum | | Heavy Duty, Contact Tip (.035), Pack of (10) | Heavy Duty, Contact Tip (.040), Pack of (10) | Heavy Duty, Contact Tip (.045), Pack of (10) | Heavy Duty, Contact Tip (3/64), Pack of (10) Aluminum | | Tapered, Contact Tip (.025), Pack of (10) | Tapered, Contact Tip (.030), Pack of (10) | Tapered, Contact Tip (.035), Pack of (10) | Tapered, Contact Tip (.045), Pack of (10)
contact tip Lincoln Magnum 250L Parts Fitment note: .025 Multiple source part numbers appear in this row. Confirm exact model, length, connector, wire size, or package option before ordering. Common replacement
Lincoln Magnum 250L Parts
pk of 10 N/A
5 S19580
Locking Nut
replacement hardware Lincoln Magnum 250L Parts
Lincoln Magnum 250L Parts
N/A
6 KP2041-1 / KP2015-1 / KP2111-1
Gun Tube Assembly, 45 Degree | Gun Tube Assembly, 60 Degree, Hard Cover | Gun Tube Assembly, 60 Degree, Rubber Cover |
gun assembly Lincoln Magnum 250L Parts Multiple source part numbers appear in this row. Confirm exact model, length, connector, wire size, or package option before ordering.
Lincoln Magnum 250L Parts
N/A
7 S19074
Collar |
replacement hardware Lincoln Magnum 250L Parts
Lincoln Magnum 250L Parts
N/A
8 KP32
Slip-on Nozzle Insulator
nozzle Lincoln Magnum 250L Parts Common replacement
Lincoln Magnum 250L Parts
N/A
Nozzle KP22-37 / KP22-50 / KP22-62 / KP23-37F / KP23-50F / KP23-62F / KP1947-1
Gas Nozzle, 3/8" Bore, Slip-on Style, Requires #8 | Gas Nozzle, 1/2" Bore, Slip-on Style, Requires #8 | Gas Nozzle, 5/8" Bore, Slip-on Style, Requires #8 | | Gas Nozzle, 3/8" Bore, Thread-on Style, Use KP52FN Diffuser | Gas Nozzle, 1/2" Bore, Thread-on Style, Use KP52FN Diffuser | Gas Nozzle, 5/8" Bore, Thread-on Style, Use KP52FN Diffuser | | Gasless Nozzle, Black Plastic
nozzle Lincoln Magnum 250L Parts Fitment note: 3/8" Bore nozzle opening Multiple source part numbers appear in this row. Confirm exact model, length, connector, wire size, or package option before ordering. Common replacement
Lincoln Magnum 250L Parts
N/A
Gas | Diffuser KP52 / KP52-23
Gas Diffuser (.035-.045), Use with Slip-on Nozzle | Gas Diffuser (.025-.030), Use with Slip-on Nozzle |
nozzle Lincoln Magnum 250L Parts Multiple source part numbers appear in this row. Confirm exact model, length, connector, wire size, or package option before ordering. Common replacement
Lincoln Magnum 250L Parts
N/A
Gas | Diffuser KP52FN
Gas Diffuser (.035-.045), Use with Thread-on Nozzle
nozzle Lincoln Magnum 250L Parts Common replacement
Lincoln Magnum 250L Parts
N/A
14 S19241
Hook
replacement part Lincoln Magnum 250L Parts
Lincoln Magnum 250L Parts
N/A
15 S20280
Connector Assembly
replacement part Lincoln Magnum 250L Parts
Lincoln Magnum 250L Parts
N/A
Liner KP42-25-15 / KP42-3035-15 / KP42-4045-15 / KP44N-3545-15
Liner Assembly (.025-.030), 15' Length | Liner Assembly (.030-.035), 15' Length | Liner Assembly (.035-.045), 15' Length | Liner Assembly (.035-.3/64), 15' Length, Teflon (aluminum wire)
liner Lincoln Magnum 250L Parts Fitment note: .025-.030 Multiple source part numbers appear in this row. Confirm exact model, length, connector, wire size, or package option before ordering. Common replacement
Lincoln Magnum 250L Parts
N/A
16 S11604-51
Set Screw |
replacement hardware Lincoln Magnum 250L Parts
Lincoln Magnum 250L Parts
N/A
18 M16700
Control Wire Cord |
replacement part Lincoln Magnum 250L Parts
Lincoln Magnum 250L Parts
N/A
23 S19732
Clip
replacement part Lincoln Magnum 250L Parts
Lincoln Magnum 250L Parts
N/A
24 T13483-8
O-ring, Pack of (5)
replacement hardware Lincoln Magnum 250L Parts Common replacement
Lincoln Magnum 250L Parts
pk of 5 N/A
26 M16324
Cable Boot |
cable assembly Lincoln Magnum 250L Parts
Lincoln Magnum 250L Parts
N/A
